Description

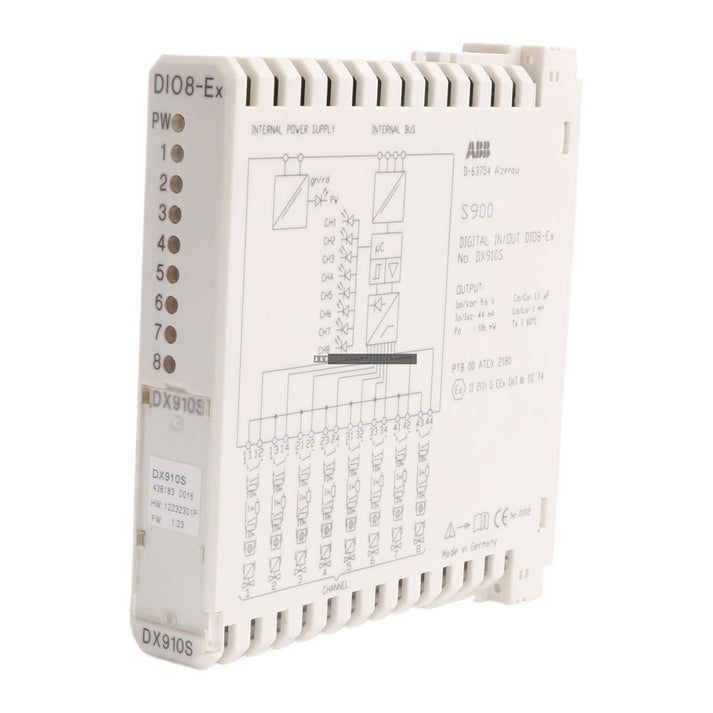

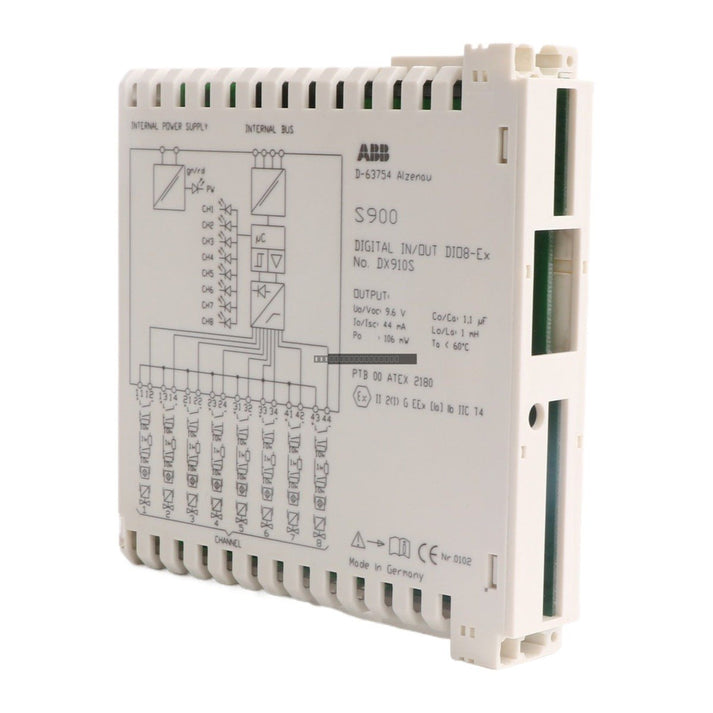

The ABB DX910S is a versatile digital input/output module designed for the Advant S900 I/O series. This module provides reliable signal processing for industrial automation environments, allowing for flexible configuration as either digital inputs or digital outputs depending on the specific application requirements of the control system.

Features

• Compatible with the ABB Advant S900 I/O remote I/O system.
• Configurable channels for digital input or output operations.
• Robust design suitable for demanding industrial process control environments.
• Part of the established S900 series architecture for distributed control.

Applications

This module is typically deployed in process automation systems, including power generation, chemical processing, and water treatment facilities. It is used to interface field-level digital signals with the central control system, facilitating monitoring and control of valves, sensors, and actuators.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the module from the S900 rack.
• Verify that the module is correctly seated in the designated slot to ensure proper backplane communication.
• Maintain proper grounding practices to protect against electromagnetic interference (EMI).
• Ensure adequate ventilation within the cabinet to prevent overheating during continuous operation.
• Handle with care to avoid electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

Is the DX910S configurable for both inputs and outputs?
Yes, the DX910S is designed to function as a digital input or output module, providing flexibility for various field signal requirements.

What system is this module compatible with?
The DX910S is specifically engineered for use with the ABB Advant S900 I/O series.
