Description

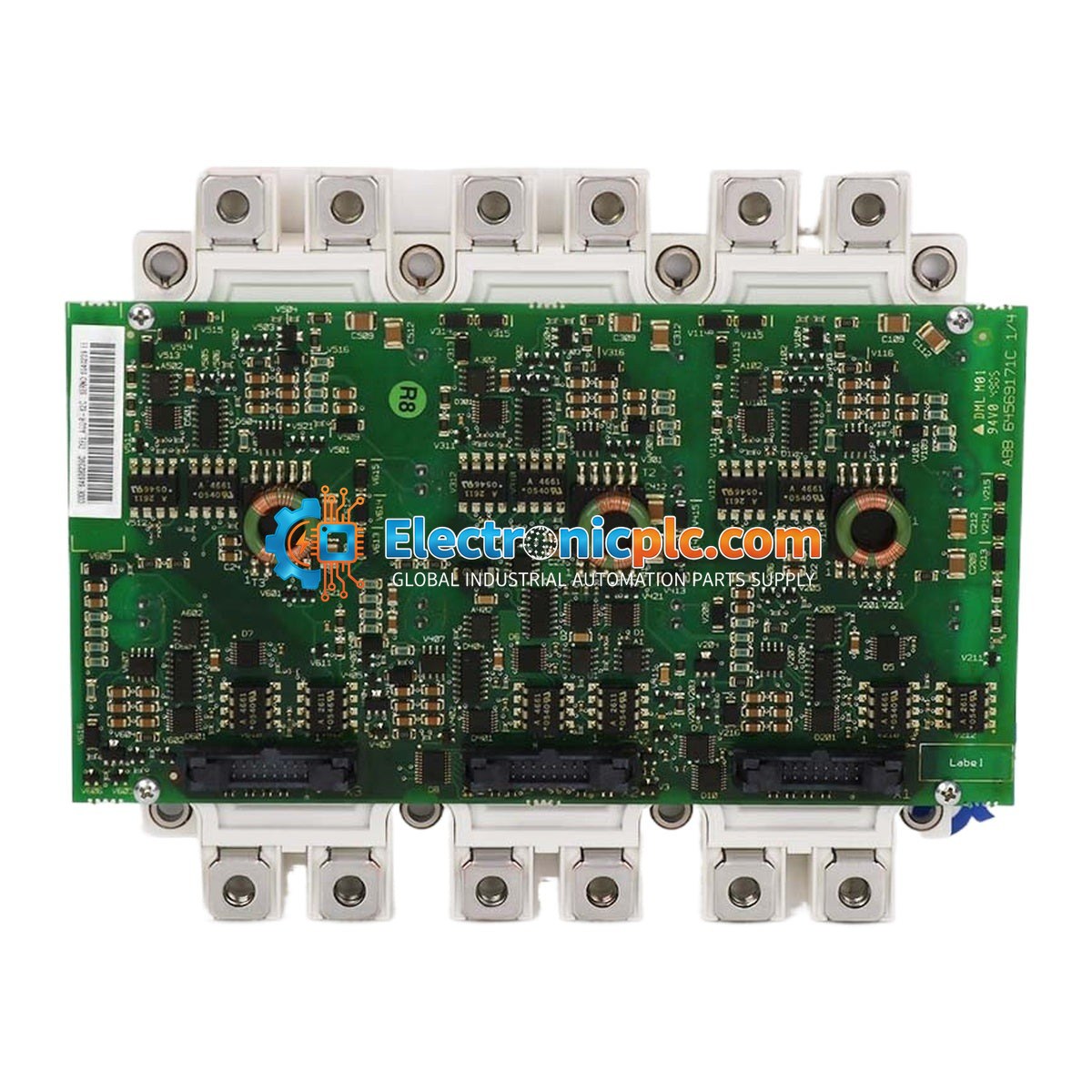

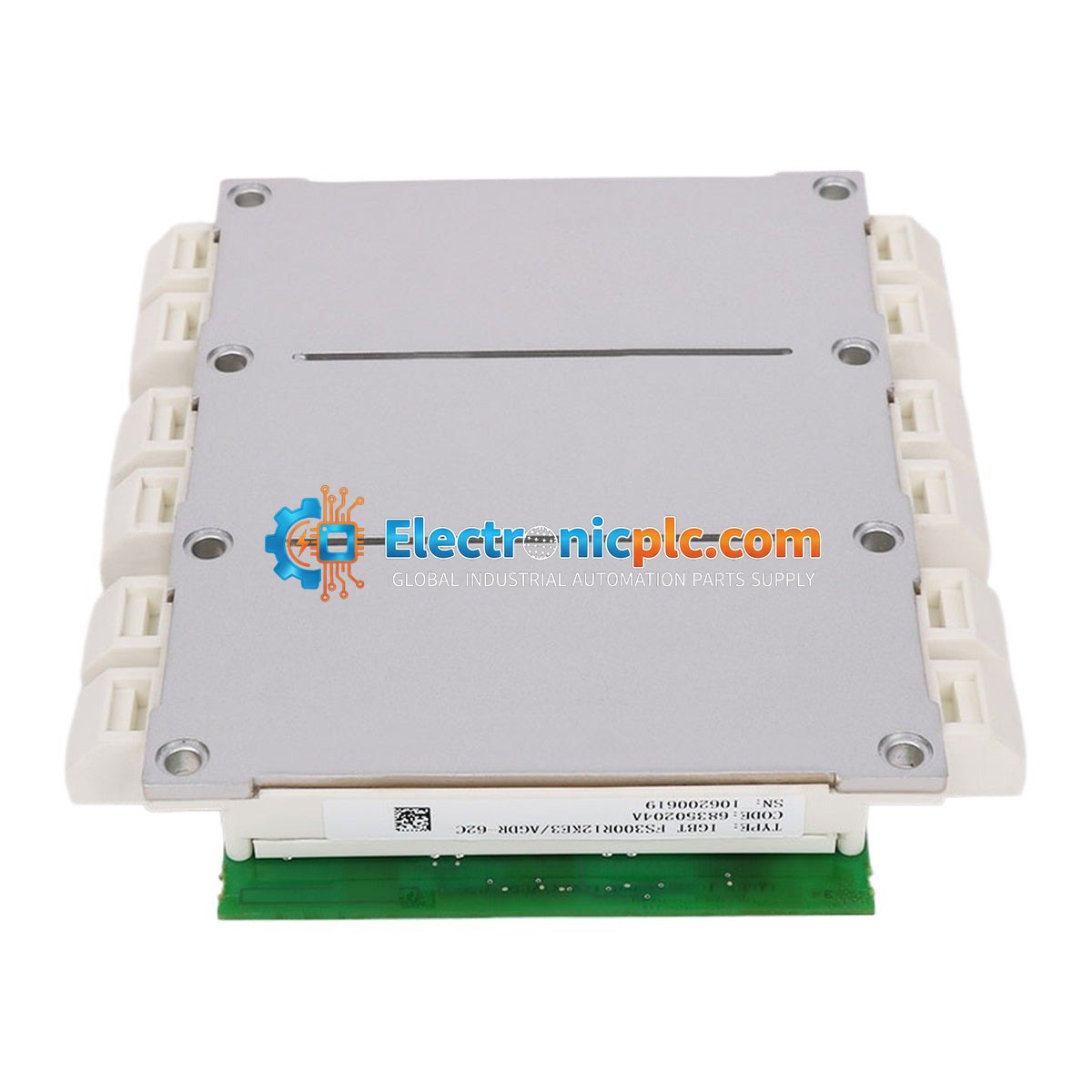

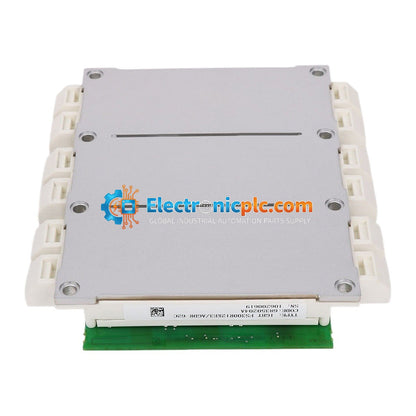

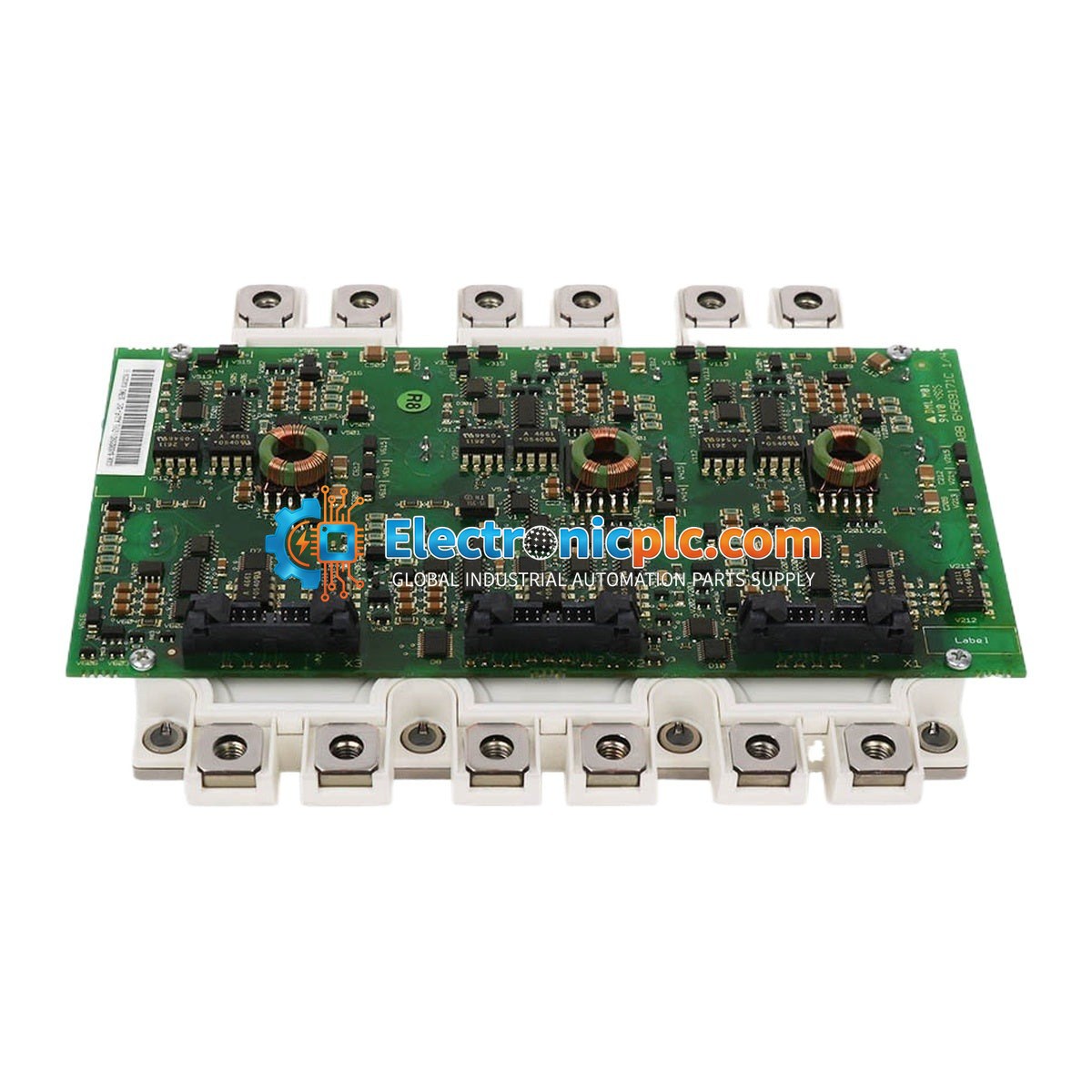

The ABB FS300R12KE3/AGDR-62C is an integrated power module and gate driver kit, featuring the Infineon EconoPACK+ IGBT module paired with a factory-calibrated ABB AGDR-62C gate driver board. This assembly is specifically engineered for high-performance industrial applications, serving as a critical component in ABB ACS800 series variable frequency drives, including the R7i and R8i frame sizes. It provides reliable power switching and integrated protection for medium-voltage power conversion systems.

Features

• Integrated 1200V / 300A IGBT power module and gate driver board.
• Advanced protection functions including overcurrent detection, overheating monitoring, and undervoltage lockout.
• Low saturation voltage drop (typical 1.8V at 300A).
• Designed for high-reliability industrial environments with support for switching frequencies up to 25 kHz.
• Press-fit packaging facilitates robust mounting to heat sinks or PCB assemblies.

Applications

• Motor speed and torque control in production lines, conveyors, and material handling systems.
• Pumping and ventilation systems for water supply and HVAC.
• Renewable energy grid-tie inverters for wind and solar power conversion.
• High-voltage switching for industrial robotics and manufacturing cells.

Technical Specifications

Installation Guidelines

• ESD Protection: The module contains sensitive electronic components. Always use an anti-static wrist strap and handle by the edges to prevent electrostatic discharge damage.
• Busbar Alignment: Ensure physical layout of AC busbars is perfectly symmetrical to maintain balanced current distribution and prevent localized thermal wear.
• Driver Board Consistency: When replacing modules in parallel, ensure all gate driver boards share identical firmware revisions and component batches to prevent switching delays.
• Replacement Practice: It is highly recommended to replace the ribbon cable during module installation to ensure reliable communication and prevent drive faults.
• Mechanical Removal: Power down the drive, remove fiber-optic links and auxiliary power cables, unfasten AC output busbars, and extract the assembly by unscrewing the housing mounting points.

FAQ

What is the FS300R12KE3/AGDR-62C?

The ABB FS300R12KE3/AGDR-62C is an integrated IGBT and drive board module widely used in ABB industrial drives, specifically the ACS800 multidrive systems.

Should I replace the ribbon cable when installing a new module?

Yes, it is highly recommended to use a brand-new ribbon cable when replacing the IGBT module to ensure optimal communication and prevent drive faults.

What safety precautions are required when handling this board?

The board contains sensitive electronic components prone to electrostatic discharge (ESD). Always use an anti-static wrist strap, handle the module by its edges, and store it in an anti-static bag when not actively in use.
