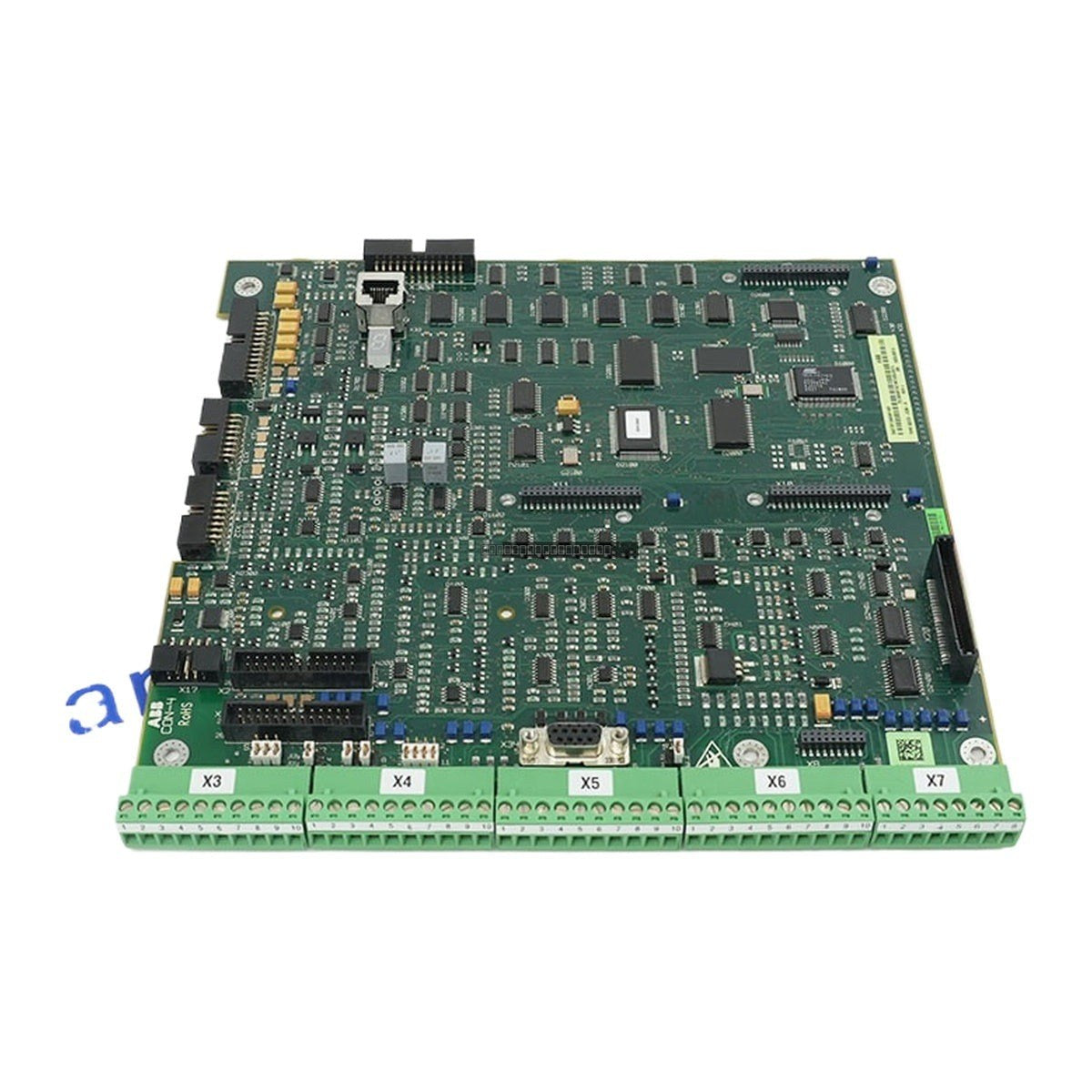

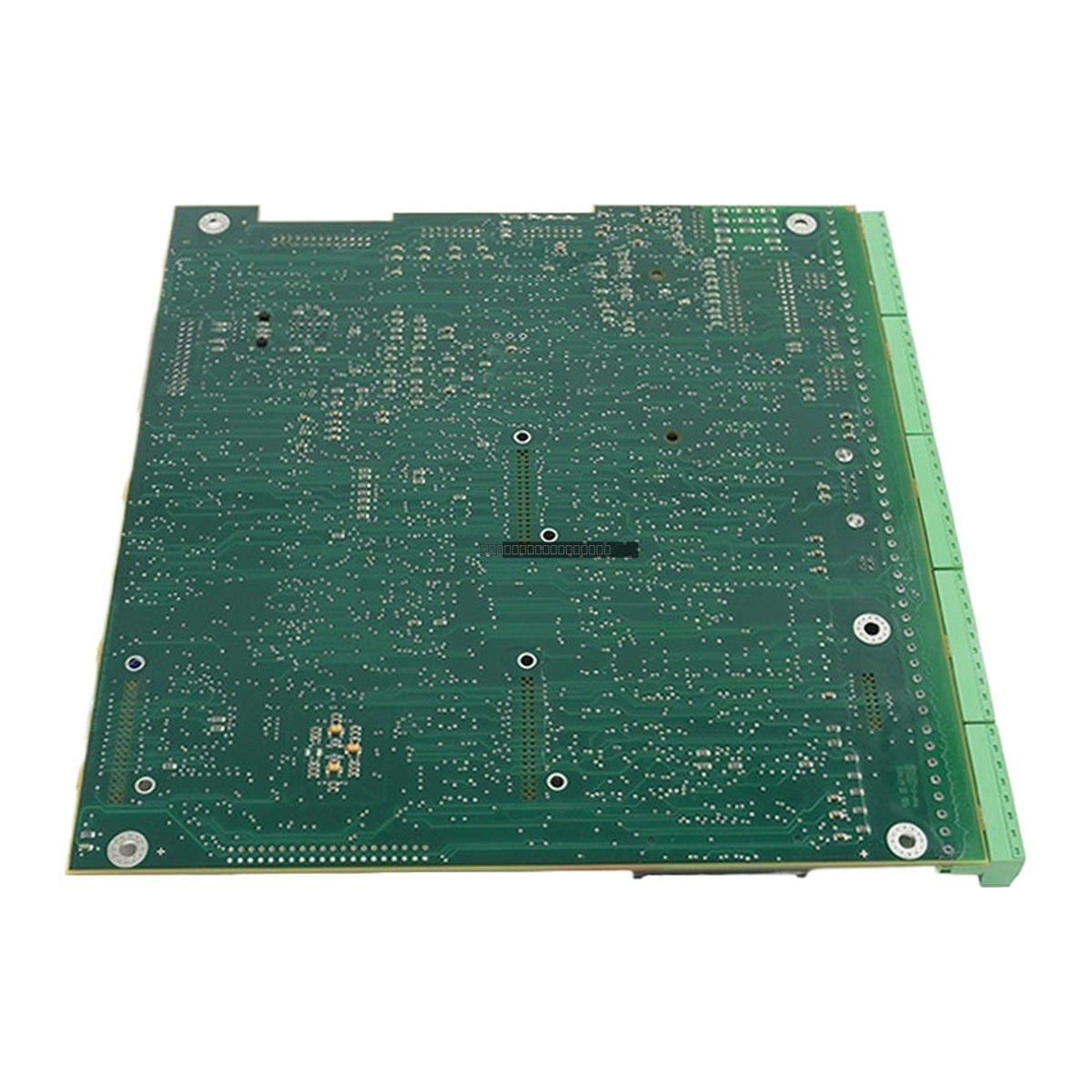

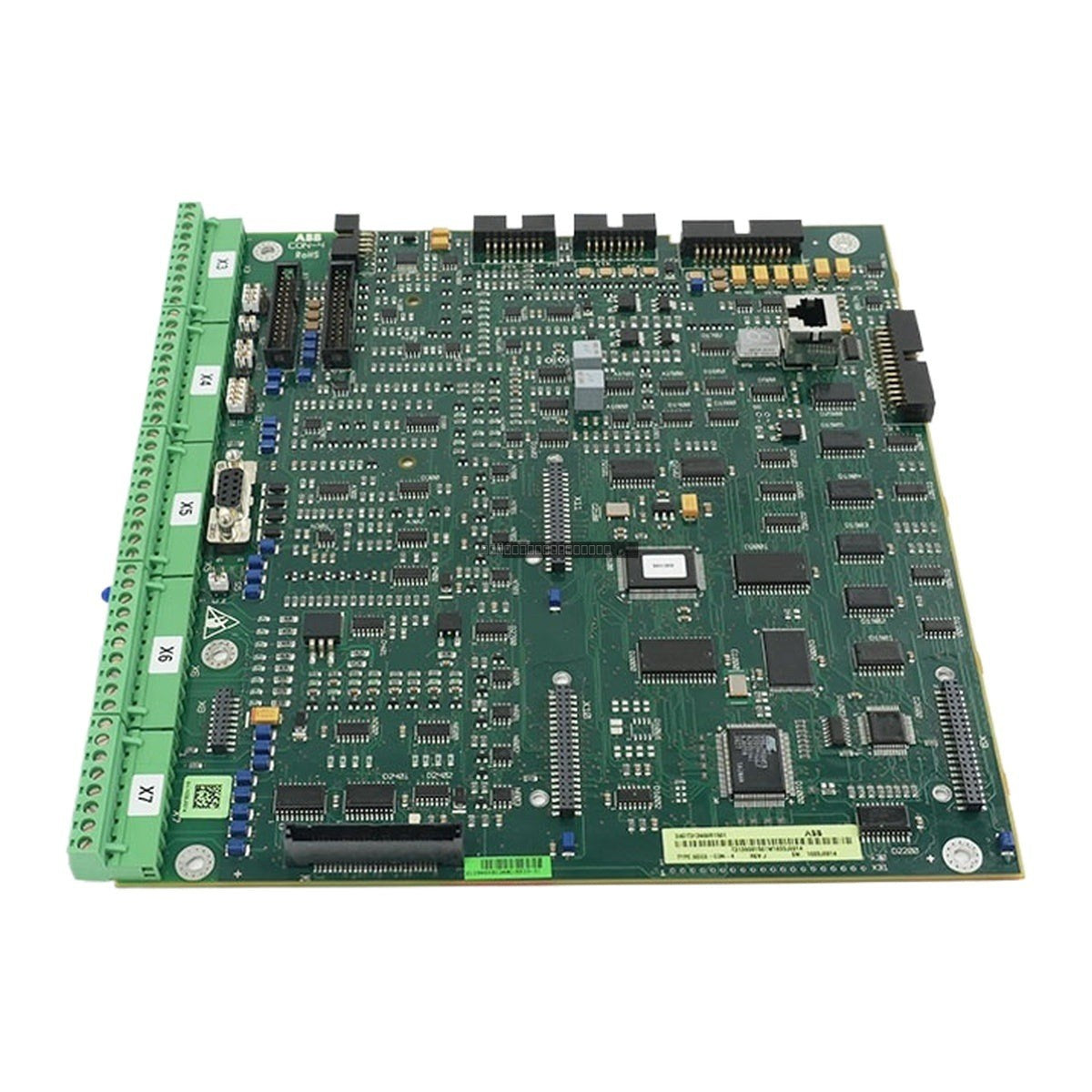

ABB SDCS-CON-4 3ADT313900R1501 Control Board

ABB SDCS-CON-4 3ADT313900R1501 Control Board

The ABB SDCS-CON-4 (3ADT313900R1501) is the primary control board designed for the DCS800 series of industrial DC drives. Serving as the central processing unit, this module manages firmware execution, motor...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: SDCS-CON-4 3ADT313900R1501
Proveedora: ABB
tipo: Control Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The ABB SDCS-CON-4 (3ADT313900R1501) is the primary control board designed for the DCS800 series of industrial DC drives. Serving as the central processing unit, this module manages firmware execution, motor regulation, parameter storage, and system communication. It is also compatible with legacy DCS600 series drives, making it a versatile component for drive maintenance and system upgrades.

Features

  • Central processing for motor control and drive management.
  • Integrated FlashPROM for firmware and parameter storage.
  • On-board power supply monitoring with CPU reset protection at 4.75V.
  • Galvanically isolated digital I/O via optocouplers.
  • Configurable analog I/O for versatile process interfacing.
  • Supports communication protocols including PROFIBUS, MODBUS, and Ethernet.

Applications

  • Metals Industry: Rolling mills, pipe mills, and wire drawing applications.
  • Pulp and Paper: Winder drives and various processing machinery.
  • Material Handling: Conveyors, lifting equipment, and cable cars.
  • Non-Motor Applications: Electrolysis plants, magnet power supplies, and battery charging systems.

Technical Specifications

Model SDCS-CON-4 3ADT313900R1501
Supply Voltage 24V DC
Power Consumption 15-20W (typical)
Digital I/O 8 Inputs / 8 Outputs
Analog I/O 4 Inputs / 4 Outputs
Operating Temperature 0 degC to +55 degC
Storage Temperature -40 degC to +70 degC
Humidity 5-95% RH (non-condensing)

Installation Guidelines

  • ESD Precautions: This board contains highly sensitive electronic components. Always utilize a grounded wrist strap when handling to prevent electrostatic discharge damage.
  • Mounting: Install the module into the designated CPU rack of the DCS800 system. Ensure proper seating with compatible backplanes such as the SDCS-PIN-46 or SDCS-PIN-48.
  • Fiber Optics: When using fiber optic links, maintain a minimum bend radius of 35 mm and ensure fiber ends remain clean and untouched.
  • Safety: Never perform maintenance or wiring modifications while power is applied to the drive, as external circuits may remain energized.
  • Testing: Do not perform insulation resistance or high-voltage withstand tests on the drive module, as these will damage the internal circuitry.

FAQ

What is the primary function of the SDCS-CON-4?

The SDCS-CON-4 acts as the brain of the DCS800 drive, handling all internal logic, firmware, and communication between the drive and external control systems like PLCs.

Can this board store parameters?

Yes, parameters are stored in the onboard FlashPROM. While some parameters are saved automatically, others handled by cyclic communication must be saved using the ParApplSave service.

Is this board compatible with older drive series?

Yes, the SDCS-CON-4 is compatible with DCS600 series drives and is frequently used to modernize legacy drive control systems.
