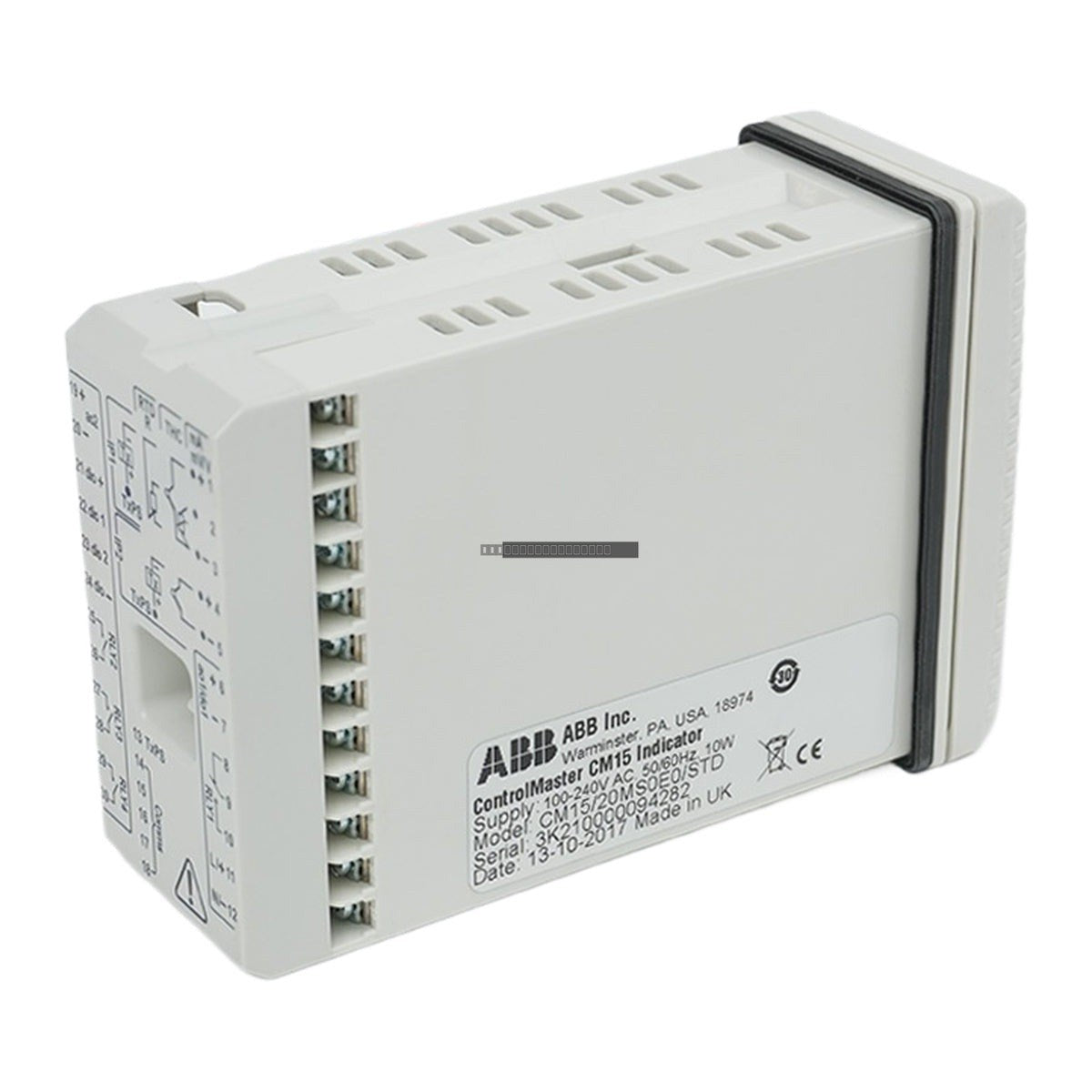

ABB CM15/20MS0E0/STD ControlMaster Universal Process Indicator

ABB CM15/20MS0E0/STD ControlMaster Universal Process Indicator

Description

The ABB ControlMaster CM15/20MS0E0/STD is a high-performance, 1/8 DIN universal process indicator designed for demanding industrial monitoring applications. Featuring a vibrant 5.5 cm (2.2 in.) full-color TFT display, it provides...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: CM15/20MS0E0/STD
Proveedora: ABB
tipo: Universal Process Indicator
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The ABB ControlMaster CM15/20MS0E0/STD is a high-performance, 1/8 DIN universal process indicator designed for demanding industrial monitoring applications. Featuring a vibrant 5.5 cm (2.2 in.) full-color TFT display, it provides clear, full-text presentation of process variables, alarm statuses, and diagnostic information, eliminating the need for complex scrolling menus. This unit is engineered for intuitive operation, rapid commissioning, and flexible integration into various control environments.

Features

  • Full-color TFT display with customizable templates for process visualization.
  • Universal input capability supporting thermocouples, RTDs, mA, V, mV, and frequency signals.
  • Advanced math, logic, and totalization functions for complex process requirements.
  • 4 tactile membrane keys for user-friendly configuration and operation.
  • Robust 1/8 DIN form factor suitable for panel mounting.
  • Integrated diagnostic logging to facilitate rapid troubleshooting and status monitoring.

Applications

  • Water & Wastewater: Ideal for flow totalization and precision level monitoring.
  • Food & Beverage: Suitable for monitoring batching, mashing, and malting parameters.
  • Chemical & Pharmaceutical: Provides high-precision variable tracking where reliability is critical.
  • General Manufacturing: Used in research labs and electrical engineering for versatile process indication.

Technical Specifications

Model CM15/20MS0E0/STD
Form Factor 1/8 DIN Panel Mount
Display 5.5 cm (2.2 in.) Full-color TFT
Power Supply 90 to 264 V AC, 50/60 Hz (Alternative: 10 to 36 V DC)
Analog Inputs 2
Analog Outputs 2
Digital I/O 2
Relays 4
Transmitter Power 24 V DC, 2 loops, 45 mA max
Operator Interface 4 tactile membrane keys

Installation Guidelines

  • Ensure the panel cutout is prepared to 1/8 DIN dimensions before mounting.
  • Use shielded cabling for all analog and frequency input signals to minimize EMI interference.
  • Verify power supply voltage matches the unit specifications (90-264 V AC or 10-36 V DC) before connection.
  • Ensure adequate ventilation around the unit to maintain operating temperature limits.
  • Always disconnect power before performing any wiring or module maintenance.
  • Follow standard ESD precautions when handling the device to protect internal circuitry.

FAQ

What is the primary function of the CM15/20MS0E0/STD?

It serves as a universal process indicator that accepts various sensor inputs and displays them on a high-resolution color screen, providing real-time monitoring and alarm management for industrial processes.

Does this unit support flow measurement?

Yes, the CM15 is capable of accepting frequency signals from flowmeters, allowing for direct flow rate display and totalization.

How are alarms managed?

The device features a dedicated diagnostic and alarm status display that provides clear, full-text information on active conditions, allowing operators to identify and troubleshoot issues quickly.
