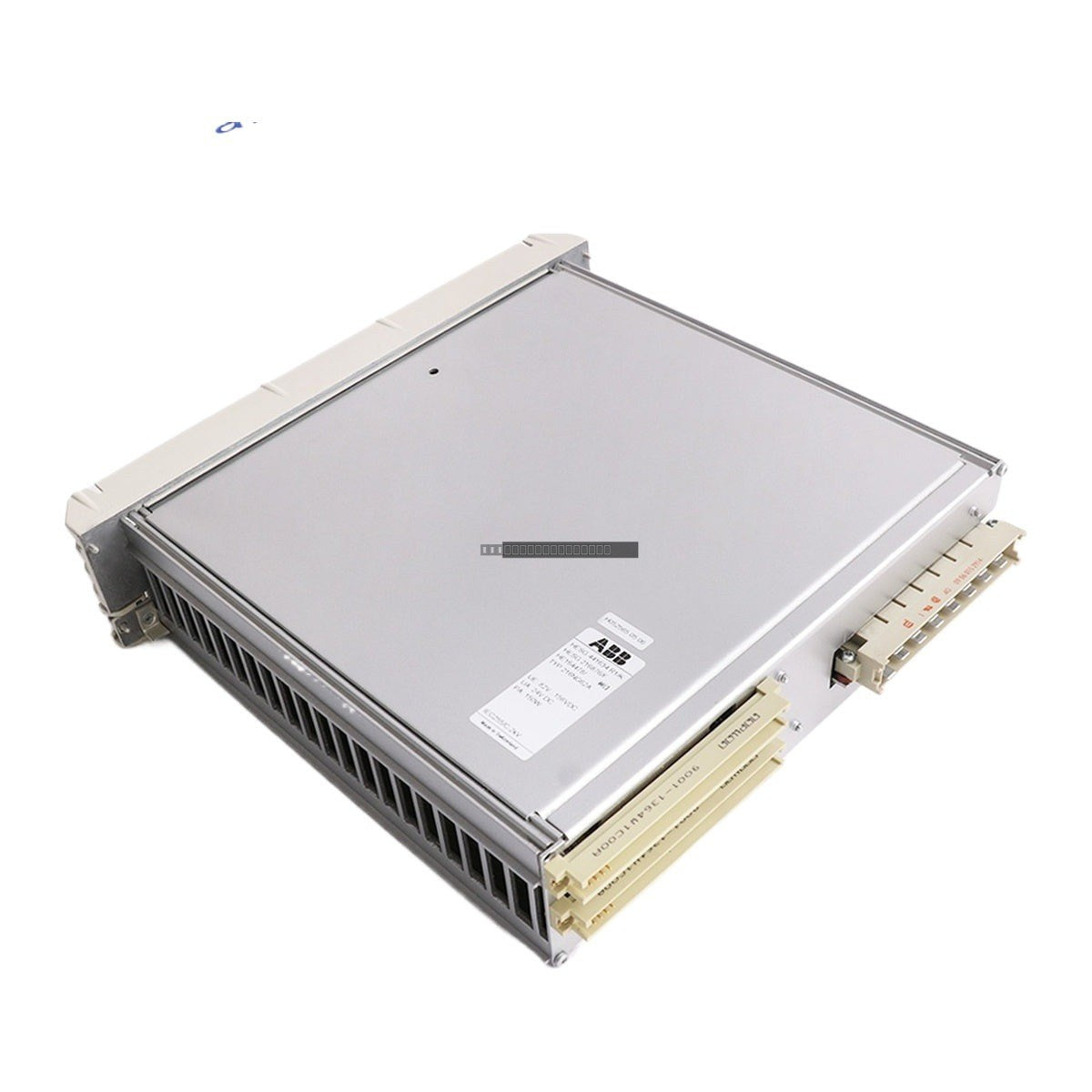

ABB 216NG62A HESG441634R1 Procontrol P13 Decontic Control Board

ABB 216NG62A HESG441634R1 Procontrol P13 Decontic Control Board

Description

The ABB 216NG62A (HESG441634R1) is a specialized control and protection module from the Procontrol P13 Decontic series. It is engineered for high-reliability industrial automation, serving as a central logic processor...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 216NG62A HESG441634R1
Proveedora: ABB
tipo: Control Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The ABB 216NG62A (HESG441634R1) is a specialized control and protection module from the Procontrol P13 Decontic series. It is engineered for high-reliability industrial automation, serving as a central logic processor and protection unit for medium voltage motors. This module facilitates critical signal processing, electrical measurement interfacing, and protective relaying for three-phase asynchronous and synchronous motors operating in the 3 kV to 6 kV range.

Features

  • Integrated motor protection including differential, overcurrent, negative-sequence, earth fault, and thermal overload functions.
  • Supports real-time monitoring of motor acceleration, inrush current, and stall conditions.
  • Configurable current transformer (CT) inputs for 1 A or 5 A secondary currents.
  • Provides trip, alarm, and ready signaling via relay output contacts.
  • Designed for integration into ABB Symphony, AC 800F, and AC 900F control architectures.
  • Robust construction with IP54 front panel protection for harsh industrial environments.

Applications

  • Power Generation: Management of high-capacity pumps, fans, and turbines.
  • Steel and Rolling Mills: Control of induction motors for heavy metal-shaping machinery.
  • Heavy Manufacturing: Continuous operation monitoring for crushers, grinders, and conveyor drives.
  • Chemical and Water Treatment: Reliable motor protection for critical process infrastructure.

Technical Specifications

Model 216NG62A HESG441634R1
Manufacturer ABB
Power Supply 110/125 V DC (82.5 V to 156 V DC range)
Auxiliary Output 24 V DC (150 W)
Power Consumption < 10 W
Operating Temperature -25 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Standards Compliance IEC 60255, IEEE C37.90, IEC 61000

Installation Guidelines

  • Power Down: Ensure all primary and auxiliary power sources are disconnected from the cabinet before module insertion or removal.
  • ESD Protection: Always wear a grounded anti-static wrist strap when handling the board to prevent damage to sensitive internal components.
  • Inspection: Visually inspect backplane connectors for bent or damaged pins prior to installation.
  • Mounting: Designed for 1/4 x 19-inch rack or panel-mount configurations.
  • Environment: Ensure adequate ventilation to maintain operating temperatures within the specified range.

FAQ

What is the function of the 216NG62A module?

It acts as a central logic processor and protection module, executing critical motor speed control, monitoring system health, and triggering protective actions for heavy-duty industrial machinery.

Can this module be exchanged while the system is powered?

Yes, this module is designed for hot-swapping in compatible systems. Ensure the lock switch is set to the unlock position to deactivate the module before removal.

What are the primary power requirements?

The unit is configured for a nominal 110/125 V DC power supply with a tolerance of ±25%, supporting dual redundant power inputs for high availability.
