Allen-Bradley 1336-BDB-SP34D Gate Drive PCB for 1336STG 575V 125HP

Allen-Bradley 1336-BDB-SP34D Gate Drive PCB for 1336STG 575V 125HP

Description

The Allen-Bradley 1336-BDB-SP34D is a replacement gate drive printed circuit board (PCB) designed for use within the 1336STG series variable frequency drive systems. This component is specifically rated for 575V...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 1336-BDB-SP34D
Proveedora: Allen-Bradley
tipo: Drive Gate Drive Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

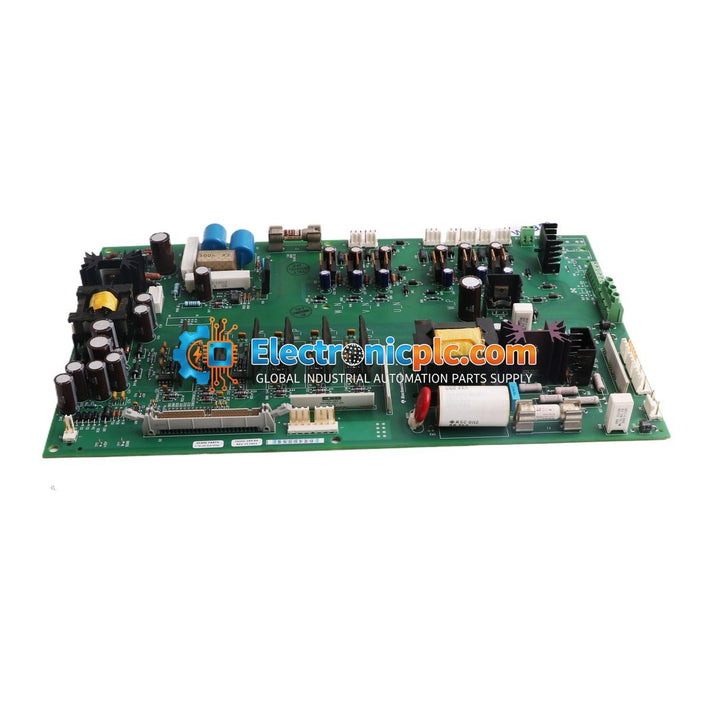

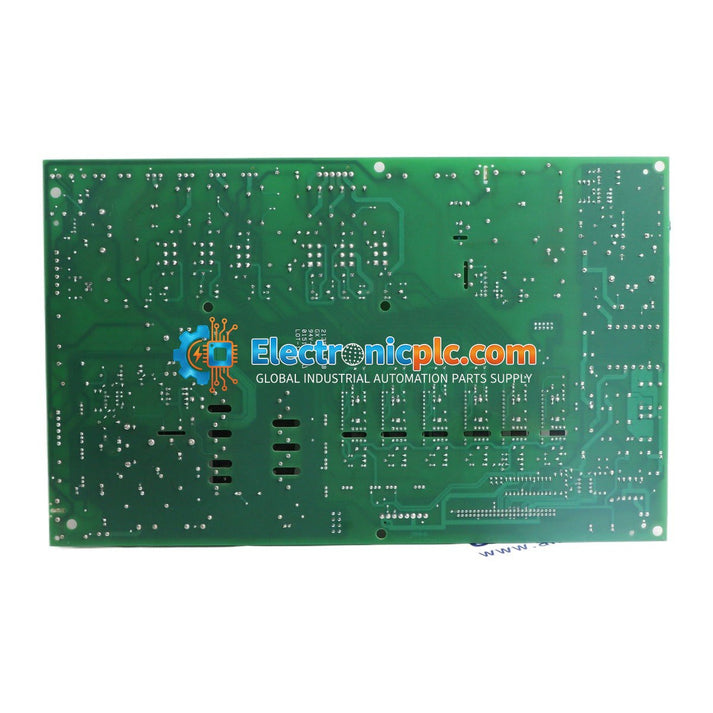

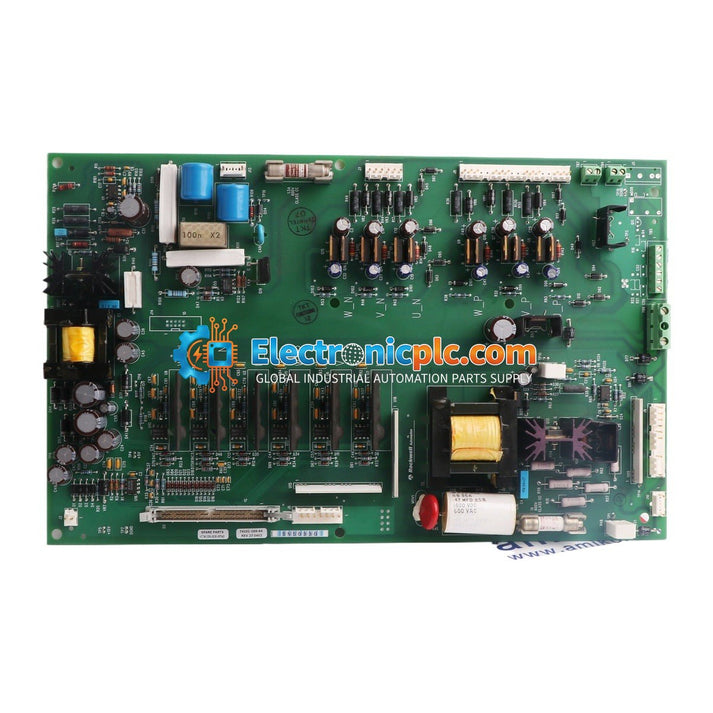

The Allen-Bradley 1336-BDB-SP34D is a replacement gate drive printed circuit board (PCB) designed for use within the 1336STG series variable frequency drive systems. This component is specifically rated for 575V applications with a power capacity of 125HP. As a critical control component, this gate drive board manages the switching signals for the drive's power semiconductors, ensuring precise motor control and operational stability in industrial environments.

Features

  • Engineered for 1336STG series drive compatibility
  • Supports 575V AC input/output configurations
  • Rated for 125HP motor drive applications
  • Direct replacement for specified Allen-Bradley drive hardware
  • Robust PCB construction for industrial reliability

Technical Specifications

Manufacturer Allen-Bradley
Model Number 1336-BDB-SP34D
Spare Model / Ref 74101-169-64
Component Type Gate Drive PCB
Drive Series Compatibility 1336STG
Voltage Rating 575V
Power Rating 125HP
Weight 1.22 kg

Installation Guidelines

  • Safety First: Ensure all power to the 1336STG drive is completely disconnected and locked out before attempting to access or replace the gate drive board.
  • ESD Protection: Use an anti-static wrist strap and grounded work surface when handling the PCB to prevent damage to sensitive electronic components from electrostatic discharge.
  • Inspection: Before installation, verify that the replacement board is free of debris and that all pins are straight and undamaged.
  • Seating: Ensure the board is firmly seated in its designated slot within the drive chassis. Verify that all ribbon cables and connectors are securely locked into place.
  • Verification: After installation, perform a visual inspection of all connections before reapplying power. Follow the manufacturer's startup procedure for the 1336STG drive to ensure the new board is recognized and operating within parameters.

FAQ

Is this board compatible with other 1336 series drives?

This gate drive board is specifically designed for the 1336STG series at the 575V/125HP rating. It is not recommended for use in other 1336 series drives unless explicitly specified by Allen-Bradley documentation, as gate drive timing and signal requirements vary by drive model and power rating.

What should I do if the drive displays a fault after installation?

If a fault persists, verify that all internal connectors are fully seated and that no pins were bent during installation. Ensure the drive firmware settings match the hardware configuration. If the fault remains, consult the 1336STG technical manual for specific error code diagnostics.
