Description

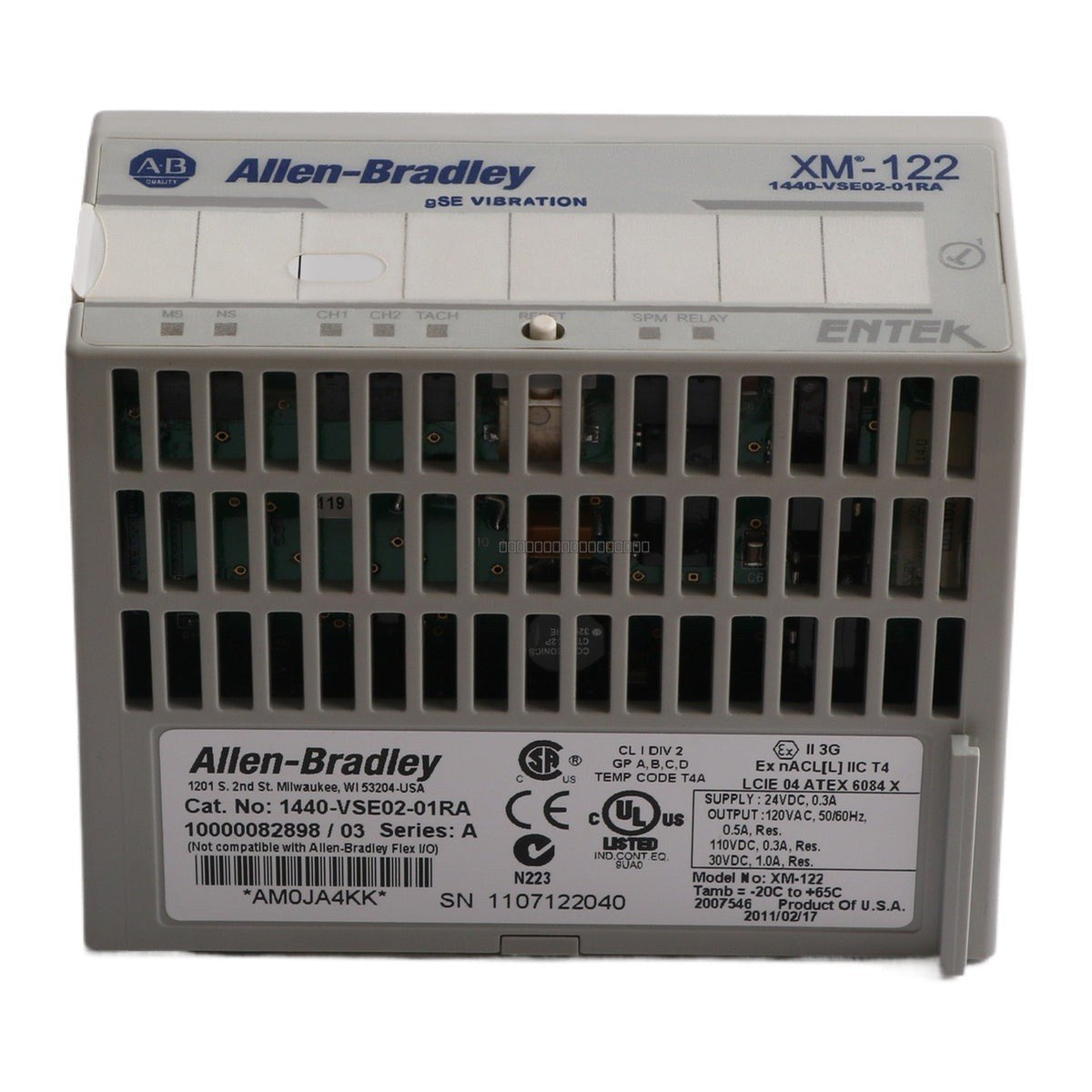

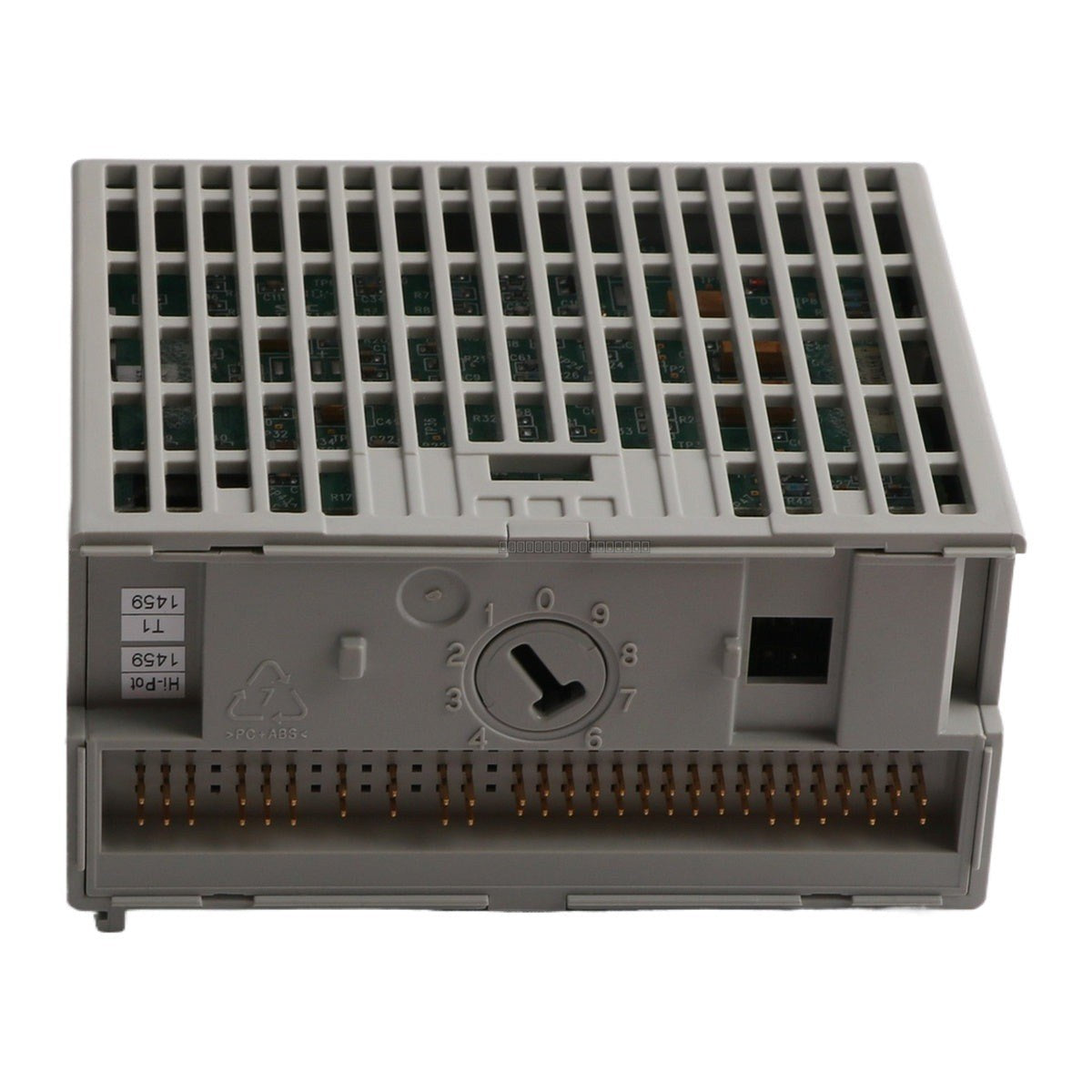

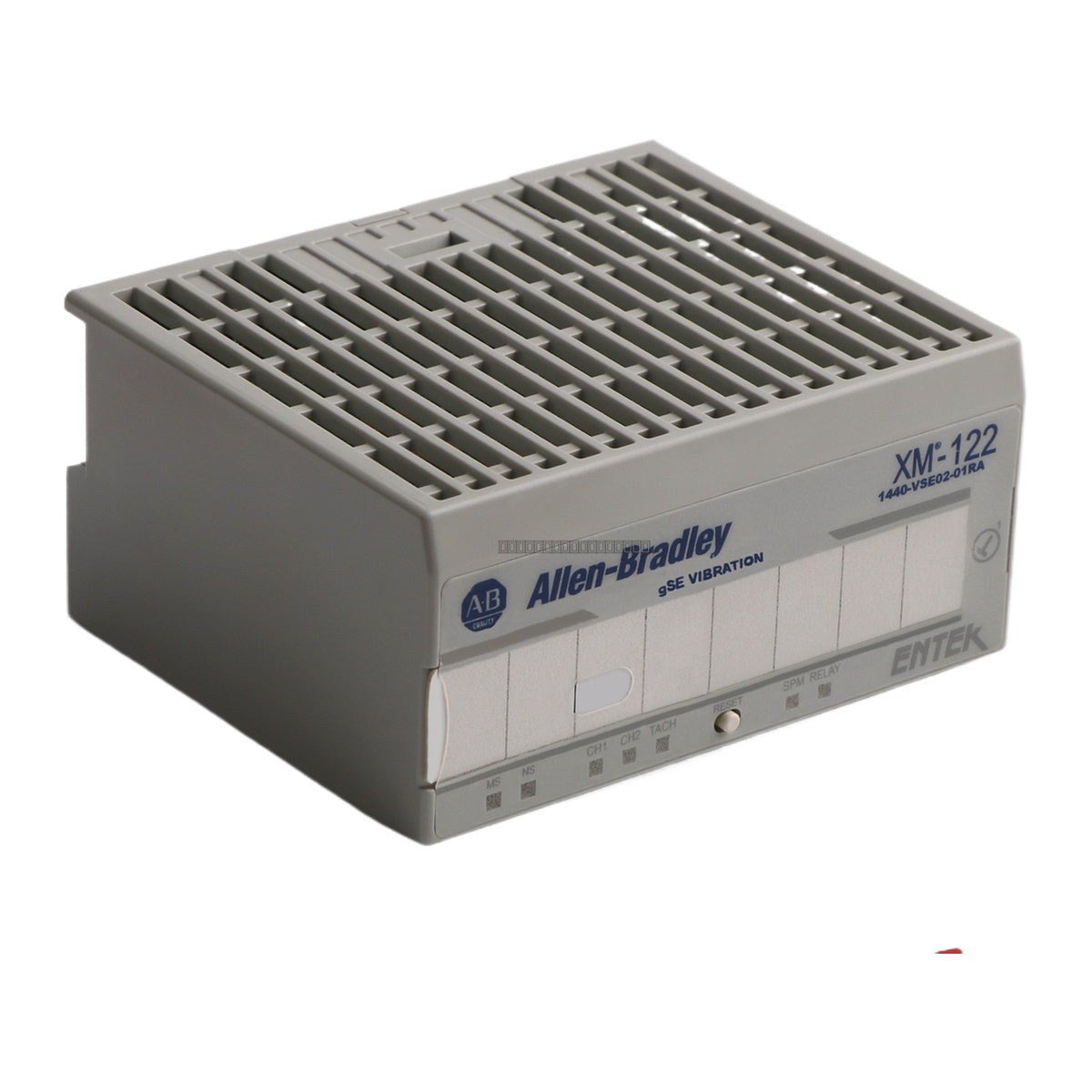

The Allen-Bradley 1440-VSE02-01RA is a gSE (g-SE) vibration measurement module from the XM-122 series. This module is designed for advanced vibration monitoring and analysis in industrial environments, providing critical data for predictive maintenance and machinery health diagnostics. As part of the Allen-Bradley 1440 series, it integrates into larger monitoring systems to track vibration characteristics in rotating equipment.

Features

• Specialized gSE vibration monitoring capabilities.
• Designed for integration with XM-122 series monitoring infrastructure.
• Compatible with standard terminal base mounting configurations.
• Operating temperature range suitable for demanding industrial environments (-20 to 65 degC).
• Supports diverse power supply requirements for flexible installation.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the terminal base.
• Verify that the terminal base is securely mounted and properly grounded according to local electrical codes.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal electronics.
• Ensure adequate ventilation around the module to maintain operating temperatures within the specified -20 to 65 degC range.
• Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.

FAQ

Is this module still in production? No, the 1440-VSE02-01RA has been discontinued by the manufacturer.

What is the primary function of this module? This is a vibration measurement module used to monitor gSE (g-SE) vibration levels, typically used for bearing analysis and monitoring in industrial rotating machinery.
