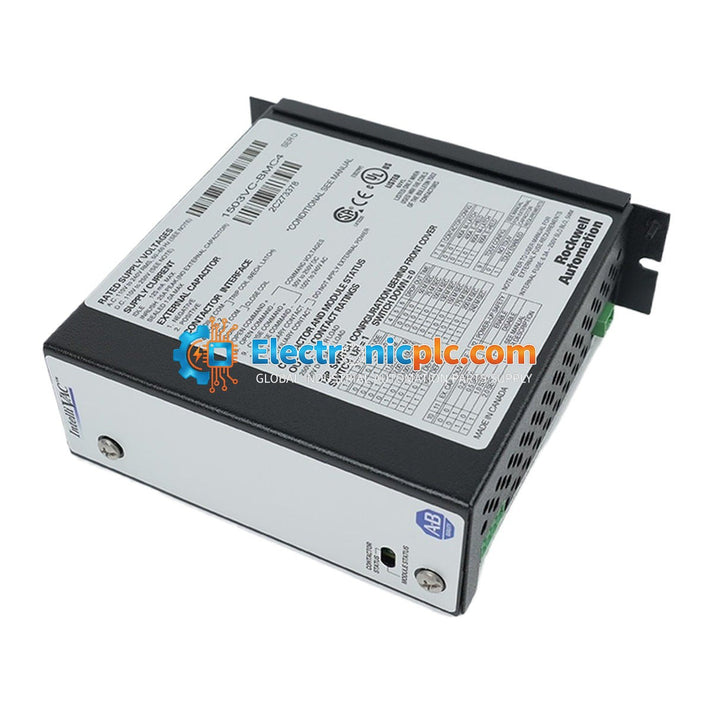

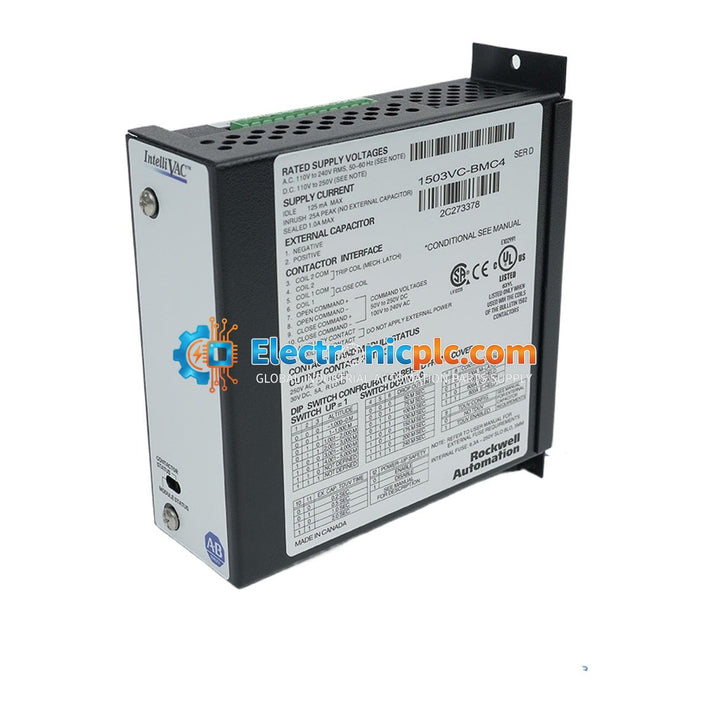

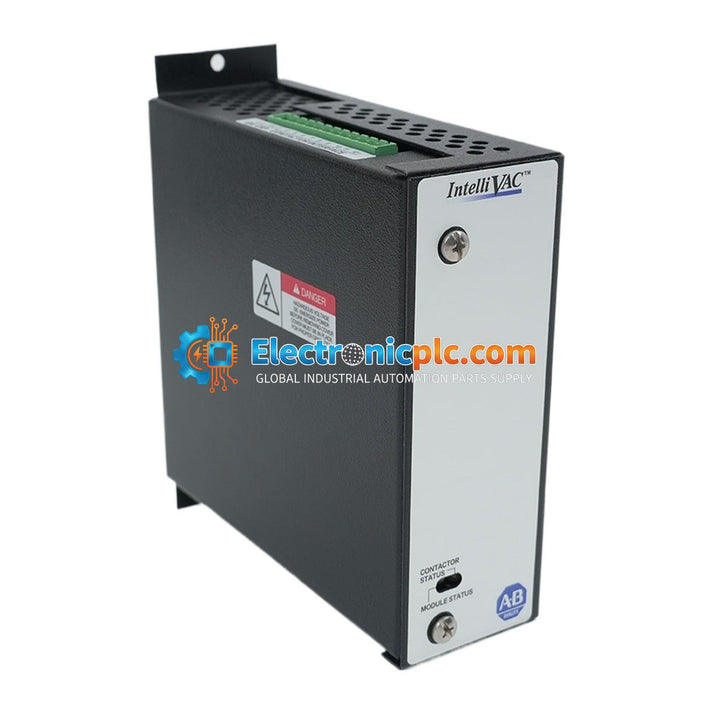

Allen-Bradley 1503VC-BMC4 IntelliVAC Vacuum Contactor Control Module

Allen-Bradley 1503VC-BMC4 IntelliVAC Vacuum Contactor Control Module

Description

The Allen-Bradley 1503VC-BMC4 is an IntelliVAC contactor control module engineered for medium-voltage vacuum contactor applications. As a core component of the Bulletin 1503VC IntelliVAC family, this module provides a...

17 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 1503VC-BMC4
Proveedora: Allen-Bradley
tipo: Contactor Control Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1503VC-BMC4 is an IntelliVAC contactor control module engineered for medium-voltage vacuum contactor applications. As a core component of the Bulletin 1503VC IntelliVAC family, this module provides a scalable, reliable solution for managing Bulletin 1502 vacuum contactors rated at 400 A and 800 A, supporting systems up to 7,200 volts. It features universal input voltage compatibility, allowing for deployment across diverse global power infrastructures without the need for voltage-specific hardware variants.

Features

  • Universal supply voltage: 110–240V AC (50/60 Hz) or 110–250V DC.
  • Consistent pick-up time performance across the entire rated voltage range.
  • Selectable drop-out times (50–240 ms) for precise coordination with upstream power fuses.
  • Integrated anti-kiss and anti-pumping protection to prevent rapid reclosure and contact bounce.
  • DIP switch configurable control parameters for field adjustments without specialized software.
  • Status indication via onboard LEDs and relay outputs for integration into higher-level control systems.
  • Power loss ride-through (TDUV) capability.

Applications

  • Mining and Minerals: Reliable control for crushers, conveyors, and ventilation fans in harsh, high-dust environments.
  • Oil and Gas: Management of high-capacity pumps and compressors in extraction and refining operations.
  • Water/Wastewater: Precise control for large-scale pumping stations requiring high uptime.
  • HVAC and Infrastructure: Control for chillers and large air handlers in data centers and commercial facilities.
  • Renewable Energy: Power conditioning and distribution for grid-scale energy projects.

Technical Specifications

Parameter Specification
Model 1503VC-BMC4
Input Voltage 110–240V AC / 110–250V DC
Max Idle Current 125 mA
Inrush Current 25 A (for 0.5 cycle)
Operating Temperature -40 to 85 degC
Altitude -1000 to 5000 meters
Humidity 95% non-condensing
Tariff Code 8537101190

Installation Guidelines

  • Wiring: Requires a specific wire harness (Catalog No. 1503-WHxxx) to interface with the Bulletin 1502 vacuum contactor.
  • Power Connection: Connect supply power to the designated "Main Input" terminals. Ensure correct polarity for DC applications.
  • Configuration: Use the onboard DIP switches to set control parameters before applying power.
  • Environment: Ensure the module is mounted in an enclosure suitable for the operating temperature and humidity ratings.
  • Safety: Always disconnect all power sources before installing, removing, or performing maintenance on the module.

FAQ

What is the 1503VC-BMC4?
The 1503VC-BMC4 is a Bulletin 1503 IntelliVAC Contactor Control Module designed to control 400A and 800A vacuum contactors in medium-voltage motor controllers and feeders.

What contactors is it compatible with?
It is compatible with Bulletin 1502 400 A and 800 A vacuum contactors.

How does it improve system protection?
It provides selectable drop-out times, which allow for tighter coordination with upstream power fuses, improving overall system selectivity and protection.
