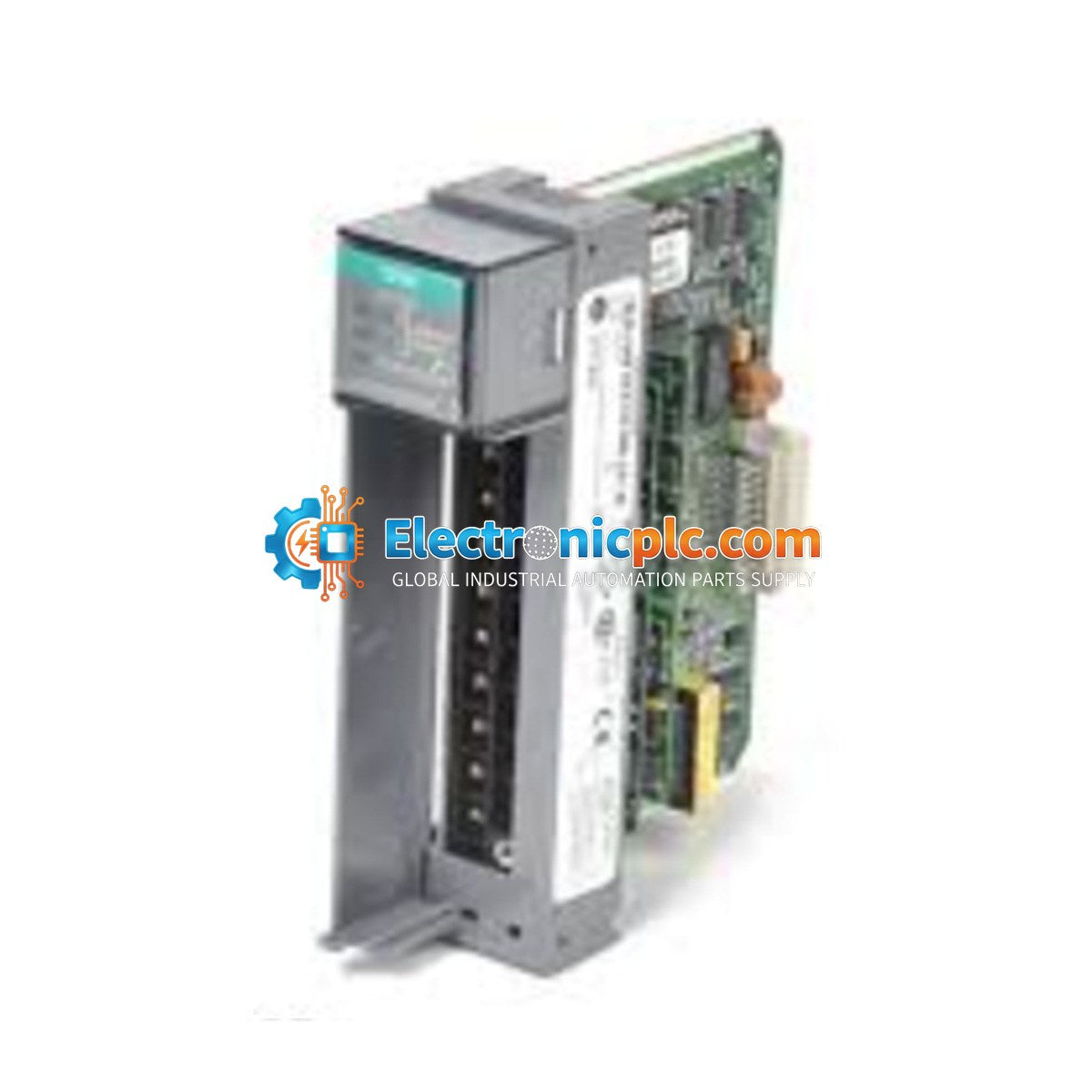

Allen-Bradley 1746-NI16I SLC 500 16-Point Analog Input Module

Allen-Bradley 1746-NI16I SLC 500 16-Point Analog Input Module

Description

The Allen-Bradley 1746-NI16I is a high-density analog input module designed for the SLC 500 programmable logic controller (PLC) system. This module provides 16 single-ended, backplane-isolated input channels with 16-bit resolution,...
