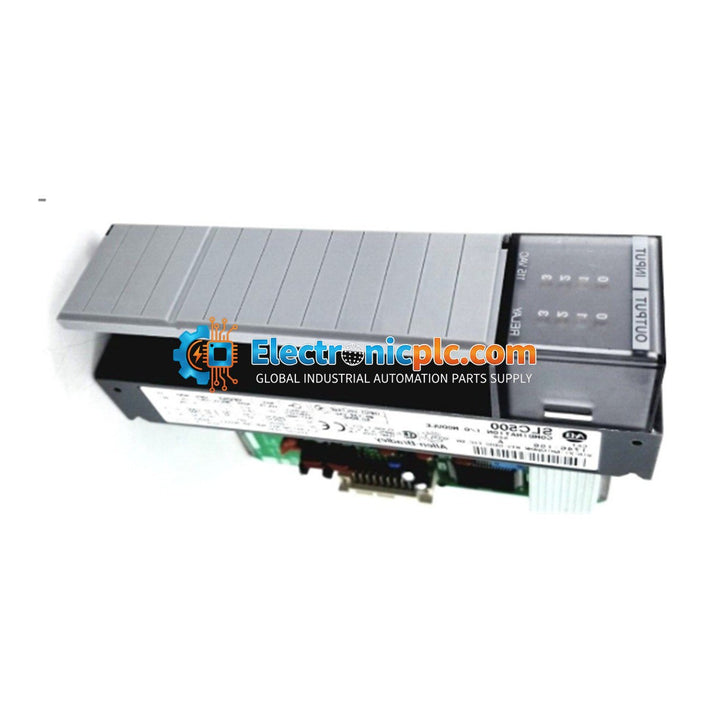

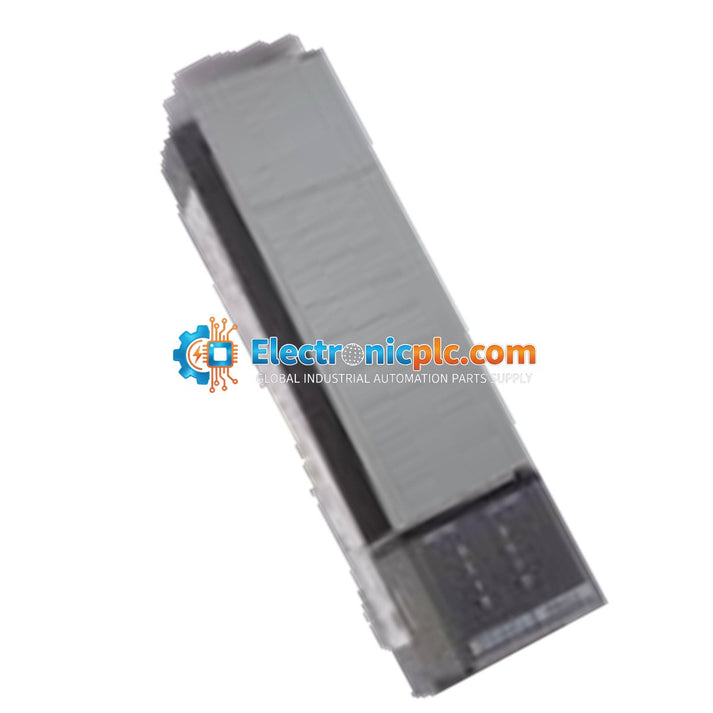

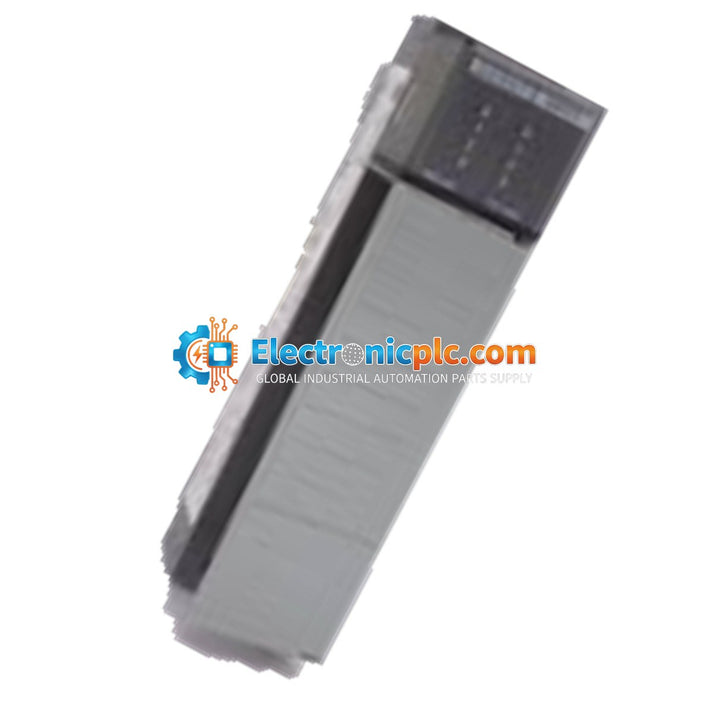

Allen-Bradley 1746-OB8 SLC 500 Digital DC Output Module

Allen-Bradley 1746-OB8 SLC 500 Digital DC Output Module

Description

The Allen-Bradley 1746-OB8 is a high-performance discrete DC output module designed for the SLC 500 programmable logic controller series. This module features eight (8) sourcing outputs, engineered to drive 24V...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 1746-OB8
Proveedora: Allen-Bradley
tipo: Digital Output Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1746-OB8 is a high-performance discrete DC output module designed for the SLC 500 programmable logic controller series. This module features eight (8) sourcing outputs, engineered to drive 24V DC to 48V DC loads, including relays, solenoids, and small actuators. As a sourcing module, it switches the positive side of the DC power source to the load, ensuring compatibility with standard industrial control architectures.

Features

  • Eight (8) sourcing outputs in a single group.
  • Wide operating voltage range of 10V to 50V DC.
  • Electro-optical isolation rated at 1500V between I/O terminals and internal control logic.
  • Integrated status indicators for monitoring output state.
  • Robust thermal management with specified derating for operation up to 60 degC.

Applications

This module is widely utilized in industrial automation environments for controlling actuators, contactors, and pilot lights within the SLC 500 platform. Its sourcing configuration is ideal for applications requiring positive-side switching in automated manufacturing, material handling, and process control systems.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Module Type Digital DC Output (Sourcing)
Number of Outputs 8 (1 Group of 8)
Voltage Range 10–50V DC
Backplane Current (5V DC) 135 mA
On-Signal Delay 0.1 ms (max resistive load)
Off-Signal Delay 1.0 ms (max resistive load)
Continuous Current per Point 1.0 A @ 30 degC / 0.5 A @ 60 degC
Continuous Current per Module 8.0 A @ 30 degC / 4.0 A @ 60 degC
Maximum Surge Current 3.0 Amps for 10 ms (per point)
Maximum Off-State Leakage 1.0 mA
Total Heat Dissipation 6.9 Watts

Installation Guidelines

  • Ensure the PLC chassis power is disconnected before inserting or removing the module.
  • Verify that the module is fully seated in the SLC 500 chassis slot and secured with the top and bottom mounting screws.
  • Use shielded cabling for I/O connections to minimize electromagnetic interference (EMI) in high-noise environments.
  • Ensure proper thermal clearance around the module to maintain the specified operating temperature range.
  • Follow local electrical codes for grounding and wire routing to prevent ground loops and signal degradation.

FAQ

What is the difference between sourcing and sinking outputs?

A sourcing module (like the 1746-OB8) switches the positive voltage (VDC+) to the load, while the load is connected to the common return. A sinking module switches the common return (VDC-) to the load.

Can this module be used at 60 degC?

Yes, the module is rated for operation up to 60 degC, but you must adhere to the thermal derating specifications, which limit the continuous current per point to 0.5 Amps at this temperature.
