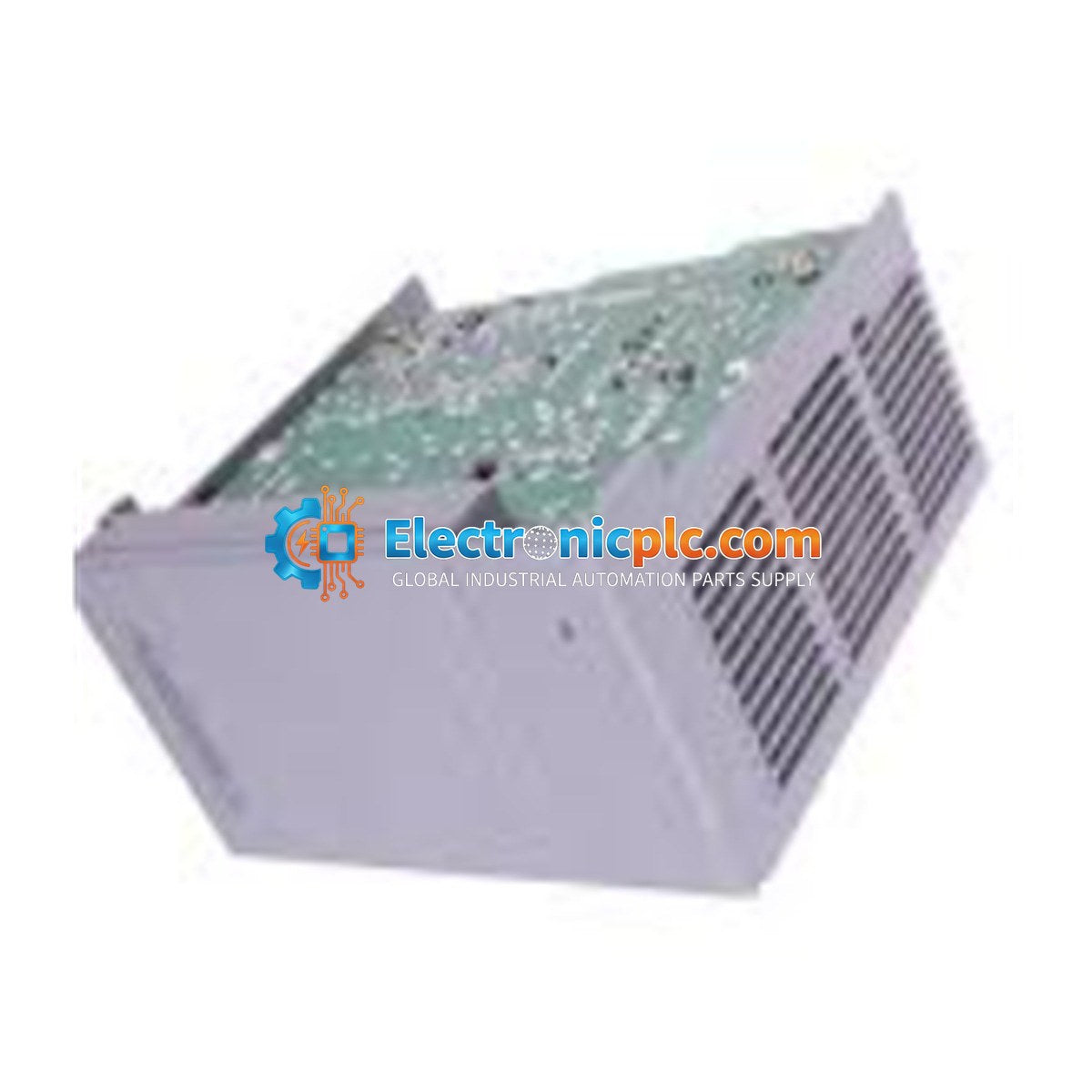

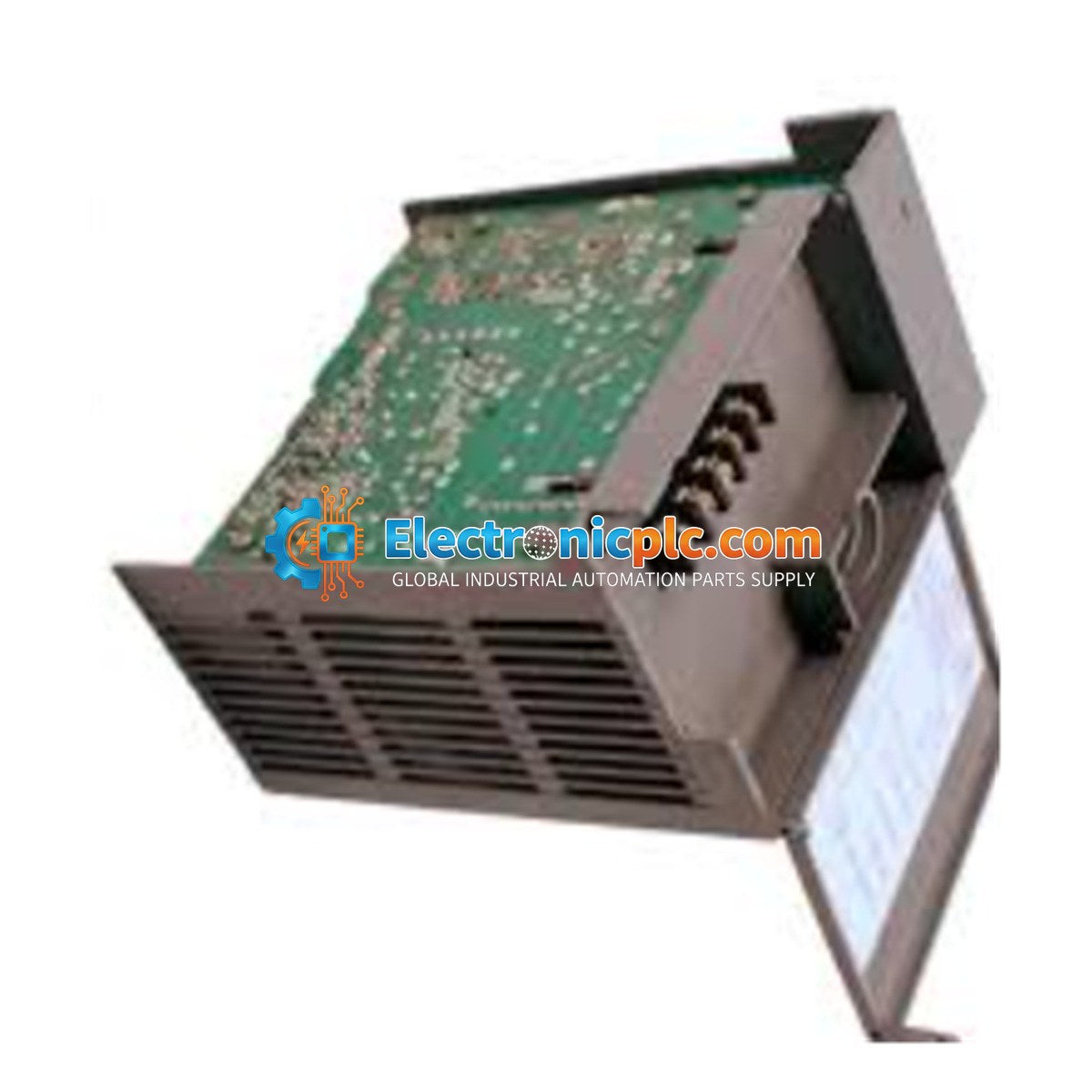

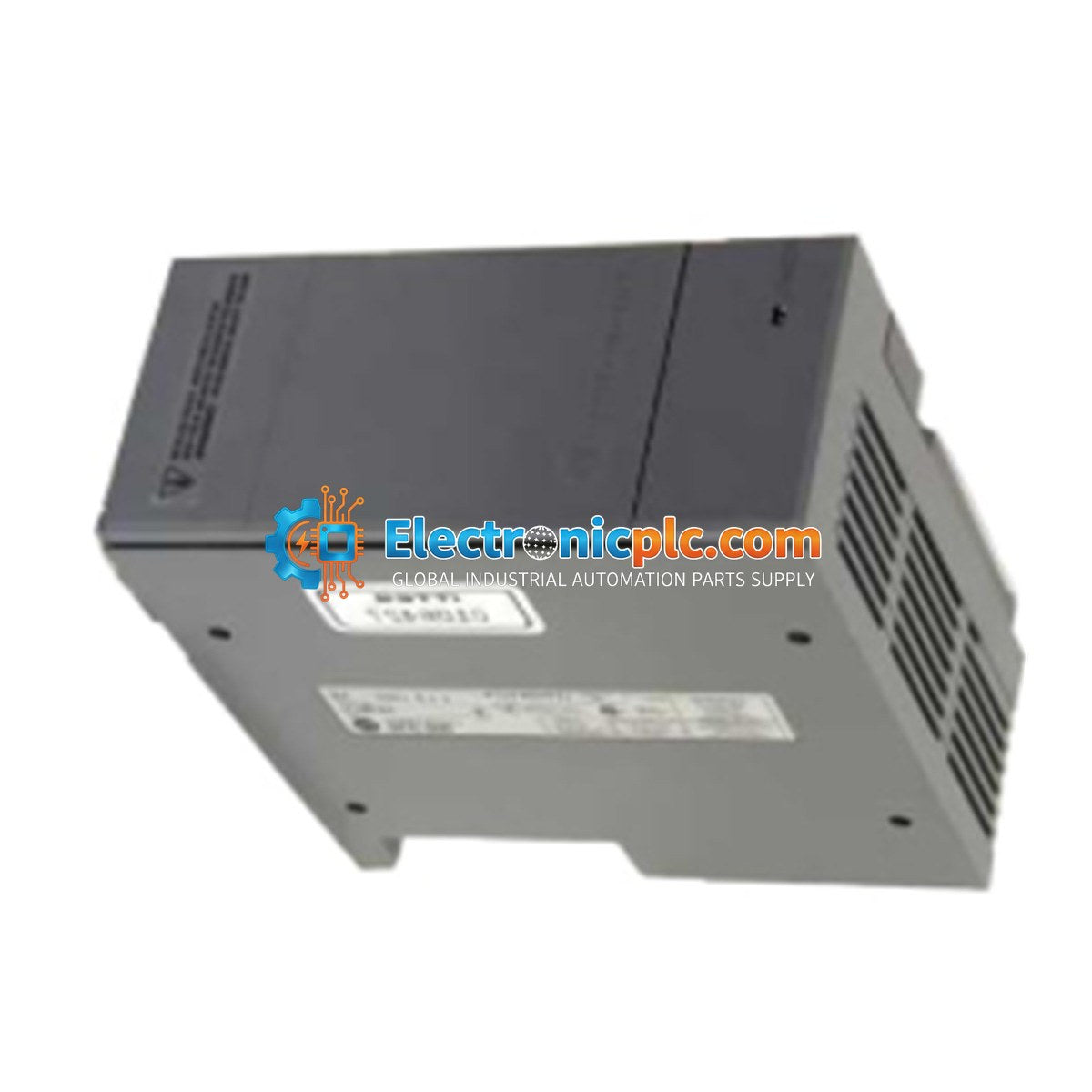

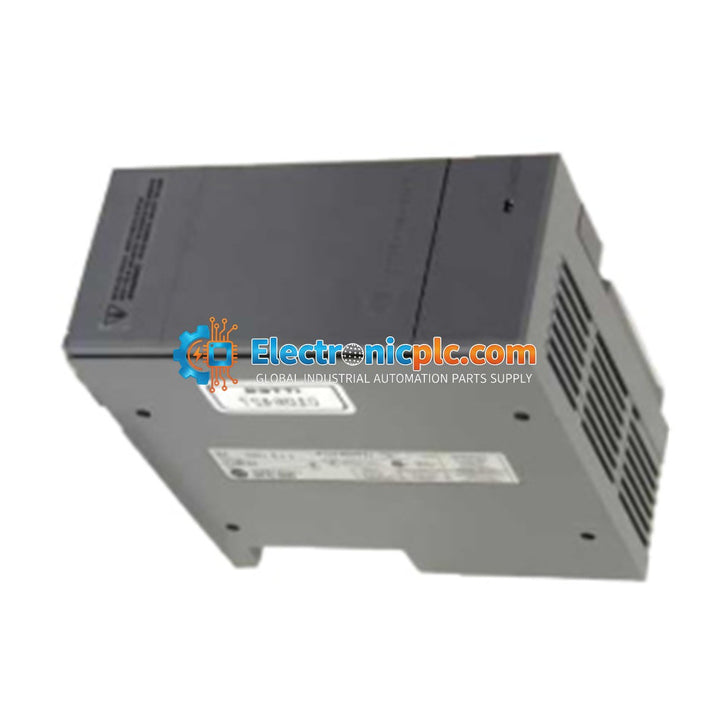

Allen-Bradley 1746-P2 SLC 500 Rack-Mounting Power Supply

Allen-Bradley 1746-P2 SLC 500 Rack-Mounting Power Supply

Description

The Allen-Bradley 1746-P2 is a modular, rack-mounted power supply designed specifically for the SLC 500 programmable controller system. It serves as the primary power source for the chassis, converting AC...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 1746-P2
Proveedora: Allen-Bradley
tipo: PLC Power Supply
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1746-P2 is a modular, rack-mounted power supply designed specifically for the SLC 500 programmable controller system. It serves as the primary power source for the chassis, converting AC line voltage into the regulated DC voltages required by the CPU, I/O modules, and communication adapters. This unit is engineered to provide stable power output, ensuring reliable operation of the controller even during minor fluctuations in the supply line.

Features

  • Designed for integration with SLC 500 modular chassis systems.
  • Provides 5V DC at 5A and 24V DC at 0.96A output capacity.
  • Selectable input voltage range: 85-132V AC or 170-265V AC (47-63 Hz).
  • Includes user-power current capacity of 200mA at 24V DC.
  • Maximum inrush current of 20A.
  • Supports up to two AWG wires per terminal for flexible field wiring.

Applications

  • Automotive Manufacturing: Reliable power for robotic welding and press control systems.
  • Food and Beverage Processing: High hold-up time capability to mitigate power sags during production cycles.
  • Pharmaceutical Production: Suitable for cleanroom-grade equipment such as centrifuges and autoclaves.
  • Water and Wastewater Treatment: Flexible voltage input allows for deployment in remote pumping stations.

Technical Specifications

Model 1746-P2
Input Voltage 85-132V AC / 170-265V AC (Selectable)
Frequency 47-63 Hz
Output (5V DC) 5A
Output (24V DC) 0.96A
Typical Line Power 180 VA
Inrush Current 20A
Operating Temperature 0 to 60 degC
Enclosure Type Open-type

Installation Guidelines

  • Chassis Placement: The 1746-P2 must be installed in the leftmost slot of the 1746 chassis.
  • Voltage Selection: You must manually configure the jumper terminal for the correct input voltage (120V or 240V AC) before applying power to prevent hardware damage.
  • Grounding: Ensure proper connection to the chassis ground terminal to minimize electrical noise and protect logic integrity.
  • Wiring: A maximum of two AWG wires per terminal is permitted.
  • Safety: Power down the system before inserting or removing the module from the chassis.

FAQs

What is the 1746-P2?

The Allen-Bradley 1746-P2 is a legacy, rack-mounted power supply for SLC 500 PLC systems, providing 5V DC (5A) and 24V DC (0.96A) power.

What are the input voltage settings for 1746-P2?

It supports dual voltage operation: 85–132V AC or 170–265V AC (47–63 Hz).

How do I configure the input voltage?

A jumper wire loop located near the AC input terminal block must be configured for either 120V or 220V operation before the unit is energized.

Can the 1746-P2 replace a 1746-P1?

Yes, it is a compatible replacement. The 1746-P2 provides higher output current (5A vs 3.6A at 5V) compared to the 1746-P1.
