Allen-Bradley 1746-QV Open-Loop Velocity Control Module

Allen-Bradley 1746-QV Open-Loop Velocity Control Module

Description

The Allen-Bradley 1746-QV is a specialized motion control module designed for the SLC 500 platform, specifically engineered for open-loop velocity control. This module is primarily utilized to manage the speed...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 1746-QV
Proveedora: Allen-Bradley
tipo: Motion Control Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

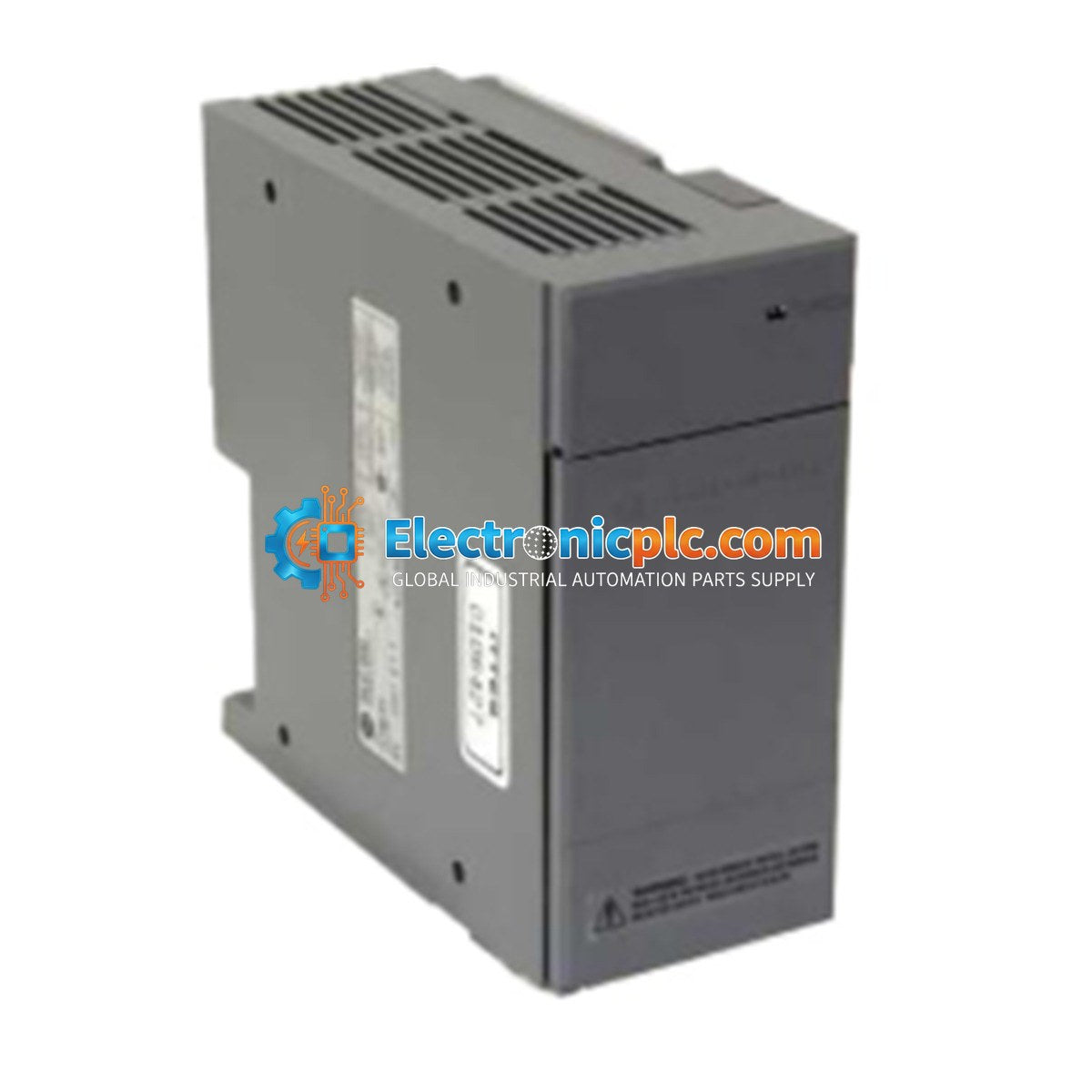

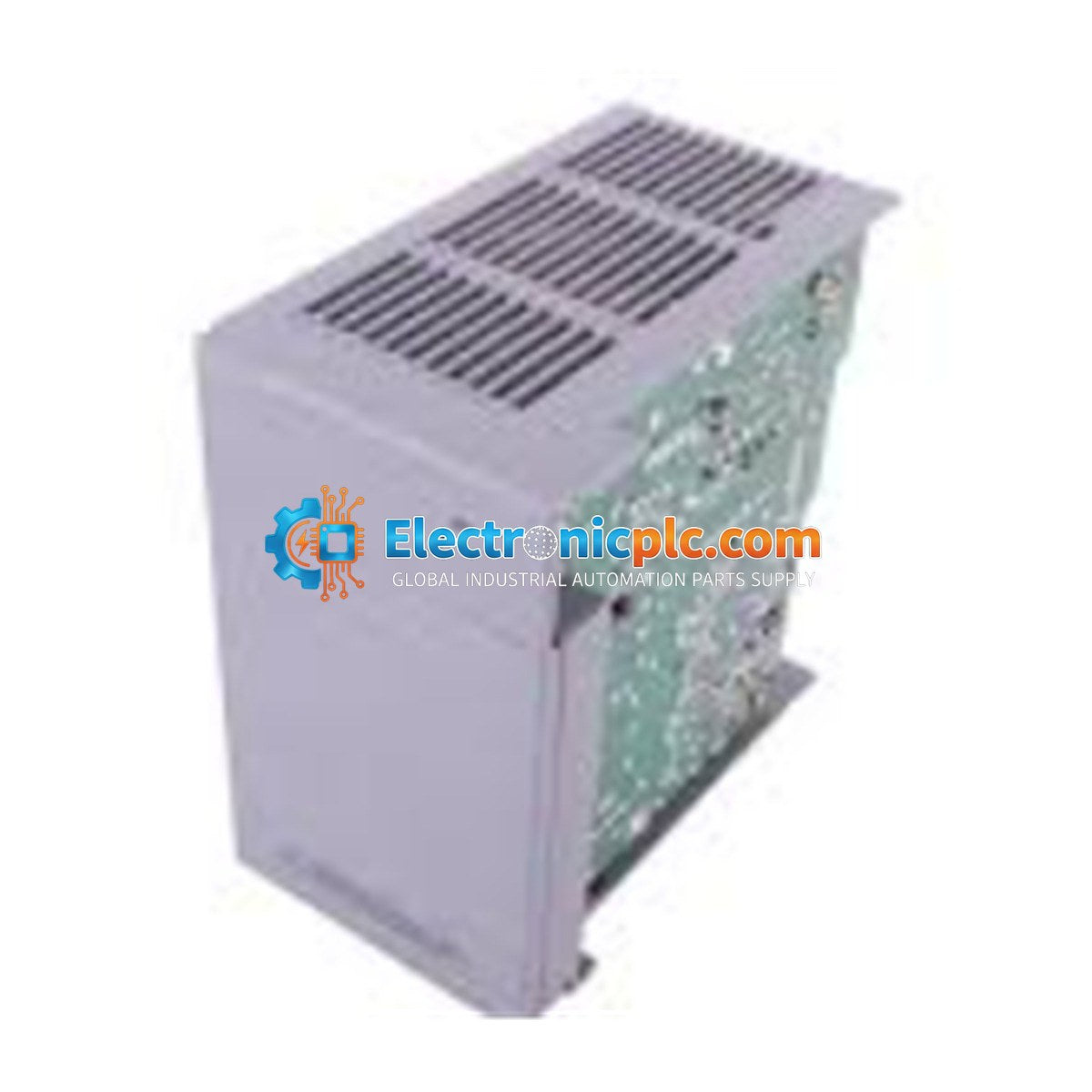

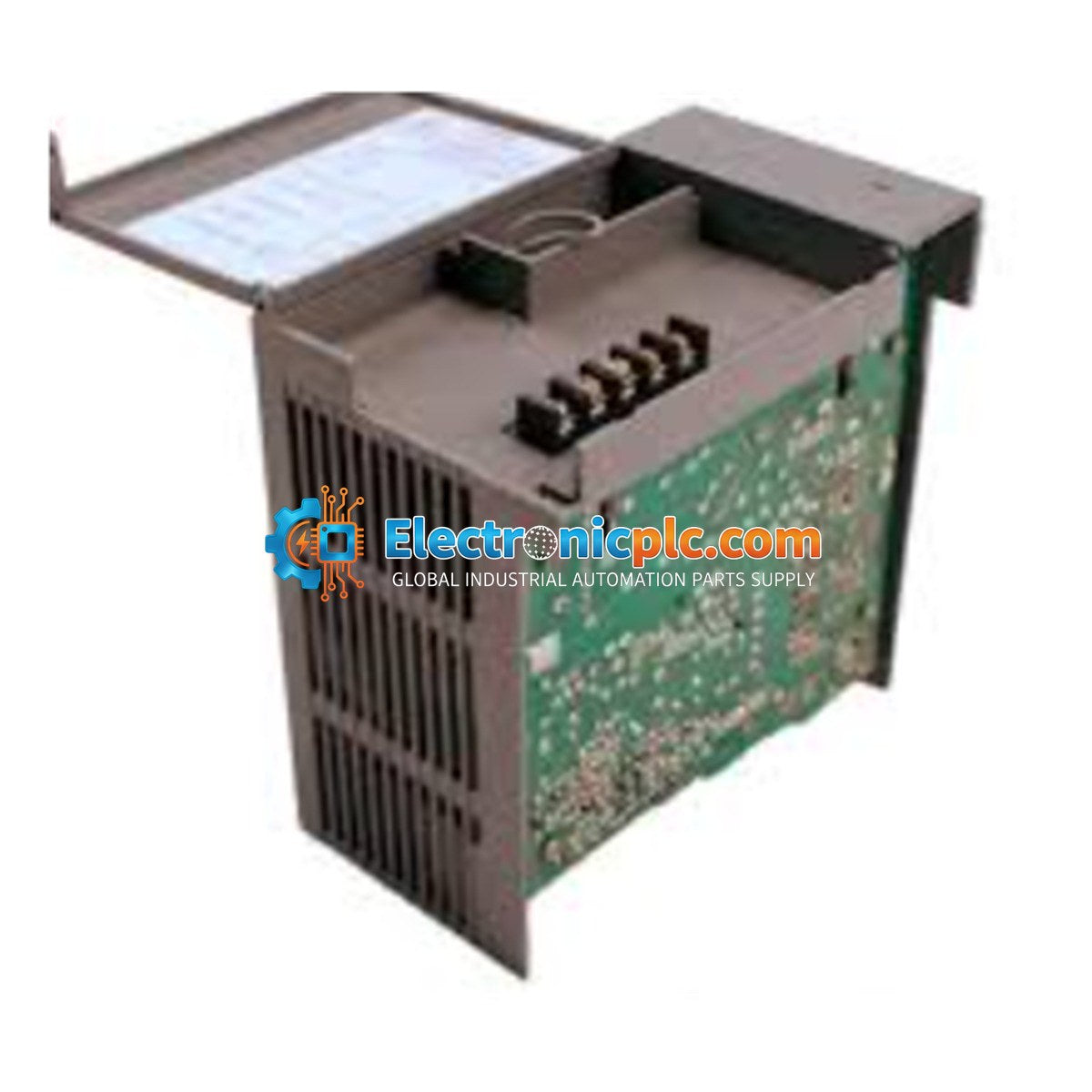

The Allen-Bradley 1746-QV is a specialized motion control module designed for the SLC 500 platform, specifically engineered for open-loop velocity control. This module is primarily utilized to manage the speed and positioning of hydraulic rams or pneumatic actuators. By integrating feedback from a Linear Displacement Transducer (LDT) and executing motion profiles directly from the SLC processor, the 1746-QV provides a cost-effective alternative to full closed-loop servo systems while maintaining smooth, profiled motion control.

Features

  • Single-axis motion control for hydraulic or pneumatic systems.
  • Supports Linear Displacement Transducer (LDT) feedback inputs.
  • Programmable motion profiles with up to seven distinct voltage levels per profile.
  • Reduces mechanical wear and pressure spikes through controlled acceleration and deceleration.
  • Optimized for integration within the SLC 500 chassis environment.

Applications

The 1746-QV is ideally suited for industrial machinery requiring controlled hydraulic movement, including die casting machines, industrial welders, and non-CNC hydraulic presses. It is designed for applications where precise speed ramping is required to improve cycle times and reduce equipment stress.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Module Type Open-Loop Velocity Control
Number of Axes 1
Input 1 Linear Displacement Transducer (LDT)
Analog Output -10 to +10V DC
Update Time 2 ms
Backplane Current (5V DC) 215 mA
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)
Relative Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Ensure the SLC 500 chassis is powered down before inserting or removing the 1746-QV module.
  • Install the module in an appropriate slot within the SLC 500 rack, ensuring the backplane connector is fully seated.
  • Use shielded cabling for LDT feedback connections to minimize EMI interference.
  • Maintain proper ventilation within the control cabinet to ensure operating temperatures remain within the 0 to 60 degC range.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What type of feedback does the 1746-QV support?

The module is designed to accept input from a Linear Displacement Transducer (LDT) to monitor the position of the actuator.

Can this module be used for closed-loop control?

No, the 1746-QV is specifically designed for open-loop velocity control. It is intended for applications that require profiled motion without the complexity of full closed-loop servo synchronization.

How many voltage levels can be configured?

The module supports the configuration of up to seven (7) different voltage levels for each motion profile, allowing for granular control over acceleration and deceleration phases.
