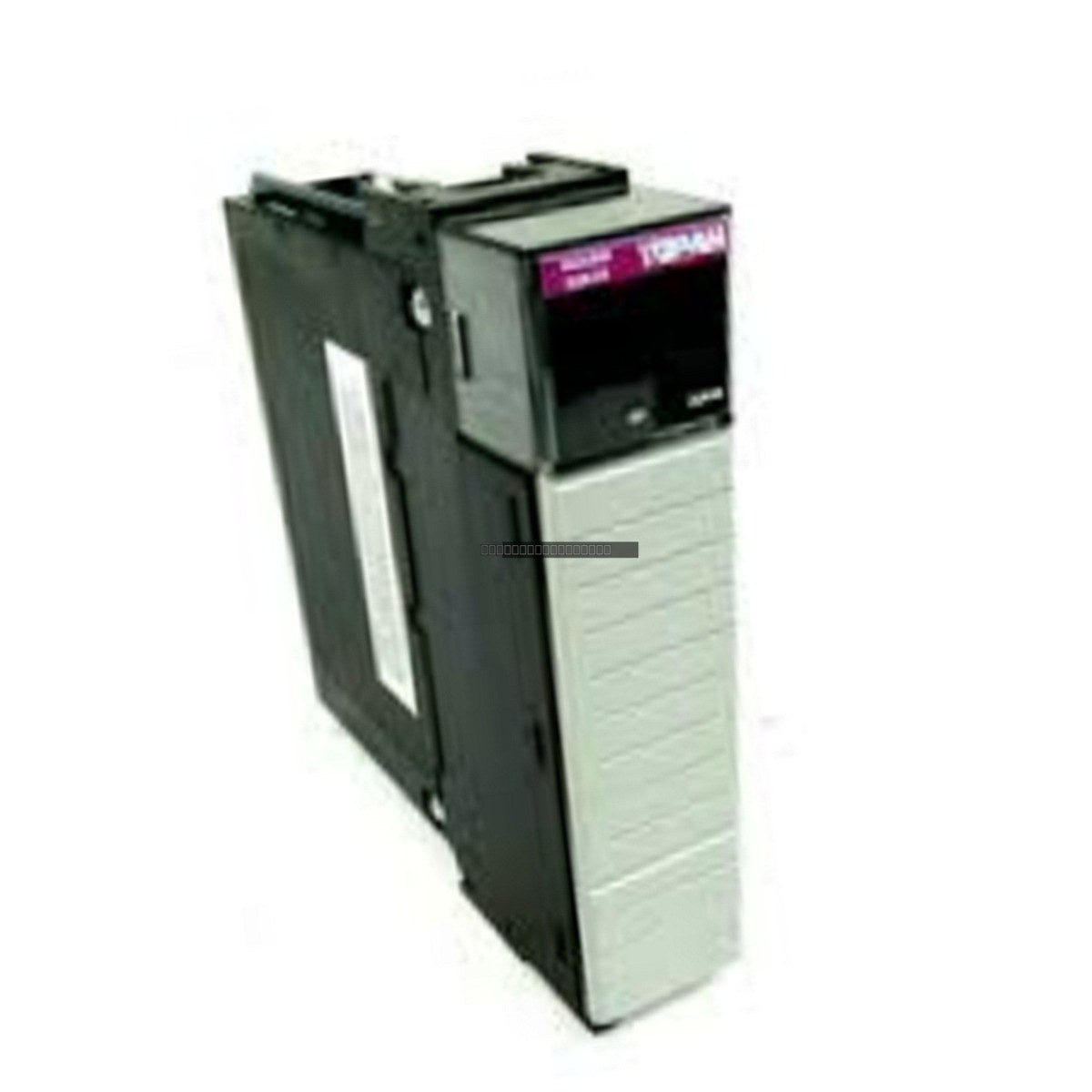

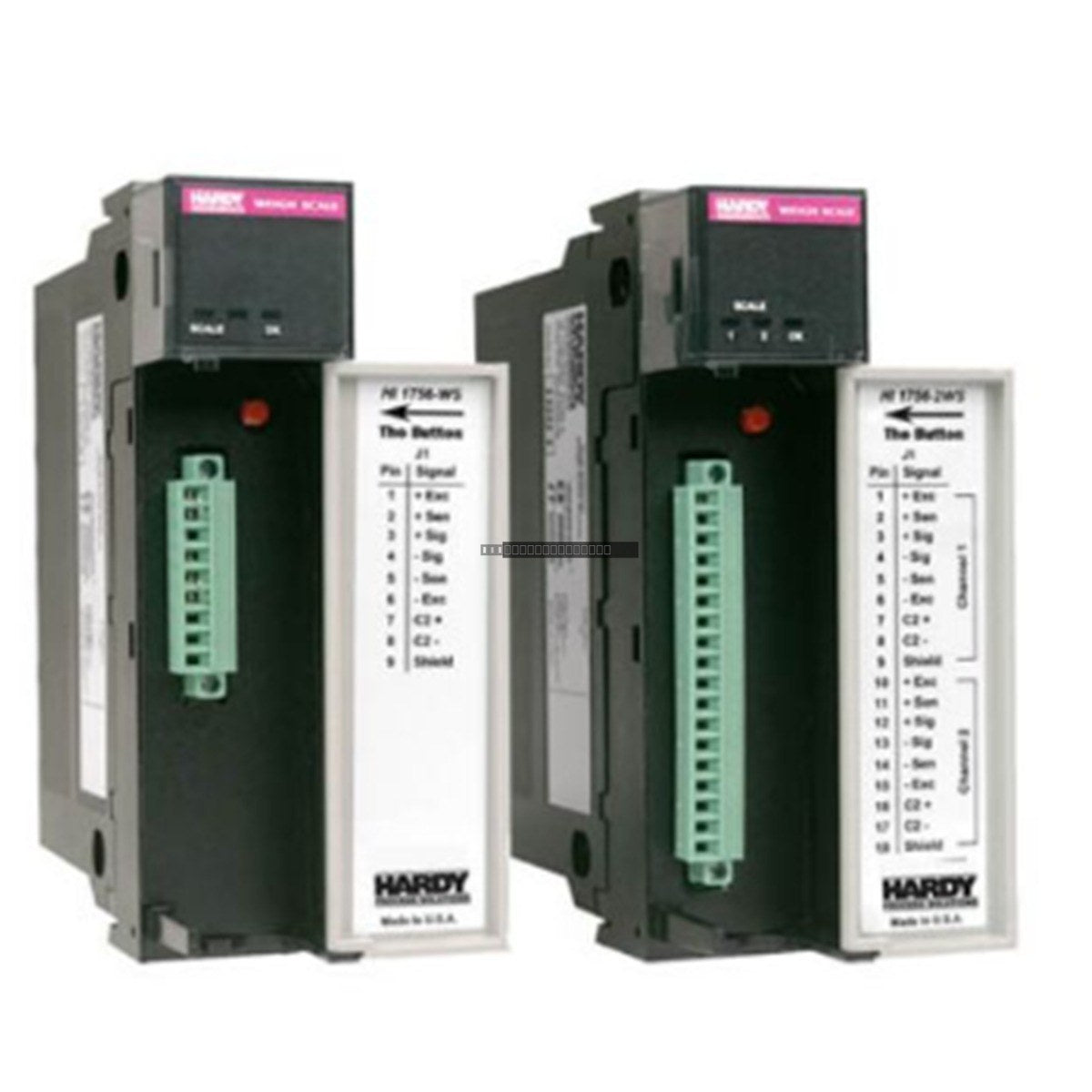

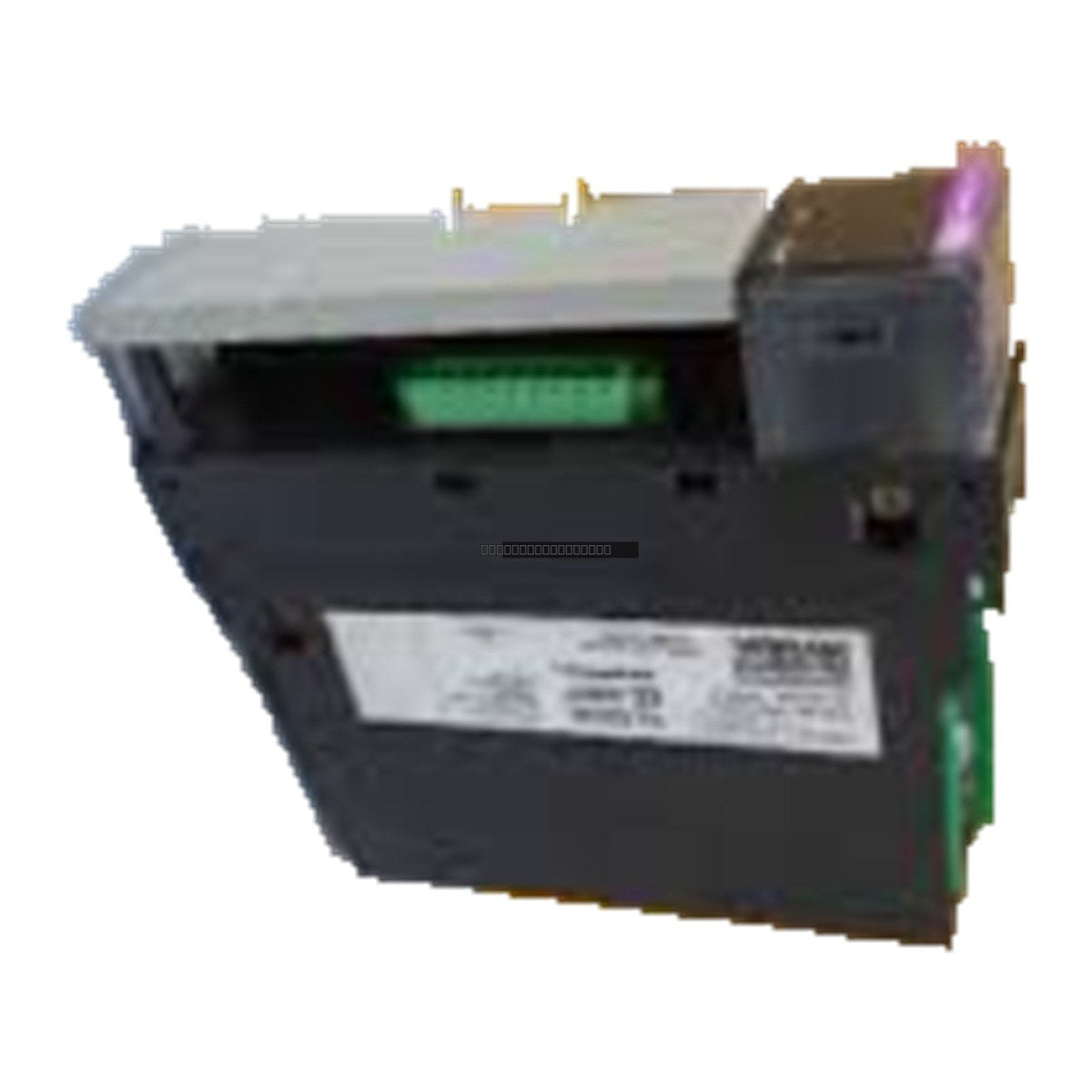

Allen-Bradley 1756-2WS ControlLogix Dual-Channel Weigh Scale Module

Allen-Bradley 1756-2WS ControlLogix Dual-Channel Weigh Scale Module

Description

The Allen-Bradley 1756-2WS is a specialized dual-channel weigh scale module engineered for the ControlLogix platform. Developed in partnership with Hardy Process Solutions, this module enables the direct integration of industrial...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 1756-2WS
Proveedora: Allen-Bradley
tipo: Weigh Scale Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1756-2WS is a specialized dual-channel weigh scale module engineered for the ControlLogix platform. Developed in partnership with Hardy Process Solutions, this module enables the direct integration of industrial load cells and weigh scale platforms into the ControlLogix backplane. By providing two independent scale channels, the 1756-2WS enhances system density, allowing for the simultaneous monitoring of two separate vessels, silos, or platforms while minimizing the required rack space.

Features

  • Dual-Channel Architecture: Independent processing for two separate scale platforms within a single ControlLogix slot.
  • High-Resolution Conversion: Integrated high-resolution analog-to-digital converters for laboratory-grade weight data.
  • Load Cell Compatibility: Supports up to eight 350-ohm Full Wheatstone Bridge strain gauge sensors, with a capacity of four load cells per channel.
  • Advanced Filtering: Utilizes Hardy's proprietary WAVERSAVER technology to electronically suppress mechanical and structural noise from plant machinery, mixers, or piping shock.
  • Direct Data Access: Provides weight data directly to the controller tag database for seamless integration into automation logic.

Applications

This module is ideal for high-precision industrial weighing applications, including batching, blending, inventory management, and force measurement. It is commonly deployed in chemical processing, food and beverage manufacturing, and material handling systems where stable, noise-free weight data is critical for process control.

Technical Specifications

Brand Allen-Bradley / Hardy Process Solutions
Product Line ControlLogix
Module Type Weigh Scale / Load Cell Interface
Channels 2 Independent Channels
Load Cell Excitation Up to eight 350-ohm Full Wheatstone Bridge sensors
Backplane Current (5V DC) 1.0 A
Backplane Current (24V DC) 0.0125 A (12.5 mA)
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to 85 degC (-40 to 185 degF)
Relative Humidity 5% to 95% non-condensing
Slot Width 1 Slot

Installation Guidelines

  • Power Down: Always disconnect backplane power before inserting or removing the module from the chassis.
  • Grounding: Ensure the ControlLogix chassis is properly grounded according to local electrical codes to minimize EMI/RFI interference.
  • Wiring: Use shielded, twisted-pair cabling for load cell connections to maintain signal integrity. Route signal cables away from high-voltage AC power lines.
  • Environment: Install in an environment that does not exceed the specified operating temperature and altitude limits (1000 meters).
  • Handling: Use standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.

FAQ

Q: Can this module be used with any load cell?
A: The 1756-2WS is designed for use with 350-ohm Full Wheatstone Bridge strain gauge load cells. Please verify your sensor specifications match these requirements.

Q: Does this module require external power for the load cells?
A: No, the module provides the necessary excitation voltage to the load cells directly. It draws its power from the ControlLogix backplane.
