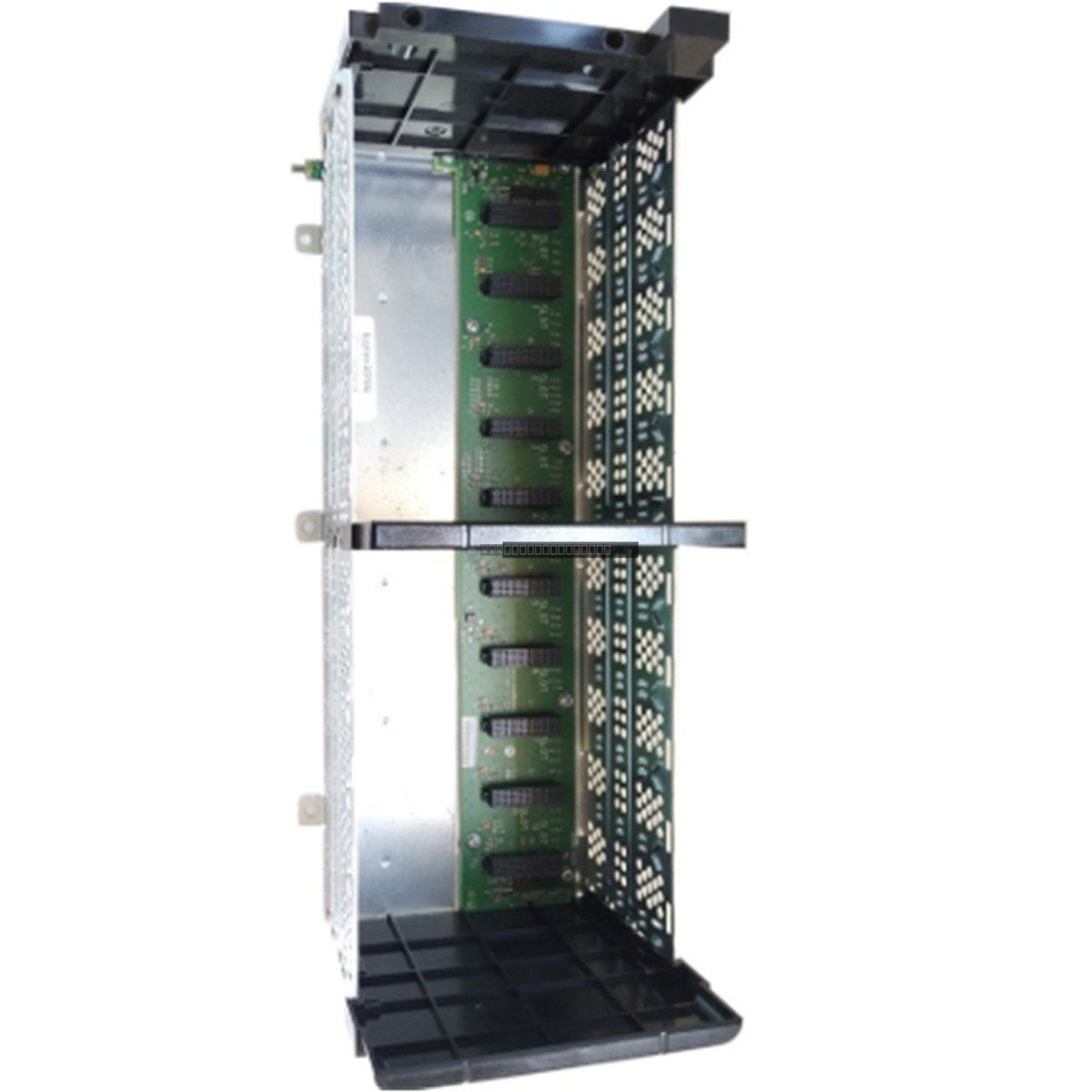

Allen-Bradley 1756-A13 ControlLogix 13-Slot Chassis

Allen-Bradley 1756-A13 ControlLogix 13-Slot Chassis

The Allen-Bradley 1756-A13 is a 13-slot chassis designed for the ControlLogix automation platform. It serves as the physical housing and backplane for ControlLogix controllers, communication adapters, and I/O modules. The...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 1756-A13
Proveedora: Allen-Bradley
tipo: PLC Chassis
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 1756-A13 is a 13-slot chassis designed for the ControlLogix automation platform. It serves as the physical housing and backplane for ControlLogix controllers, communication adapters, and I/O modules. The chassis provides the necessary power distribution and high-speed communication bus required for module operation within a ControlLogix system.

Features

  • Thirteen (13) dedicated slots for module installation.
  • Supports Removal and Insertion Under Power (RIUP), allowing for module replacement without shutting down the entire system.
  • Integrated backplane for power distribution and inter-module communication.
  • Supports producer/consumer communication and system-wide time stamping.
  • Robust design for panel-mount installation in NEMA-rated enclosures.

Applications

This chassis is suitable for demanding industrial environments, including:

  • Energy and power generation, such as turbine control and auxiliary systems.
  • Oil and gas production, including refinery and chemical plant automation.
  • Infrastructure projects, such as tunnel ventilation and airport baggage handling systems.
  • Food, beverage, and pharmaceutical manufacturing requiring precise production control.

Technical Specifications

Model 1756-A13
Slots 13
Backplane Current @ 1.2VDC 1.5 A
Backplane Current @ 3.3VDC 4 A
Backplane Current @ 5.1VDC 15 A / 6 A
Mounting Tabs 8
Operating Temperature 0 degC to +60 degC (+32 degF to +140 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity 5 to 95% (non-condensing)

Installation Guidelines

  • Ensure the chassis is mounted on a flat, rigid surface within a NEMA-rated enclosure.
  • Maintain adequate clearance around the chassis to facilitate heat dissipation and airflow.
  • Use all eight mounting tabs to secure the chassis firmly to the backplane.
  • Ensure the system is properly grounded according to local electrical codes to minimize EMI/RFI interference.
  • Always power down the system before installing or removing the chassis itself, though individual modules support RIUP.
  • Verify that the power supply module is correctly seated in the designated slot to ensure proper backplane voltage distribution.

FAQ

What is the slot capacity of the 1756-A13?

The 1756-A13 features 13 slots, numbered 0 through 12, which can accommodate any combination of ControlLogix controllers, I/O, or communication modules.

Is this chassis designed for 19-inch rack mounting?

No, the 1756-A13 is designed for surface mounting on a back panel. It is not equipped with standard 19-inch rack-mounting ears.

What is the required enclosure size for this chassis?

The chassis is typically installed in an enclosure with a minimum recommended size of 24 in x 30 in x 8 in to ensure proper thermal management and clearance.
