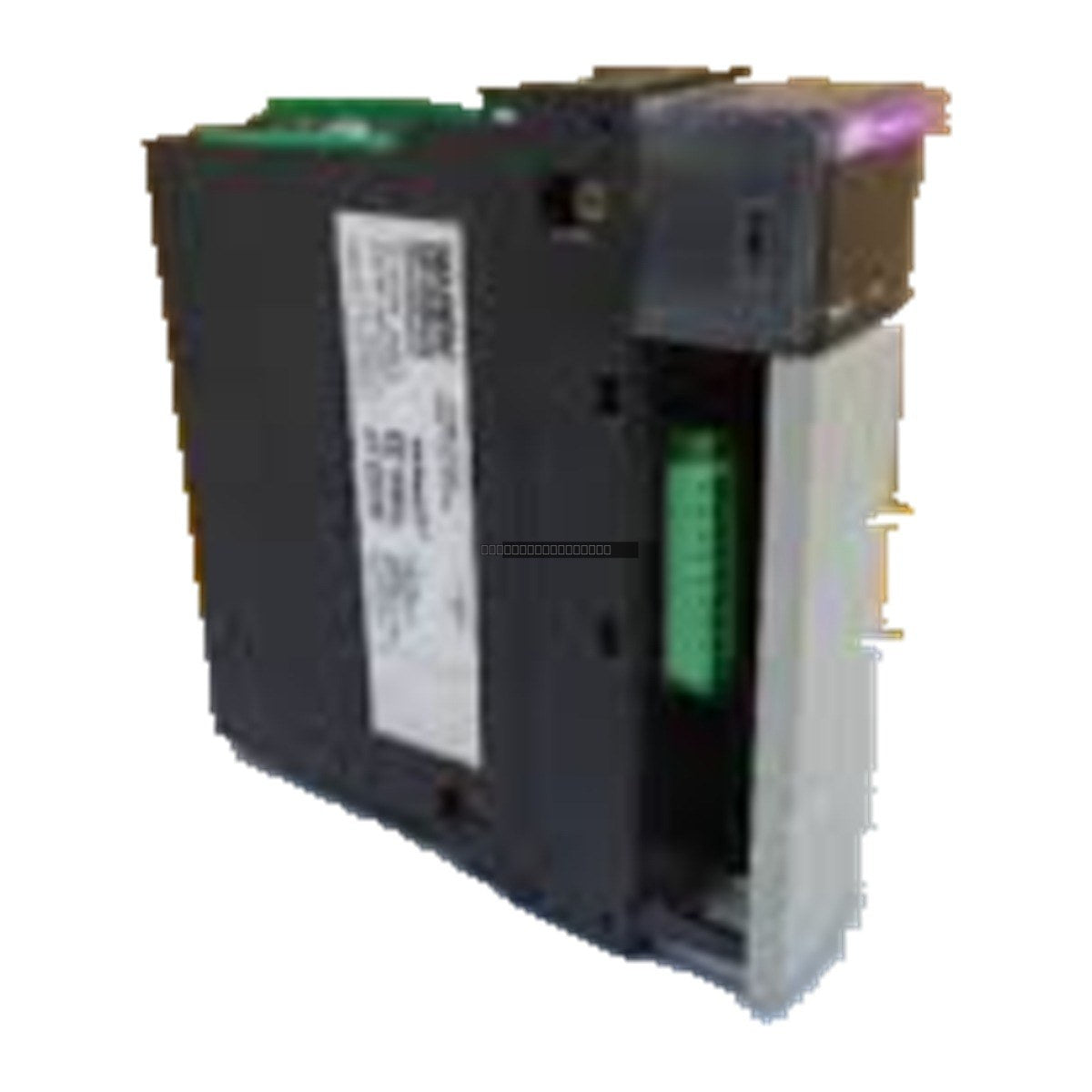

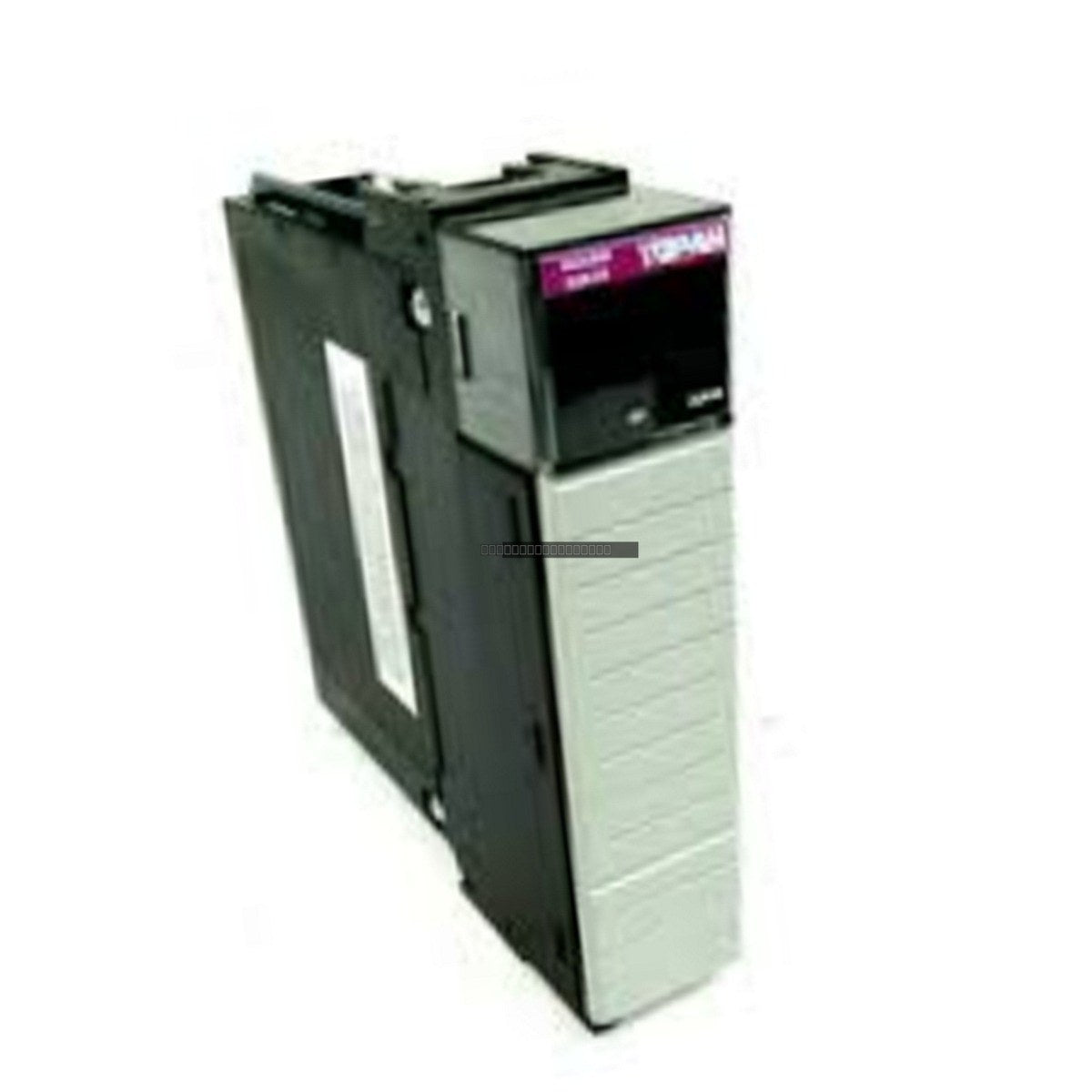

Allen-Bradley 1756-AMXN ControlLogix AutoMax/RIO Communication Module

Allen-Bradley 1756-AMXN ControlLogix AutoMax/RIO Communication Module

Description

The Allen-Bradley 1756-AMXN is a communication bridge module for the ControlLogix platform, specifically engineered to facilitate the integration of legacy Reliance Electric AutoMax Distributed Power Systems (DCS) and Allen-Bradley Remote...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 1756-AMXN
Proveedora: Allen-Bradley
tipo: Communication Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1756-AMXN is a communication bridge module for the ControlLogix platform, specifically engineered to facilitate the integration of legacy Reliance Electric AutoMax Distributed Power Systems (DCS) and Allen-Bradley Remote I/O (RIO) networks into modern control architectures. This module allows for a phased migration strategy, enabling users to upgrade to ControlLogix controllers while maintaining existing field networks and drive racks.

Features

  • Integrated 100 MHz IDT MIPS processor for high-speed protocol conversion.
  • Supports three distinct operating modes: DCS Master, DCS Slave, and RIO Master.
  • Hardware-level support for up to 55 AutoMax DCS slave nodes in Master mode.
  • Dedicated 1 MB logic RAM and 512 KB shared backplane RAM for efficient data handling.
  • Facilitates legacy block transfers and discrete I/O polling for RIO networks.
  • Designed for seamless insertion into standard ControlLogix chassis backplanes.

Applications

This module is primarily used in industrial automation environments where legacy Reliance Electric AutoMax or older Allen-Bradley RIO systems are still in operation. It is ideal for retrofitting drive systems, power distribution control, and legacy I/O networks into modern ControlLogix-based automation environments without requiring a complete system overhaul.

Technical Specifications

Brand Allen-Bradley
Product Line ControlLogix
Module Type AutoMax DCS / RIO Communication Interface
Processor 100 MHz IDT MIPS
Logic RAM 1 MB
Shared Backplane RAM 512 KB
Backplane Current (5.1V DC) 650 mA
Backplane Current (24V DC) 75 mA
Power Dissipation 5 Watts
Communication Port DB9 D-shell

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the 1756-AMXN module.
  • Handle the module using ESD-safe practices to prevent damage to internal circuitry.
  • Verify that the module is fully seated in the chassis slot and that the locking mechanism is engaged.
  • Ensure that the communication cable connected to the DB9 port is properly shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.
  • Configure the module operating mode (DCS Master, DCS Slave, or RIO Master) via the appropriate software configuration tool before commissioning.

FAQ

What is the primary function of the 1756-AMXN?

The 1756-AMXN acts as a bridge between the ControlLogix backplane and legacy AutoMax DCS or Remote I/O networks, allowing for the integration of older hardware into modern control systems.

Can this module communicate with both AutoMax and RIO networks?

Yes, the module is designed to support both AutoMax DCS protocols and Allen-Bradley Remote I/O (RIO) protocols, depending on the configured operating mode.

How many nodes can be supported in DCS Master mode?

In DCS Master mode, the module can coordinate high-speed deterministic messaging for up to 55 AutoMax DCS slave nodes.
