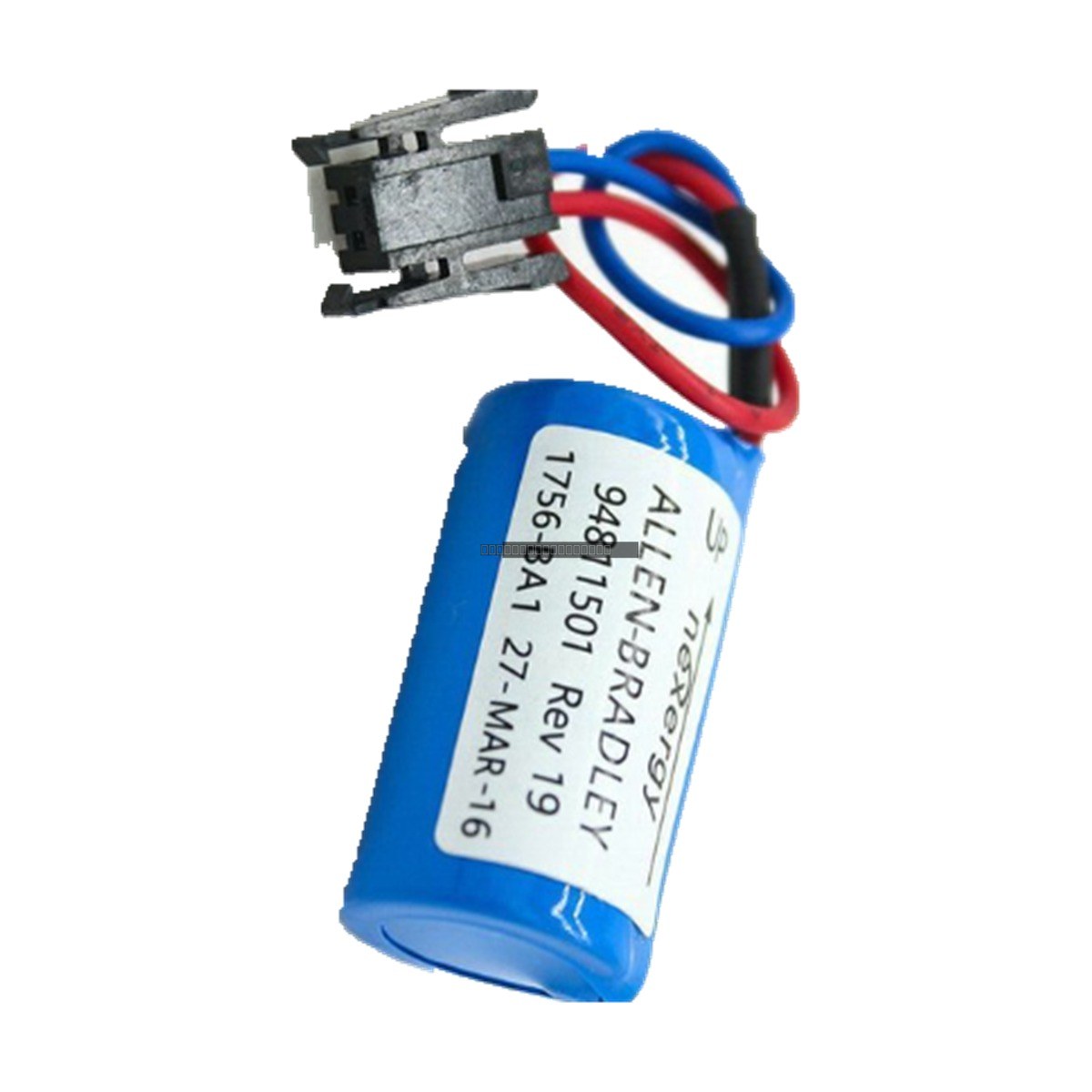

Allen-Bradley 1756-BA1 ControlLogix and FlexLogix Lithium Battery Assembly

Allen-Bradley 1756-BA1 ControlLogix and FlexLogix Lithium Battery Assembly

The Allen-Bradley 1756-BA1 is a 3.0V DC lithium battery assembly designed to provide memory backup for ControlLogix, CompactLogix, and FlexLogix processor modules. This non-rechargeable battery is essential for maintaining user...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 1756-BA1 PLC
Proveedora: Allen-Bradley
tipo: PLC Battery
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 1756-BA1 is a 3.0V DC lithium battery assembly designed to provide memory backup for ControlLogix, CompactLogix, and FlexLogix processor modules. This non-rechargeable battery is essential for maintaining user programs, data tables, and system configuration settings in volatile RAM when the primary power source is removed or interrupted.

Features

  • Reliable 3V lithium manganese dioxide chemistry.
  • Pre-installed connector for direct integration with compatible controller chassis.
  • High-capacity cell design (1800 mAh) for extended memory retention.
  • Compact cylindrical form factor (2/3A size).
  • Essential for preventing data loss during power outages or maintenance cycles.

Applications

  • Process and Manufacturing Automation: Ensures continuity of logic and configuration data.
  • Safety Control Systems: Maintains critical state logic within safety-rated chassis.
  • High-Availability Operations: Facilitates rapid system restarts and minimizes downtime.
  • Motion and Drive Control: Retains positioning data and configuration parameters for servo systems.

Technical Specifications

Manufacturer Allen-Bradley (Rockwell Automation)
Model 1756-BA1
Battery Type Lithium Manganese Dioxide (2/3A)
Voltage 3.0V DC
Nominal Capacity 1800 mAh
Form Factor Cylindrical (14 x 34 mm)
Operating Temperature Recommended storage near 30 degC

Installation Guidelines

  • Ensure the controller is powered down before attempting to install or replace the battery module.
  • Route the battery cable carefully to the designated connector port on the ControlLogix controller chassis.
  • Avoid excessive heat; the service life of the battery is significantly reduced if the surrounding chassis temperature exceeds 30 degC.
  • Replace the battery every 2 years under normal conditions, or more frequently if the controller experiences frequent power cycles.
  • Handle with care to avoid short-circuiting the battery terminals.

FAQ

What is the primary function of the 1756-BA1?

The 1756-BA1 acts as a backup power source for volatile RAM in legacy Allen-Bradley controllers, ensuring that user logic and configuration data are not lost during power-down events.

Is this battery compatible with Series B controllers?

No. The 1756-BA1 is designed for specific legacy and Series A controllers. It features a large connector that is physically incompatible with Series B or later processors, which require the 1756-BA2 battery.

How long does the battery last?

Under normal conditions, the expected life is approximately 2 years. This duration may decrease to 3–6 months if the controller is frequently power-cycled or stored without backplane power.
