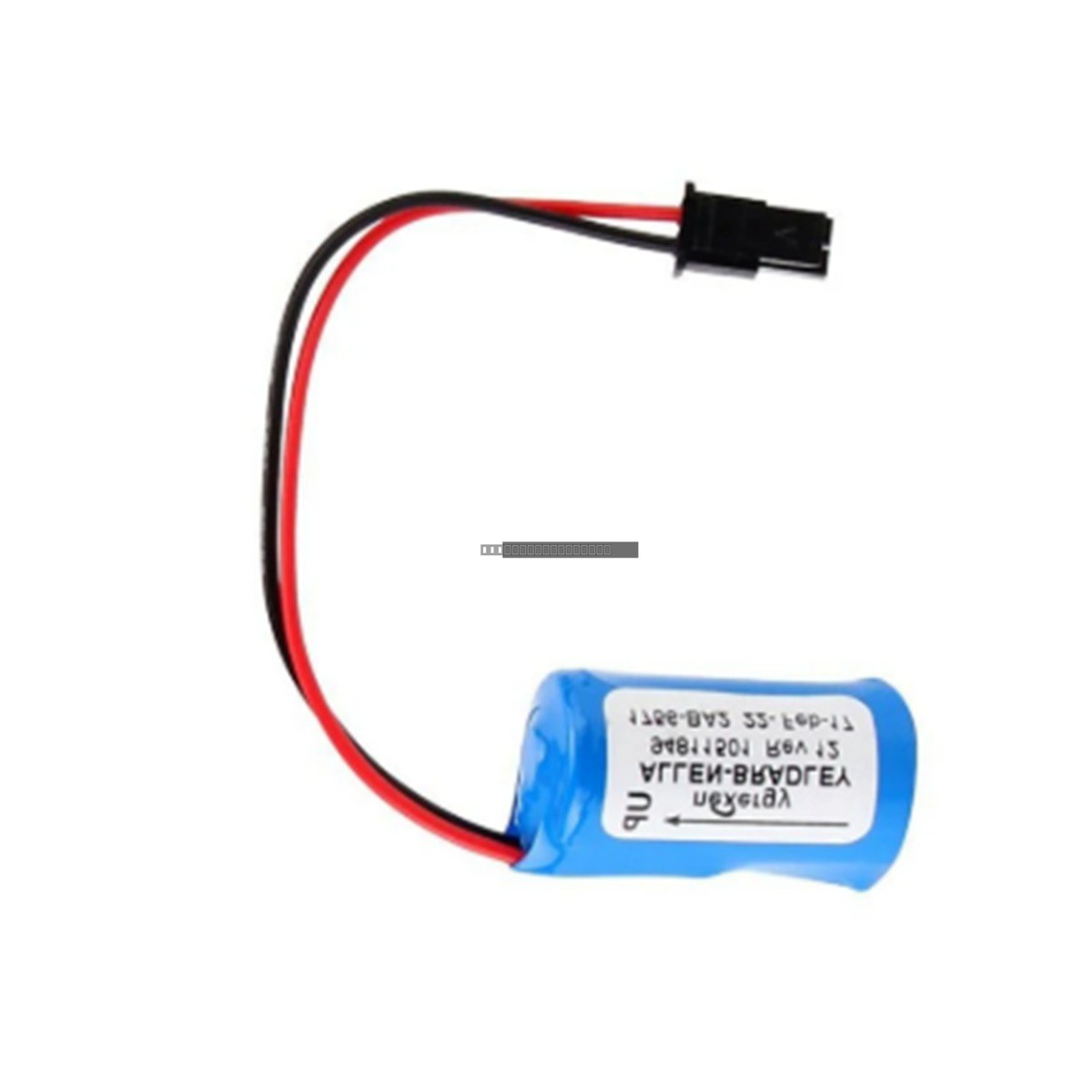

Allen-Bradley 1756-BA2 ControlLogix Lithium Battery Assembly

Allen-Bradley 1756-BA2 ControlLogix Lithium Battery Assembly

The Allen-Bradley 1756-BA2 is a dedicated lithium battery assembly designed to provide reliable backup power for Series B ControlLogix 5560 (1756-L6x) controllers. This 3V DC unit ensures the retention of...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 1756-BA2
Proveedora: Allen-Bradley
tipo: PLC Battery Assembly
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 1756-BA2 is a dedicated lithium battery assembly designed to provide reliable backup power for Series B ControlLogix 5560 (1756-L6x) controllers. This 3V DC unit ensures the retention of controller memory and real-time clock functions during power outages, preventing the loss of critical logic routines and configuration data.

Features

  • Designed for Series B 1756-L61, 1756-L62, 1756-L63, 1756-L64, and 1756-L65 controllers.
  • Compatible with GuardLogix 1756-L61S, 1756-L62S, and 1756-L63S safety controllers.
  • Nominal output of 3V DC with a 1200 mAh capacity.
  • Equipped with pre-attached wire leads and a secure connector for simple installation.
  • Long-term backup capability with a shelf life of up to 10 years at 25 degC.

Applications

This battery assembly is essential for maintaining operational continuity in industrial environments where PLC memory retention is critical, including:

  • Factory automation and control panel logic protection.
  • Continuous process industries such as chemical, refining, and food processing.
  • CNC machining for safeguarding axis positions and cutting routines.
  • Data logging systems requiring preservation of alarm history and runtime metrics.

Technical Specifications

Model 1756-BA2
Voltage 3V DC
Capacity 1200 mAh
Operating Temperature 0 to 60 degC (32 to 140 degF)
Relative Humidity 5 to 80% (non-condensing)
Manufacturer Allen-Bradley

Installation Guidelines

  • Chassis Power: Keep the chassis backplane power turned ON during a live battery swap to ensure the controller's memory remains powered by the backplane.
  • Safety: Do not connect or disconnect the battery in hazardous locations. Breaking connections under power can cause an electrical arc.
  • ESD Precautions: Use an approved, grounded wrist strap and avoid touching circuit boards or exposed pins within the chassis.
  • Backup: Always verify that a current copy of the PLC program is saved to an offline storage medium before performing maintenance.

FAQ

Which controllers are compatible with the 1756-BA2?

This battery is designed exclusively for Series B ControlLogix 5560 (1756-L6x) controllers. It is not compatible with Series A controllers, which typically require the 1756-BA1 assembly.

Can I use a 1756-BA1 instead of a 1756-BA2?

No. These batteries are not interchangeable due to different connector types and specific current management requirements of the Series B processors. Using an incorrect battery can lead to equipment failure.

Is the 1756-BA2 battery rechargeable?

No. This is a non-rechargeable lithium battery. Attempting to recharge this unit creates a severe risk of fire, explosion, or thermal runaway.
