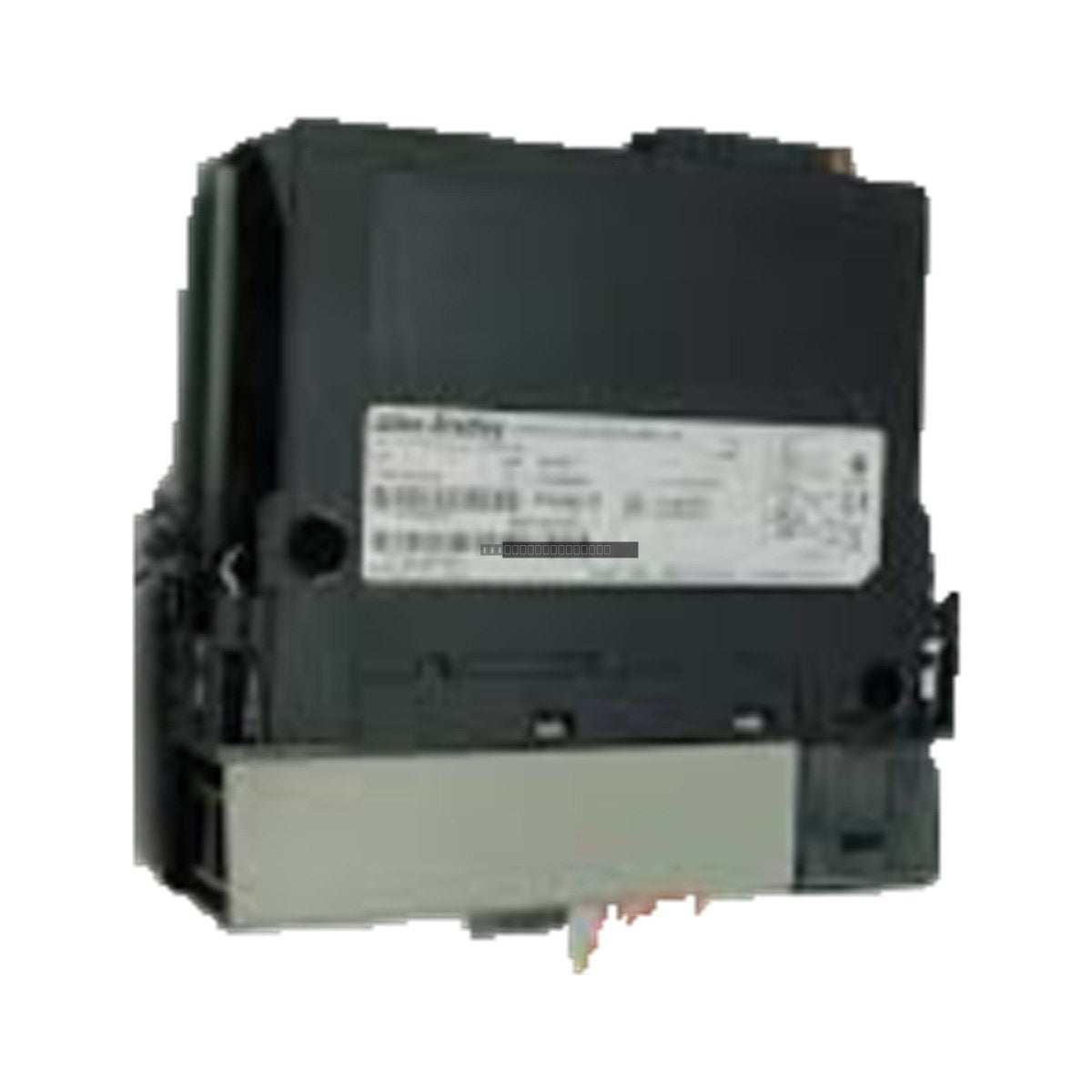

Allen-Bradley 1756-CN2R/B ControlNet Redundant Communication Module

Allen-Bradley 1756-CN2R/B ControlNet Redundant Communication Module

The Allen-Bradley 1756-CN2R/B is a Series B ControlNet communication bridge module engineered for the ControlLogix platform. This module facilitates deterministic, high-speed data exchange between controllers, remote I/O, and field devices....

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: 1756-CN2R/B
Proveedora: Allen-Bradley
tipo: Communication Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 1756-CN2R/B is a Series B ControlNet communication bridge module engineered for the ControlLogix platform. This module facilitates deterministic, high-speed data exchange between controllers, remote I/O, and field devices. By utilizing a dual-channel coaxial architecture, the 1756-CN2R/B provides critical redundancy, ensuring continuous network operation even in the event of a single-cable failure or signal degradation.

Features

  • Redundant Media Support: Dual BNC connectors allow for redundant ControlNet cabling, enabling automatic failover if a primary link is compromised.
  • Deterministic Throughput: Maintains a constant 5 Mbps data rate, essential for time-critical control applications.
  • High Capacity: Supports up to 99 nodes on a single network and manages up to 131 total connections (128 of which are dedicated to Logix controllers).
  • Integrated USB Port: Includes a dedicated USB port for local configuration and diagnostic access.
  • Series B Reliability: Optimized hardware design for improved stability and performance in demanding industrial environments.

Installation Guidelines

  • ESD Protection: Always utilize an ESD wrist strap or similar grounding device when handling the module to prevent damage to sensitive internal components.
  • Backplane Insertion: Ensure the ControlLogix chassis is powered down before inserting or removing the module. Align the module with the chassis guides and seat firmly to ensure proper backplane connection.
  • Cabling: Use only 1786-RG6 quad-shield coaxial cables for network connections to maintain signal integrity and meet specification requirements.
  • Environmental: Mount the module in an environment that maintains an ambient temperature between 0 and 60 degC. Ensure adequate airflow around the chassis to prevent heat buildup.
  • Grounding: Ensure the ControlLogix chassis is properly grounded according to local electrical codes to minimize EMI impacts.

Technical Specifications

Model 1756-CN2R/B
Series Series B
Communication Speed 5 Mbps
Max Nodes 99
Max Connections 131 (128 Logix)
Power Dissipation 6.7 W
Backplane Current (5.1V) 1300 mA
Operating Temperature 0 to 60 degC
Enclosure Type Open Type

FAQ

Q: Does this module support non-redundant configurations?
A: Yes, the 1756-CN2R/B can operate in a single-cable configuration, though it is specifically designed to provide redundant media capability for high-availability systems.

Q: What is the primary difference between Series A and Series B?
A: The Series B hardware revision features updated internal processing components for improved reliability and firmware compatibility within the ControlLogix ecosystem.
