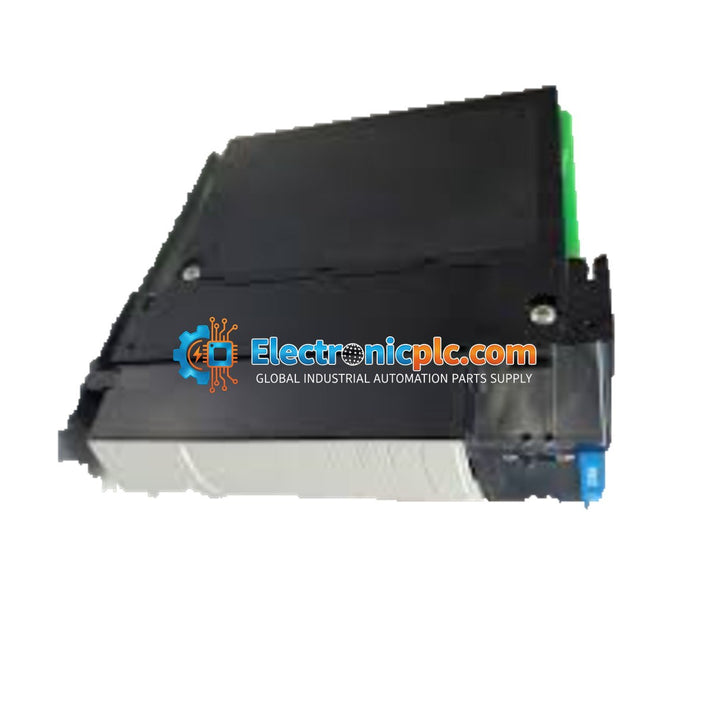

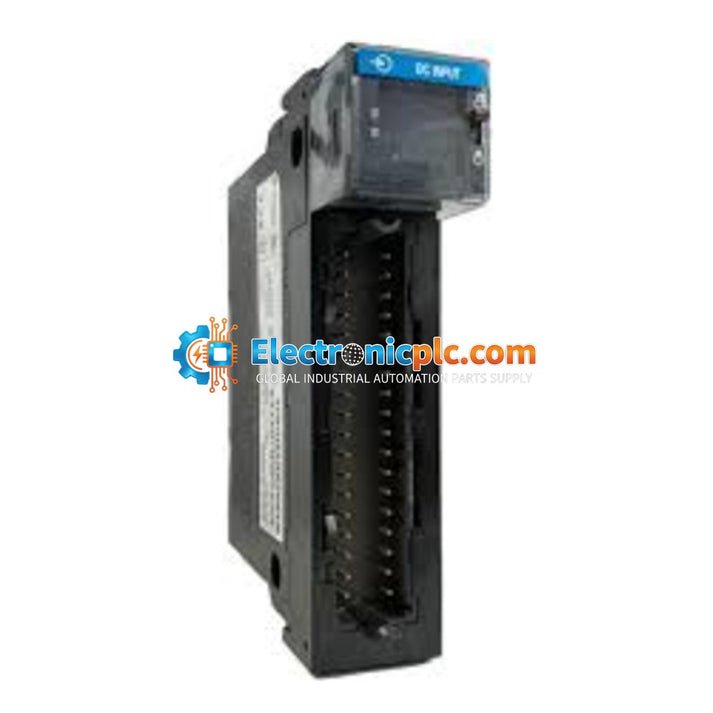

Allen-Bradley 1756-IB16I ControlLogix 16-Point Isolated Digital Input Module

Allen-Bradley 1756-IB16I ControlLogix 16-Point Isolated Digital Input Module

Description

The Allen-Bradley 1756-IB16I is a high-performance 16-point digital input module designed for the ControlLogix platform. This module provides individually isolated inputs, allowing for flexible wiring configurations and enhanced noise immunity...

23 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 1756-IB16I
Proveedora: Allen-Bradley
tipo: Digital Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1756-IB16I is a high-performance 16-point digital input module designed for the ControlLogix platform. This module provides individually isolated inputs, allowing for flexible wiring configurations and enhanced noise immunity in demanding industrial environments. It is engineered to interface with 10-30V DC signals, making it suitable for a wide range of sensor and switch monitoring applications within automated control systems.

Features

  • 16 individually isolated digital input points.
  • Operating voltage range: 10-30V DC.
  • Standard ControlLogix form factor for seamless integration into 1756 chassis.
  • High-density I/O design to optimize cabinet space.
  • Compatible with standard 36-pin removable terminal blocks (RTB).

Applications

This module is widely utilized in industrial automation applications requiring robust signal isolation, including:

  • Process control and manufacturing lines.
  • Monitoring of field devices such as proximity switches, pushbuttons, and limit switches.
  • Applications where electrical isolation between input channels is required to prevent ground loops or interference.
  • Integration with complex PLC architectures requiring reliable DC signal acquisition.

Technical Specifications

Product Model 1756-IB16I
Module Type Digital Input Module
Input Points 16 (Individually Isolated)
Voltage Category 10-30V DC
Platform ControlLogix
Connector Type 36-Pin

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Verify the module is fully seated in the chassis slot and secured with the top and bottom latches.
  • Use appropriate shielded cabling for input signals to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the chassis and power supply common to maintain signal integrity.
  • Handle the module using ESD-safe practices to prevent damage to internal electronic components.

FAQ

What does 'individually isolated' mean for this module?
Individually isolated means that each of the 16 input channels is electrically separated from the others, which helps prevent cross-talk and protects the system from ground potential differences between field devices.

Is the 36-pin terminal block included?
Typically, the removable terminal block (RTB) is sold separately or included based on specific regional packaging; please verify your order contents if you require a new RTB.
