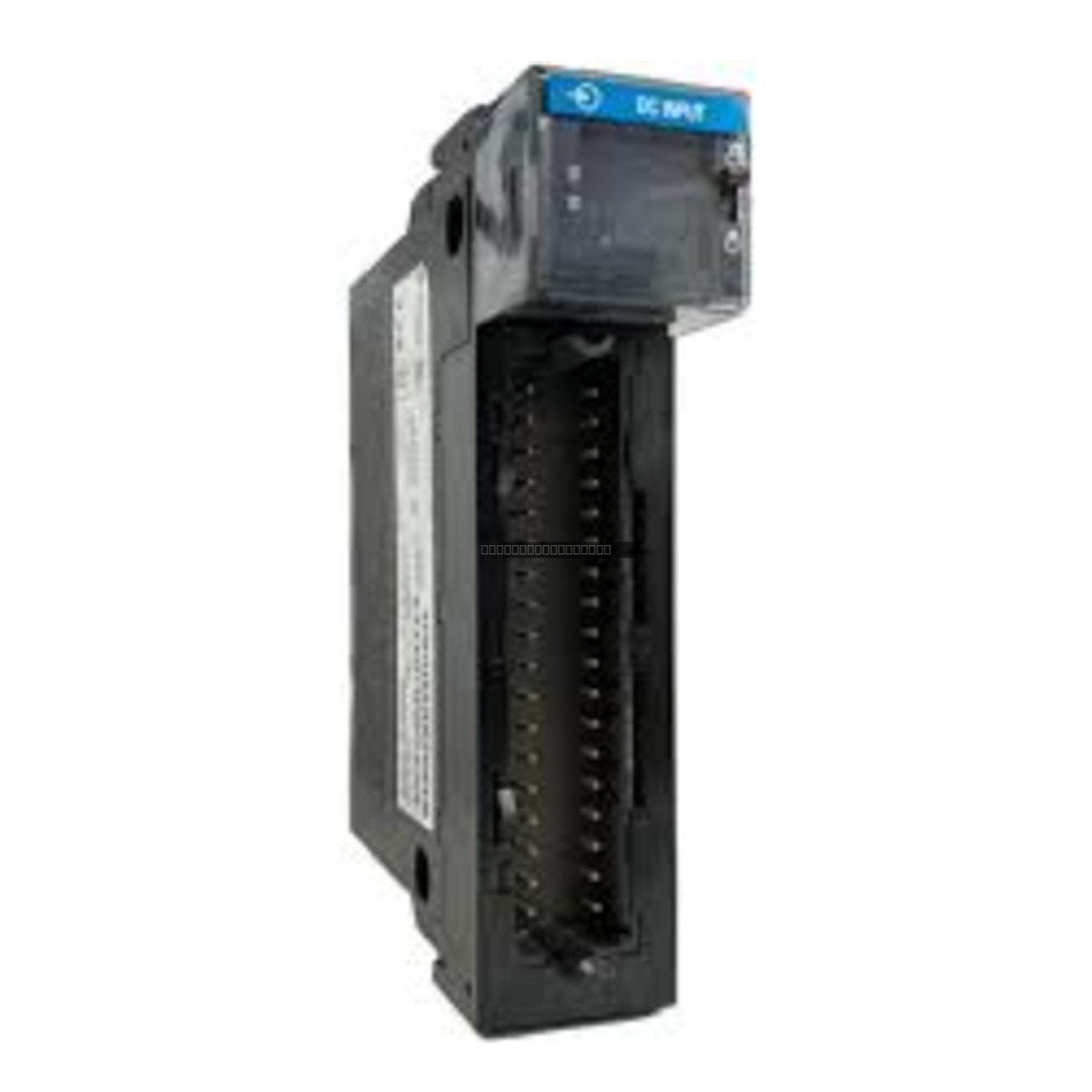

Allen-Bradley 1756-IB16ISOE ControlLogix Sequence of Events DC Input Module

Allen-Bradley 1756-IB16ISOE ControlLogix Sequence of Events DC Input Module

Description

The Allen-Bradley 1756-IB16ISOE is a specialized 16-point DC digital input module designed for the ControlLogix platform. Engineered for high-precision timing, this module supports Sequence of Events (SOE) recording, enabling users...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: Sequence of Events DC Input Module
Proveedora: Allen-Bradley
tipo: Digital Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1756-IB16ISOE is a specialized 16-point DC digital input module designed for the ControlLogix platform. Engineered for high-precision timing, this module supports Sequence of Events (SOE) recording, enabling users to capture and timestamp critical system events with high resolution. It features individually isolated inputs, providing enhanced noise immunity and flexibility in complex industrial control environments.

Features

  • 16 individually isolated DC input channels.
  • Integrated Sequence of Events (SOE) recording functionality.
  • Wide operating voltage range of 10-55 VDC.
  • Front-panel status indicators for input state, communication health, and module diagnostics.
  • Supports both sink and source wiring configurations.
  • Optimized for high-speed event capture with configurable input filtering.

Applications

This module is ideal for applications requiring precise event logging, such as power distribution monitoring, safety-critical interlocking, and diagnostic analysis of industrial processes where the exact order of operations must be maintained for troubleshooting or regulatory compliance.

Technical Specifications

Model 1756-IB16ISOE
Inputs 16 (Individually Isolated)
Voltage Range 10-55 VDC
Nominal Voltage 24-48 VDC (Sink/Source)
Input Delay 50 microseconds + filter time
Min Operating Current 2 mA at 10 VDC
Max Operating Current 5.5 mA at 55 VDC

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is properly seated in the chassis slot and that the backplane connector is fully engaged.
  • Use shielded twisted-pair cabling for input wiring to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the chassis and field wiring to ensure signal integrity.
  • Follow standard ESD precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the 1756-IB16ISOE?
This module is designed for digital input acquisition with the added capability of Sequence of Events (SOE) recording, which allows for precise timestamping of state transitions.

Does this module require external isolation?
No, the 1756-IB16ISOE features individually isolated inputs, which provides electrical isolation between channels and the backplane.
