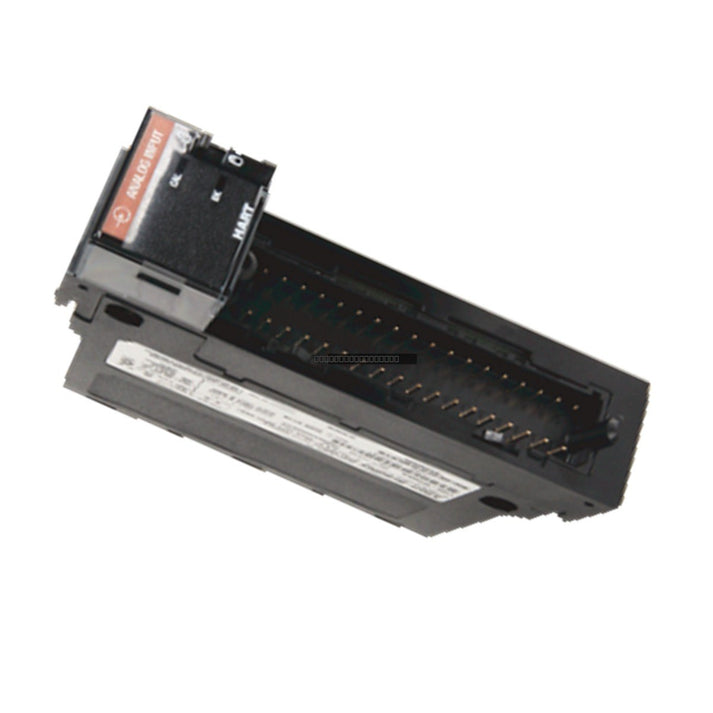

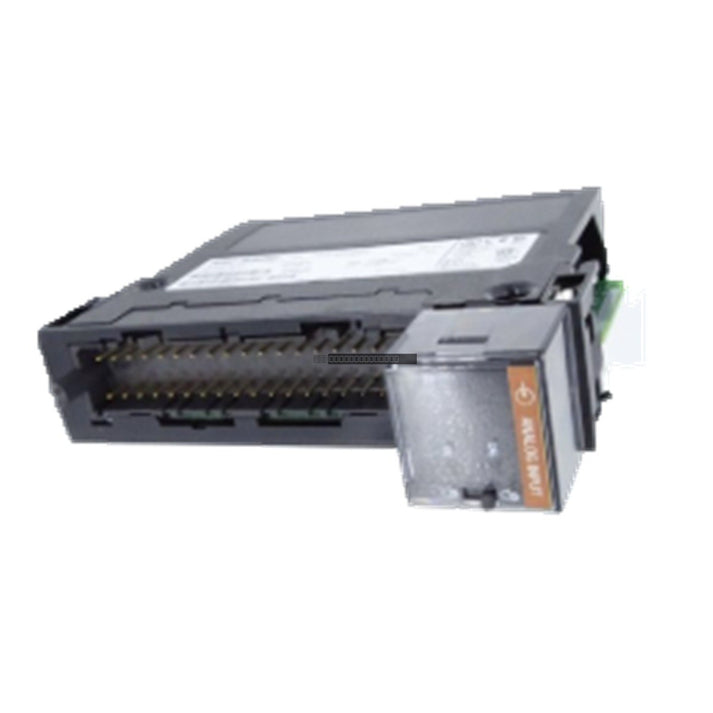

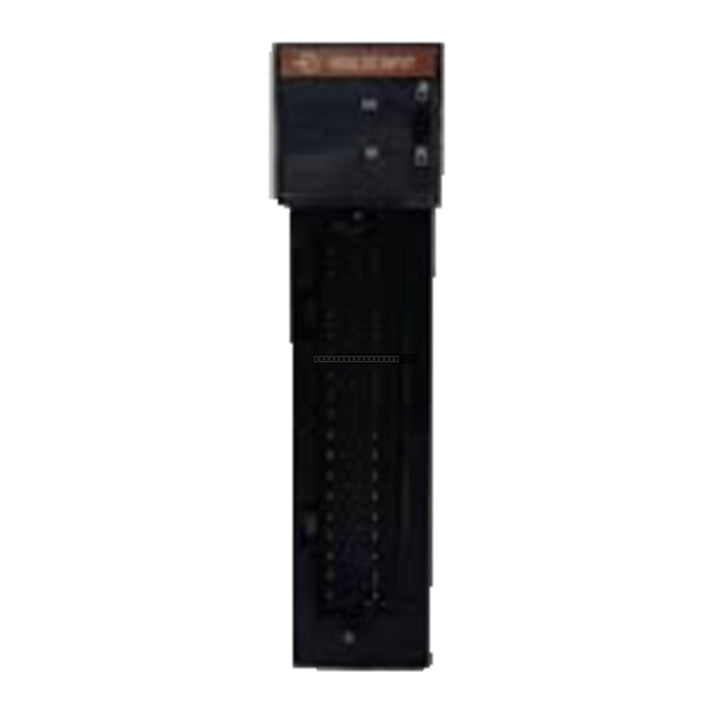

Allen-Bradley 1756-IF16H ControlLogix 16-Point HART Analog Input Module

Allen-Bradley 1756-IF16H ControlLogix 16-Point HART Analog Input Module

Description

The Allen-Bradley 1756-IF16H is a high-density analog input module designed for the ControlLogix platform. This module provides 16 differential analog input channels with integrated HART (Highway Addressable Remote Transducer) protocol...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 1756-IF16H
Proveedora: Allen-Bradley
tipo: Analog Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1756-IF16H is a high-density analog input module designed for the ControlLogix platform. This module provides 16 differential analog input channels with integrated HART (Highway Addressable Remote Transducer) protocol support, allowing for advanced diagnostics and configuration of field devices directly through the control system. It is engineered to deliver precise signal monitoring in demanding industrial environments, ensuring seamless integration with existing ControlLogix architecture.

Features

  • 16 isolated differential input channels for high-density signal processing.
  • Integrated HART communication support for intelligent field device management.
  • Compatible with standard ControlLogix chassis and backplane power.
  • Supports configurable input ranges to accommodate various sensor types.
  • Provides comprehensive diagnostic data for improved maintenance and troubleshooting.

Applications

This module is typically deployed in process control applications where HART-enabled instrumentation is utilized, such as chemical processing, oil and gas, and power generation facilities. It is ideal for monitoring pressure, temperature, flow, and level transmitters that require both analog process variables and digital diagnostic information.

Technical Specifications

Manufacturer Allen-Bradley
Series ControlLogix
Model Number 1756-IF16H
Input Points 16 Differential
Protocol HART
Weight 0.22 kg

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is properly seated in the chassis slot and that the locking tab is engaged.
  • Use appropriate shielded cabling to minimize EMI/RFI interference, especially when dealing with low-level analog signals.
  • Follow standard grounding procedures for the ControlLogix system to maintain signal integrity.
  • Avoid installing the module in areas with excessive vibration or extreme temperatures outside the manufacturer's specified operating range.

FAQ

Does this module support HART device configuration?

Yes, the 1756-IF16H is specifically designed to facilitate HART communication, allowing for the configuration and monitoring of HART-compatible field devices through the ControlLogix system.

Is this module compatible with all ControlLogix chassis?

The 1756-IF16H is designed for the standard ControlLogix I/O chassis. Please ensure your firmware and Studio 5000 / RSLogix 5000 software versions support this specific module before installation.
