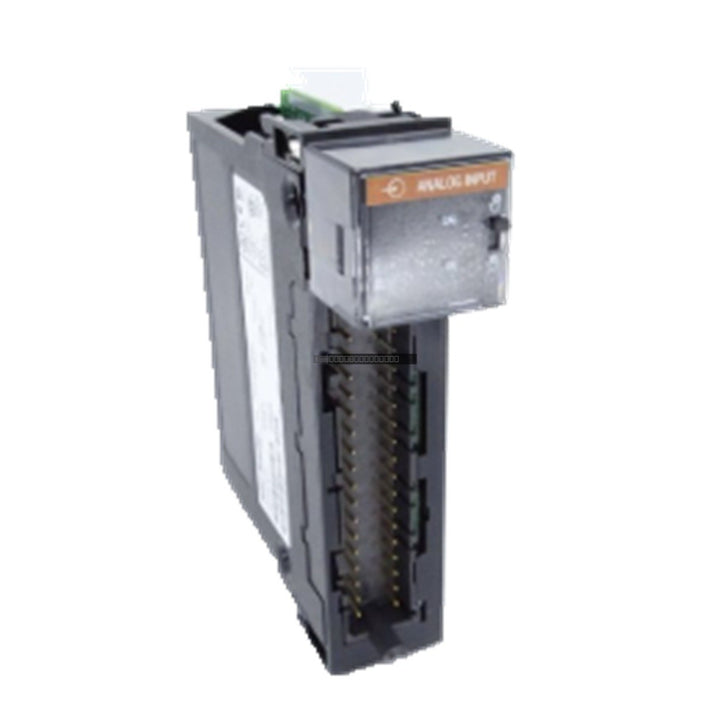

Allen-Bradley 1756-IF8 ControlLogix 8-Channel Analog Input Module

Allen-Bradley 1756-IF8 ControlLogix 8-Channel Analog Input Module

The Allen-Bradley 1756-IF8 is a high-performance analog input module designed for the ControlLogix automation platform. It provides eight input channels capable of processing voltage or current signals from various industrial...

28 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 1756-IF8
Proveedora: Allen-Bradley
tipo: Analog Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 1756-IF8 is a high-performance analog input module designed for the ControlLogix automation platform. It provides eight input channels capable of processing voltage or current signals from various industrial sensors, such as pressure transmitters, flow meters, and temperature probes. By converting these continuous analog signals into 16-bit digital data, the module enables precise monitoring and control within complex industrial processes.

Features

  • Versatile 8-channel input configuration supporting both single-ended and differential modes.
  • Flexible signal range support including +/-10V, 0-10V, 0-5V, and 0-20mA (4-20mA).
  • High-resolution data acquisition using Sigma-Delta conversion.
  • Integrated digital filtering to reduce noise and improve signal stability.
  • Comprehensive diagnostic capabilities for monitoring module health and input status.

Applications

  • Filtration Systems: Monitoring differential pressure for maintenance cycles.
  • Injection Molding: Tracking temperature and pressure transducers for quality control.
  • Water Treatment: Measuring pH, turbidity, and chemical concentrations.
  • Hydraulic Systems: Providing feedback for consistent force and motion control.
  • Dosing and Metering: Integrating flow transmitter data for precise chemical injection.

Technical Specifications

Model 1756-IF8
Module Type Analog Input
Input Channels 8 (Single-Ended) / 4 (Differential)
Conversion Method Sigma-Delta
Backplane Current (5V) 150 mA
Backplane Current (24V) 40 mA
Power Dissipation (Max) 1.73 W (Voltage) / 2.33 W (Current)
Series ControlLogix

Installation Guidelines

  • The 1756-IF8 is open-type equipment and must be mounted within a NEMA or IEC-rated enclosure to prevent accidental contact with live electrical components.
  • Ensure the ControlLogix chassis is properly grounded before installing the module.
  • While the module supports Removal and Insertion Under Power (RIUP), exercise caution; disconnecting the Removable Terminal Block (RTB) while field-side power is active may cause electrical arcing.
  • Route signal wiring away from high-voltage cables and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Verify that the module is fully seated in the chassis slot and the RTB is securely locked before applying power.

FAQ

What is the primary function of the 1756-IF8?

The 1756-IF8 acts as an interface between field sensors and the ControlLogix controller, converting analog voltage or current inputs into digital values for processing.

Is this module isolated?

The 1756-IF8 is a non-isolated module. If channel-to-channel isolation is required for your specific application, consider the 1756-IF8I model.

What are the wiring configurations?

The module supports 8 single-ended inputs or 4 differential inputs, depending on your noise immunity requirements and sensor output type.
