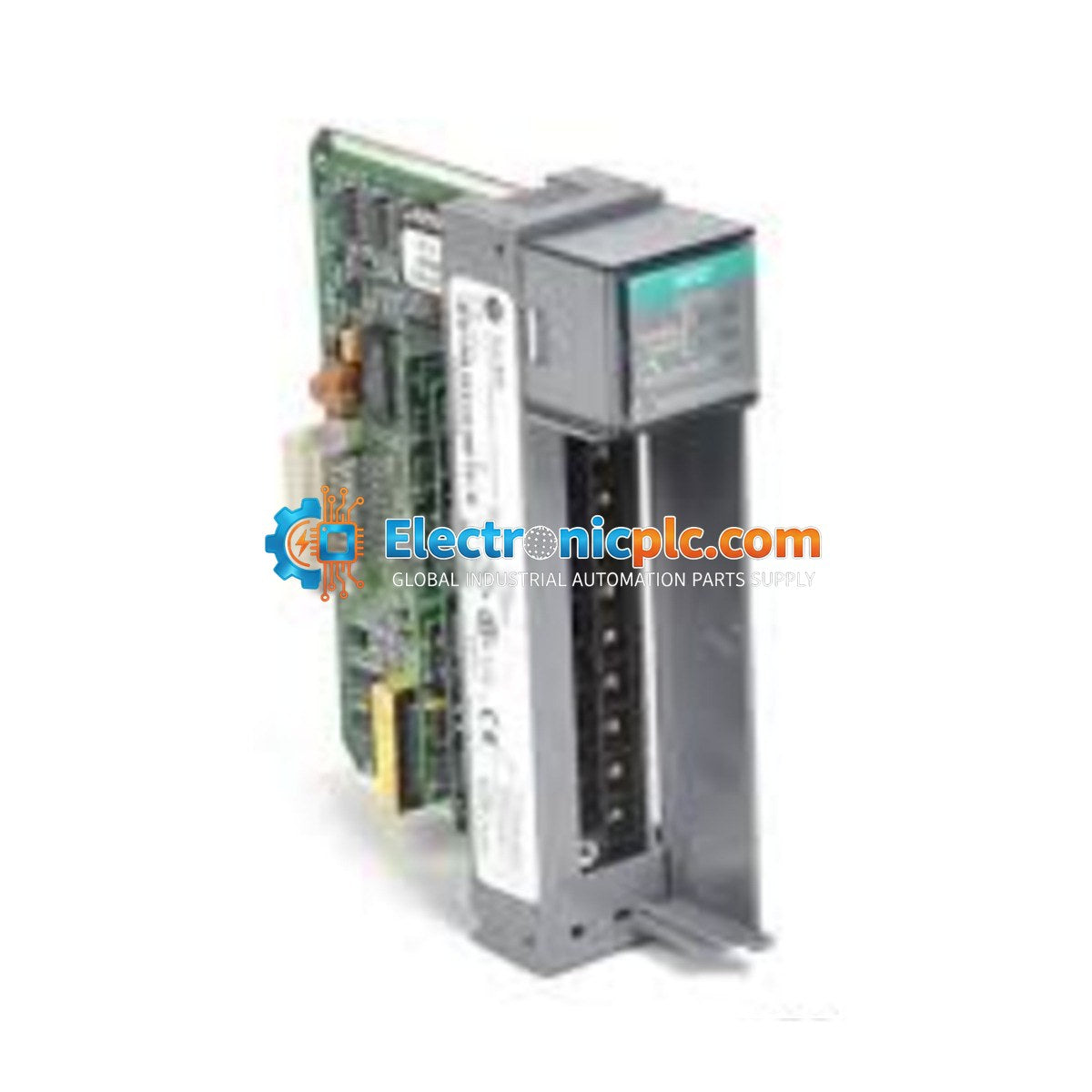

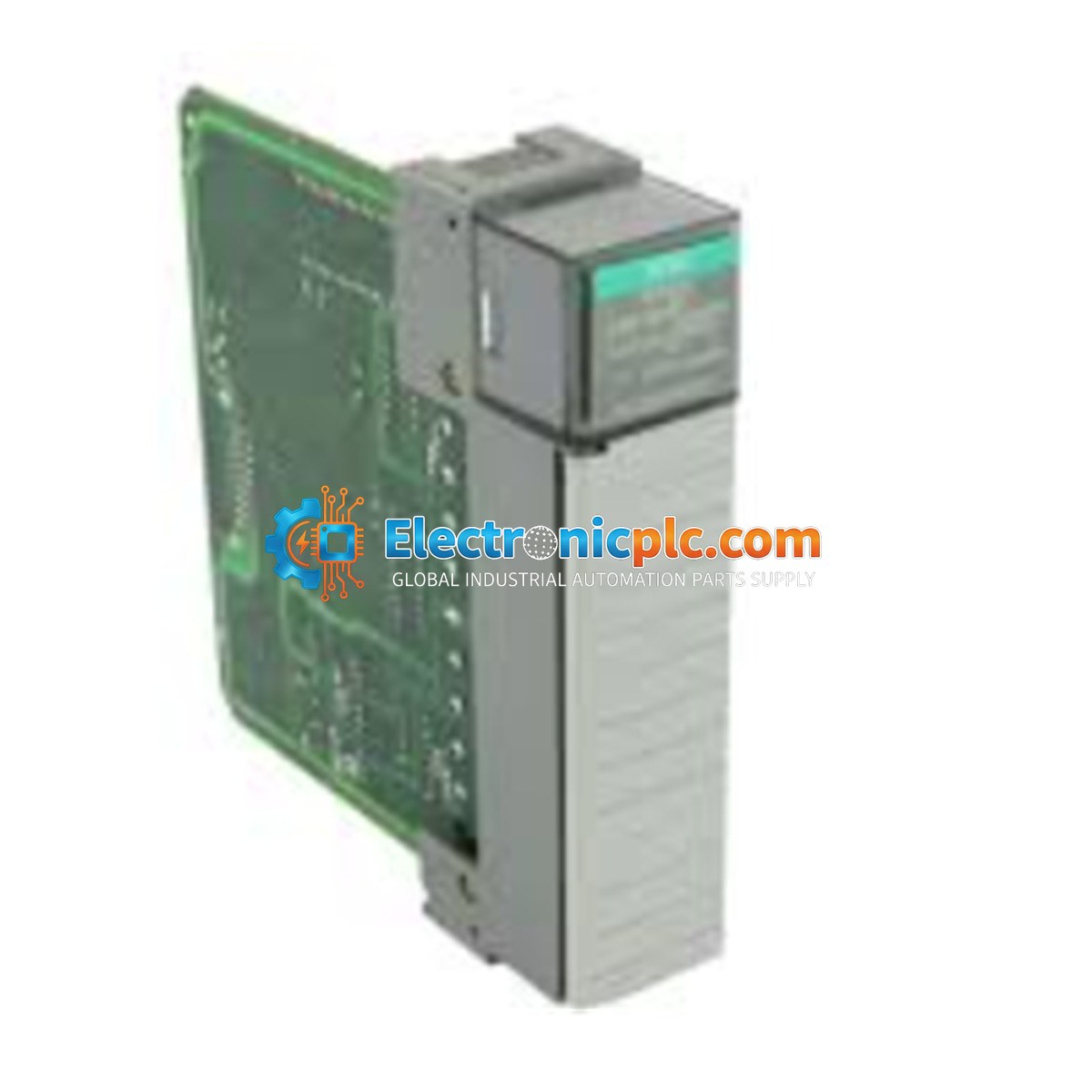

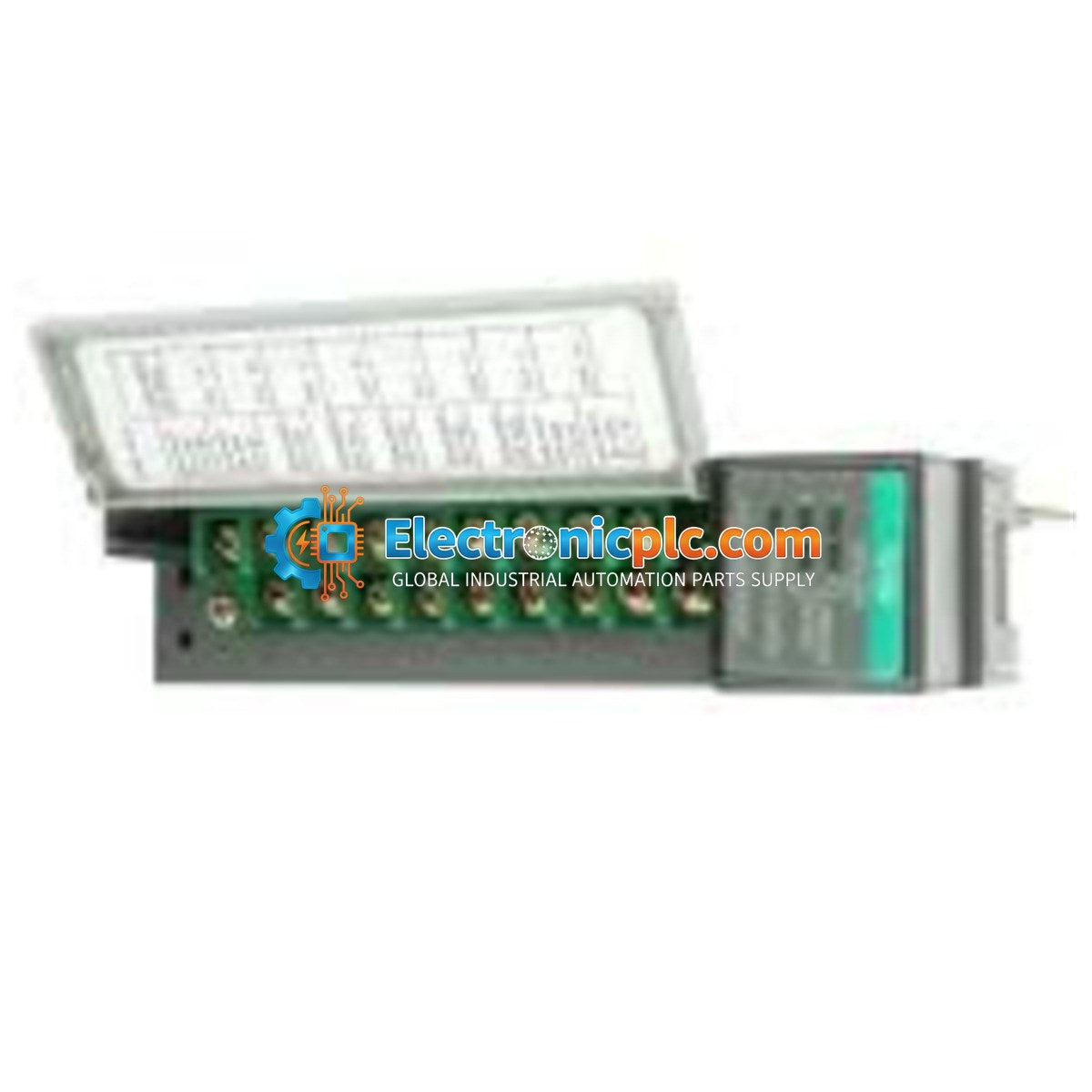

Allen-Bradley 1756-OW16I ControlLogix 16-Point Isolated Relay Output Module

Allen-Bradley 1756-OW16I ControlLogix 16-Point Isolated Relay Output Module

Description

The Allen-Bradley 1756-OW16I is a high-performance 16-point isolated relay output module designed for the ControlLogix platform. This module provides 16 individually isolated, normally open (N.O.) relay outputs, making it suitable...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: 1756-OW16I
Proveedora: Allen-Bradley
tipo: Digital Output Module
