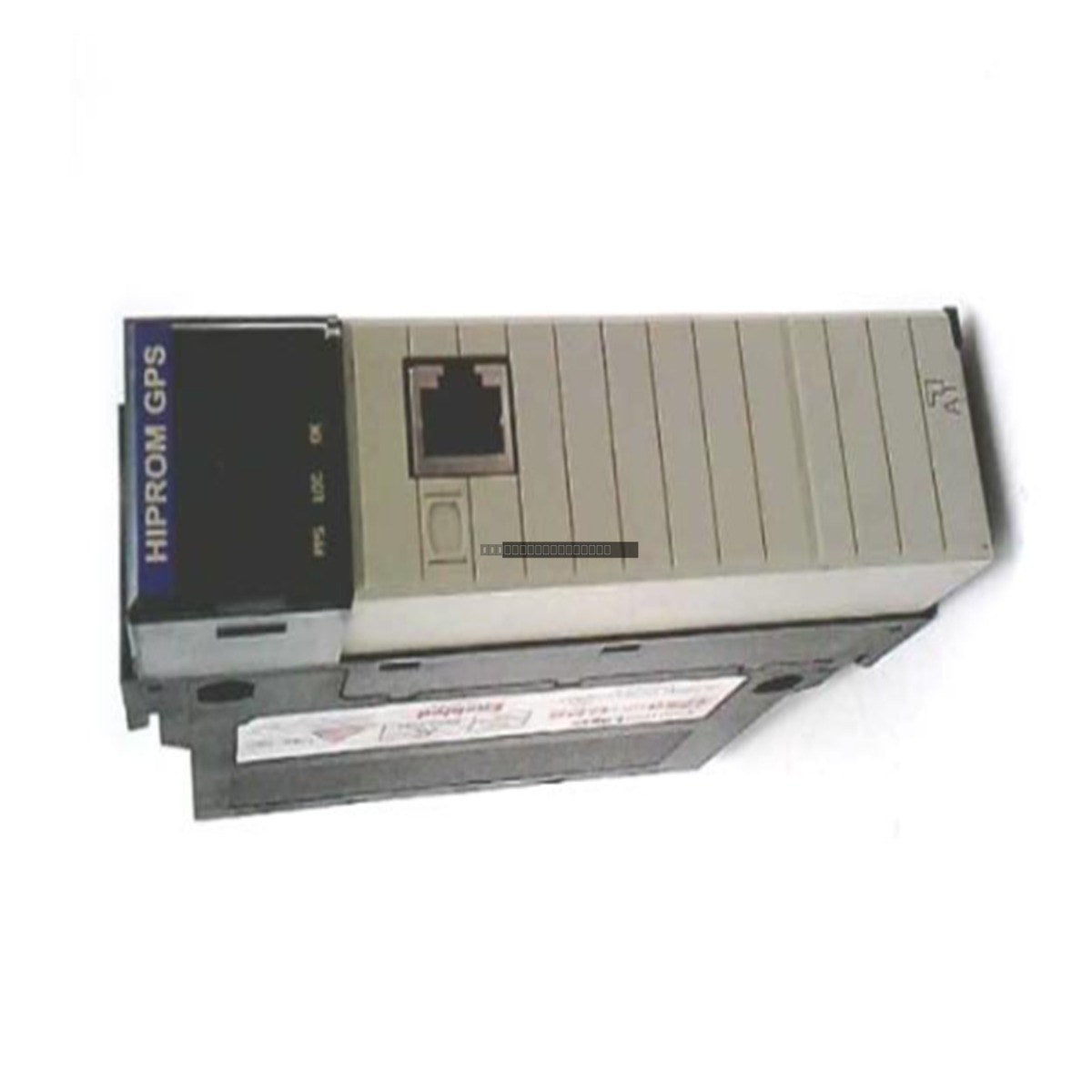

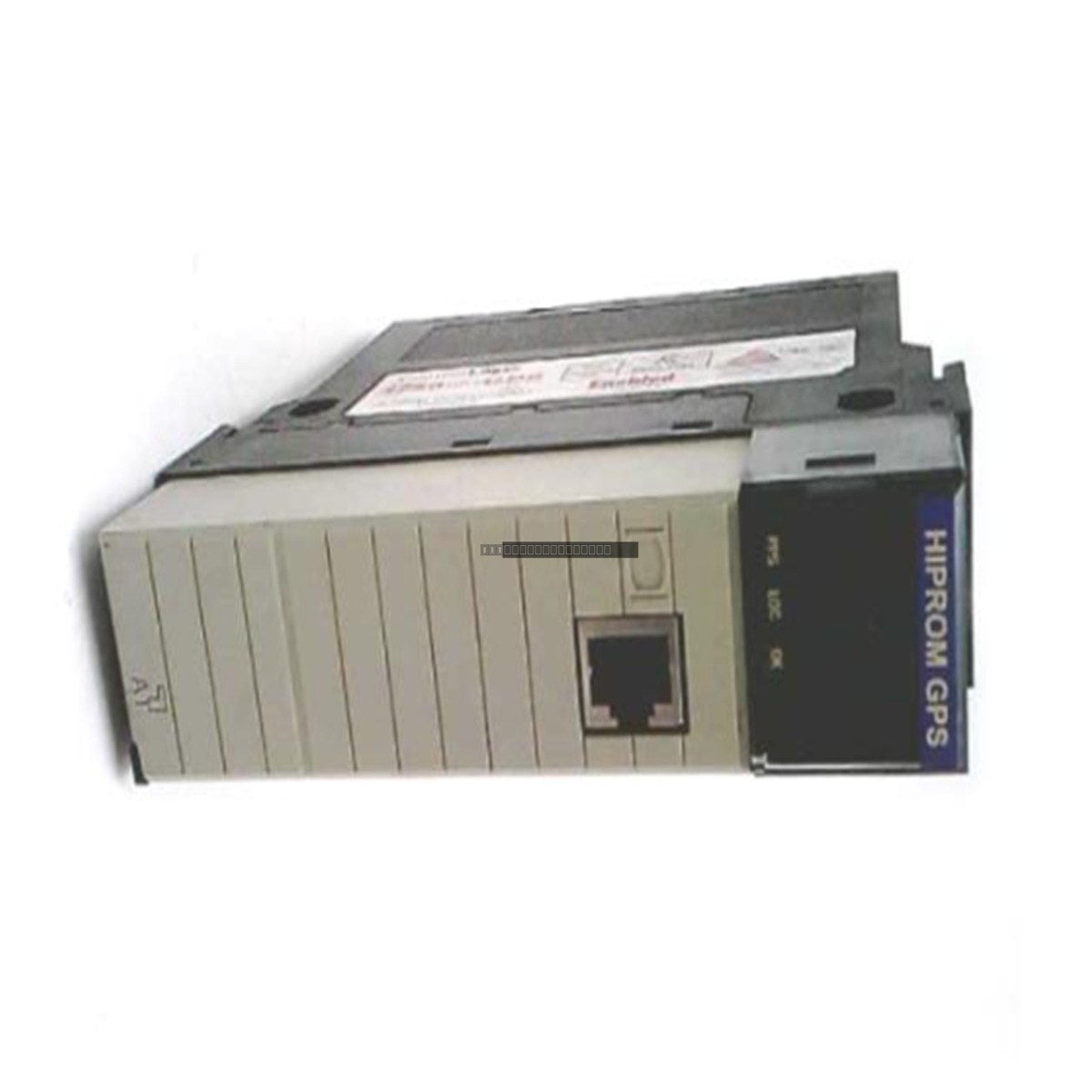

The Allen-Bradley 1756HP-GPS is a specialized communication module designed for the ControlLogix platform, providing high-precision time synchronization and global positioning capabilities. Developed by HiProm, a Rockwell Automation Encompass Partner, this module serves as a master time reference, utilizing GPS satellite data to maintain accurate timing across distributed control systems. It is an essential tool for applications requiring microsecond-level event logging and wide-area synchronization.

Features

• Direct integration with ControlLogix chassis for seamless backplane data communication.
• Supports high-precision UTC time synchronization for accurate Sequence of Events (SOE) recording.
• Provides real-time geographical data including latitude, longitude, altitude, and velocity.
• Interfaces with external GPS antenna hardware for reliable signal acquisition.
• Maps telemetry data directly into the controller's I/O tag database for easy access in logic programs.
• Single-slot footprint optimizes space within the ControlLogix rack.

Applications

This module is engineered for industrial environments where precise timing is critical to system integrity. Typical use cases include:

• Distributed utility and power grid monitoring.
• Pipeline leak detection systems requiring synchronized time-stamping.
• Wide-area SCADA infrastructure.
• Mobile or marine asset tracking and location-based process control.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis power is removed before inserting or removing the module to prevent electrical damage.
• Install the module in any standard slot within the chassis; ensure it is fully seated and the top/bottom latches are secured.
• Use appropriate shielded cabling for the external GPS antenna connection to minimize signal interference.
• Maintain proper clearance around the module to allow for natural convection cooling.
• Handle the module using standard ESD precautions to prevent damage to sensitive internal circuitry.

FAQ

What is the primary function of the 1756HP-GPS?

The 1756HP-GPS acts as a master time reference for ControlLogix systems, allowing for microsecond-level synchronization of events across multiple controllers, while also providing geographical coordinate data.

Is this module compatible with all ControlLogix chassis?

Yes, the module is designed to fit into any standard slot within a ControlLogix chassis array, occupying a single slot.

Does the module require an external antenna?

Yes, the module features an external antenna port that must be connected to a compatible GPS antenna to receive satellite timing signals.
