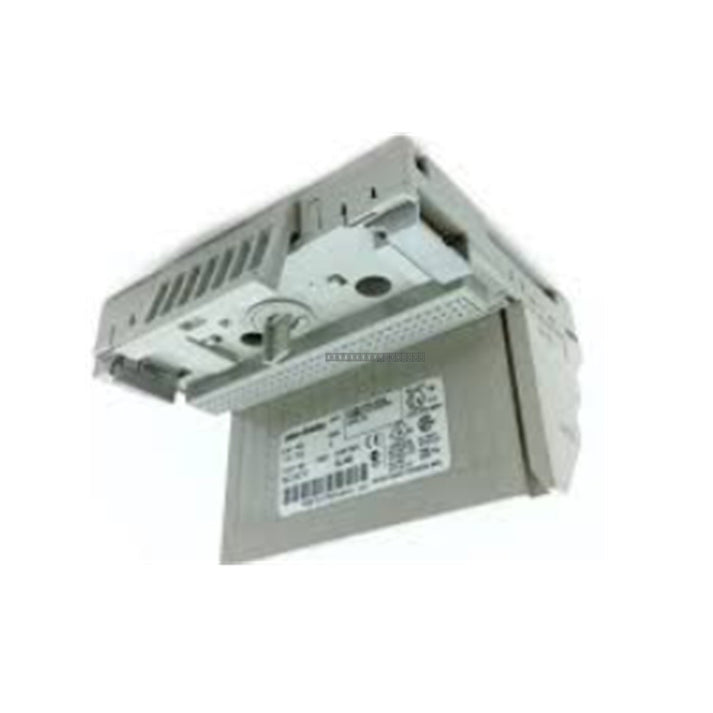

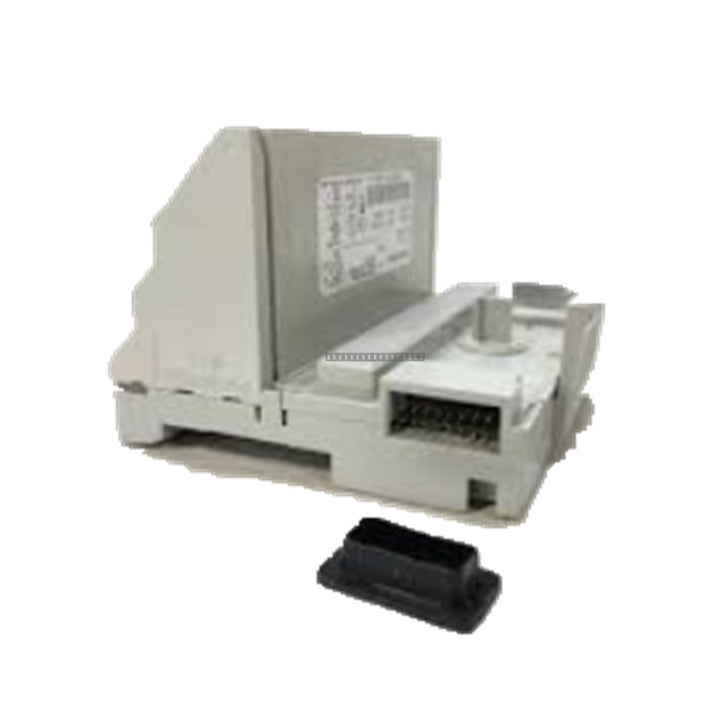

Allen-Bradley 1794-TB3T Flex I/O Temperature-Optimized Screw-Clamp Terminal Base

Allen-Bradley 1794-TB3T Flex I/O Temperature-Optimized Screw-Clamp Terminal Base

Description

The 1794-TB3T is a 36-point screw-clamp terminal base unit designed for the Allen-Bradley Flex I/O 1794 modular platform. This unit provides the necessary structural and electrical termination plane for both...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 1794-TB3T
Proveedora: Allen-Bradley
tipo: Terminal Base
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The 1794-TB3T is a 36-point screw-clamp terminal base unit designed for the Allen-Bradley Flex I/O 1794 modular platform. This unit provides the necessary structural and electrical termination plane for both discrete and analog I/O modules. The "T" suffix denotes a temperature-optimized design, featuring eight integrated chassis-ground screw terminals specifically engineered to provide low-impedance paths for shielding sensitive analog instrumentation, such as RTDs and thermocouples, effectively mitigating electromagnetic interference (EMI).

Features

  • Integrated chassis grounding architecture with 8 dedicated ground terminals for noise-sensitive applications.
  • Supports up to 16 field I/O connections with heavy-duty screw-clamp terminals.
  • Integrated Flexbus backplane for seamless data and logic power distribution.
  • Mechanical keyswitch guide to prevent improper module installation and protect low-voltage components.
  • Capable of handling up to 10 A aggregate current.
  • Compatible with both horizontal and vertical DIN-rail or panel mounting.

Applications

This terminal base is ideal for industrial control systems requiring high-precision analog signal processing where signal integrity is paramount. It is commonly used in process automation, temperature monitoring loops, and environments prone to electrical noise where robust grounding and shield termination are required for reliable operation.

Technical Specifications

Model 1794-TB3T
Brand Allen-Bradley / Rockwell Automation
Terminal Type Screw-Clamp
Field Connections 16 I/O points
Ground Terminals 8 dedicated chassis ground
Max Voltage 125 VAC / 125 VDC
Max Current 10 A aggregate
Operating Temperature -20 to 70 degC
Vibration Resistance 5 g at 10 to 150 Hz
Humidity 5 to 95 percent (non-condensing)

Installation Guidelines

  • Ensure the DIN-rail or panel is properly grounded to the enclosure chassis before mounting.
  • Verify the mechanical keyswitch on the base matches the keying of the inserted I/O module to prevent damage.
  • Always power down the Flexbus backplane before installing or removing I/O modules to prevent electrical arcing.
  • Route shielded cables directly to the dedicated chassis ground terminals to maximize noise immunity.
  • Maintain adequate spacing in the enclosure to allow for proper airflow and heat dissipation.

FAQ

What is the primary difference between the 1794-TB3 and the 1794-TB3T?

The 1794-TB3T includes specialized chassis-grounding terminals designed for temperature-sensing applications, whereas the standard 1794-TB3 does not include these specific grounding points.

Can this base be used with non-analog modules?

Yes, the 1794-TB3T is fully compatible with standard discrete digital Flex I/O modules, though the grounding features are specifically intended for analog signal applications.
