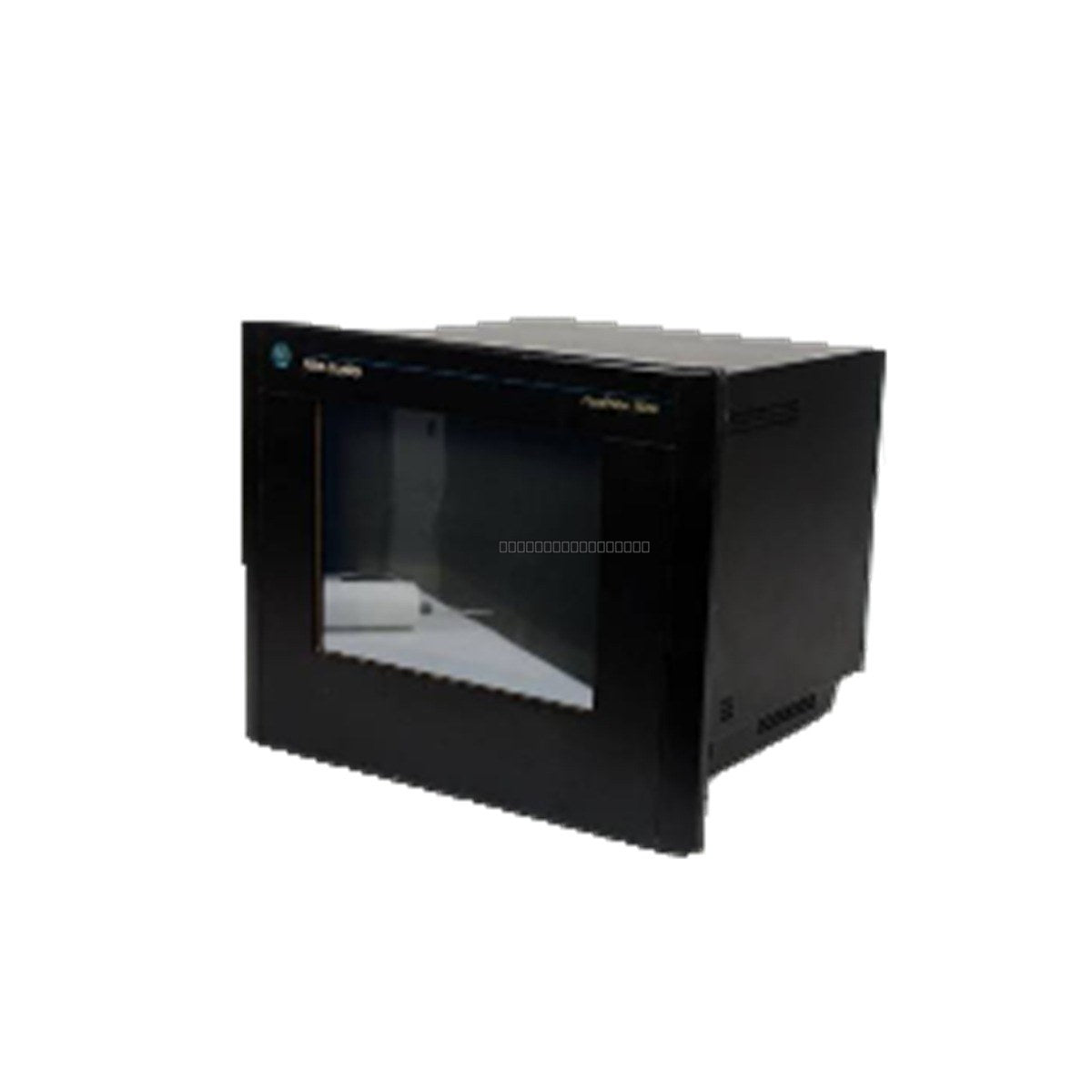

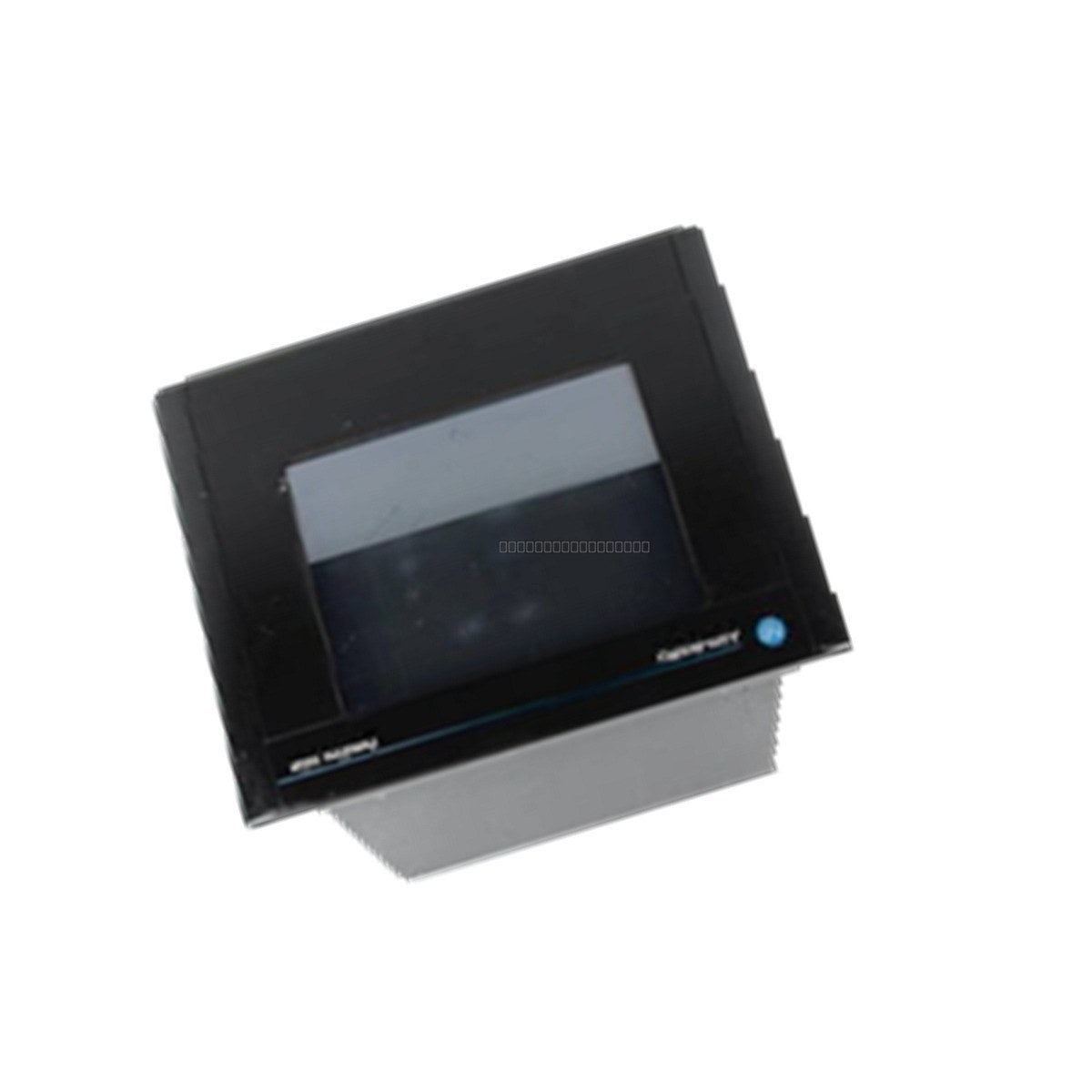

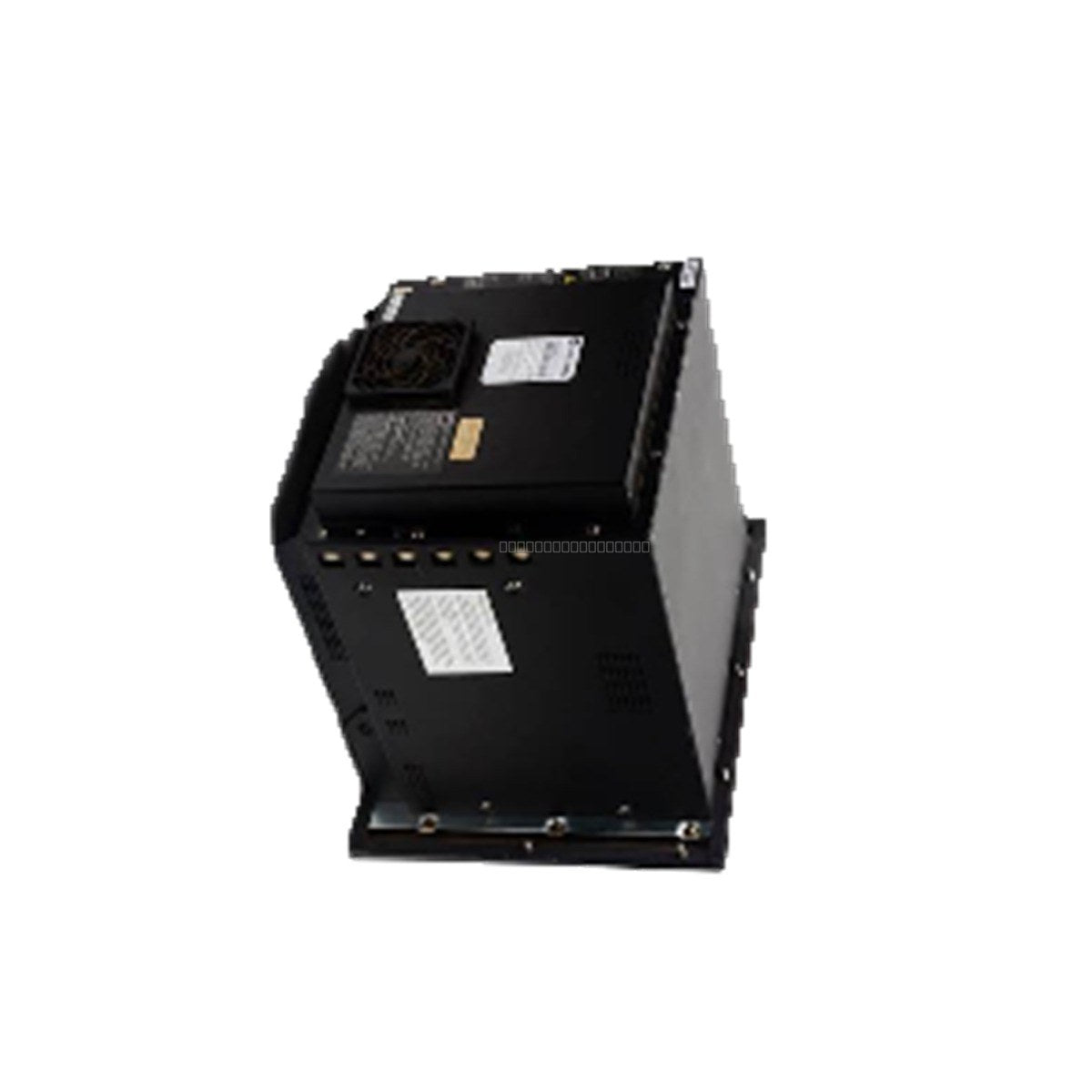

Allen-Bradley 2711E-T14C6 PanelView Enhanced HMI Terminal

Allen-Bradley 2711E-T14C6 PanelView Enhanced HMI Terminal

The Allen-Bradley 2711E-T14C6 is a high-performance industrial human-machine interface (HMI) terminal from the legacy PanelView Enhanced (1400e) series. Designed for demanding industrial environments, this terminal provides robust visualization, real-time alarm...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 2711E-T14C6
Proveedora: Allen-Bradley
tipo: HMI Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711E-T14C6 is a high-performance industrial human-machine interface (HMI) terminal from the legacy PanelView Enhanced (1400e) series. Designed for demanding industrial environments, this terminal provides robust visualization, real-time alarm monitoring, and control system interaction. It is engineered to integrate seamlessly with various Allen-Bradley controller architectures, serving as a centralized operator station for complex plant-floor applications.

Features

  • 14-inch color active matrix TFT display with 640 x 480 native resolution.
  • Analog resistive touchscreen interface rated for 1 million actuations.
  • Durable cast aluminum bezel with black powder coating for enhanced EMI protection and mechanical stability.
  • Integrated communication ports for Data Highway Plus (DH+) and Remote I/O (RIO) networks.
  • 2.25 MB of onboard nonvolatile flash memory for secure storage of configuration and graphical assets.
  • Designed to withstand mechanical shocks up to 15 G.

Applications

This HMI terminal is suitable for continuous, heavy-duty industrial operations including automotive assembly lines, steel processing, paper mills, and bulk material handling systems where reliable, deterministic communication with PLC-5, SLC 500, and ControlLogix platforms is required.

Technical Specifications

Model 2711E-T14C6
Input Voltage 85 to 264 VAC (47 to 63 Hz)
Power Consumption 60 Watts
Display Size 14.0 inches
Memory 2.25 MB Flash
Communication DH+ and RIO Ports
Weight 11.79 kg
Enclosure Cast Aluminum

Installation Guidelines

  • Ensure the terminal is flush-mounted in a NEMA-rated industrial enclosure to maintain environmental protection.
  • Verify that the power supply is within the 85-264 VAC range before connection.
  • Maintain proper clearance around the unit to ensure adequate ventilation and cooling.
  • Use shielded communication cables for DH+ and RIO connections to minimize signal interference.
  • Power down the unit before performing any maintenance, including the replacement of the 6189-NL2 backlight module.
  • Handle the unit with care to avoid damage to the resistive touchscreen overlay.

FAQ

Is this terminal still in production?

No, the 2711E-T14C6 is part of the legacy PanelView Enhanced series and is classified as discontinued/obsolete. We provide these units as refurbished or surplus spare parts.

Which controllers are compatible with this HMI?

This terminal is designed for direct register synchronization with Allen-Bradley PLC-5, SLC 500, CompactLogix, and ControlLogix controller families via its integrated DH+ and RIO ports.

How do I replace the backlight?

The display illumination is provided by a replaceable 6189-NL2 backlight tube module. Refer to the original installation manual for step-by-step disassembly instructions to access the backlight assembly.
