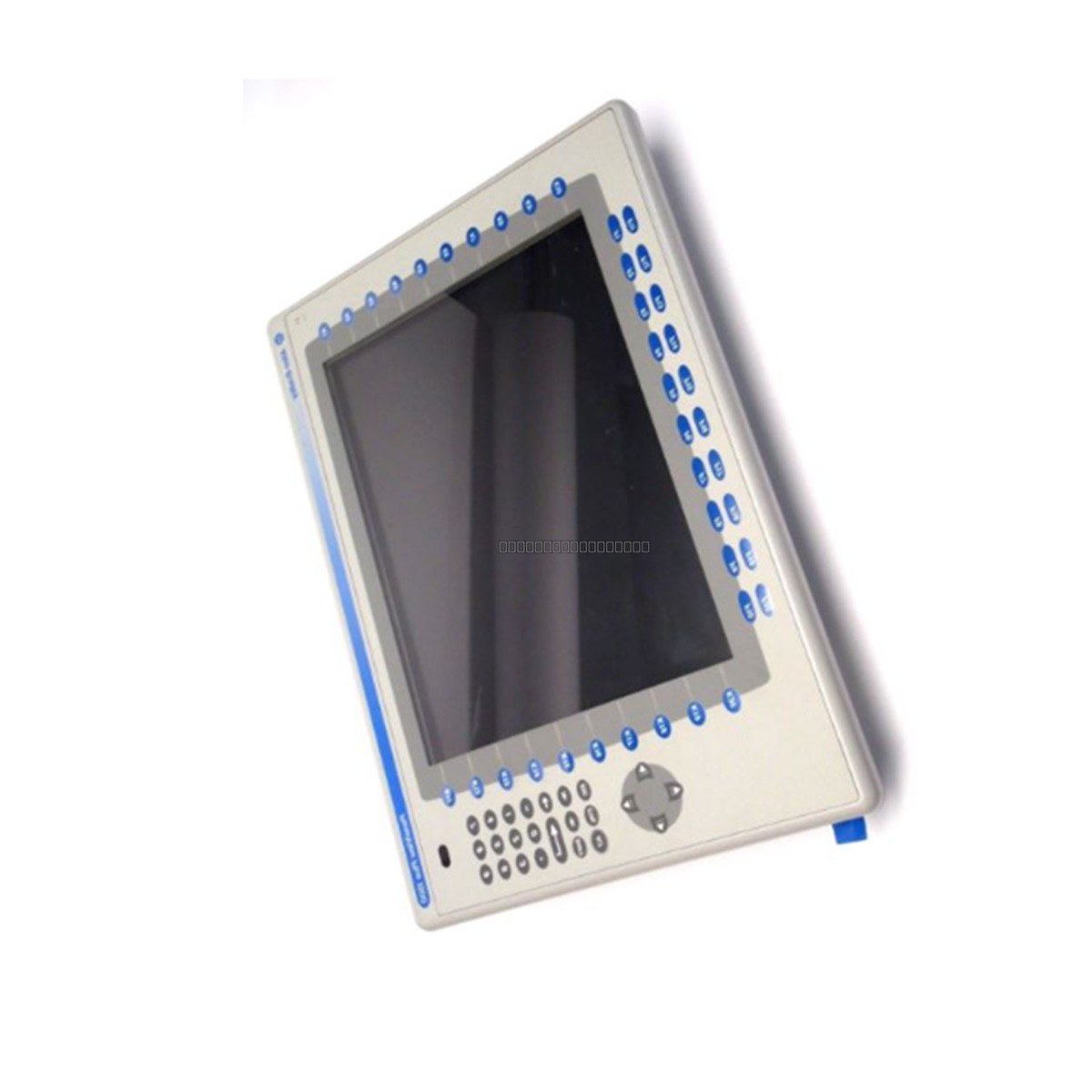

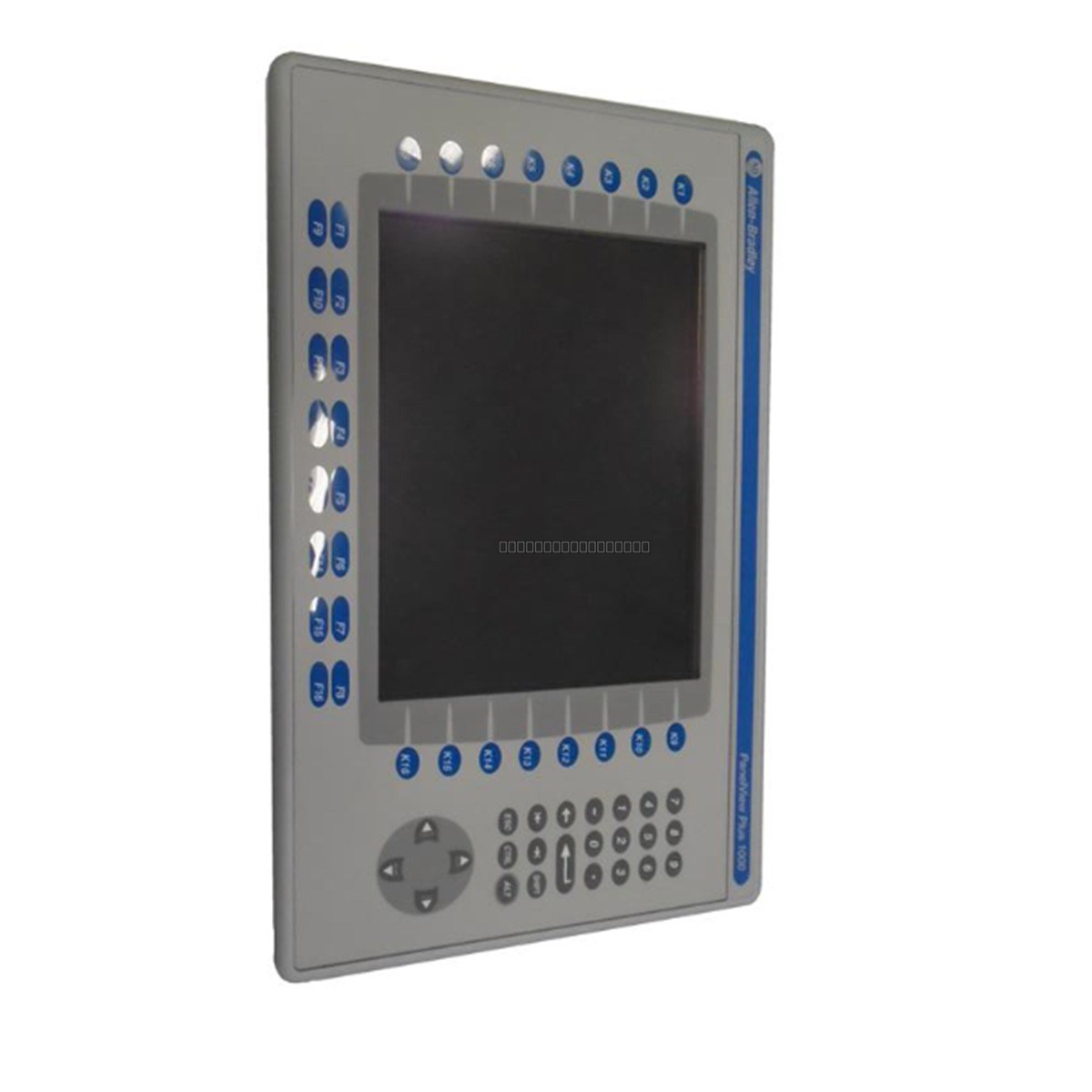

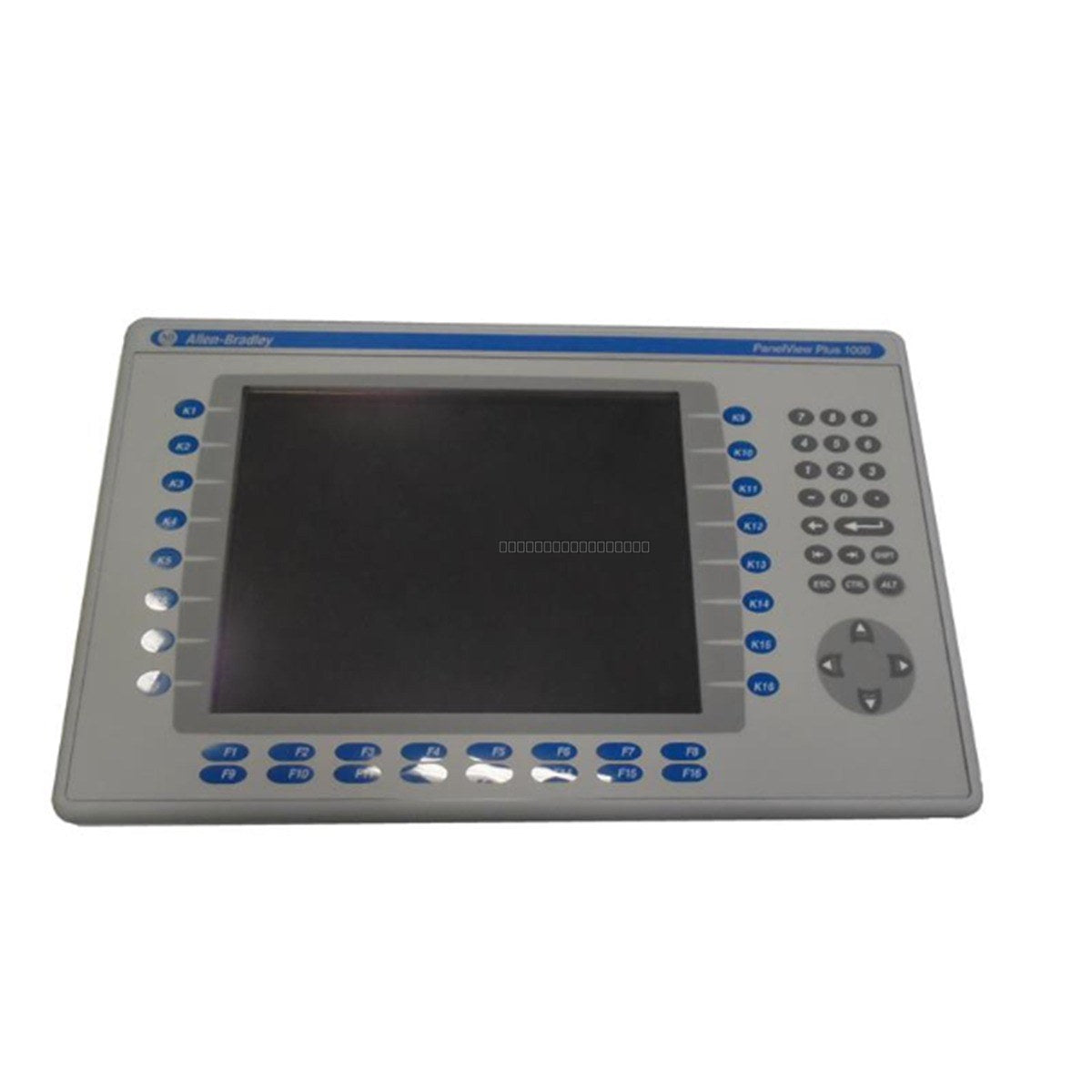

Allen-Bradley 2711P-B10C15A6 PanelView Plus 1000 Operator Terminal

Allen-Bradley 2711P-B10C15A6 PanelView Plus 1000 Operator Terminal

The 2711P-B10C15A6 is an industrial operator terminal from the Allen-Bradley PanelView Plus 1000 series. Engineered for robust human-machine interfacing, this unit provides reliable control and visualization capabilities in demanding industrial...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 2711P-B10C15A6
Proveedora: Allen-Bradley
tipo: Operator Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The 2711P-B10C15A6 is an industrial operator terminal from the Allen-Bradley PanelView Plus 1000 series. Engineered for robust human-machine interfacing, this unit provides reliable control and visualization capabilities in demanding industrial environments, including manufacturing assembly lines and water treatment facilities. As a legacy component, it is designed for integration into existing control architectures requiring ControlNet connectivity.

Features

  • 10.4-inch color display for clear visualization of process data.
  • Dual input interface featuring both a physical keypad and a touchscreen for versatile operator control.
  • Integrated ControlNet communication port supporting scheduled and unscheduled data access.
  • Supports redundant cabling configurations for high-availability network requirements.
  • Compatible with symbolic CIP addressing for direct communication with ControlLogix controllers.
  • Dedicated Network Access port for simplified local maintenance and connectivity.

Applications

This operator terminal is suitable for various industrial automation tasks, including machine-level monitoring, process control, and system diagnostics in environments where reliable HMI performance is required to minimize downtime.

Technical Specifications

Model 2711P-B10C15A6
Brand Allen-Bradley
Input Type Keypad and Touchscreen
Display Size 10.4 in.
Display Type Color
Communication ControlNet
Power Supply 85-264 VAC
Memory 128 MB
Operating Temperature 0 to 55 deg C
Series Compatibility Ser A, B, C, D, and F

Installation Guidelines

  • Ensure the terminal is mounted in a suitable enclosure that provides adequate protection against environmental hazards.
  • Verify that the power supply voltage is within the specified 85-264 VAC range before applying power.
  • Use appropriate shielded cabling for ControlNet connections to minimize EMI interference.
  • Maintain proper ventilation around the unit to ensure the operating temperature remains within the 0 to 55 deg C range.
  • Always disconnect power before installing or removing the module or performing wiring maintenance.
  • Ensure the unit is properly grounded according to local electrical codes to prevent electrical noise issues.

FAQ

Is this terminal still supported by the manufacturer?
No, the 2711P-B10C15A6 has been discontinued by Allen-Bradley. It is primarily sourced for maintenance and repair of legacy systems.

What communication protocol does this unit use?
This specific model utilizes the ControlNet communication protocol for data exchange with controllers.
