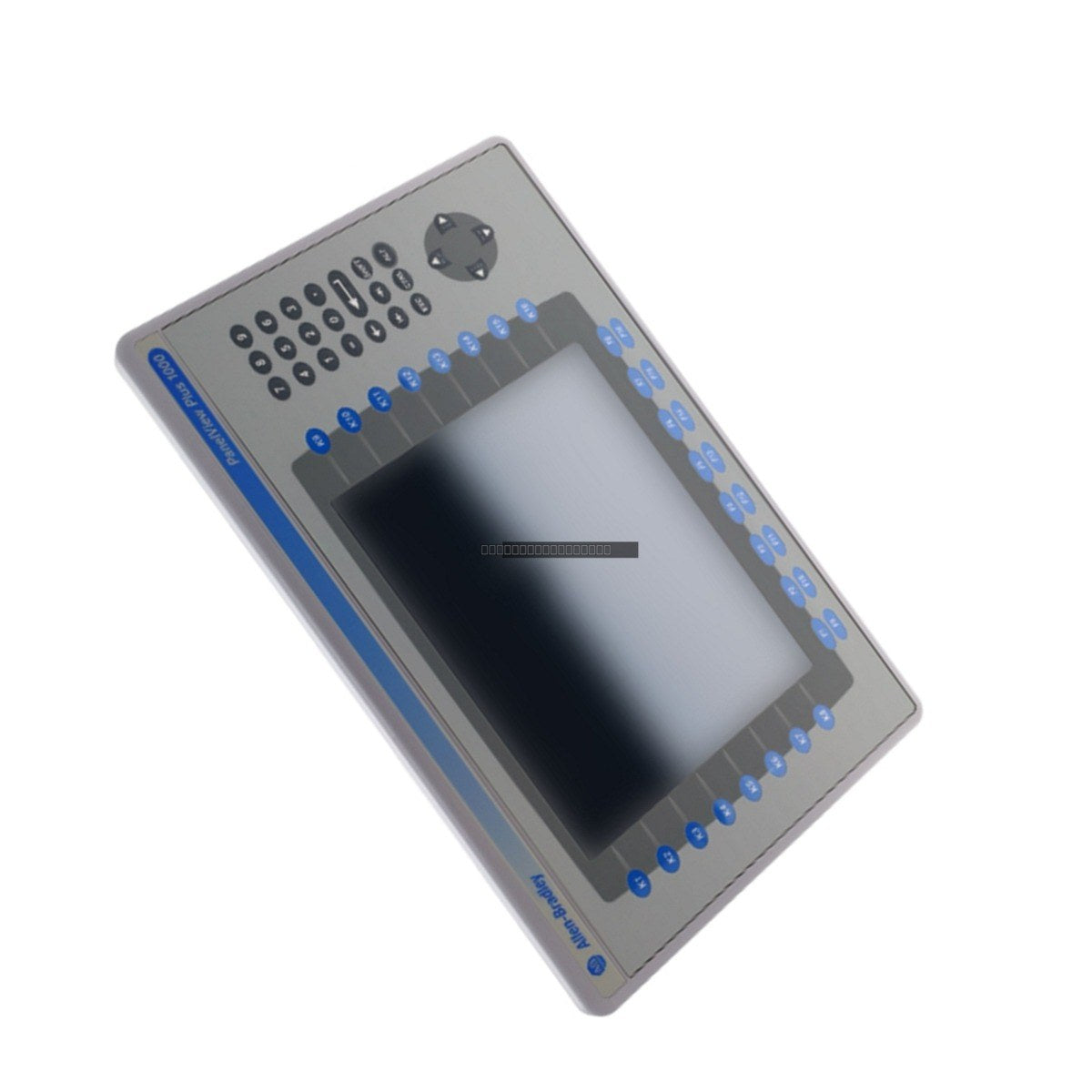

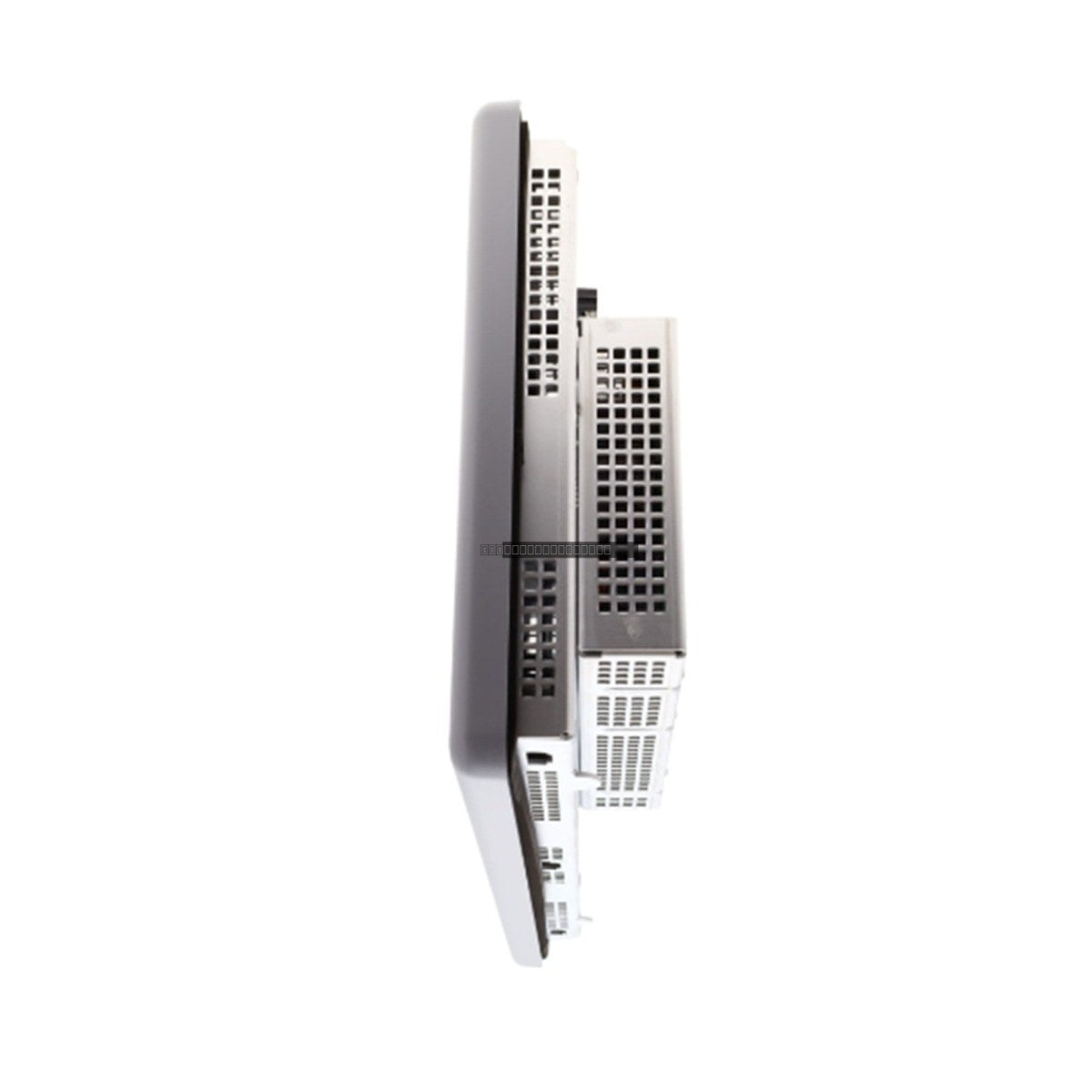

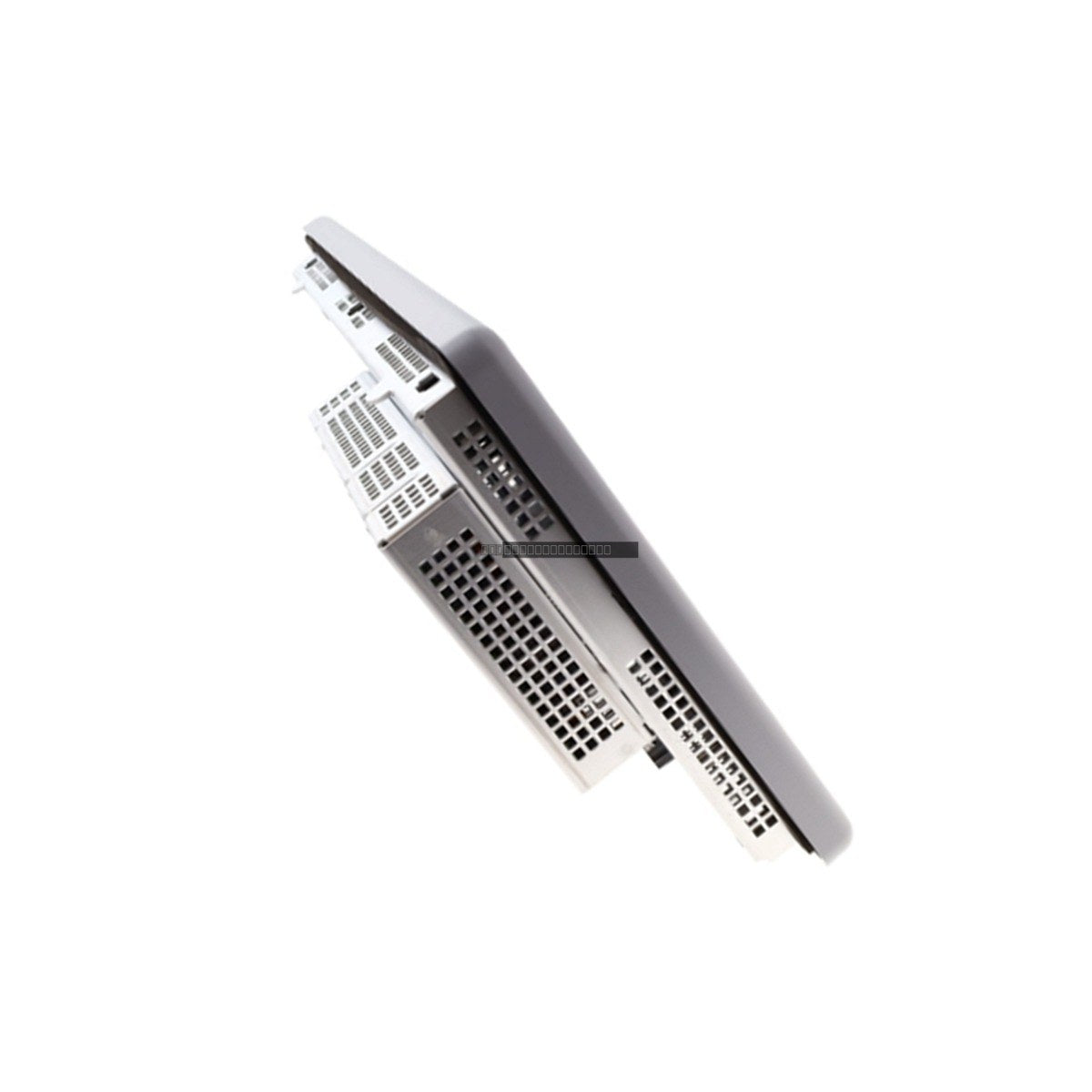

Allen-Bradley 2711P-B12C15D6 PanelView Plus 1250 Operator Interface Terminal

Allen-Bradley 2711P-B12C15D6 PanelView Plus 1250 Operator Interface Terminal

The Allen-Bradley 2711P-B12C15D6 is a robust PanelView Plus 1250 operator interface terminal engineered for demanding industrial visualization and control applications. This HMI provides a reliable bridge between human operators and...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 2711P-B12C15D6
Proveedora: Allen-Bradley
tipo: Operator Interface Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711P-B12C15D6 is a robust PanelView Plus 1250 operator interface terminal engineered for demanding industrial visualization and control applications. This HMI provides a reliable bridge between human operators and programmable logic controllers (PLCs), facilitating real-time process monitoring, diagnostic reporting, and system parameter adjustments in complex automation environments such as power generation and large-scale manufacturing.

Features

  • Hybrid Input Interface: Features both a high-durability 8-wire analog resistive touchscreen and a physical keypad, ensuring operational reliability even when operators are wearing protective gloves.
  • High-Resolution Display: Equipped with a 12.1-inch active-matrix TFT color display providing 800 x 600 resolution and 18-bit color depth for clear data visualization.
  • Flexible Connectivity: Includes integrated 10/100 Mbps Ethernet, RS-232 serial ports, and dual USB host ports for peripheral expansion.
  • Modular Communication: Supports field-installable communication modules for specialized network requirements, including ControlNet and DH+/DH-485.
  • Dual Power Compatibility: Designed for versatility with support for both 18-32 VDC and 100-240 VAC power sources.

Technical Specifications

Model 2711P-B12C15D6
Display Size 12.1 inch
Resolution 800 x 600 pixels
Input Type Keypad and Touchscreen
Enclosure Rating NEMA 12, 13, 4X; IEC IP65
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Power (DC) 18-32 VDC (24 VDC nominal)
Power (AC) 100-240 VAC, 50-60 Hz

Installation Guidelines

  • Mounting: Ensure the unit is installed in a panel cutout that meets the specified dimensions, utilizing the provided mounting clips to maintain the NEMA/IP seal.
  • Environment: Maintain adequate clearance around the unit for airflow to prevent overheating; avoid installation in areas with excessive vibration or direct exposure to corrosive chemicals.
  • Grounding: Always connect the chassis ground terminal to a low-impedance earth ground to minimize EMI and protect against electrical surges.
  • Power Wiring: Verify the supply voltage matches the terminal's input range before connecting; use shielded cables for communication lines to ensure signal integrity.
  • Maintenance: Power down the device before removing or installing communication modules to prevent electrical damage.

FAQ

Q: Can this terminal be used with gloves?
A: Yes, the 2711P-B12C15D6 features a hybrid input design with a physical keypad, allowing for reliable operation in industrial settings where protective gloves are required.

Q: Does this unit support network expansion?
A: Yes, the terminal supports modular communication logic modules, allowing for integration into ControlNet, DH+, or DH-485 networks.

Q: What is the enclosure rating for this HMI?
A: This unit is rated for NEMA Type 12, 13, 4X (indoor use) and IEC IP65, providing protection against dust, dirt, and water ingress.
