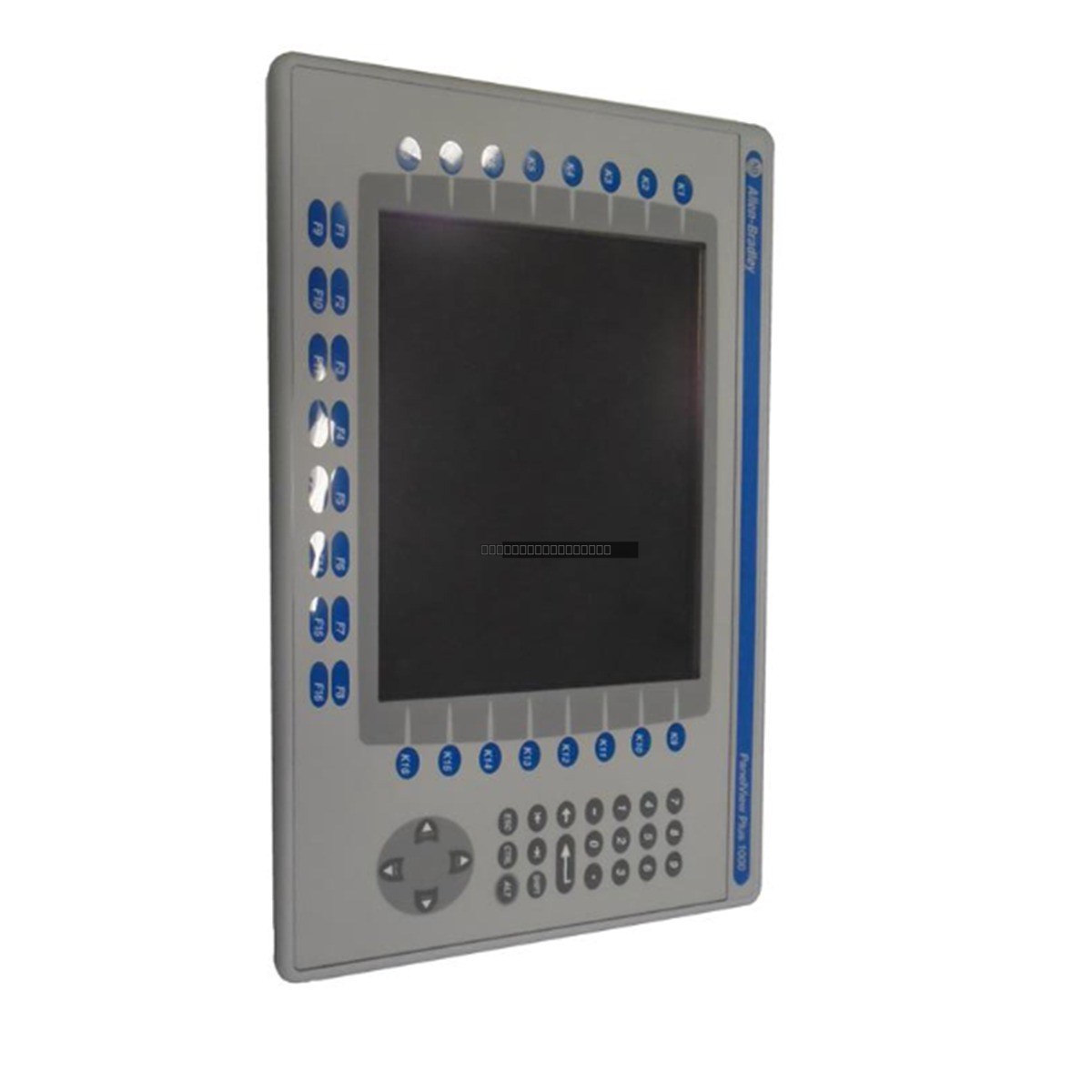

Allen-Bradley 2711P-B12C15D7 PanelView Plus 1250 Operator Interface

Allen-Bradley 2711P-B12C15D7 PanelView Plus 1250 Operator Interface

The 2711P-B12C15D7 is a high-performance PanelView Plus 1250 operator interface terminal, designed to provide robust visualization and control for industrial automation systems. Operating on a Windows CE platform with an...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 2711P-B12C15D7
Proveedora: Allen-Bradley
tipo: Operator Interface Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The 2711P-B12C15D7 is a high-performance PanelView Plus 1250 operator interface terminal, designed to provide robust visualization and control for industrial automation systems. Operating on a Windows CE platform with an Intel Celeron 650 MHz processor, this unit facilitates reliable interaction between operators and PLC-controlled machinery. It is suitable for diverse industrial environments, including automotive assembly, water treatment, and chemical processing, where deterministic communication and clear process monitoring are essential.

Features

  • Hybrid Input Interface: Combines a 12.1-inch analog resistive touchscreen with a 40-key stainless steel domed membrane keypad for versatile operation, even when wearing gloves.
  • Advanced Connectivity: Supports integrated ControlNet and Ethernet networking, alongside RS-232 serial communication for flexible integration into existing control architectures.
  • High-Visibility Display: Features an 18-bit color active-matrix TFT display with 800 x 600 resolution and a 300 cd/m2 luminance rating.
  • Reliable Memory: Equipped with 256 MB of Flash memory and 256 MB of RAM to handle complex HMI applications and data logging.
  • Industrial Durability: Rated for NEMA 12, 13, 4X, IP54, and IP65, ensuring protection against dust, water, and environmental contaminants.

Technical Specifications

Model 2711P-B12C15D7
Display Size 12.1 inches
Resolution 800 x 600 pixels
Processor Intel Celeron 650 MHz
Memory 256 MB Flash / 256 MB RAM
Input Voltage 18-32 VDC (24 VDC nominal)
Power Consumption 70 W max
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the integrity of the NEMA/IP enclosure rating.
  • Use the provided mounting clips to secure the terminal firmly to the enclosure door.
  • Verify that the power supply provides a stable 24 VDC nominal input within the 18-32 VDC range.
  • Route communication cables (Ethernet/ControlNet) away from high-voltage power lines to minimize electromagnetic interference (EMI).
  • Ensure adequate ventilation around the rear of the unit to prevent overheating during continuous operation.
  • Always power down the system before performing any wiring or maintenance on the terminal.

FAQ

Q: What operating system does this terminal use?
A: The 2711P-B12C15D7 runs on the Windows CE operating system.

Q: Can the backlight be replaced?
A: Yes, the unit features a field-replaceable backlight rated for approximately 50,000 hours of service life.

Q: What is the primary communication method for this model?
A: This unit supports ControlNet and Ethernet as its primary fieldbus communication protocols.
