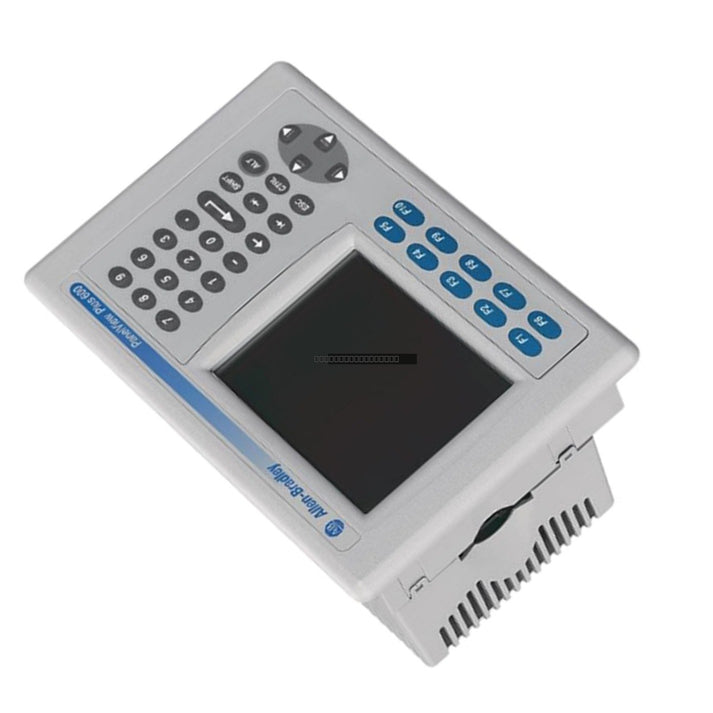

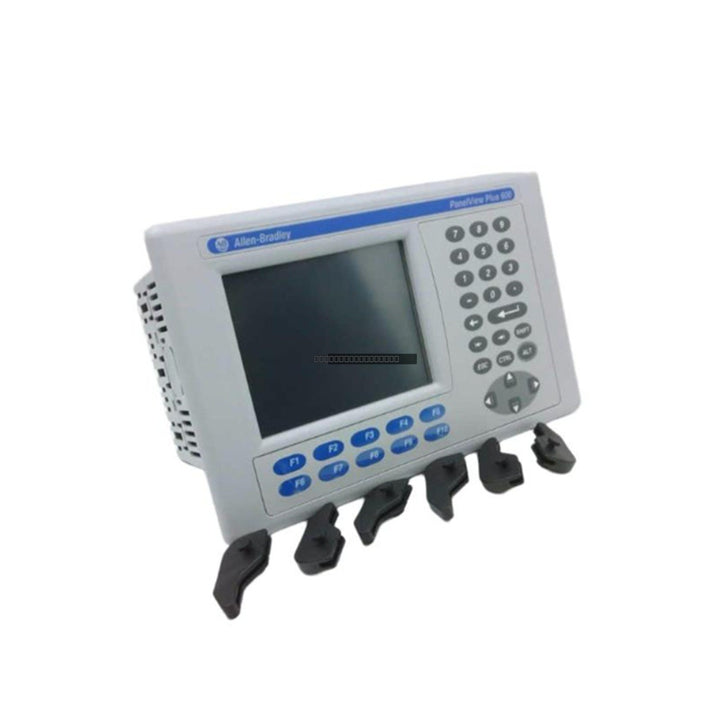

Allen-Bradley 2711P-B4C20D8 PanelView Plus 6 Operator Interface Terminal

Allen-Bradley 2711P-B4C20D8 PanelView Plus 6 Operator Interface Terminal

The Allen-Bradley 2711P-B4C20D8 is a compact operator interface terminal from the PanelView Plus 6 400 series, engineered for reliable visualization and control in industrial automation applications. This unit provides a...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 2711P-B4C20D8
Proveedora: Allen-Bradley
tipo: Operator Interface Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711P-B4C20D8 is a compact operator interface terminal from the PanelView Plus 6 400 series, engineered for reliable visualization and control in industrial automation applications. This unit provides a robust interface for monitoring system status, managing alarms, and adjusting process parameters, making it suitable for environments ranging from water treatment facilities to high-precision manufacturing lines.

Features

  • Dual-input interface combining a tactile keypad with an analog-resistive touchscreen for versatile operator control.
  • High-performance Windows CE 6.0 operating system for efficient graphic rendering and diagnostic processing.
  • Compact 3.5-inch color TFT display providing clear visibility in space-constrained control panels.
  • Integrated communication suite including 10/100 Mbps Ethernet (EtherNet/IP) and RS-232 serial connectivity.
  • USB port support for external data logging, recipe management, and firmware updates.

Applications

This terminal is designed for deployment in diverse industrial sectors, including petroleum processing, pharmaceutical manufacturing, and water treatment operations. It serves as a critical bridge between field automation controllers and human operators, ensuring real-time process visibility and operational uptime.

Technical Specifications

Model 2711P-B4C20D8
Product Line PanelView Plus 6 400
Display 3.5 in Color Active Matrix TFT LCD
Resolution 320 x 240 Pixels (QVGA)
Input Keypad and Touchscreen
Operating Voltage 24 VDC
Communication Ethernet (RJ45), RS-232 Serial, USB
Operating Temperature 0 to 55 deg C
Enclosure Rating NEMA 12, 13, 4X (indoor), IP66

Installation Guidelines

  • Ensure the terminal is mounted in an enclosure that meets the specified NEMA/IP ratings for the installation environment.
  • Maintain adequate clearance around the unit to facilitate proper cooling and airflow.
  • Use shielded communication cables and route them away from high-voltage power lines to minimize EMI interference.
  • Verify that the 24 VDC power supply is stable and properly grounded before connecting to the terminal.
  • Always power down the device before performing any wiring or maintenance tasks to prevent electrical damage.

FAQ

What is the primary purpose of the 2711P-B4C20D8?

This unit is an HMI (Human Machine Interface) used to monitor and control industrial processes, allowing operators to interact with PLC systems through a graphical display and keypad.

Can this terminal be used in outdoor environments?

No, the 2711P-B4C20D8 is rated for indoor use only, specifically meeting NEMA 4X standards for indoor applications where protection against corrosion and water ingress is required.

What operating system does this terminal use?

The unit runs on the Windows CE 6.0 operating system, which provides the necessary framework for its graphic updates and diagnostic routines.
