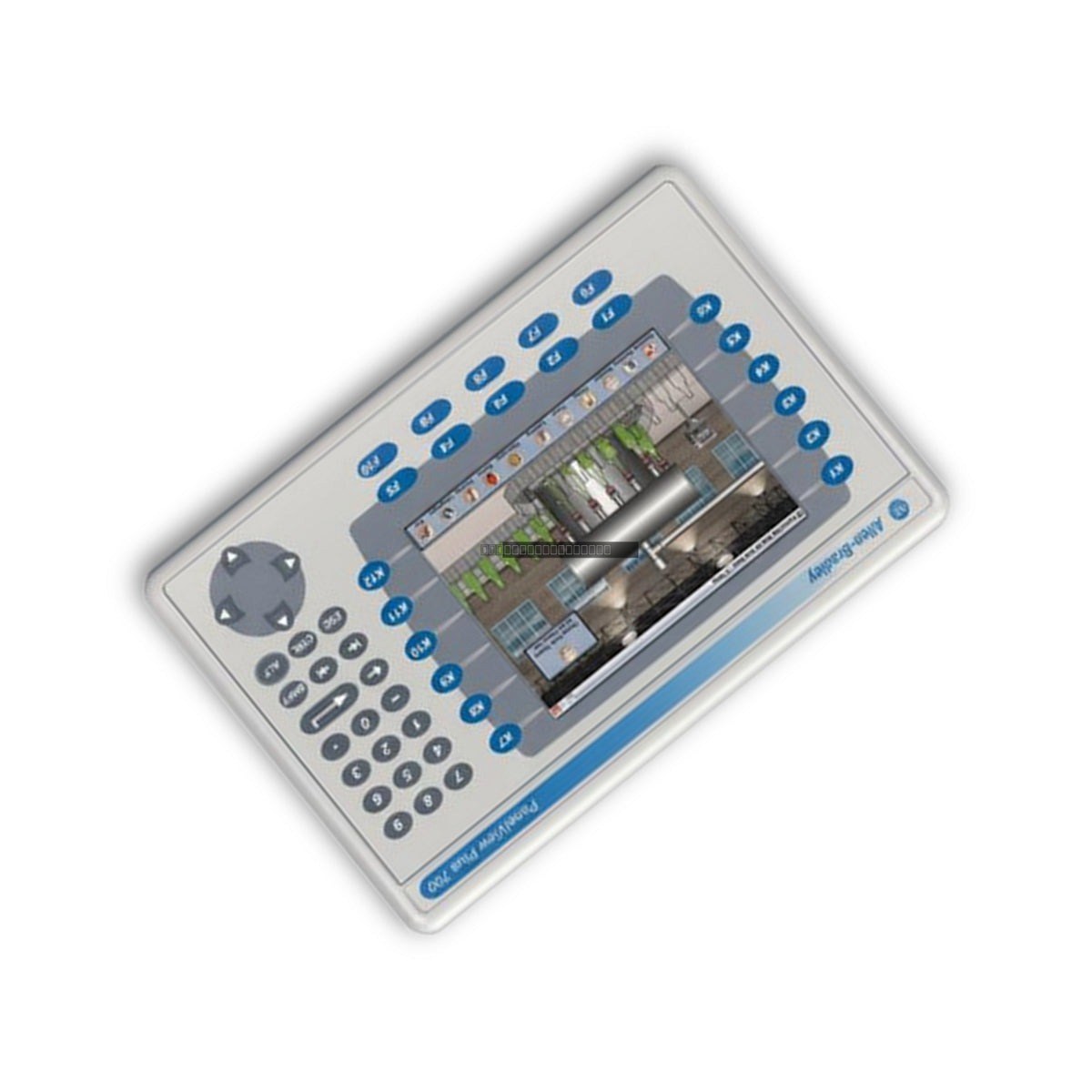

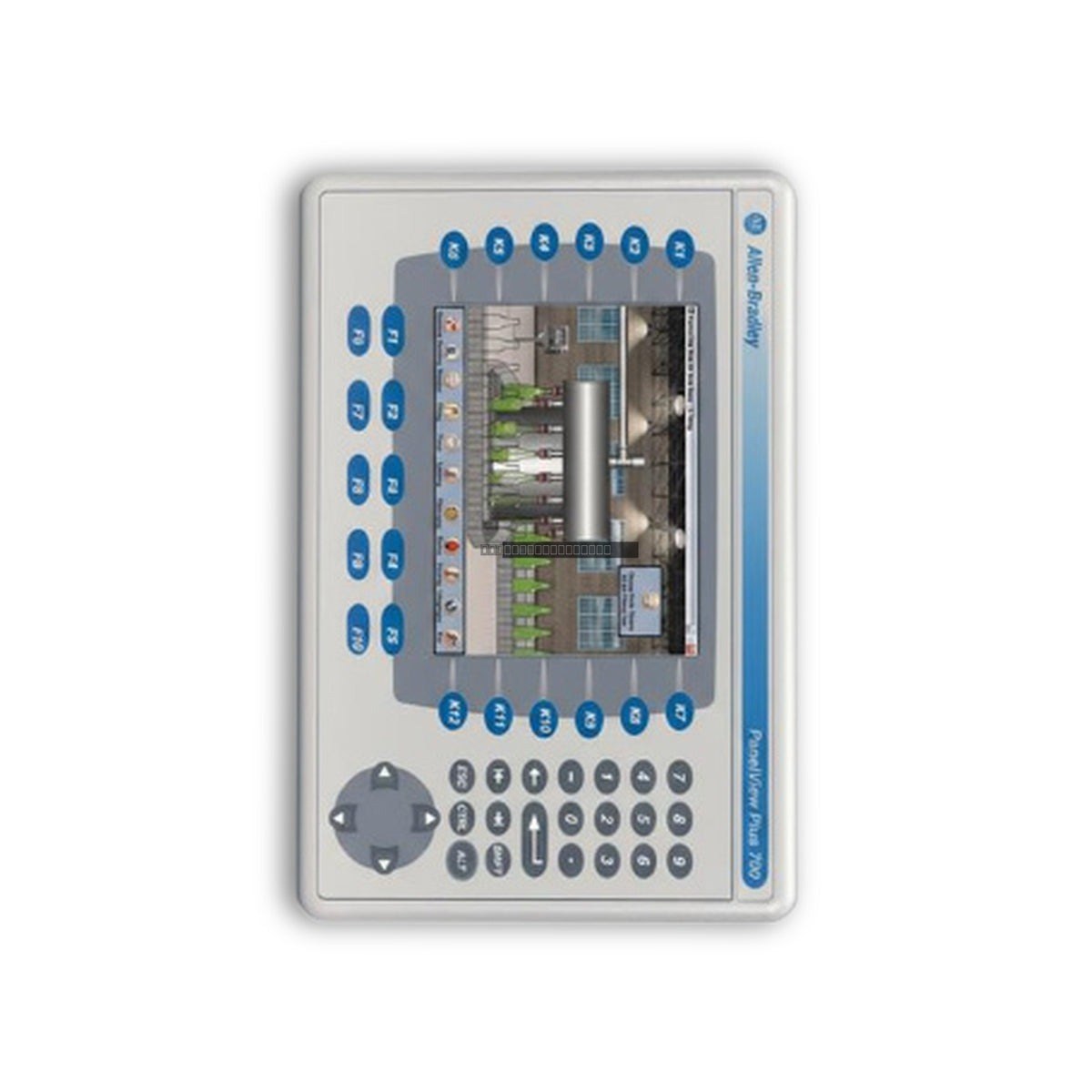

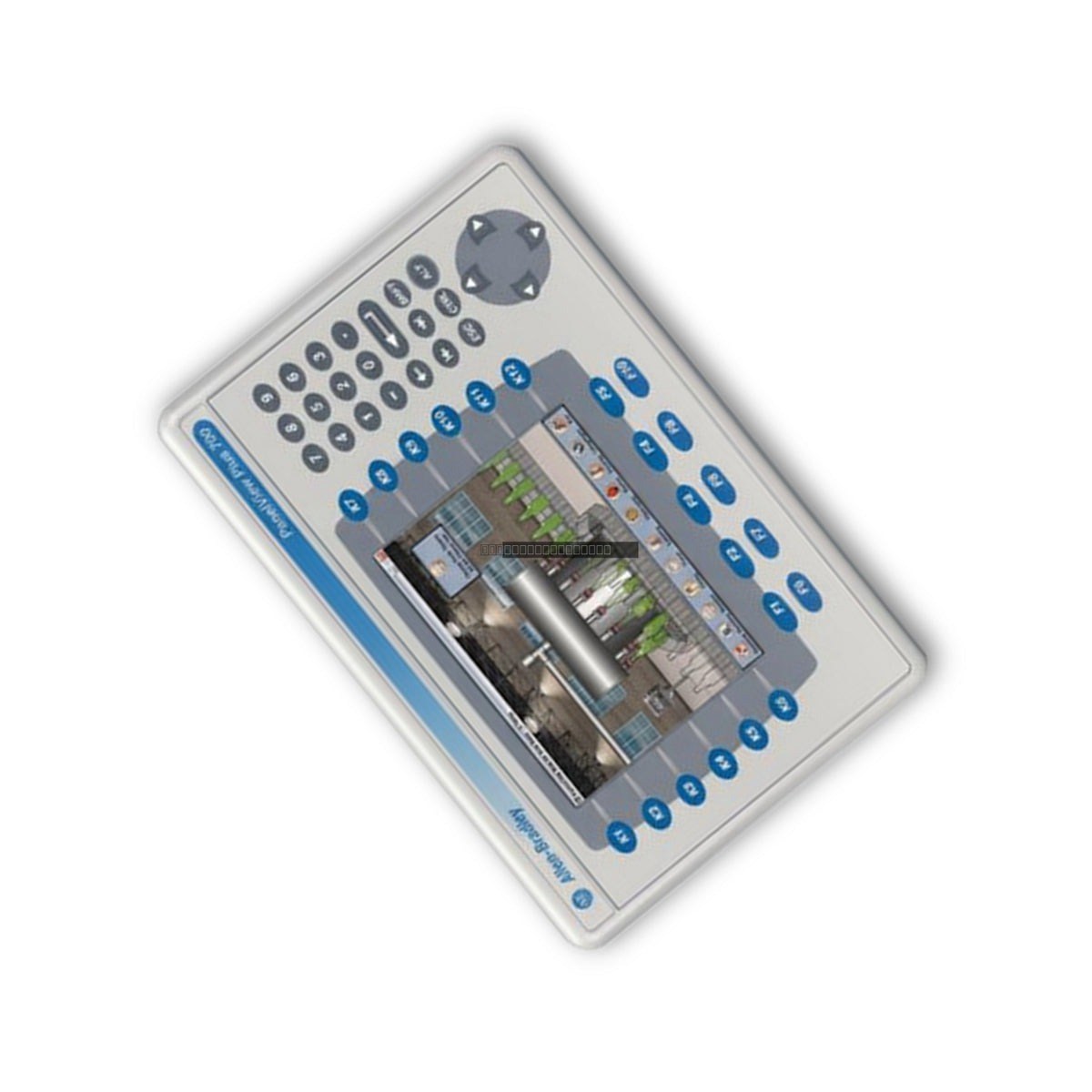

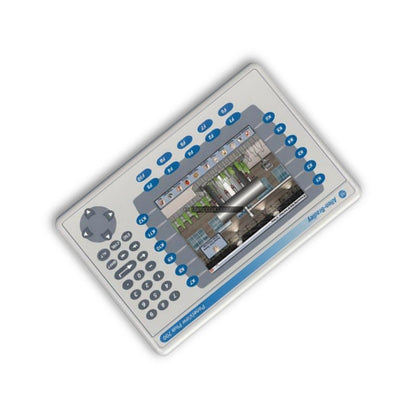

Allen-Bradley 2711P-B7C15D7 PanelView Plus 700 HMI Terminal

Allen-Bradley 2711P-B7C15D7 PanelView Plus 700 HMI Terminal

The Allen-Bradley 2711P-B7C15D7 is a robust operator interface terminal from the PanelView Plus 700 series, engineered for reliable machine control and process visualization in demanding industrial environments. This unit features...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 2711P-B7C15D7
Proveedora: Allen-Bradley
tipo: HMI Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711P-B7C15D7 is a robust operator interface terminal from the PanelView Plus 700 series, engineered for reliable machine control and process visualization in demanding industrial environments. This unit features a 6.5-inch active-matrix color TFT display with a resolution of 640 x 480 pixels, providing clear, high-contrast feedback for operators. It supports versatile input options, combining a tactile keypad with an analog resistive touchscreen to ensure precise control even when wearing gloves or in environments where touch-only interfaces may be challenging.

Features

  • Dual-input interface: Integrated tactile keypad and analog resistive touchscreen.
  • High-performance logic: Equipped with a 256 MB Windows CE logic module for efficient graphic rendering and alarm handling.
  • Extensive connectivity: Features built-in ControlNet, Ethernet (RJ-45), RS-232 serial, and USB ports for comprehensive network integration and peripheral support.
  • Industrial durability: Rugged front bezel design compliant with NEMA and IP standards for protection against dust, oil, and moisture.
  • Software compatibility: Optimized for use with FactoryTalk View Machine Edition software.

Applications

This HMI terminal is widely utilized in sectors requiring high-availability monitoring and control, including automotive assembly lines, chemical processing plants, and automated material handling systems. It serves as a central node for real-time data acquisition and operator intervention.

Technical Specifications

Model 2711P-B7C15D7
Display Type 6.5-inch Color TFT LCD
Resolution 640 x 480 pixels
Input Voltage 24 VDC (18-32 VDC range)
Power Consumption 70 W maximum
System Memory 256 MB
Communication ControlNet, Ethernet, RS-232, USB
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Humidity 5-95% non-condensing

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's specified dimensions to maintain the integrity of the NEMA/IP seal.
  • Mount the unit in a location that avoids direct exposure to extreme heat sources or excessive vibration.
  • Use shielded communication cables for Ethernet and ControlNet connections to minimize EMI interference.
  • Verify that the 24 VDC power supply is stable and within the 18-32 VDC range before applying power.
  • Always power down the system before connecting or disconnecting communication cables or peripheral devices.
  • Maintain proper ventilation around the rear of the unit to prevent overheating during continuous operation.

FAQ

What is the primary input method for this terminal?

The 2711P-B7C15D7 features both a tactile keypad and an analog resistive touchscreen, allowing for flexible operator interaction.

Does this unit support network communication?

Yes, it supports multiple protocols including ControlNet and Ethernet TCP/IP, as well as RS-232 serial and USB connectivity for external devices.

What software is required for this HMI?

This terminal is designed to operate with FactoryTalk View Machine Edition software for project development and runtime execution.
