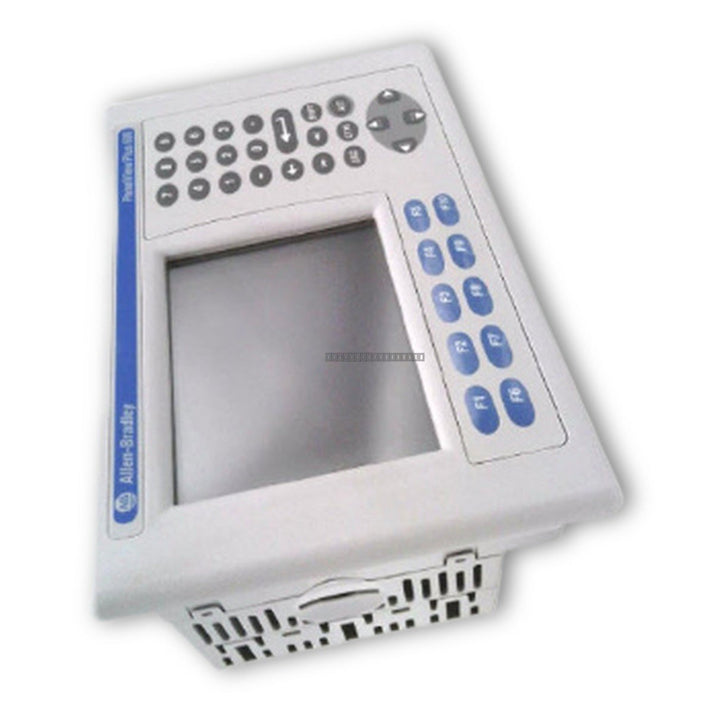

Allen-Bradley 2711P-B7C4A2 PanelView Plus 700 Operator Interface Terminal

Allen-Bradley 2711P-B7C4A2 PanelView Plus 700 Operator Interface Terminal

The Allen-Bradley 2711P-B7C4A2 is a PanelView Plus 700 operator terminal designed for robust real-time visualization, control, and system diagnostics in demanding industrial environments. This HMI unit features a 6.5-inch active-matrix...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 2711P-B7C4A2
Proveedora: Allen-Bradley
tipo: Operator Interface Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711P-B7C4A2 is a PanelView Plus 700 operator terminal designed for robust real-time visualization, control, and system diagnostics in demanding industrial environments. This HMI unit features a 6.5-inch active-matrix color TFT display and dual input functionality, incorporating both a tactile numeric keypad and an analog resistive touchscreen for versatile operator interaction.

Features

  • Display: 6.5-inch active-matrix color TFT screen providing clear visualization of process data.
  • Dual Input: Integrated numeric keypad combined with an analog resistive touchscreen for flexible control options.
  • Memory: 128 MB internal memory capacity for storing complex graphics, alarm logs, and runtime data.
  • Communication: Equipped with one 10/100Base-T RJ45 Ethernet port (EtherNet/IP support) and one RS-232 serial port (DF1/DH-485 support).
  • Serviceability: Field-replaceable backlight module (2711P-RL7C) to maximize operational longevity.
  • Expansion: Compatible with field-installable communication modules, such as the 2711P-RN20, for enhanced network routing.

Applications

This operator interface is engineered for continuous operation in heavy automation sectors, including chemical processing, automotive manufacturing, water treatment, and general machine control, providing reliable process monitoring and reducing operational downtime.

Technical Specifications

Model 2711P-B7C4A2
Series PanelView Plus 700
Input Voltage 85-264 VAC
Power Frequency 50/60 Hz
Internal Memory 128 MB
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Relative Humidity 5-95% non-condensing
Weight 2.07 kg

Installation Guidelines

  • Mounting: Ensure the unit is mounted in a suitable enclosure that provides adequate protection against environmental contaminants.
  • Grounding: Always follow proper grounding procedures for the chassis to minimize EMI and ensure safe operation.
  • Power: Verify the supply voltage is within the 85-264 VAC range before connecting power. Ensure the power source is disconnected during installation or maintenance.
  • Environment: Maintain ambient operating temperatures between 0 and 55 deg C and avoid direct exposure to high-vibration or high-EMI sources.
  • Handling: Use standard ESD handling precautions when accessing internal components or installing expansion modules.

FAQ

What is the primary communication protocol for this HMI?

The 2711P-B7C4A2 supports EtherNet/IP via its integrated RJ45 port and also supports DF1 and DH-485 protocols through its RS-232 serial interface.

Is the backlight replaceable?

Yes, the display backlight is field-replaceable using the 2711P-RL7C replacement kit.
