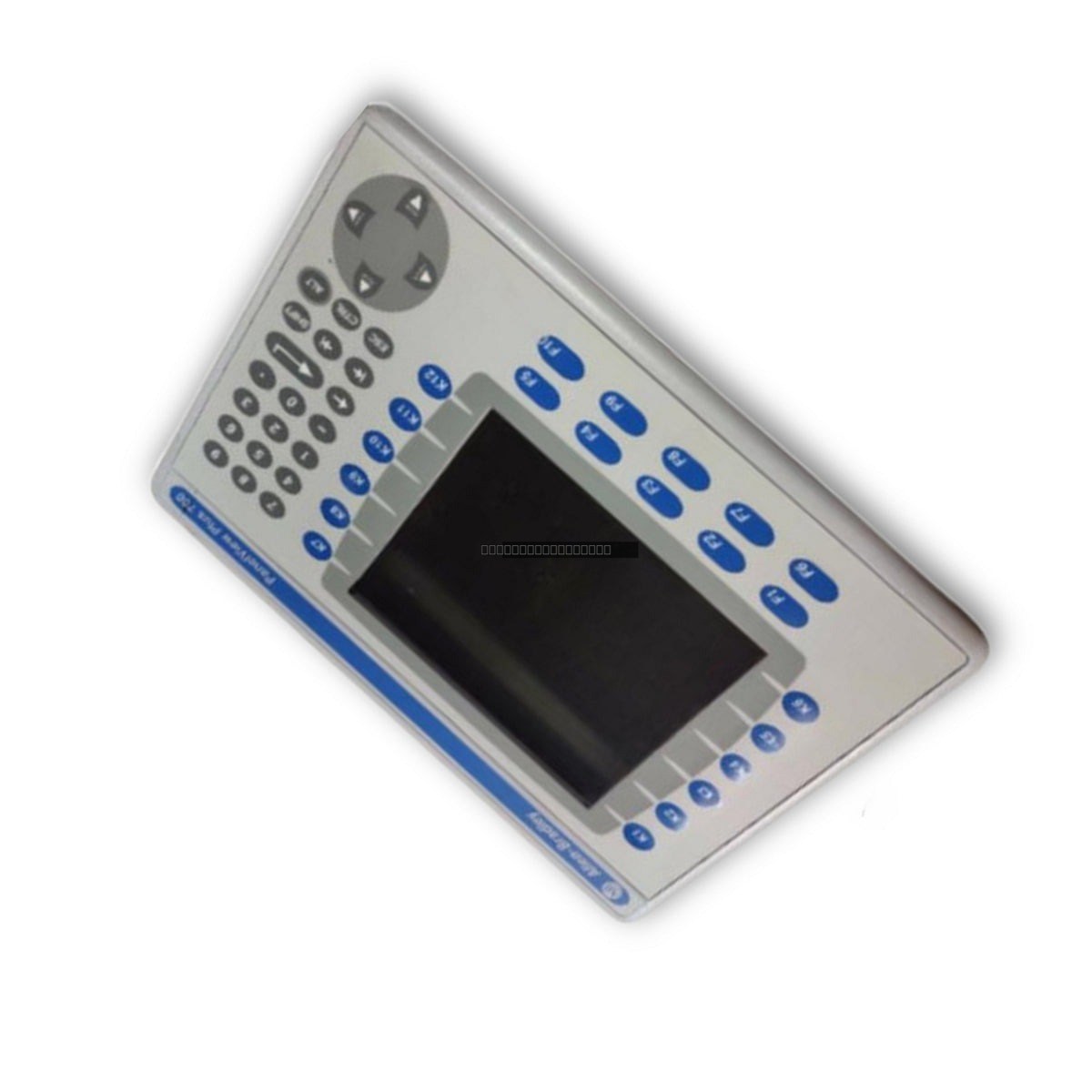

Allen-Bradley 2711P-K10C4D6 PanelView Plus Operator Terminal

Allen-Bradley 2711P-K10C4D6 PanelView Plus Operator Terminal

The Allen-Bradley 2711P-K10C4D6 is a robust PanelView Plus operator terminal engineered for demanding industrial HMI applications. Featuring a 10.4-inch active-matrix color TFT display and a tactile keypad interface, this unit...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: 2711P-K10C4D6
Proveedora: Allen-Bradley
tipo: Operator Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711P-K10C4D6 is a robust PanelView Plus operator terminal engineered for demanding industrial HMI applications. Featuring a 10.4-inch active-matrix color TFT display and a tactile keypad interface, this unit provides operators with reliable control, diagnostic visualization, and real-time process monitoring capabilities. Designed for integration into complex automated systems, it supports stable communication and high-performance data handling in environments ranging from manufacturing lines to heavy processing facilities.

Features

  • 10.4-inch color TFT LCD display with 640 x 480 resolution for clear process visualization.
  • Tactile keypad input for precise operator control, including numeric, function, and navigation keys.
  • Integrated communication suite including 10/100Base-T Ethernet, RS-232 serial, and dual USB host ports.
  • Windows CE open platform architecture for flexible application deployment.
  • Field-replaceable CCFL backlight module to extend service life and simplify maintenance.
  • DC power input designed for 18-32 VDC supply ranges.

Technical Specifications

Model 2711P-K10C4D6
Display Size 10.4 in
Display Type Active Matrix Color TFT LCD
Resolution 640 x 480 pixels
Input Voltage 18-32 VDC (24 VDC nominal)
Power Consumption 70 W maximum
Memory 128 MB RAM / Flash
Operating Temperature 0 to 55 deg C
Communication Ethernet, RS-232, USB

Installation Guidelines

  • Ensure the terminal is mounted in a clean, dry, and vibration-resistant enclosure suitable for the IP rating of the front panel.
  • Maintain adequate clearance around the unit to allow for proper ventilation and heat dissipation.
  • Verify that the power source is within the 18-32 VDC range before connection to prevent damage to internal circuitry.
  • Use shielded communication cables for Ethernet and serial connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Always disconnect power before installing or removing memory cards or peripheral modules.
  • Ensure proper grounding of the chassis to the system ground bus to protect against electrical surges and noise.

FAQ

What is the primary power requirement for this terminal?

The 2711P-K10C4D6 is designed for a DC power input, specifically accepting a range of 18-32 VDC, with 24 VDC being the nominal operating voltage.

Can the backlight be replaced in the field?

Yes, the unit features a field-replaceable CCFL backlight. The compatible replacement part number is 2711P-RL10C.

What type of input does this model use?

This specific model utilizes a tactile keypad interface, which includes dedicated numeric, function, and navigation keys for operator input.
