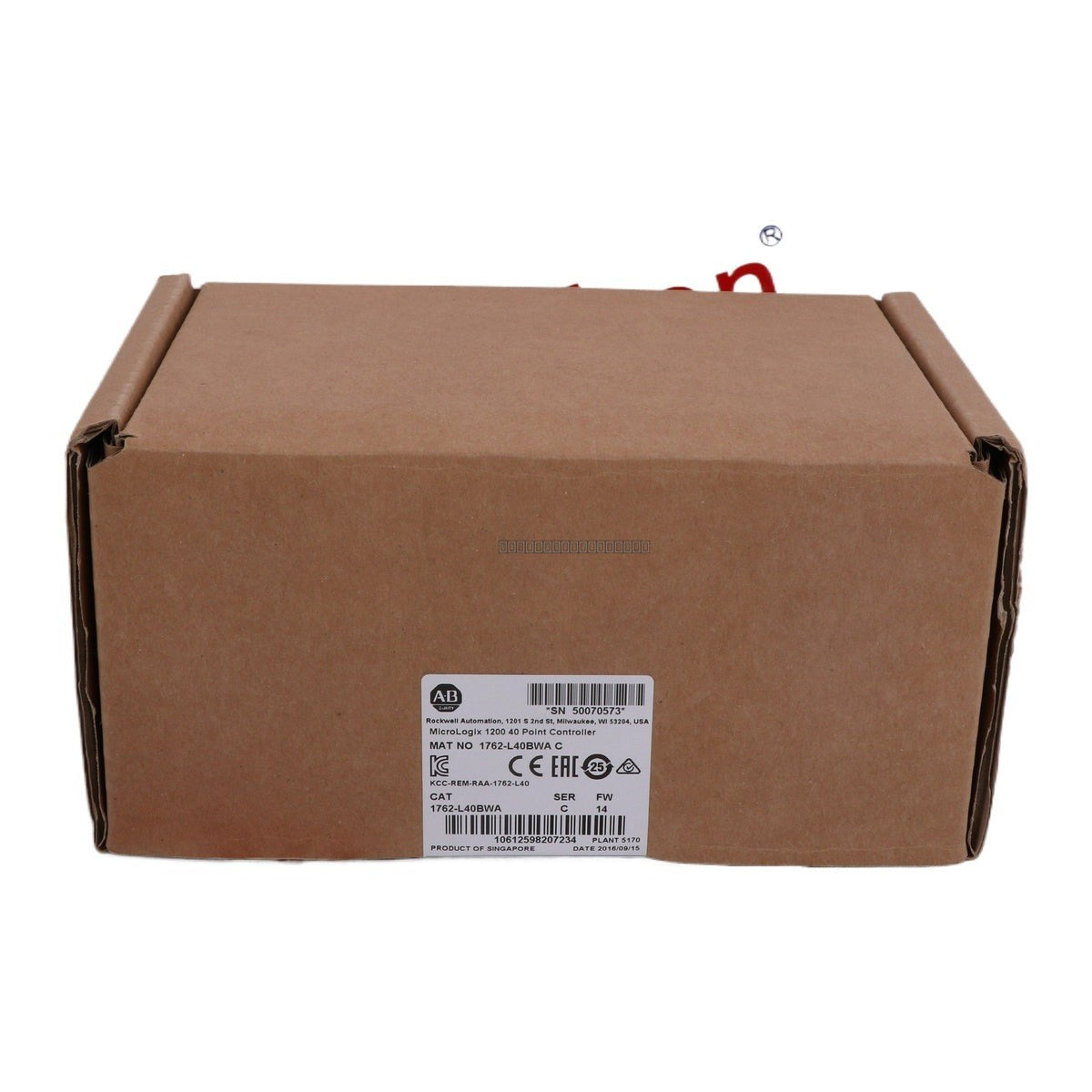

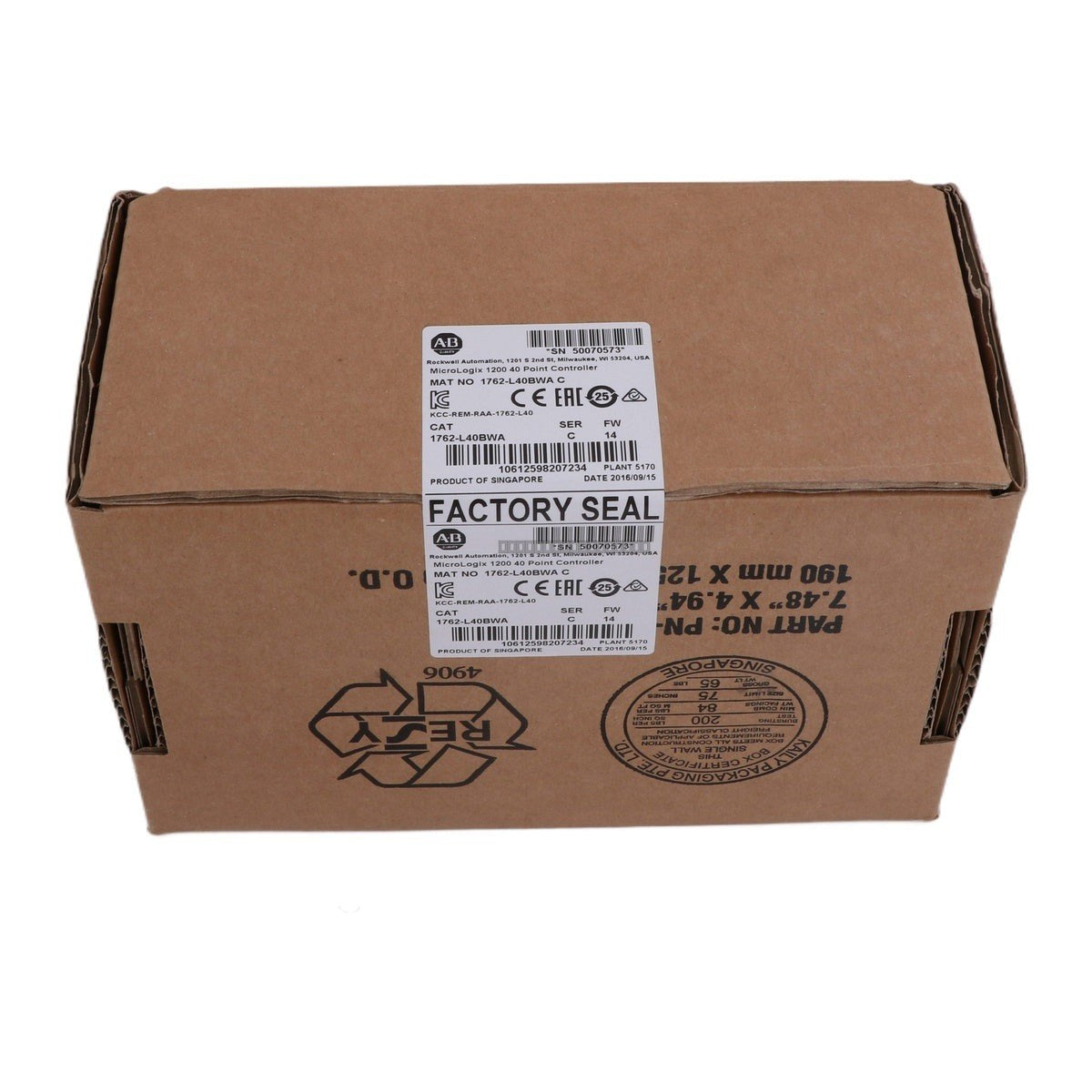

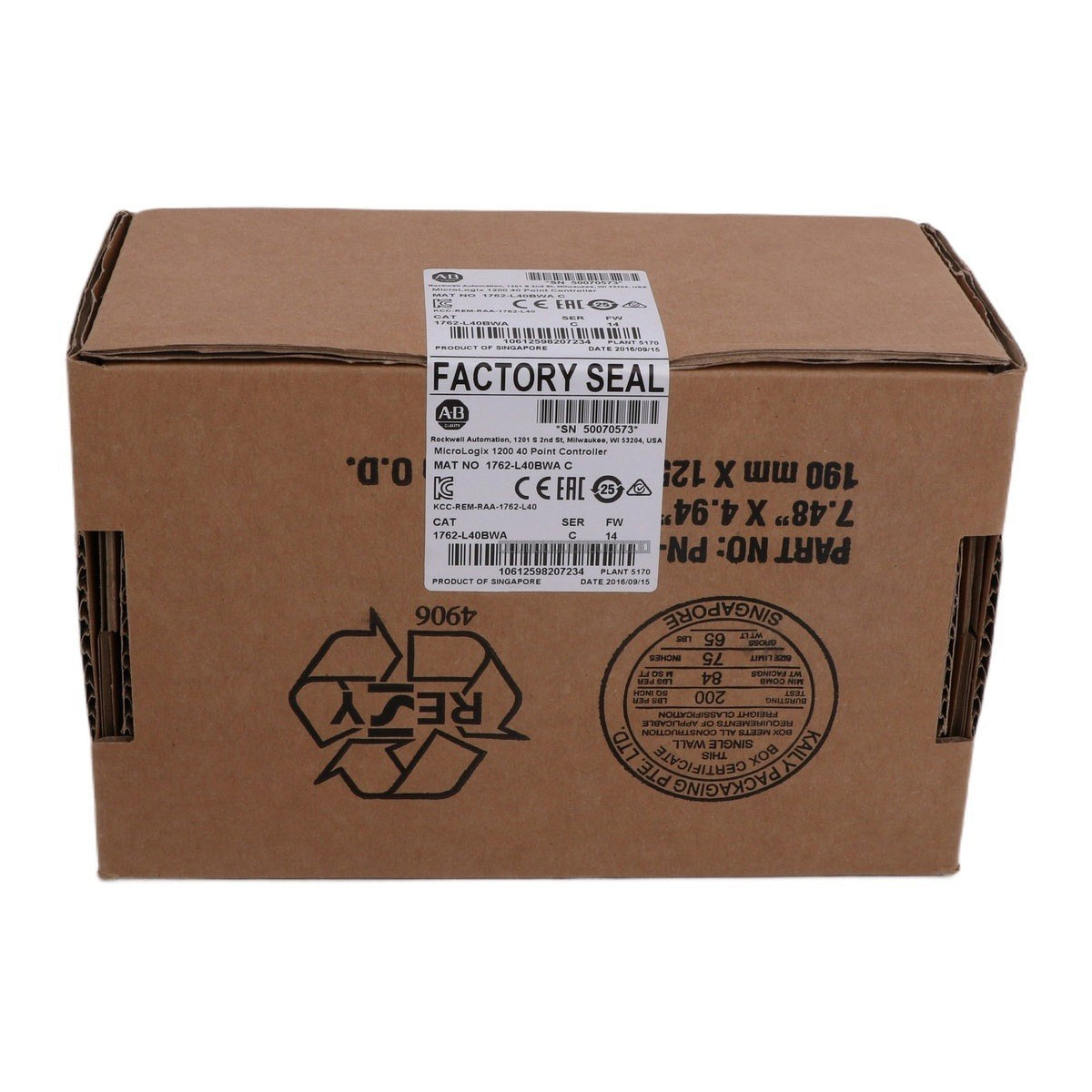

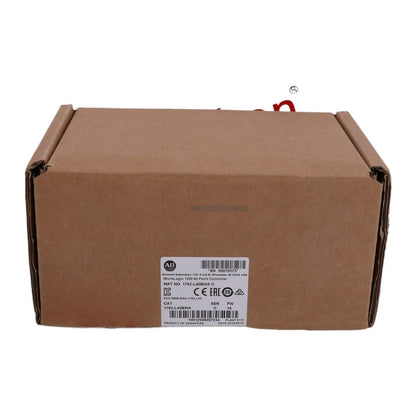

Allen-Bradley 1762-L40BWA MicroLogix 1200 40-Point Controller

Allen-Bradley 1762-L40BWA MicroLogix 1200 40-Point Controller

The Allen-Bradley 1762-L40BWA is a high-performance MicroLogix 1200 programmable logic controller designed for small to mid-sized industrial automation applications. This 40-point controller features an integrated 100-240V AC power supply, 24...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: 1762-L40BWA
Proveedora: Allen-Bradley
tipo: PLC Controller
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 1762-L40BWA is a high-performance MicroLogix 1200 programmable logic controller designed for small to mid-sized industrial automation applications. This 40-point controller features an integrated 100-240V AC power supply, 24 digital inputs, and 16 relay outputs, providing a flexible and robust solution for machine control and process automation.

Features

  • MicroLogix 1200 architecture with 40 integrated I/O points.
  • 24V DC digital inputs, including 4 high-speed inputs for precise counting and timing applications.
  • 16 relay outputs suitable for switching a wide range of AC and DC loads.
  • Integrated RS-232 communication port supporting DF1, DH-485, Modbus, and ASCII protocols.
  • Supports up to 6 additional 1762 expansion I/O modules for system scalability.
  • Flexible mounting options via DIN rail or panel mounting.

Applications

  • Industrial machinery and manufacturing automation.
  • Material handling systems, including conveyors and sorting equipment.
  • Process control for sensors, solenoids, and motor starters.
  • Packaging and food/beverage processing lines.
  • Building automation and localized control systems.

Technical Specifications

Model 1762-L40BWA
Power Supply 100-240V AC
Total I/O 40 Points (24 In / 16 Out)
Input Type 24V DC Sinking/Sourcing
Output Type Relay
Power Usage 82 VA
Heat Dissipation 22.0 W
Operating Temperature 0 degC to 55 degC
Communication RS-232 (8-pin Mini DIN)

Installation Guidelines

  • Mounting: Mount the unit horizontally. Maintain at least 50 mm (2 inches) of clearance on all sides for adequate ventilation, except for the right side where expansion modules are connected.
  • Debris Protection: Keep the protective debris strip on top of the unit during installation to prevent foreign objects from entering the circuitry. Remove only after wiring is complete.
  • Wiring: Ensure all wiring complies with local electrical codes. Disconnect all power before installing or removing expansion modules to prevent electrical damage.
  • Grounding: Proper chassis grounding is essential for electromagnetic compatibility and operational safety.
  • Environment: Install in an enclosure rated for the operating environment. Use climate control (fans or heaters) to maintain the specified operating temperature range.

FAQ

What is the 1762-L40BWA?

It is a 40-point Allen-Bradley MicroLogix 1200 controller with a 100-240V AC power supply, 24-point 24V DC inputs (including 4 fast inputs), and 16 relay outputs.

What are the expansion options?

The 1762-L40BWA supports up to 6 expansion modules, including analog, high-speed counter, and additional digital I/O modules.

What is the maximum load output of the 1762-L40BWA relay?

The relay outputs are rated for 25-125V DC or 120-240V AC, with a maximum control load capacity of 1440 VA.
