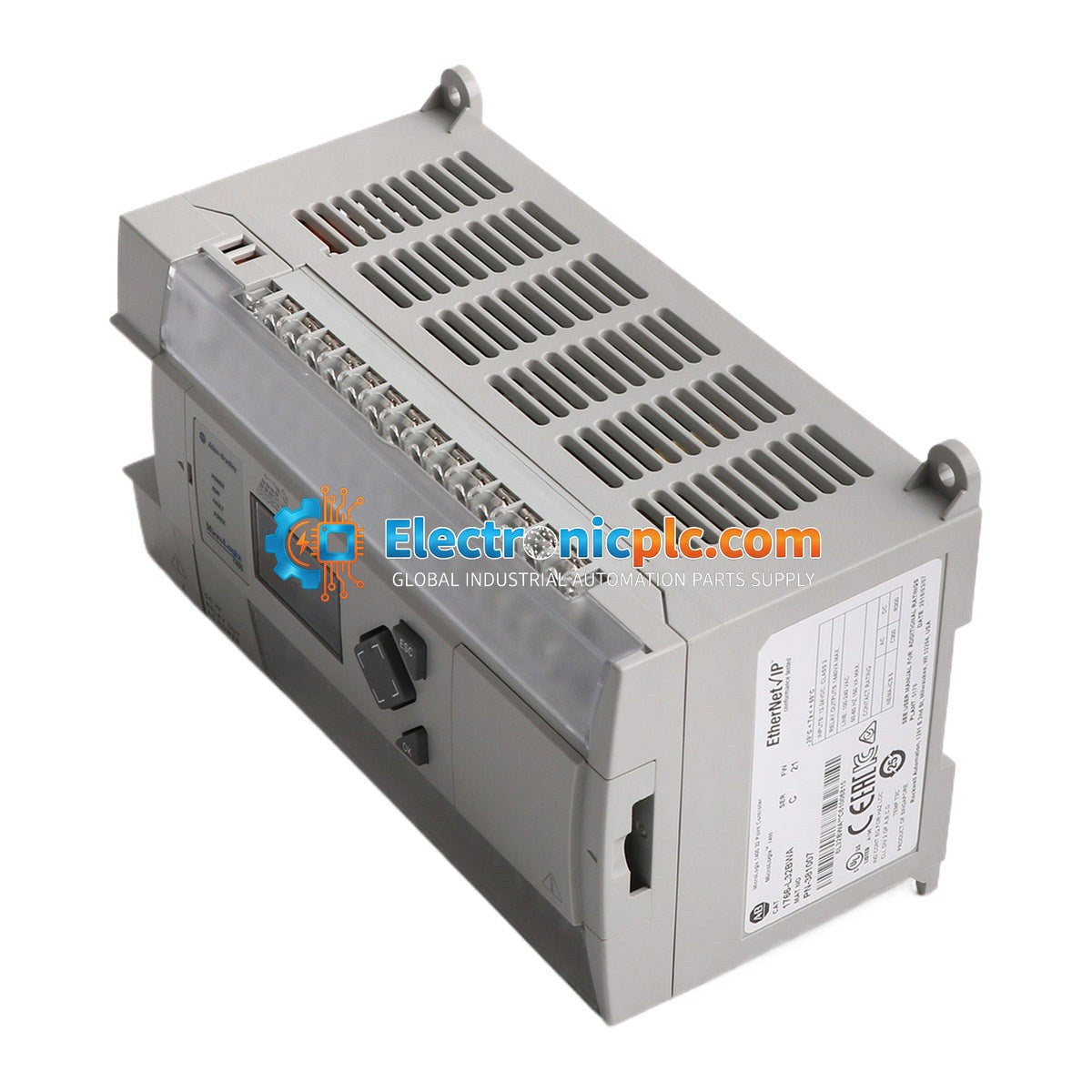

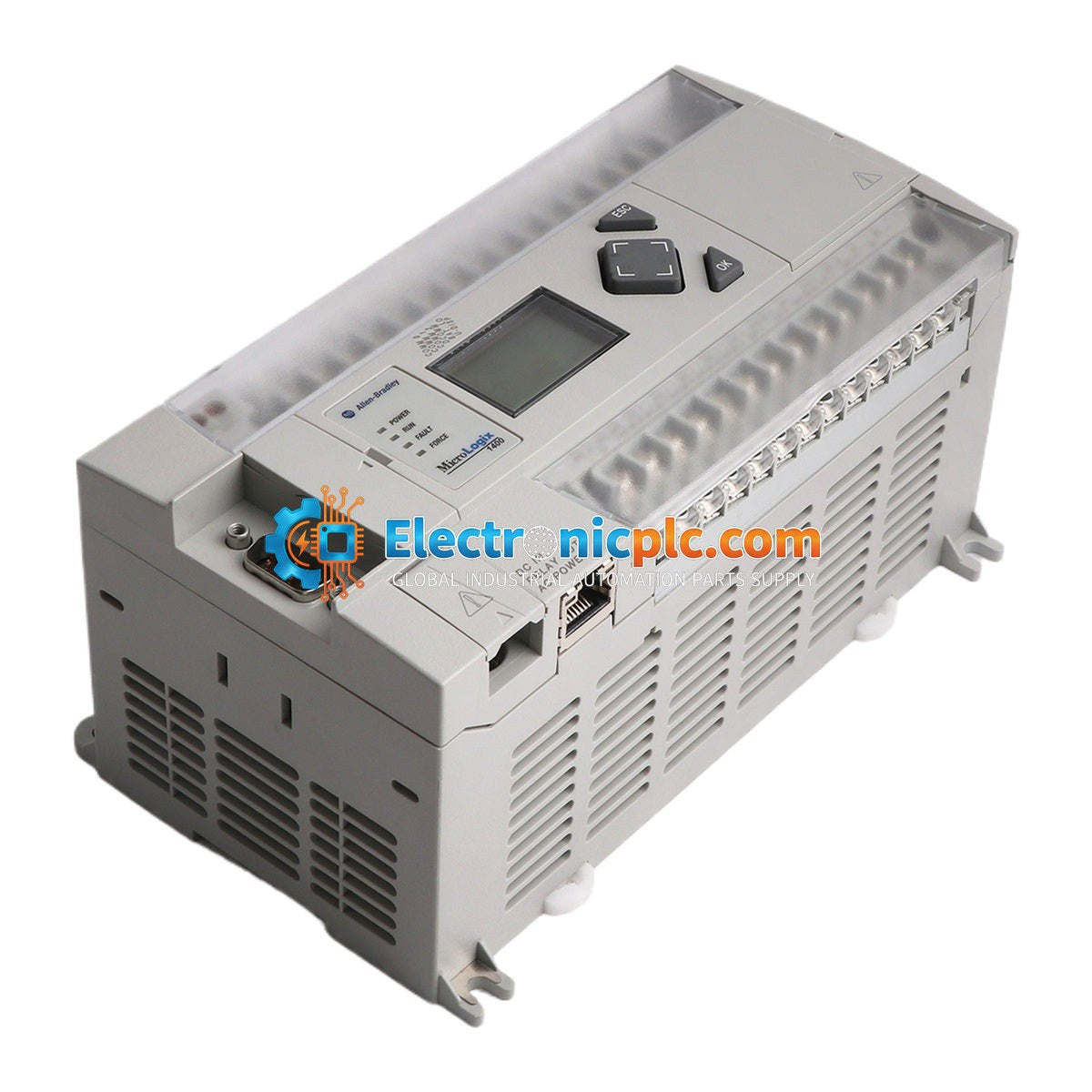

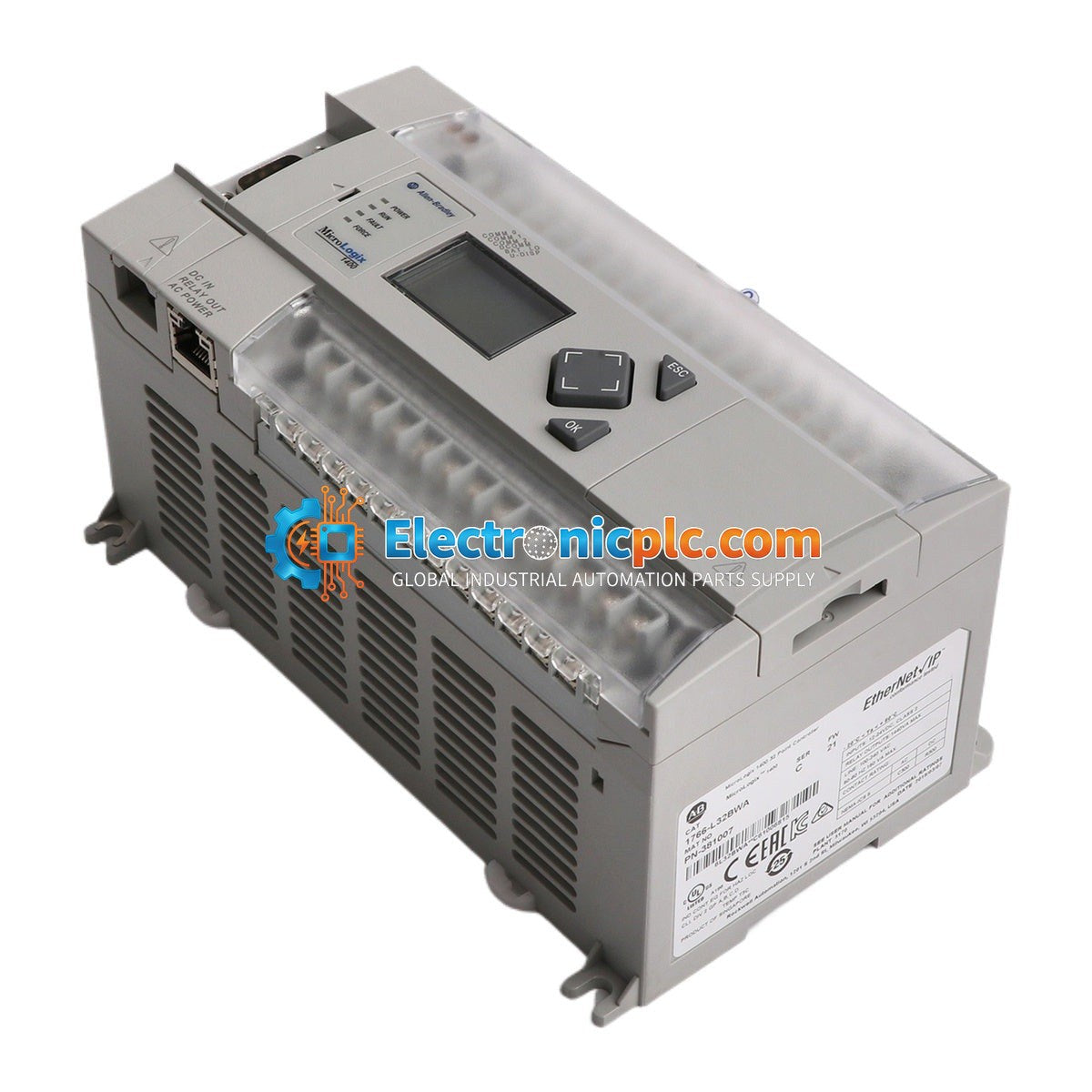

Allen-Bradley 1766-L32BWA MicroLogix 1400 Controller

Allen-Bradley 1766-L32BWA MicroLogix 1400 Controller

Description

The Allen-Bradley 1766-L32BWA is a high-performance MicroLogix 1400 programmable logic controller (PLC) designed for small to mid-sized industrial automation applications. This compact controller integrates advanced communication capabilities, including an Ethernet...

26 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 1766-L32BWA
Proveedora: Allen-Bradley
tipo: PLC Controller
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1766-L32BWA is a high-performance MicroLogix 1400 programmable logic controller (PLC) designed for small to mid-sized industrial automation applications. This compact controller integrates advanced communication capabilities, including an Ethernet port, an isolated RS-232/RS-485 combo port, and a non-isolated RS-232 port, facilitating seamless integration into modern industrial networks. It features a built-in LCD with a backlight for local monitoring, status diagnostics, and network configuration.

Features

  • Embedded I/O: 12 Fast 24V DC inputs, 8 Normal 24V DC inputs, and 12 Relay outputs.
  • High-Speed Counting: Supports up to 6 embedded 100 kHz high-speed counters.
  • Communication: Integrated Ethernet (supporting DNP3, web server, and email), RS-232, and RS-485 ports.
  • Expansion: Supports up to 7 additional 1762 series expansion I/O modules.
  • LCD Interface: Backlit display for viewing controller status, I/O monitoring, and fault codes.
  • Real-Time Clock: Embedded RTC for time-based control and logging.

Applications

  • Material Handling: Conveyor systems, sorting, and assembly line automation.
  • Packaging & Food/Beverage: Control of packaging machinery and processing equipment.
  • HVAC & Building Automation: Pump control, lighting management, and environmental monitoring.
  • Water/Wastewater: SCADA integration and remote data logging.
  • OEM Equipment: Integration into commercial machinery such as industrial washers and vending units.

Technical Specifications

Model 1766-L32BWA
Input Power 100/240V AC
Power Consumption 120 VA
Digital Inputs 20 (12 Fast 24V DC, 8 Normal 24V DC)
Digital Outputs 12 Relay Outputs
Sensor Power 24V DC @ 250 mA
Communication Ports 1x Ethernet, 1x RS-232/485, 1x RS-232
Expansion Capacity Up to 7 modules (1762 series)
Mounting DIN Rail or Panel Mount

Installation Guidelines

  • Orientation: The controller must be mounted horizontally to ensure proper thermal dissipation. Vertical mounting is not supported.
  • Environment: Install in a clean, dry industrial environment. Ensure the installation location does not exceed Over Voltage Category II.
  • Wiring: Verify the 100/240V AC power source before connection. Refer to the specific terminal block diagrams for input/output wiring to prevent damage.
  • Safety: Always power down the system before inserting or removing modules or performing wiring changes.
  • ESD Handling: Use standard electrostatic discharge (ESD) precautions when handling the unit to protect internal circuitry.

FAQ

What is the 1766-L32BWA?

The Allen-Bradley 1766-L32BWA is a MicroLogix 1400 PLC designed for industrial control tasks. It operates on 100/240V AC power and provides 20 digital inputs and 12 relay outputs.

Does it have analog I/O?

The base 1766-L32BWA unit does not include built-in analog I/O, but it can be expanded with up to seven 1762 expansion I/O modules to add analog or additional digital capabilities.

How do I monitor the controller status?

The unit features an integrated LCD screen and keypad, allowing users to view I/O status, change IP addresses, and monitor fault codes directly on the hardware.
