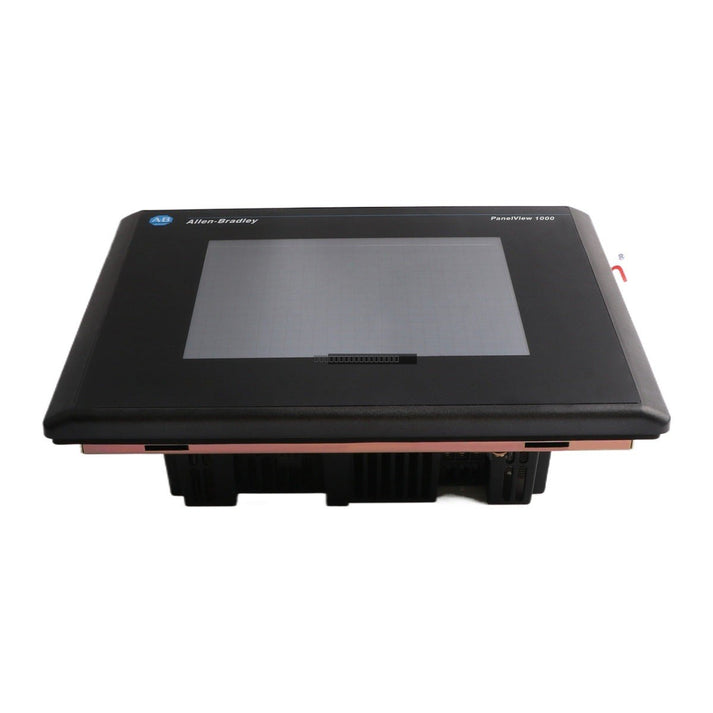

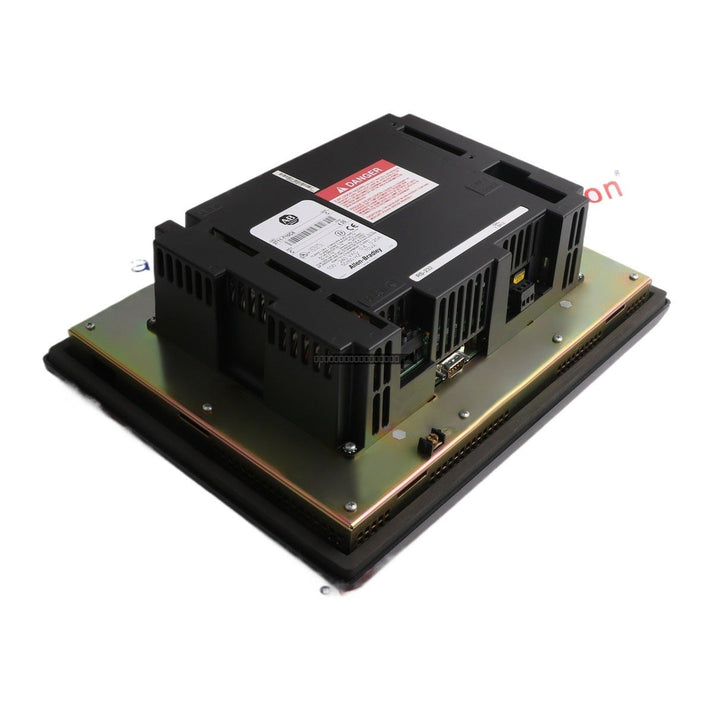

Allen-Bradley 2711-T10C8 PanelView 1000 Color Touchscreen Terminal

Allen-Bradley 2711-T10C8 PanelView 1000 Color Touchscreen Terminal

Description

The Allen-Bradley 2711-T10C8 is a PanelView 1000 Standard operator terminal designed for robust industrial HMI applications. This unit features a 10.1-inch active-matrix TFT color display with a 640 x 480...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 2711-T10C8
Proveedora: Allen-Bradley
tipo: HMI Operator Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 2711-T10C8 is a PanelView 1000 Standard operator terminal designed for robust industrial HMI applications. This unit features a 10.1-inch active-matrix TFT color display with a 640 x 480 VGA resolution, providing a clear interface for monitoring process variables and machine status. It utilizes analog resistive touchscreen technology, allowing for precise interaction with runtime objects.

Features

  • 10.1-inch full-color active-matrix TFT display
  • Integrated Data Highway Plus (DH+) communication port for legacy PLC integration
  • RS-232 printer port for alarm and event logging
  • Supports PanelBuilder32 application development software
  • 384-cell touch matrix (24 columns x 16 rows)
  • 1008 KB non-volatile application memory

Technical Specifications

Model 2711-T10C8
Display Size 10.1 inches
Resolution 640 x 480 pixels (VGA)
Input Voltage 85 to 264 VAC (47-63 Hz)
Communication Data Highway Plus (DH+)
Memory 1008 KB Application / 310 KB Runtime
Operating Temp 0 degC to +55 degC
Enclosure Rating NEMA 12, 13, 4X (indoor), IP54, IP65
Weight 3.78 kg

Applications

This terminal is widely utilized in legacy automation environments, including:

  • Automotive manufacturing (robotics and stamping presses)
  • Water and wastewater treatment (valve and tank level control)
  • Pulp, paper, and printing (web tension and fault logging)
  • Petrochemical refining (batch tracking and temperature monitoring)

Installation Guidelines

  • Mount the terminal in a NEMA-rated enclosure to maintain IP54/IP65 ingress protection.
  • Ensure the AC power supply is connected to the removable terminal block; use a small slotted screwdriver and torque screws to manufacturer specifications to prevent arcing.
  • In Class 1, Division 2 hazardous locations, strictly avoid connecting or disconnecting communication cables or memory cards while the circuit is live.
  • Maintain adequate clearance around the unit for ventilation to ensure the backlight longevity.
  • Verify that the DH+ network is properly terminated at both ends of the trunk line to ensure signal integrity.

FAQ

What controllers are compatible with this terminal?

The 2711-T10C8 is specifically designed for integration with legacy Allen-Bradley systems, including PLC-5 and SLC 5/04 processors, via the DH+ network.

What is the purpose of the RS-232 port?

The auxiliary RS-232 port is primarily used for connecting an external printer for alarm and event logging, or for transferring application files from a PC.

How is the application memory managed?

The unit features 1008 KB of non-volatile memory for application storage and 310 KB of runtime memory for active operations, programmed via PanelBuilder32 software.
