Allen-Bradley 2711P-K12C4A8 PanelView Plus 6 Operator Interface Terminal

Allen-Bradley 2711P-K12C4A8 PanelView Plus 6 Operator Interface Terminal

The Allen-Bradley 2711P-K12C4A8 is a PanelView Plus 6 1250 operator interface terminal designed for demanding industrial HMI environments. This unit features a 12.1-inch color active-matrix TFT display with a resolution...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: 2711P-K12C4A8
Proveedora: Allen-Bradley
tipo: Operator Interface Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

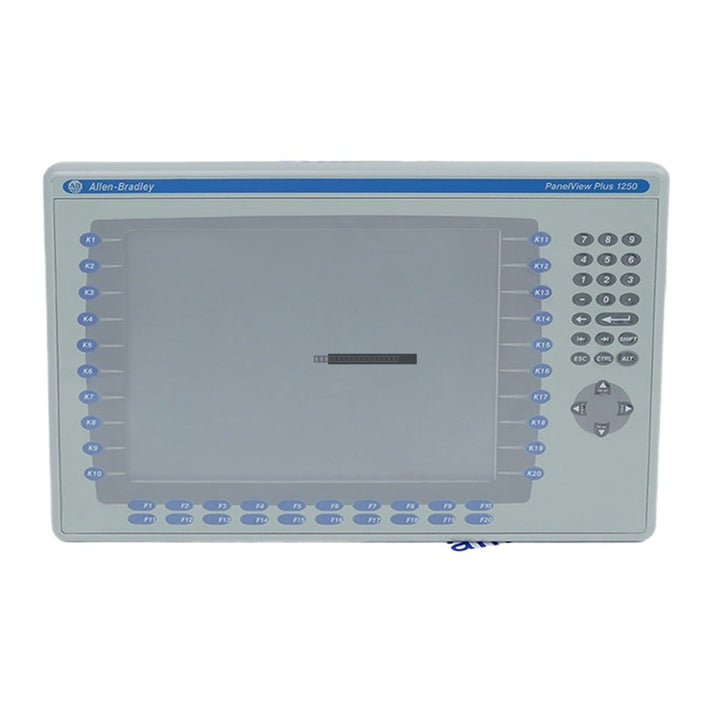

The Allen-Bradley 2711P-K12C4A8 is a PanelView Plus 6 1250 operator interface terminal designed for demanding industrial HMI environments. This unit features a 12.1-inch color active-matrix TFT display with a resolution of 800 x 600 pixels. It utilizes a robust keypad input system, including navigation keys and 40 configurable function keys (F1-F20 and K1-K20), allowing for precise control in environments where tactile feedback is required.

Features

  • 12.1-inch color TFT display with 800 x 600 resolution.
  • Keypad input with 40 programmable function keys.
  • Windows CE 6.0 operating system with pre-installed FactoryTalk View Machine Edition runtime.
  • Integrated 10/100 Base-T Ethernet and RS-232 serial ports.
  • Dual USB 2.0 host ports and a secure digital (SD) card slot for data logging and firmware updates.
  • 512 MB RAM and 512 MB non-volatile memory.
  • Modular design allowing field replacement of key components.

Applications

  • Manufacturing and assembly lines, including robotics and packaging.
  • Heavy industry applications such as mining, power generation, and pulp/paper processing.
  • Energy and utility management, including oil, gas, and water treatment systems.
  • Logistics and automated warehouse sorting systems.

Technical Specifications

Model 2711P-K12C4A8
Display Size 12.1 inch
Display Type Color Active-Matrix TFT
Resolution 800 x 600 pixels
Input Method Keypad
Operating System Windows CE 6.0
Power Input 100-240V AC, 50/60 Hz
Power Consumption 160VA max (65VA typical)
Communication Ethernet, RS-232, 2x USB 2.0
Weight 2.95 kg

Installation Guidelines

  • Ensure the sealing gasket is clean, flat, and properly seated in the terminal channel before mounting.
  • Insert the terminal into the panel cutout from the front side.
  • Secure the unit by sliding the mounting clips into the designated slots around the bezel.
  • Tighten the mounting screws evenly in an alternating pattern to a torque of 1.1 N·m (10 lb·in) to ensure a proper seal; do not overtighten.
  • Verify that the power source is disconnected before performing any wiring or maintenance.

FAQ

What is the 2711P-K12C4A8?

The 2711P-K12C4A8 is a PanelView Plus 6 1250 graphic terminal featuring a 12.1-inch color display and keypad input. It is designed for industrial HMI applications and operates on a 100-240V AC power supply.

How much memory is available for user applications?

The terminal is equipped with 512 MB of RAM and 512 MB of non-volatile memory, with approximately 79 MB of free user memory available for application storage.

Can I connect external peripherals to this terminal?

Yes, the terminal includes two USB 2.0 host ports for connecting peripherals such as keyboards, mice, printers, or USB flash drives.
