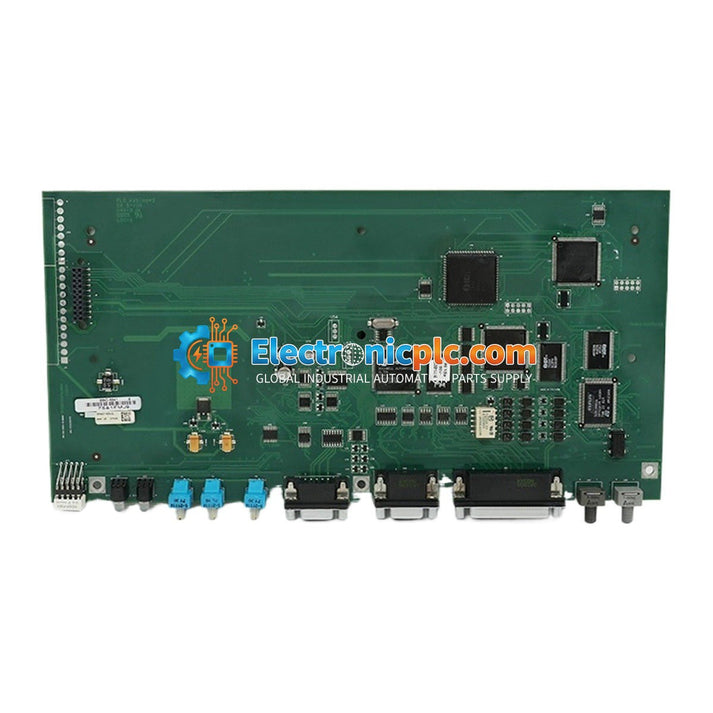

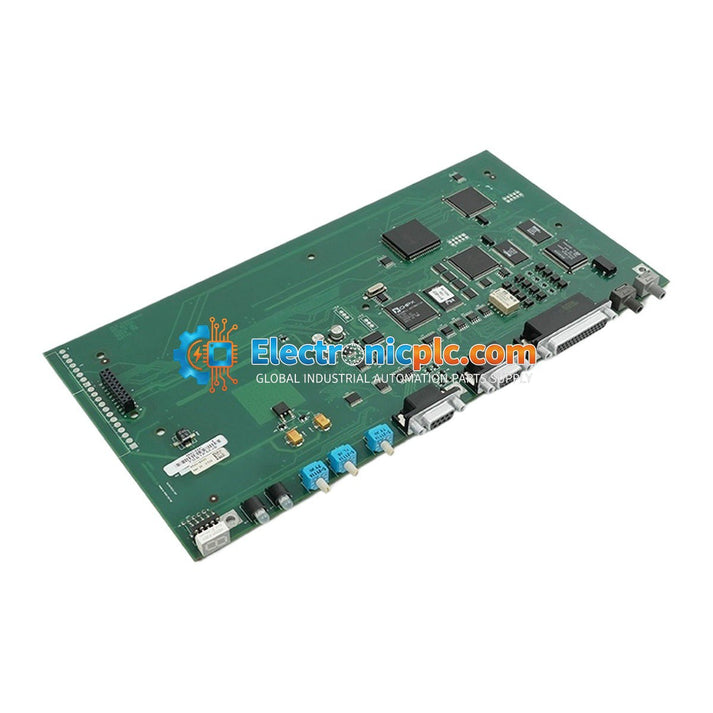

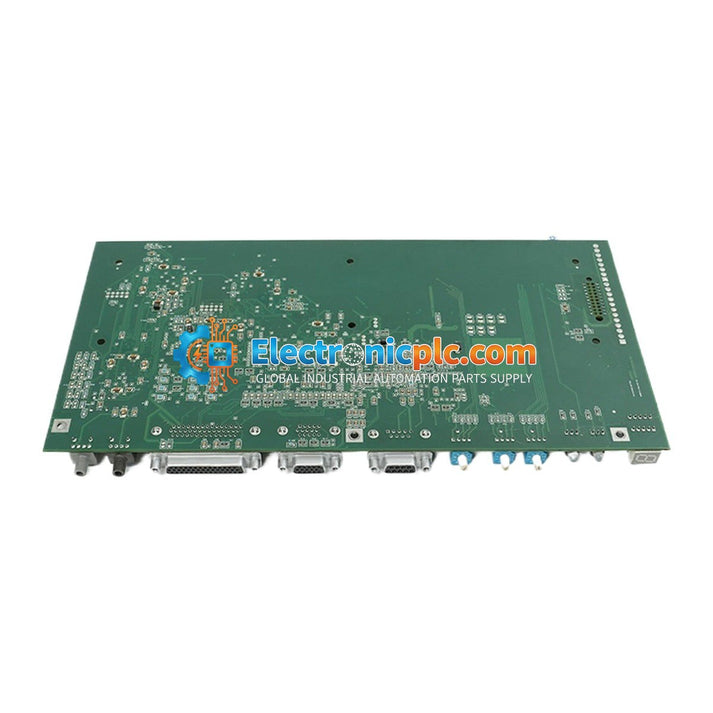

Allen-Bradley 0042-6841 PLC-5 Control Board

Allen-Bradley 0042-6841 PLC-5 Control Board

Description

The Allen-Bradley 0042-6841 is a specialized control board designed for the PLC-5 industrial automation platform. This printed circuit board (PCB) assembly features integrated multiport capabilities, serving as a critical component...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 0042-6841
Proveedora: Allen-Bradley
tipo: PLC Control Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 0042-6841 is a specialized control board designed for the PLC-5 industrial automation platform. This printed circuit board (PCB) assembly features integrated multiport capabilities, serving as a critical component for system communication and logic processing within the PLC-5 architecture. It is engineered to provide reliable control functions in demanding industrial environments.

Features

  • Integrated multiport design for enhanced connectivity
  • High-speed processing support for PLC-5 system logic
  • Equipped with 128 k x 8 EPROM for program memory storage
  • Three dedicated RS-232/423 serial ports via DB-9 connectors
  • Robust design for standard industrial control applications

Technical Specifications

Product Model 0042-6841
Manufacturer Allen-Bradley
Program Memory 128 k x 8 EPROM
Serial Ports 3 x RS-232/423 (DB-9)
Supply Voltage +5 V DC +/- 5%
Current Draw 0.9 A
Ripple Tolerance 50 mV pk-pk max
In-rush Current 2 A for 100 us
Operating Temperature 0 to 60 degC (natural convection)
Storage Temperature -40 to 85 degC
Humidity 5 to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the PLC-5 chassis is powered down before installing or removing the control board to prevent electrical damage.
  • Handle the board by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
  • Verify that the board is correctly seated in the designated PLC-5 backplane slot and that all retaining screws are tightened.
  • Ensure adequate clearance around the module to allow for natural convection cooling, as per the operating temperature specifications.
  • Route serial communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

What is the primary function of the 0042-6841 control board?

This board acts as a central control and communication interface for the Allen-Bradley PLC-5 system, providing the necessary serial ports and memory capacity to execute control logic.

Is this board compatible with all PLC-5 processors?

The 0042-6841 is specific to the PLC-5 family. Please verify your specific chassis and processor model compatibility before installation to ensure the hardware revision matches your system requirements.

What are the power requirements for this module?

The module operates on a +5 V DC supply rail with a current requirement of 0.9 A. It is designed to tolerate a maximum ripple of 50 mV pk-pk.
