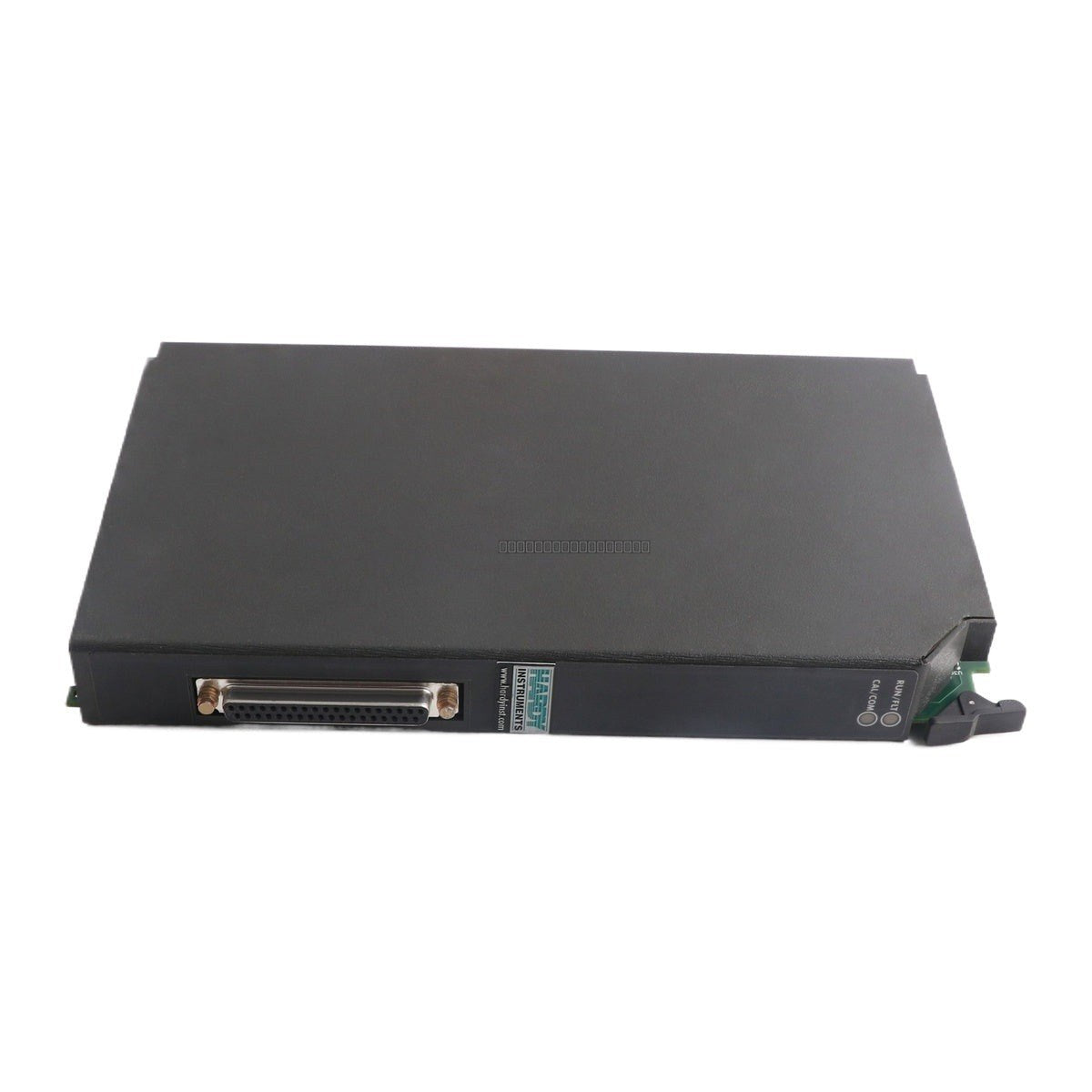

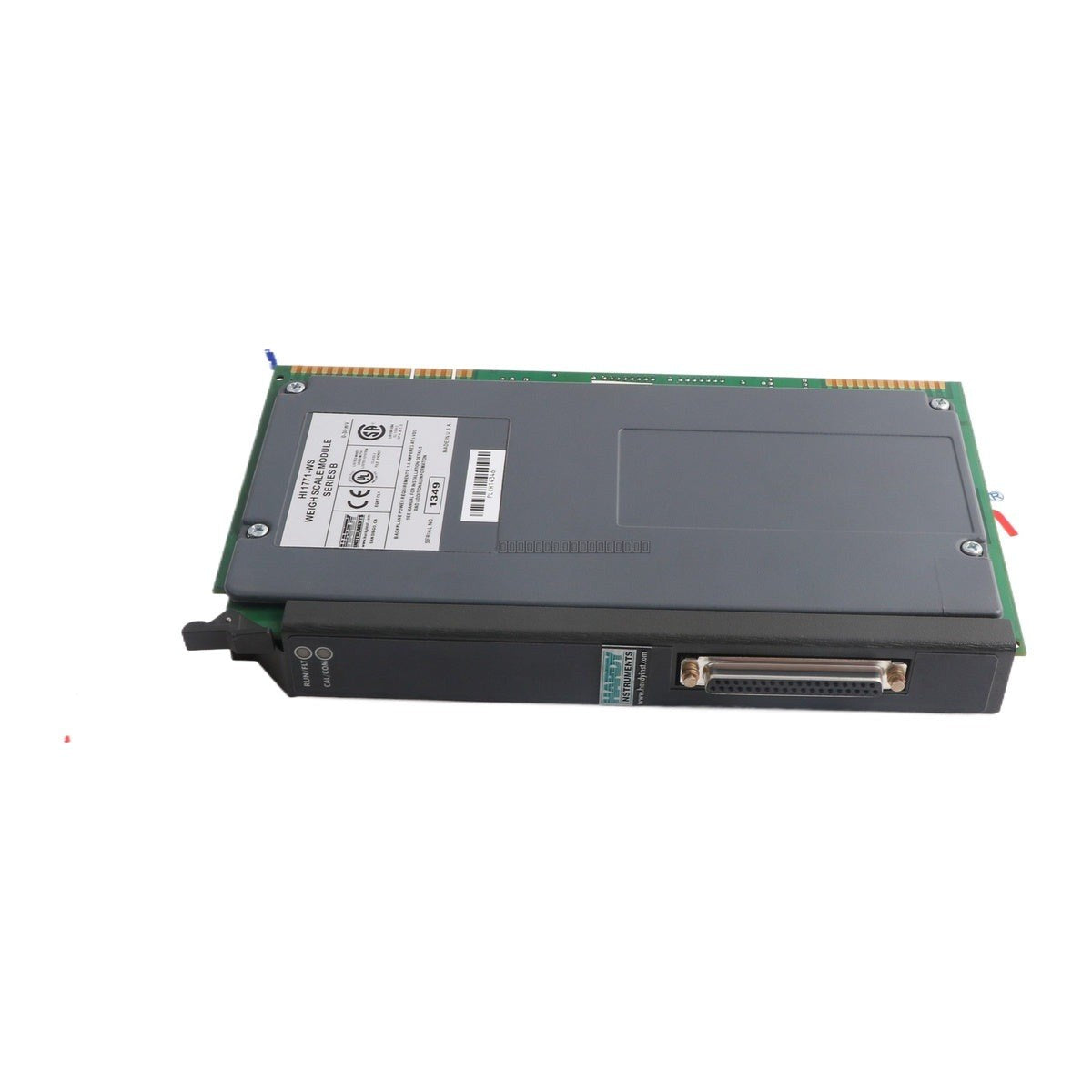

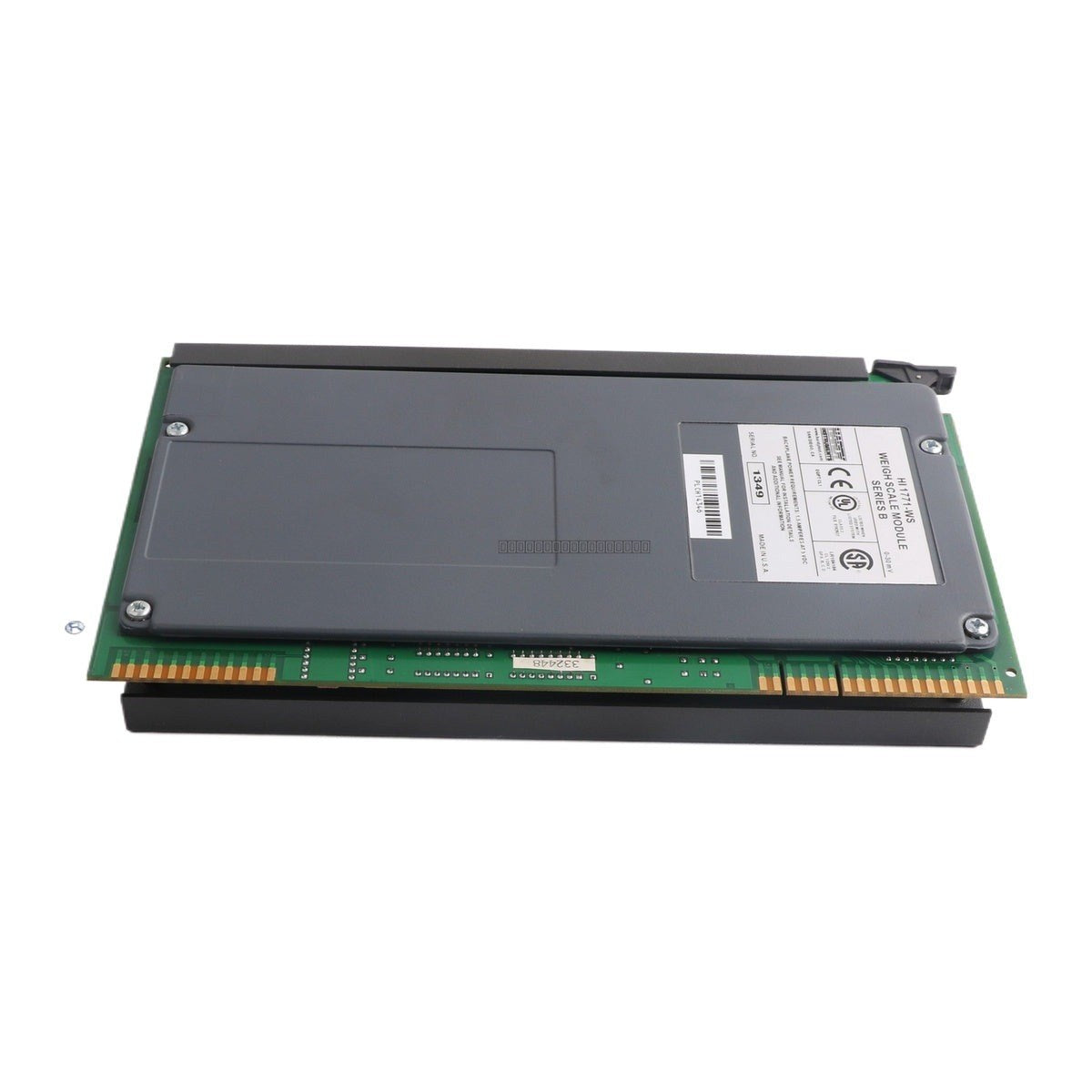

Allen-Bradley 1771-WS PLC-5 Weigh Scale Module

Allen-Bradley 1771-WS PLC-5 Weigh Scale Module

Description

The Allen-Bradley 1771-WS is a specialized Weigh Scale Module designed for the PLC-5 programmable controller platform. This single-channel module is engineered to interface directly with strain-gauge load cells, providing precise...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 1771-WS
Proveedora: Allen-Bradley
tipo: Weigh Scale Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1771-WS is a specialized Weigh Scale Module designed for the PLC-5 programmable controller platform. This single-channel module is engineered to interface directly with strain-gauge load cells, providing precise weight measurement and signal conditioning for industrial weighing applications. It is a legacy component, often utilized in single-vessel weighing systems where high-accuracy data acquisition is required within a PLC-5 environment.

Features

  • Single-channel input for strain-gauge load cell connectivity.
  • Designed specifically for integration with the Allen-Bradley PLC-5 I/O chassis.
  • Supports 0 to 30 mV input signal ranges.
  • Integrated signal processing for weight measurement applications.
  • Standard 5 VDC backplane power requirement.

Applications

This module is typically used in industrial automation environments requiring weight monitoring, such as batching systems, vessel weighing, inventory management, and force measurement tasks where PLC-5 control systems are currently deployed.

Technical Specifications

Product Model 1771-WS
Module Type Weigh Scale Module
Compatibility PLC-5 Systems
Channels 1
Input Range 0 to 30 mV
Backplane Current 1.5 A at 5 VDC
Weight 0.74 kg

Installation Guidelines

  • Ensure the PLC-5 chassis power is disconnected before installing or removing the 1771-WS module to prevent electrical damage.
  • Verify that the module is correctly seated in the I/O slot and that the backplane connector is fully engaged.
  • Use shielded cabling for load cell connections to minimize electromagnetic interference (EMI) and ensure signal integrity.
  • Route signal wires away from high-voltage AC lines and motor control cabling.
  • Ensure the module is properly grounded according to the PLC-5 system installation manual to maintain measurement accuracy.
  • Handle with standard ESD precautions to protect internal circuitry.

FAQ

Is the 1771-WS still in production?

No, the 1771-WS has been discontinued by the manufacturer. It is primarily available through surplus or secondary market channels.

What is the input range for this module?

The 1771-WS supports an input signal range of 0 to 30 mV, suitable for standard strain-gauge load cell sensors.

Does this module require external power?

The module draws its operating power from the PLC-5 backplane at 5 VDC; ensure your power supply can accommodate the 1.5 A current draw of this module.
