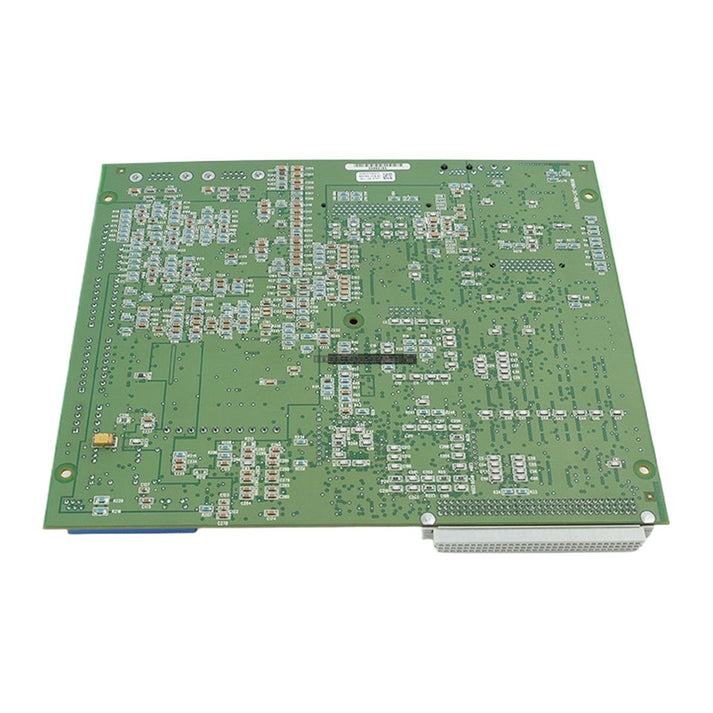

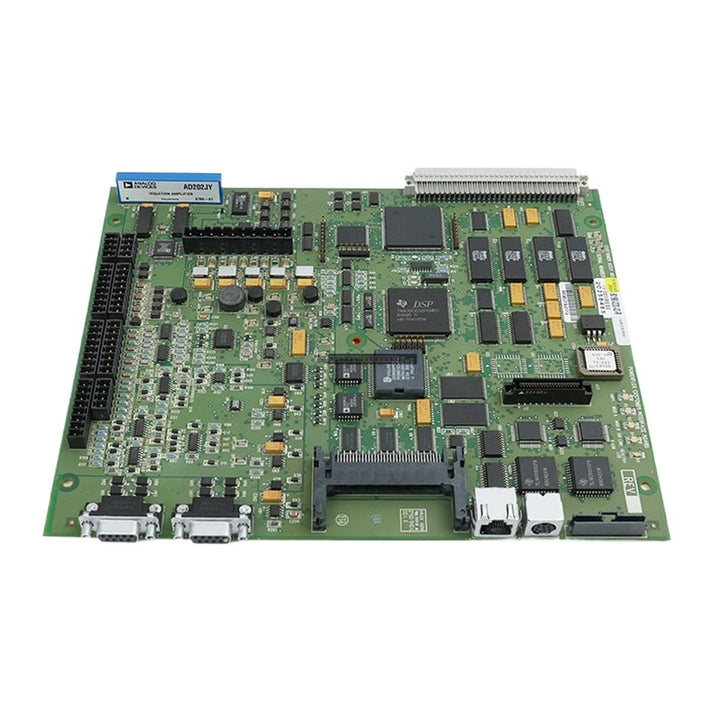

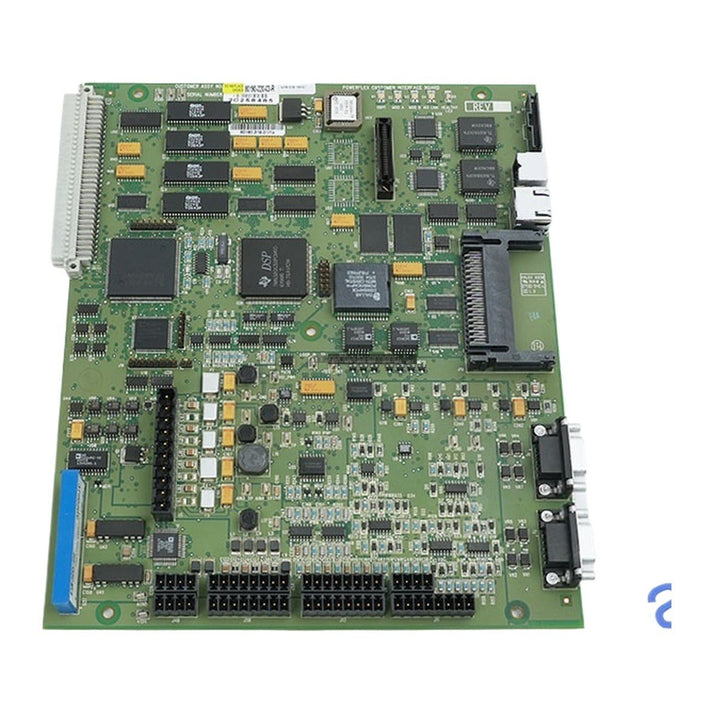

Allen-Bradley 80190-320-03-R PowerFlex Customer Interface Board

Allen-Bradley 80190-320-03-R PowerFlex Customer Interface Board

The Allen-Bradley 80190-320-03-R is a Customer Interface Board (CIB) engineered for the PowerFlex 7000 series medium voltage drive systems. This module serves as the primary communication hub and control motherboard,...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 80190-320-03-R
Proveedora: Allen-Bradley
tipo: Customer Interface Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 80190-320-03-R is a Customer Interface Board (CIB) engineered for the PowerFlex 7000 series medium voltage drive systems. This module serves as the primary communication hub and control motherboard, facilitating the essential link between the operator and the drive for configuration, real-time monitoring, and system management.

Features

  • Designed specifically for PowerFlex 7000 series medium voltage drives.
  • Integrated interface port for configuration and diagnostic access.
  • Onboard user interface featuring 4 tactile push-buttons.
  • 10/100 Base-T RJ-45 Ethernet connectivity for network integration.
  • Parallel digital I/O support with 3 x 24V DC inputs.
  • Advanced protection logic for drive and motor safeguarding.

Applications

  • Oil & Gas: Management of crude oil transportation pumps, natural gas compressors, and offshore drilling systems.
  • Mining & Metals: Control for heavy-duty conveyor belts, mine elevators, mills, and industrial blowers.
  • Power Generation: Regulation of boiler feed pumps, induced draft (ID) fans, and cooling circulation systems.
  • Water & Chemical: Operation of large-scale sewage treatment pumping stations, extruders, and mixing equipment.

Technical Specifications

Model 80190-320-03-R
Manufacturer Allen-Bradley (Rockwell Automation)
User Interface 4 x tactile push-buttons
Ethernet 1 x 10/100 Base-T RJ-45
Digital I/O 3 x 24V DC inputs
Operating Temperature -20 degC to +60 degC
Storage Temperature -40 degC to +85 degC
Humidity 5 - 95% RH (non-condensing)
Weight 0.4 kg

Installation Guidelines

  • Power Down: Always ensure the drive system is fully de-energized and locked out before attempting to install or remove the interface board.
  • ESD Precautions: Use a grounded wrist strap and proper electrostatic discharge (ESD) handling procedures to prevent damage to sensitive electronic components.
  • Seating: Ensure the board is fully seated in its designated slot within the drive control rack to maintain reliable electrical contact.
  • Cable Routing: Keep communication cables (Ethernet/RS-485) away from high-voltage power lines to minimize electromagnetic interference (EMI).
  • Environment: Ensure the drive cabinet is clean and that ventilation paths are clear to maintain the specified operating temperature range.

FAQ

Is this board compatible with all PowerFlex drives?

This board is specifically designed for the PowerFlex 7000 series. Please verify your drive's specific hardware revision and compatibility requirements before installation.

What is the primary role of this board?

The 80190-320-03-R acts as the central logic and protection coordinator, processing control algorithms and managing the user interface for drive configuration and fault monitoring.

Does this board support remote monitoring?

Yes, the board includes an RJ-45 Ethernet port, allowing for integration into industrial networks for remote monitoring and parameter configuration.
