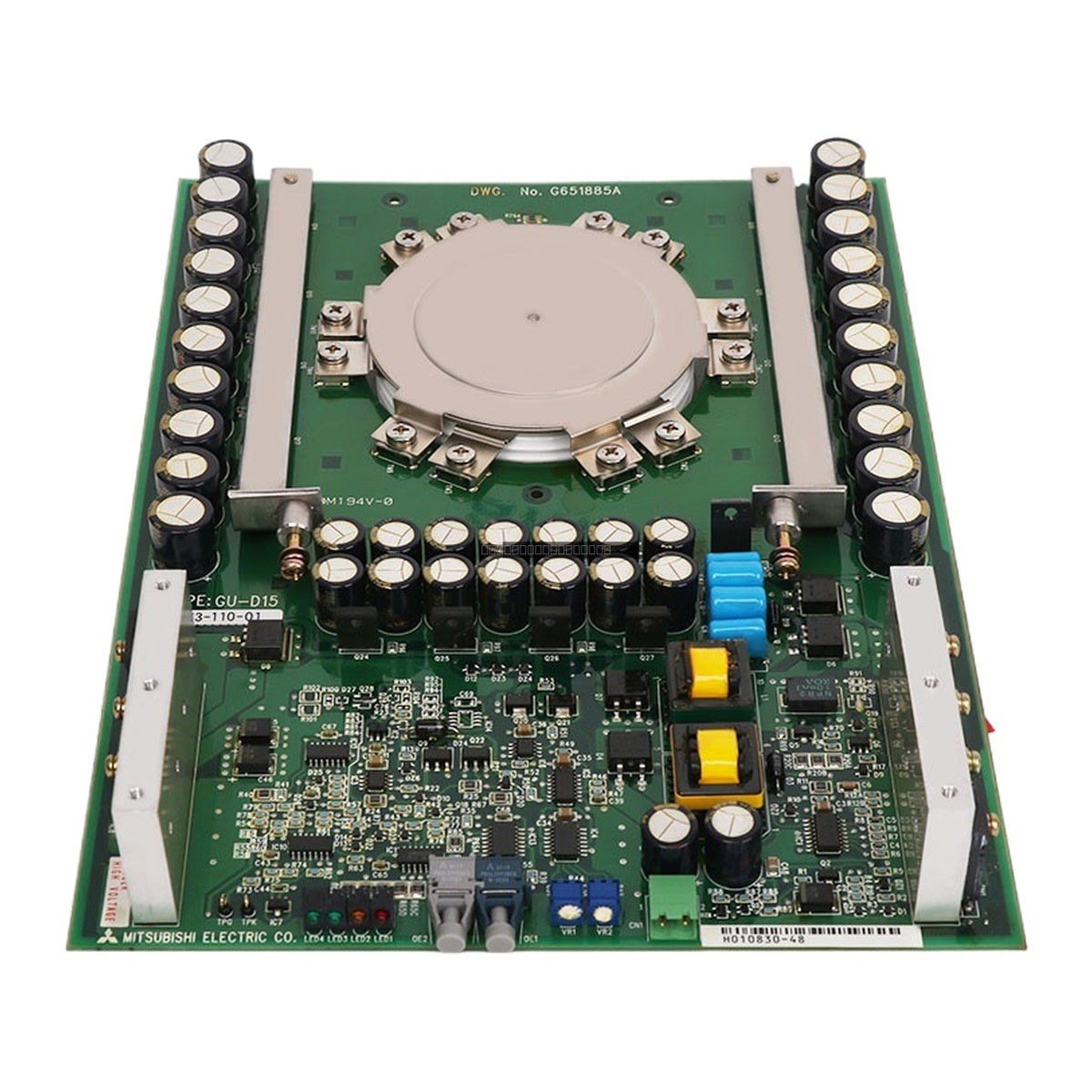

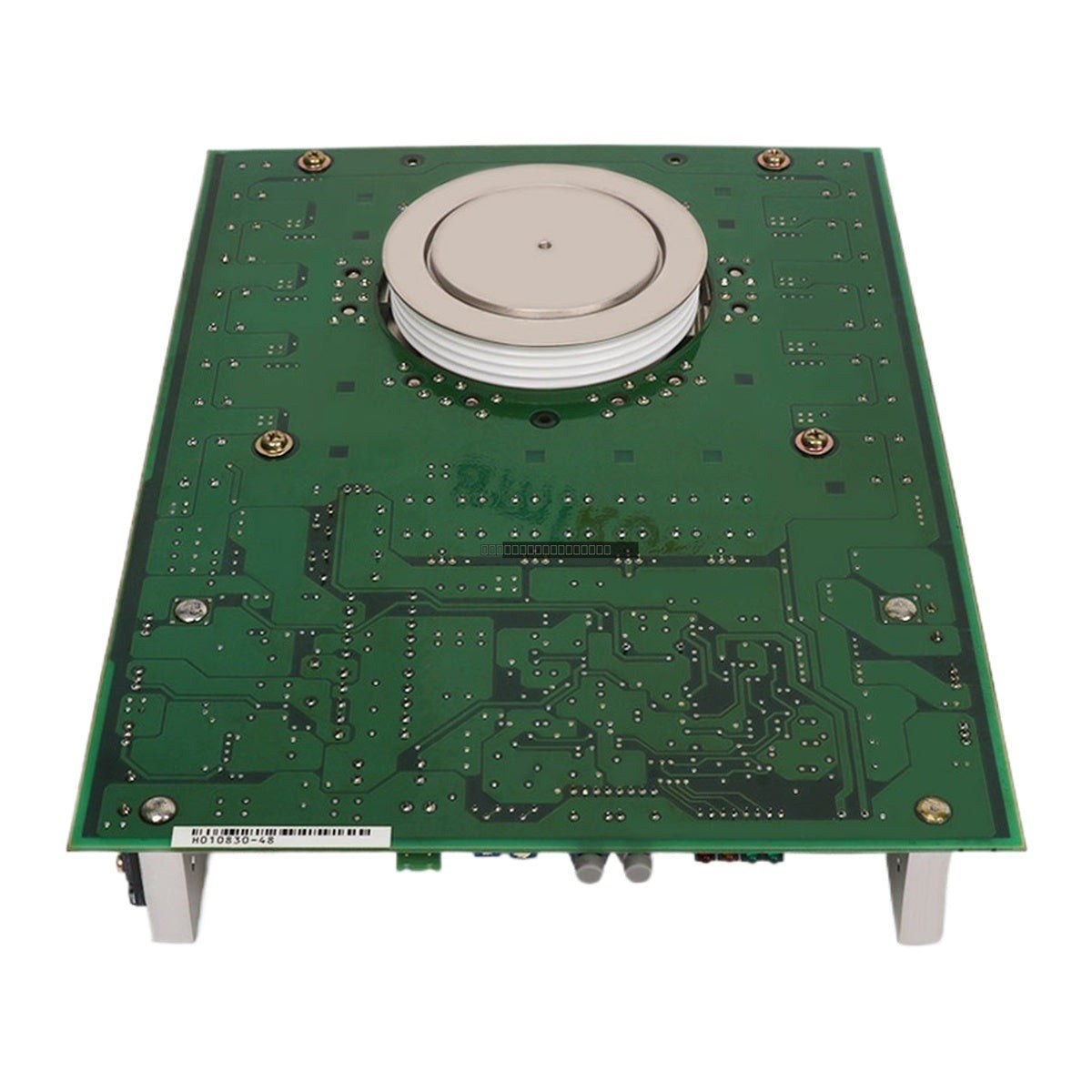

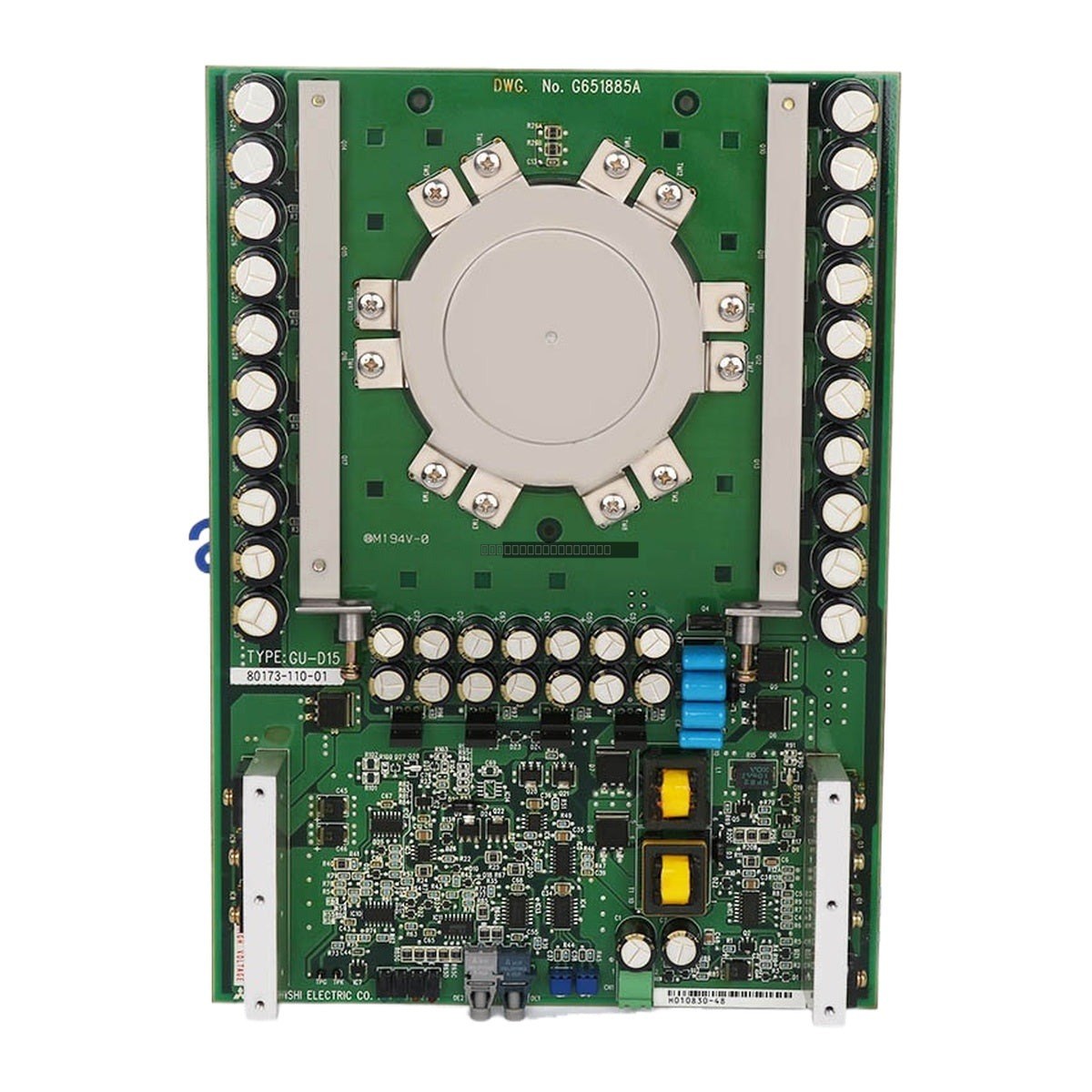

The Allen-Bradley GU-D15 80173-110-01 is a specialized Gate Commutated Turn-Off (GCT) thyristor control board designed for high-power industrial drive systems. This module serves as the critical interface between the drive control processor and the power semiconductor stage, providing precise gate firing and turn-off signals necessary for the reliable switching of GTO-based converters and inverters.

Features

• Dedicated GTO gate control and protection circuitry.
• Supports high-speed gate turn-on and turn-off signal generation.
• Integrated electrical isolation between low-voltage control circuits and high-power stages.
• Engineered for stable performance in demanding industrial environments.
• Facilitates accurate power conversion and motor control in high-power applications.

Applications

This board is commonly utilized in legacy Allen-Bradley drive platforms and power conversion systems, including:

• Mining and mineral processing (grinding mills, conveyors, and fans).
• Oil and Gas (high-capacity pumps and compressors).
• Power Generation (ID/FD boiler fans).
• Water and Wastewater (large-scale municipal pumping stations).
• Marine propulsion and heavy thruster systems.

Technical Specifications

Installation Guidelines

• Safety First: Isolate and lockout the main input circuit breaker feeding the drive system before performing any maintenance.
• Verification: Confirm that all isolation switch handles are in the OFF position.
• Discharge: Use a safety grounding stick to dissipate residual voltage on the power bus. Allow at least 5 to 10 minutes for internal DC bus capacitors to discharge completely, then verify with a reliable voltage tester.
• ESD Protection: Always wear a grounded Electrostatic Discharge (ESD) wristband when handling this board, as it contains sensitive CMOS components susceptible to static damage.
• Handling: Ensure the mounting area is clean and free of debris before seating the module.

FAQ

What is the primary function of the GU-D15 80173-110-01?

This board acts as a gate control and protection module, providing the necessary signals to safely switch high currents in GTO-based thyristor drive systems.

Is this component compatible with EOL systems?

Yes, this module is often used to support and maintain legacy Allen-Bradley drive platforms that have reached their End-Of-Life (EOL) status from the manufacturer.

What precautions should be taken during installation?

Always ensure the system is fully de-energized, capacitors are discharged, and proper ESD grounding procedures are followed to prevent damage to the board's sensitive internal components.
