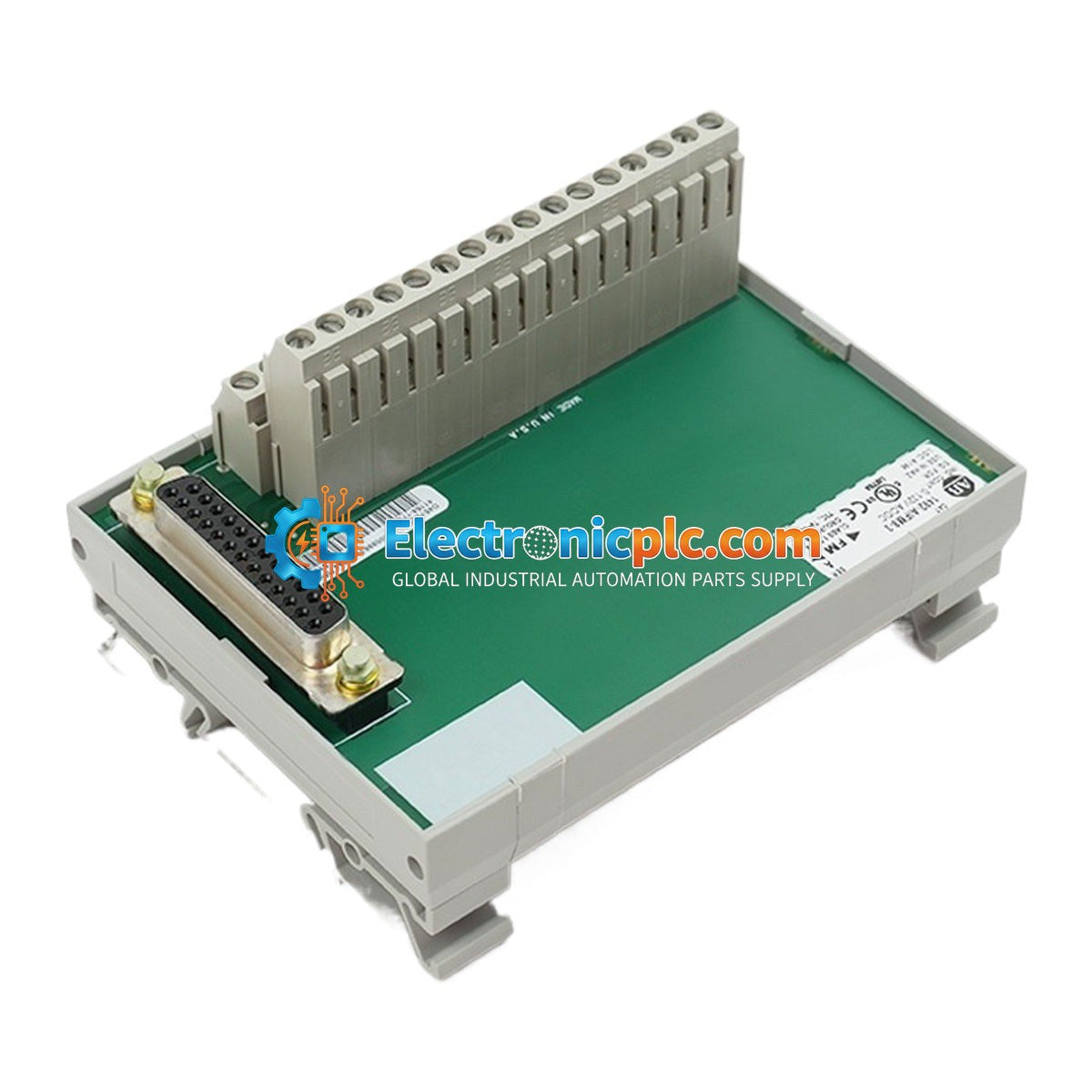

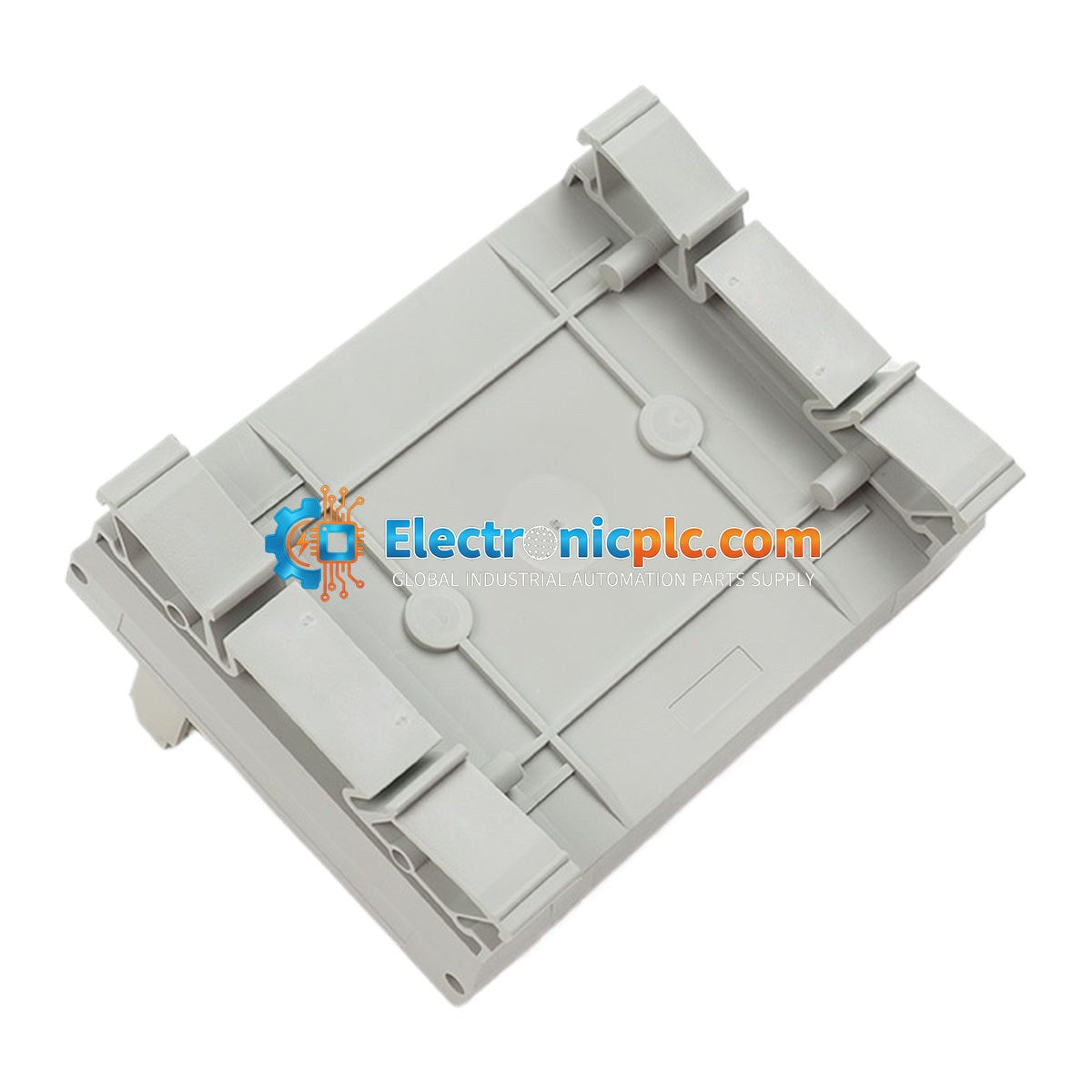

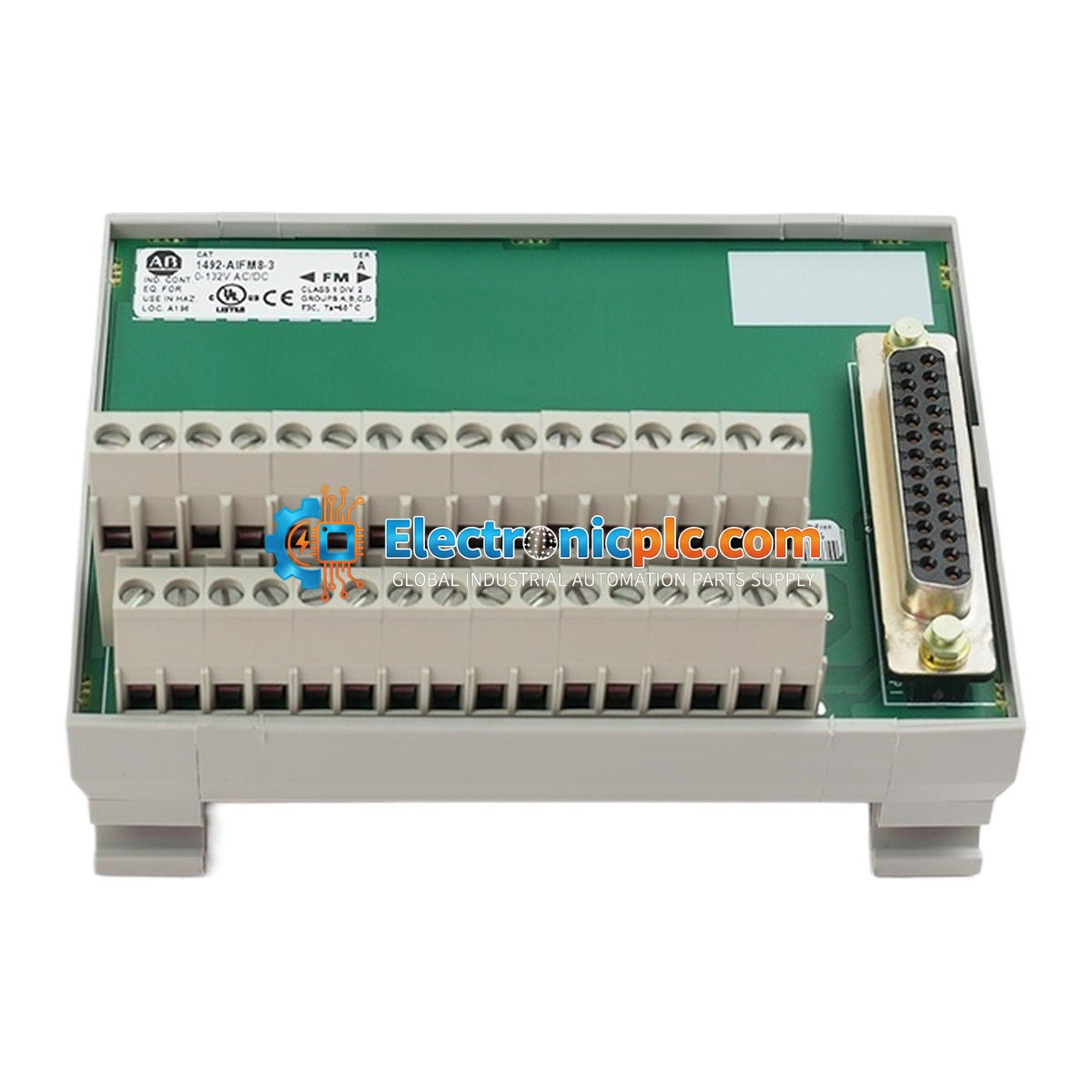

Allen-Bradley 1492-AIFM8-3 Analog Interface Module

Allen-Bradley 1492-AIFM8-3 Analog Interface Module

Description

The Allen-Bradley 1492-AIFM8-3 is an 8-channel feed-through Analog Interface Module (AIFM) designed to simplify field wiring for PLC analog I/O systems. This module serves as a bridge between field devices...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 1492-AIFM8-3
Proveedora: Allen-Bradley
tipo: Analog Interface Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Allen-Bradley 1492-AIFM8-3 is an 8-channel feed-through Analog Interface Module (AIFM) designed to simplify field wiring for PLC analog I/O systems. This module serves as a bridge between field devices and the controller, providing a clean, organized termination point that reduces the need for external terminal blocks and jumper accessories. It features 3 terminals per input channel, allowing for efficient signal, common, and shield connections.

Features

  • 8-channel feed-through design for streamlined analog signal management.
  • 3 terminals per input channel to support signal, common, and shield wiring.
  • Integrated power bus with eight extra terminals jumpered together for common or power supply distribution.
  • Internal jumpering to the D-shell housing for effective shield grounding.
  • Compatible with various PLC analog I/O cards, facilitating faster panel assembly and maintenance.

Applications

This interface module is widely used in industrial control panels where high-density analog I/O is required. It is commonly deployed with Allen-Bradley SLC 500 and ControlLogix systems to interface with sensors, transmitters, and actuators, ensuring reliable signal integrity and simplified troubleshooting.

Technical Specifications

Model 1492-AIFM8-3
Channels 8
Terminals per Channel 3
Rated Voltage 0 – 132 V AC
Rated Current 2 A per channel
Operating Temperature 0 to +60 degC
Storage Temperature -40 to +85 degC
Humidity 5 – 95 % RH, non-condensing

Installation Guidelines

  • Ensure the control system power is disconnected before installing or removing the module.
  • Mount the AIFM securely on a standard DIN rail within the control cabinet.
  • Verify that the field-side wiring does not exceed the rated voltage and current specifications of the module.
  • Utilize the commoned power bus terminals for efficient distribution of common or power supply lines.
  • Ensure proper grounding by connecting the shield terminals as required by the specific I/O module pinout.
  • Maintain adequate spacing for ventilation to ensure the module operates within the specified temperature range.

FAQs

What is the 1492-AIFM8-3?

The 1492-AIFM8-3 is an 8-channel analog interface module that provides 3 terminals per channel, supporting 16 single-ended points or 8 differential points, simplifying panel wiring by consolidating connections for faster installation.

Can it handle 16 single-ended channels?

Yes, it supports 16 single-ended analog points by providing shared common and shield terminals, allowing for 16 inputs or outputs using the 3-terminal-per-channel configuration.

Is this product brand new?

Yes, the 1492-AIFM8-3 is supplied as a new, original, and factory-sealed unit.
