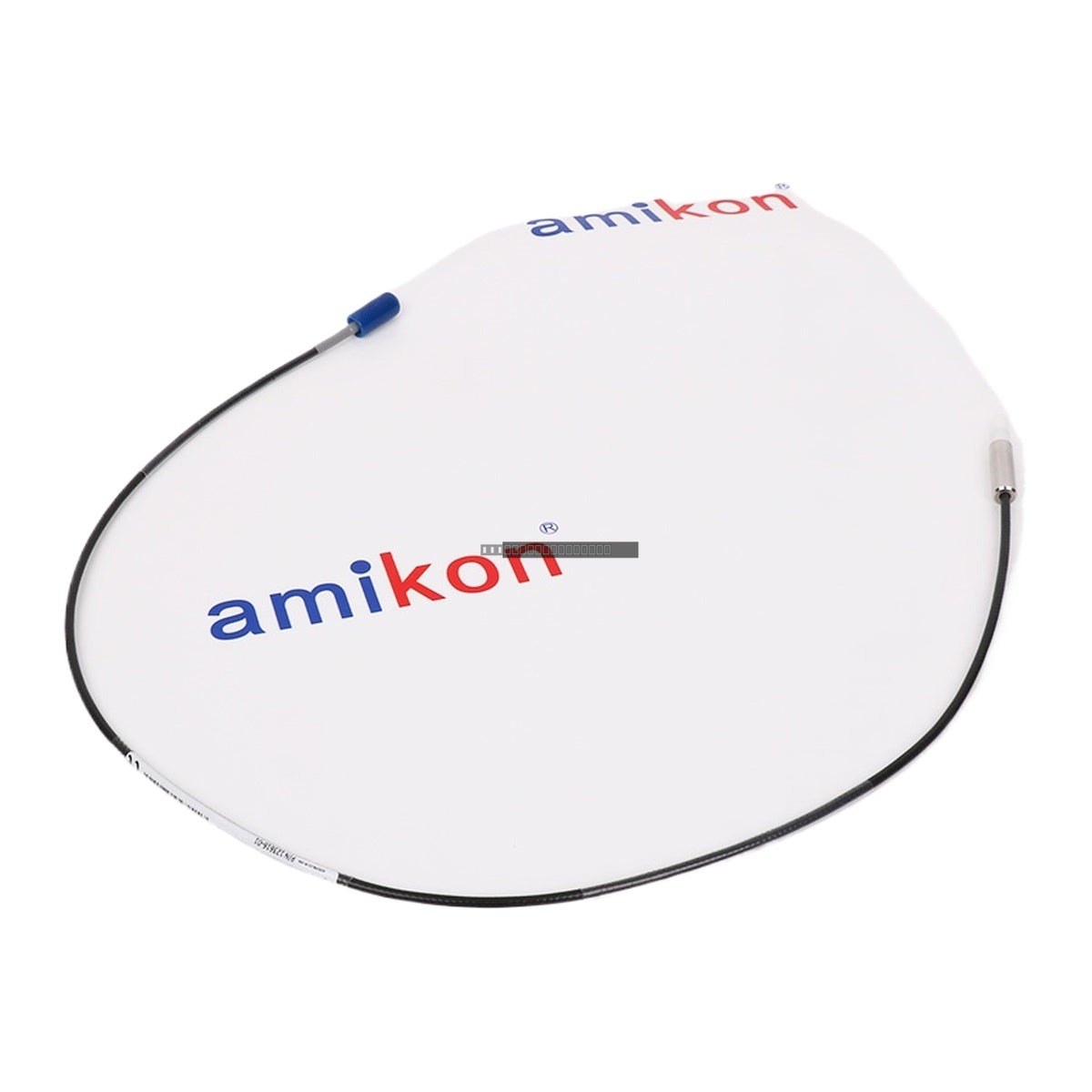

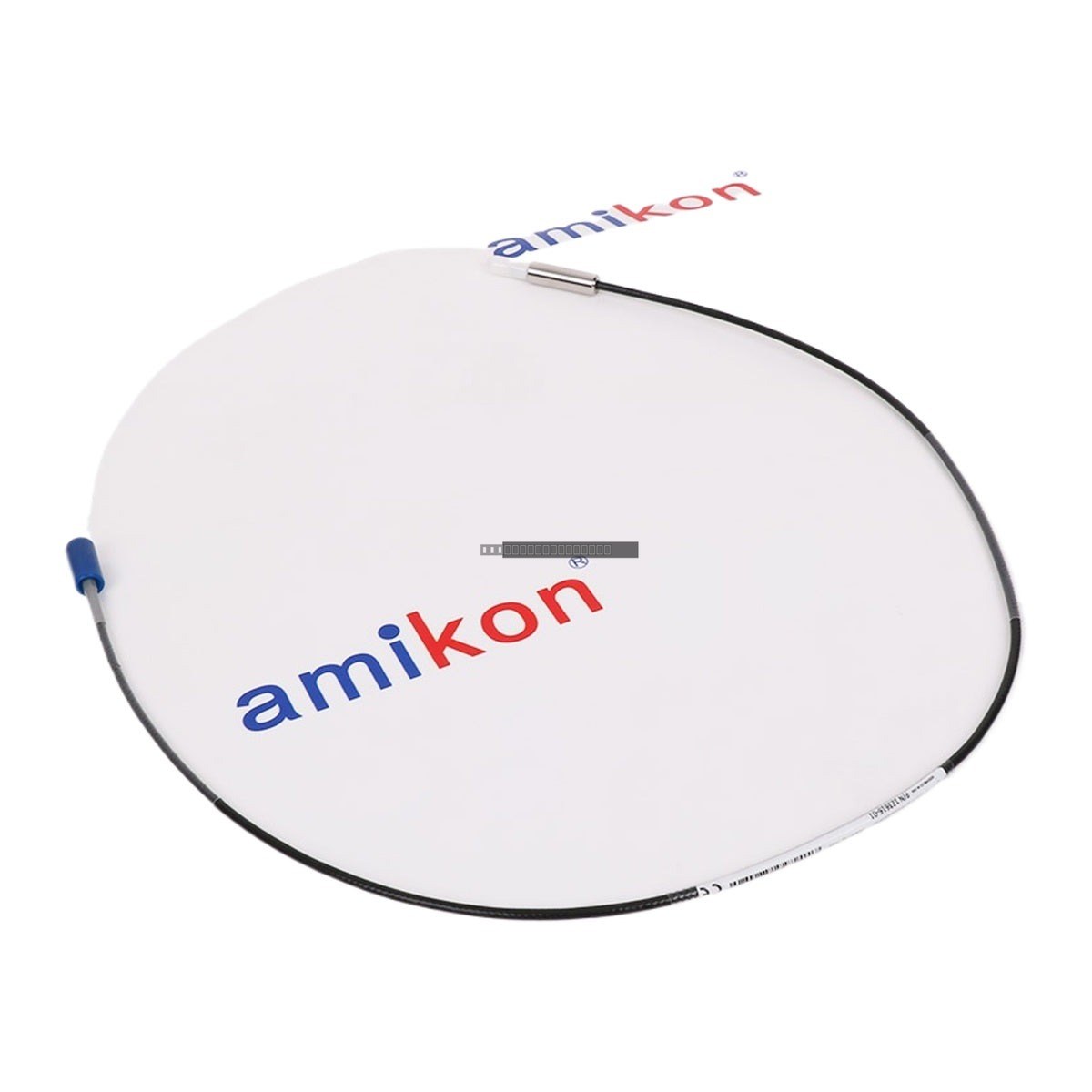

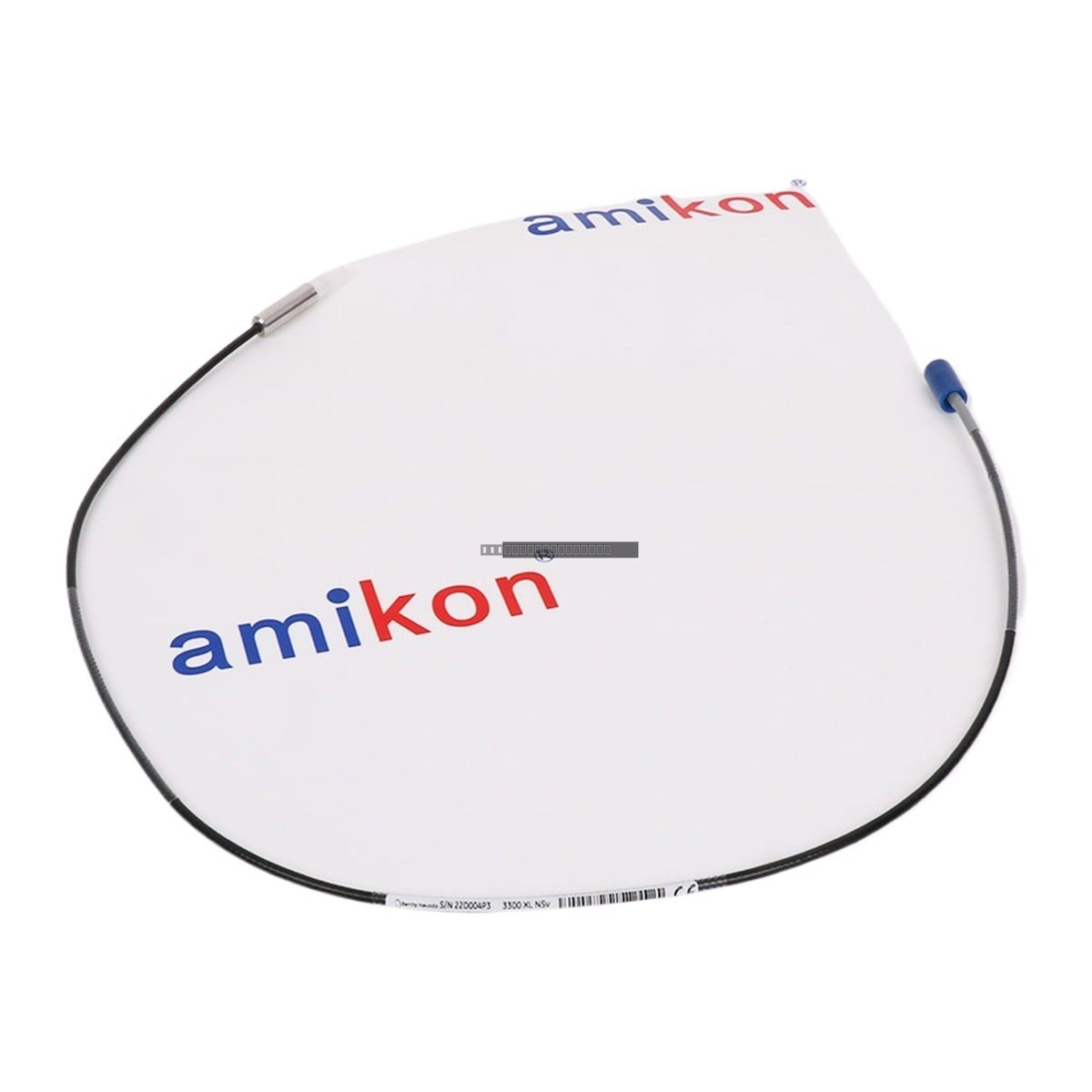

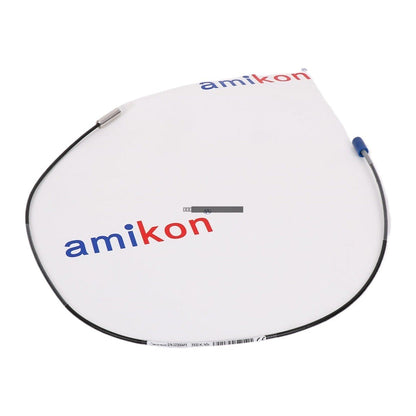

Bently Nevada 123616-01 3300 NSv Proximity Probe

Bently Nevada 123616-01 3300 NSv Proximity Probe

Description

The Bently Nevada 123616-01 is a 3300 NSv (Near-field) proximity probe designed for precision vibration and position monitoring in industrial machinery. This probe is specifically engineered for applications requiring high-resolution...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 123616-01
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 123616-01 is a 3300 NSv (Near-field) proximity probe designed for precision vibration and position monitoring in industrial machinery. This probe is specifically engineered for applications requiring high-resolution gap measurements, particularly in Ingersoll Rand equipment and similar rotating machinery setups. It provides a linear output signal proportional to the distance between the probe tip and the observed conductive target.

Features

  • Designed for the 3300 NSv proximity transducer system.
  • Robust 316 stainless steel housing for corrosion resistance in harsh industrial environments.
  • Standard M10 x 1 threading for secure mounting in probe holders.
  • High-frequency response capability up to 10 kHz for dynamic signal capture.
  • Linear output range optimized for precise gap monitoring.

Technical Specifications

Model 123616-01
Sensitivity 200 mV/mil (7.87 V/mm)
Measurement Range 0 to 80 mils (0 to 2.0 mm)
Frequency Response 0 to 10 kHz
Operating Voltage -18 V to -26 V DC
Output Signal -2 V to -18 V DC
Probe Temp Range -30 degC to +150 degC
Housing Material 316 Stainless Steel
Thread Size M10 x 1

Installation Guidelines

  • Ensure the probe is mounted in a rigid, vibration-free holder to prevent false signal noise.
  • Verify that the target material is conductive and free of surface defects to maintain measurement accuracy.
  • Maintain proper gap distance during installation to ensure the probe operates within its linear range.
  • Use shielded coaxial cabling to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Do not exceed the specified operating temperature limits for the probe tip or the integral cable.
  • Ensure the system is powered down before connecting or disconnecting the probe from the proximity transducer driver.

FAQ

What is the primary application for the 123616-01?

This probe is primarily used in Bently Nevada 3300 NSv systems for monitoring shaft position and vibration in rotating equipment, such as compressors and turbines, where near-field measurement is required.

Is this probe compatible with standard 3300 series drivers?

The 123616-01 is specifically calibrated for the 3300 NSv system. Always verify compatibility with your specific transducer driver model before installation.
