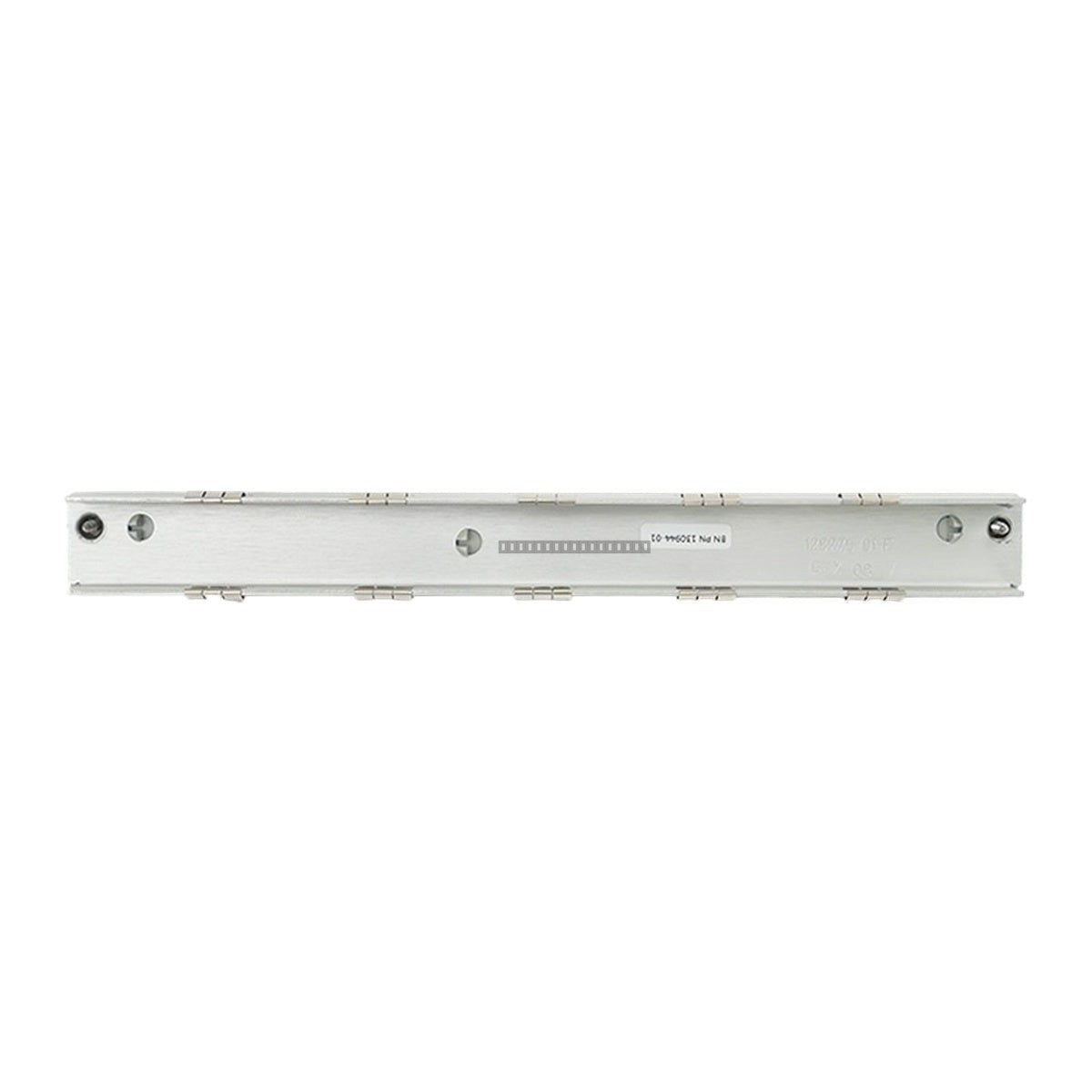

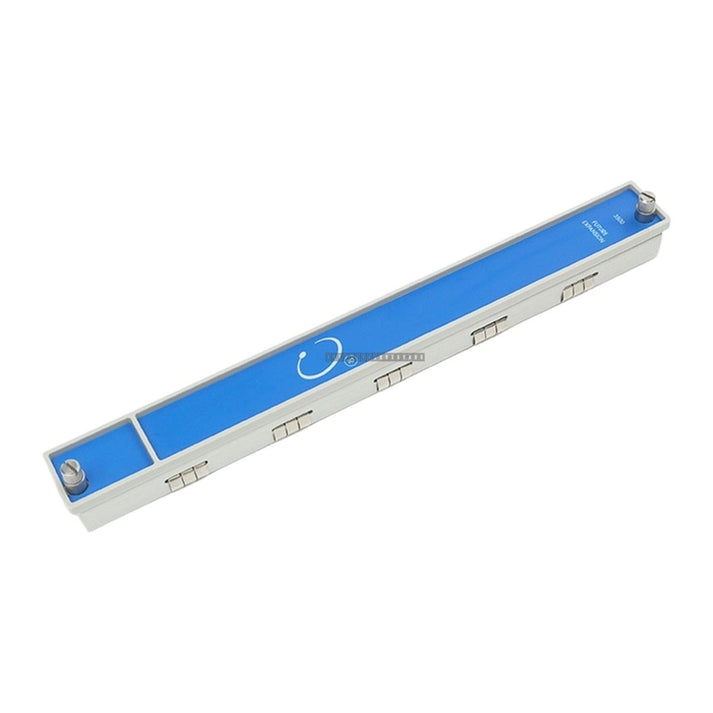

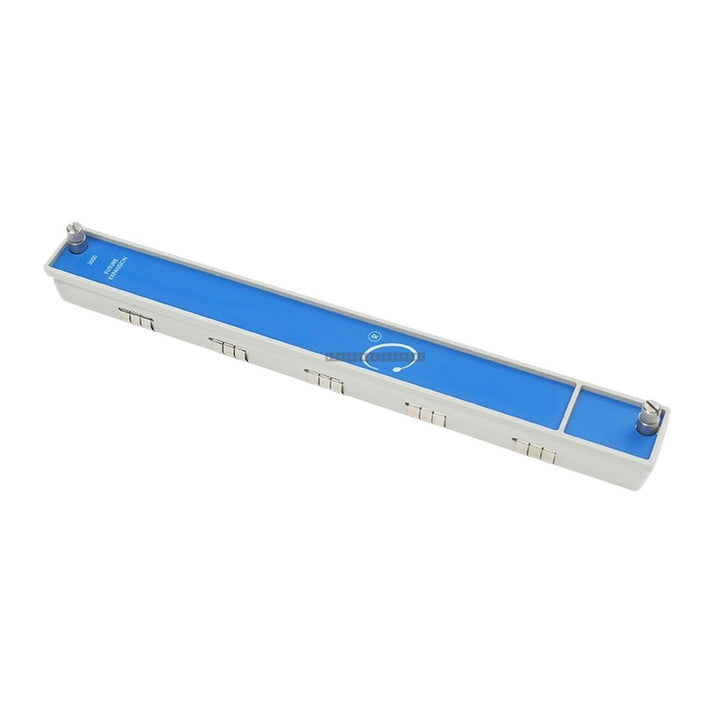

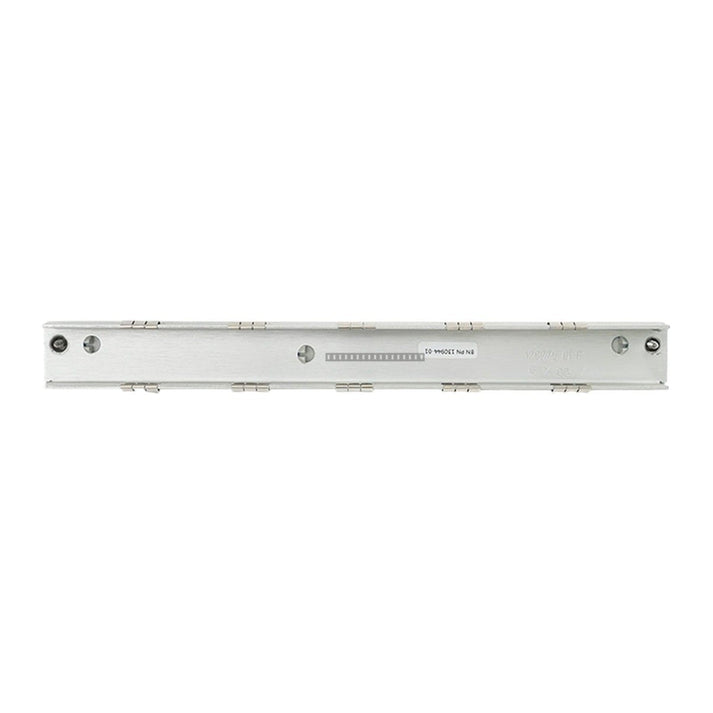

The Bently Nevada 128275-01F is a full-size Future Expansion Faceplate designed for the 3500 Series Machinery Protection System. This blank slot filler serves as a protective cover for unused module slots within the 3500 rack, ensuring proper internal airflow, protecting sensitive backplane components from dust and contaminants, and maintaining a professional rack aesthetic.

Features

• Designed specifically for Bently Nevada 3500 Series rack slots.
• Full-size panel construction for complete slot coverage.
• Constructed from durable materials with a protective finish.
• Essential for maintaining thermal management and environmental integrity within the rack.

Applications

• Oil & Gas: Refining, petrochemical plants, and offshore production facilities.
• Power Generation: Traditional and renewable energy power plants.
• Manufacturing: General industrial facilities utilizing Bently Nevada asset condition monitoring systems.

Technical Specifications

Installation Guidelines

• The 128275-01F can be installed in any of the 14 available monitor slots (slots 2 through 15) in a standard 3500 Series Rack.
• Ensure the faceplate is seated flush against the rack chassis to maintain the integrity of the internal cooling airflow.
• Standard ESD precautions should be observed when handling or installing components near the 3500 rack backplane.
• Verify that the slot is truly intended for future expansion and is not required for current monitoring modules before installation.

FAQs

What is the 128275-01F?

The 128275-01F is a blanking plate used to cover empty slots in a Bently Nevada 3500 monitoring system rack.

Where is the 128275-01F installed?

It is installed in any of the 14 available monitor slots (slots 2-15) of a 3500 rack to protect the backplane and maintain airflow.

What does the F suffix indicate?

In Bently Nevada nomenclature, the suffix typically denotes a specific hardware revision level or configuration variant.
