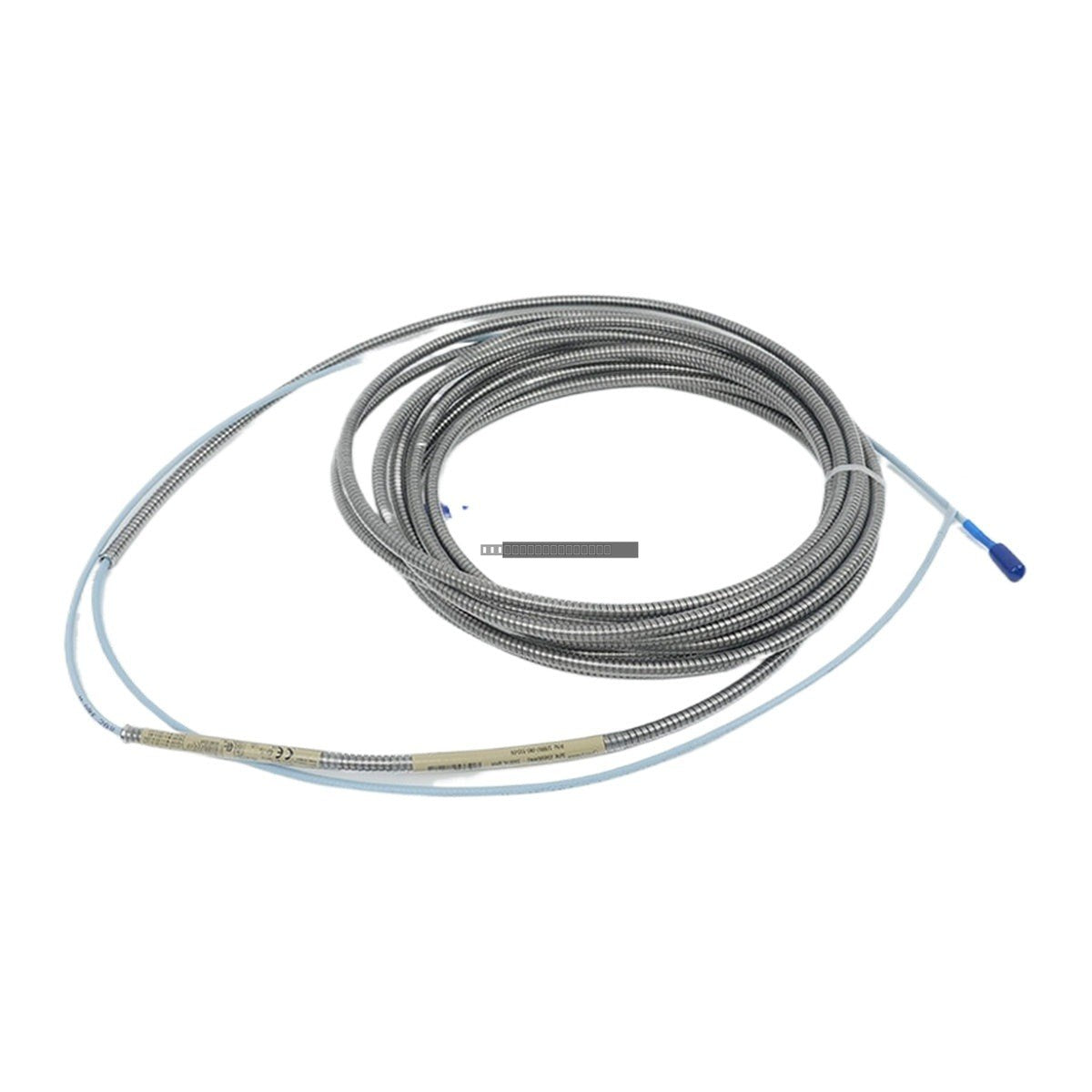

Bently Nevada 129957-085-310-05 3300 XL 8mm Extension Cable

Bently Nevada 129957-085-310-05 3300 XL 8mm Extension Cable

The Bently Nevada 129957-085-310-05 is a high-performance 8.5-meter extension cable designed for the 3300 XL 8mm Proximity Transducer System. This cable provides a reliable link between the proximity probe and...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 129957-085-310-05
Proveedora: Bently Nevada
tipo: Proximity Sensor Cable
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 129957-085-310-05 is a high-performance 8.5-meter extension cable designed for the 3300 XL 8mm Proximity Transducer System. This cable provides a reliable link between the proximity probe and the Proximitor sensor, ensuring accurate transmission of vibration and displacement signals in critical industrial monitoring applications.

Features

  • Designed for 3300 XL 8mm proximity transducer systems
  • 8.5-meter cable length for flexible installation
  • Gold-plated ClickLoc connectors for secure, reliable signal transmission
  • Patented CableLoc design providing 330 N (75 lbf) pull strength
  • Electrically and physically interchangeable with non-XL 3300 5mm and 8mm components

Applications

  • Steam, gas, and hydroelectric turbines
  • Centrifugal air, process gas, and refrigeration compressors
  • Large-scale industrial electric motors
  • Power generation equipment
  • Critical process pumps in chemical and petrochemical plants

Technical Specifications

Product Model 129957-085-310-05
Cable Length 8.5 meters
Characteristic Impedance 50 Ohm +/- 2 Ohm
Capacitance 98 pF/m (30 pF/ft)
Attenuation < 0.28 dB/m @ 10 MHz
Withstand Voltage 2 kV AC (shield-to-conductor)
Connector Type Gold-plated ClickLoc

Installation Guidelines

  • Finger-Tight Only: Connect the cable to the probe and Proximitor sensor by hand until a click is felt or heard. Do not use pliers or wrenches; maximum torque is 0.565 N-m (5 in-lb).
  • Bend Radius: Maintain a minimum bend radius of 25.4 mm (1.0 inch) to prevent damage to the internal coaxial structure.
  • Connector Protection: Use connector protectors for all connections to prevent moisture or oil ingress. Silicone tape may be used in non-oil environments, but is not recommended for applications exposed to turbine oil.
  • Handling: Ensure the system is powered down before disconnecting or connecting components to prevent signal noise or potential damage.

FAQ

What is the primary function of the 129957-085-310-05?

This cable serves as an extension for the 3300 XL 8mm proximity probe, facilitating the transmission of eddy current signals used to monitor vibration and displacement in rotating machinery.

Is this cable compatible with older Bently Nevada systems?

Yes, the 3300 XL series is designed to be both electrically and physically interchangeable with legacy non-XL 3300 5mm and 8mm transducer components.

Can I use this cable in high-vibration environments?

Yes, the 3300 XL series is specifically engineered for industrial environments, featuring robust CableLoc designs to ensure connection integrity under mechanical stress.
