Description

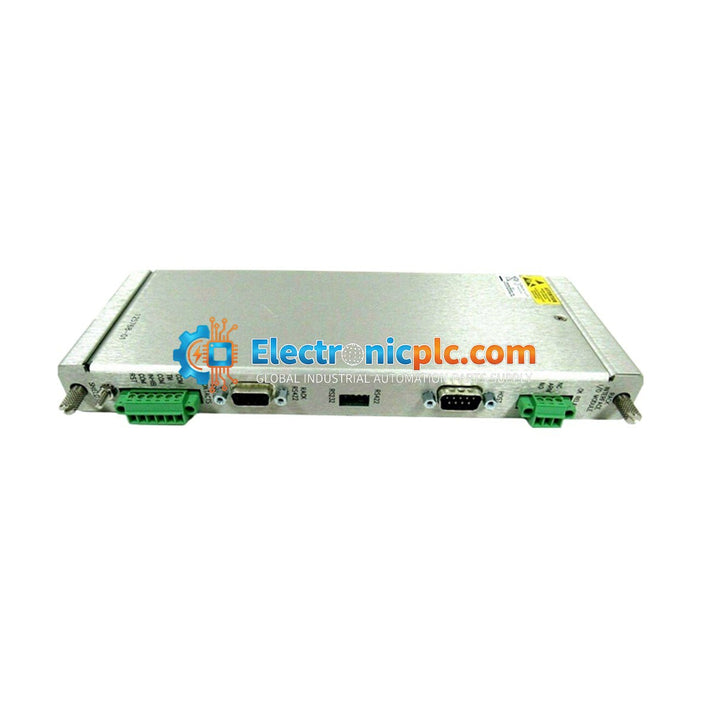

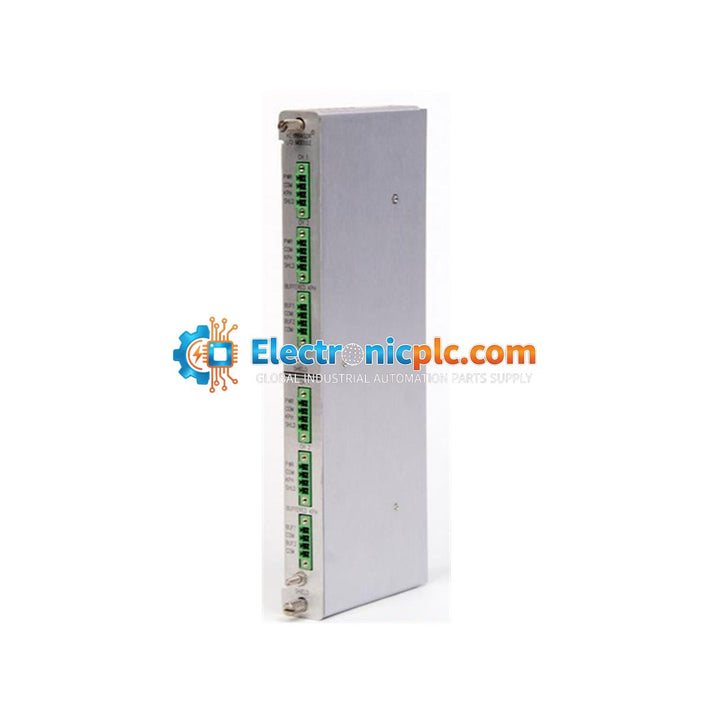

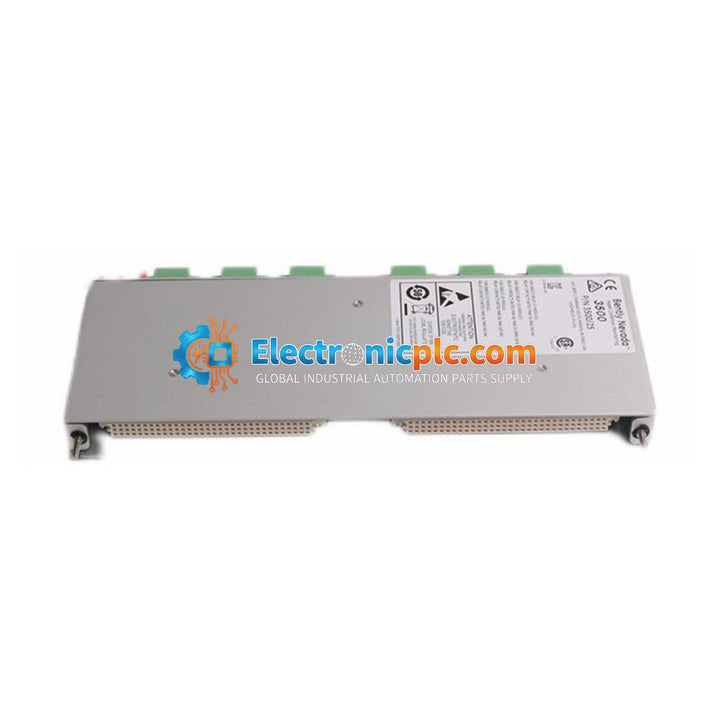

The 126648-02 Isolated Keyphasor I/O Module is a specialized component of the Bently Nevada 3500 Series machinery protection system. This module is engineered to provide electrical isolation for Keyphasor signals, allowing them to be distributed across multiple devices or systems, such as external control networks or data acquisition systems, without introducing ground loops or electrical interference. It is primarily utilized for processing signals from magnetic pickups or proximity probes to generate precise digital Keyphasor pulses, which serve as the phase reference for vibration analysis and shaft speed monitoring in rotating machinery.

Features

• Electrical Isolation: Ensures signal integrity by isolating Keyphasor inputs from downstream monitoring or control equipment.
• Dual Input Channels: Supports up to two independent inputs from proximity probes or magnetic pickups.
• Signal Conversion: Converts raw analog probe/pickup signals into reliable digital pulses for the 3500 rack system.
• System Compatibility: Fully integrated with the 3500 Series rack architecture, supporting redundant configurations.
• Versatile Sensing: Designed for magnetic pickup applications and compatible with Proximitor sensor inputs when external power is applied.

Applications

This module is essential for critical rotating equipment, including steam and gas turbines, compressors, and large pumps. It provides the necessary phase reference for calculating 1X vibration amplitude and phase, which are critical for diagnostic analysis and machinery protection.

Technical Specifications

Installation Guidelines

• Rack Mounting: Designed for installation in a standard Bently Nevada 3500 rack. Ensure the module is fully seated and the front panel screws are tightened to maintain proper ground contact.
• ESD Precautions: Always use an anti-static wrist strap when handling the module to prevent damage to sensitive internal electronics.
• Power Down: Ensure the 3500 rack power is disconnected or the system is in a safe state before inserting or removing the I/O module.
• Wiring: Use shielded cabling for all probe inputs to minimize EMI/RFI noise. Maintain proper separation between signal wiring and high-voltage power lines.
• Configuration: Verify that the 3500 rack configuration software is updated to recognize the isolated I/O module settings to ensure correct signal processing.

FAQ

What is the primary difference between the 126648-02 and non-isolated versions?

The 126648-02 provides electrical isolation, which is critical when the Keyphasor signal must be shared with external systems that may have different ground potentials. Note that this isolation may introduce a slightly higher phase shift compared to non-isolated modules.

Can this module be used with Proximitor sensors?

Yes, it supports Proximitor sensor inputs, provided that an external power supply is used to power the sensors.
