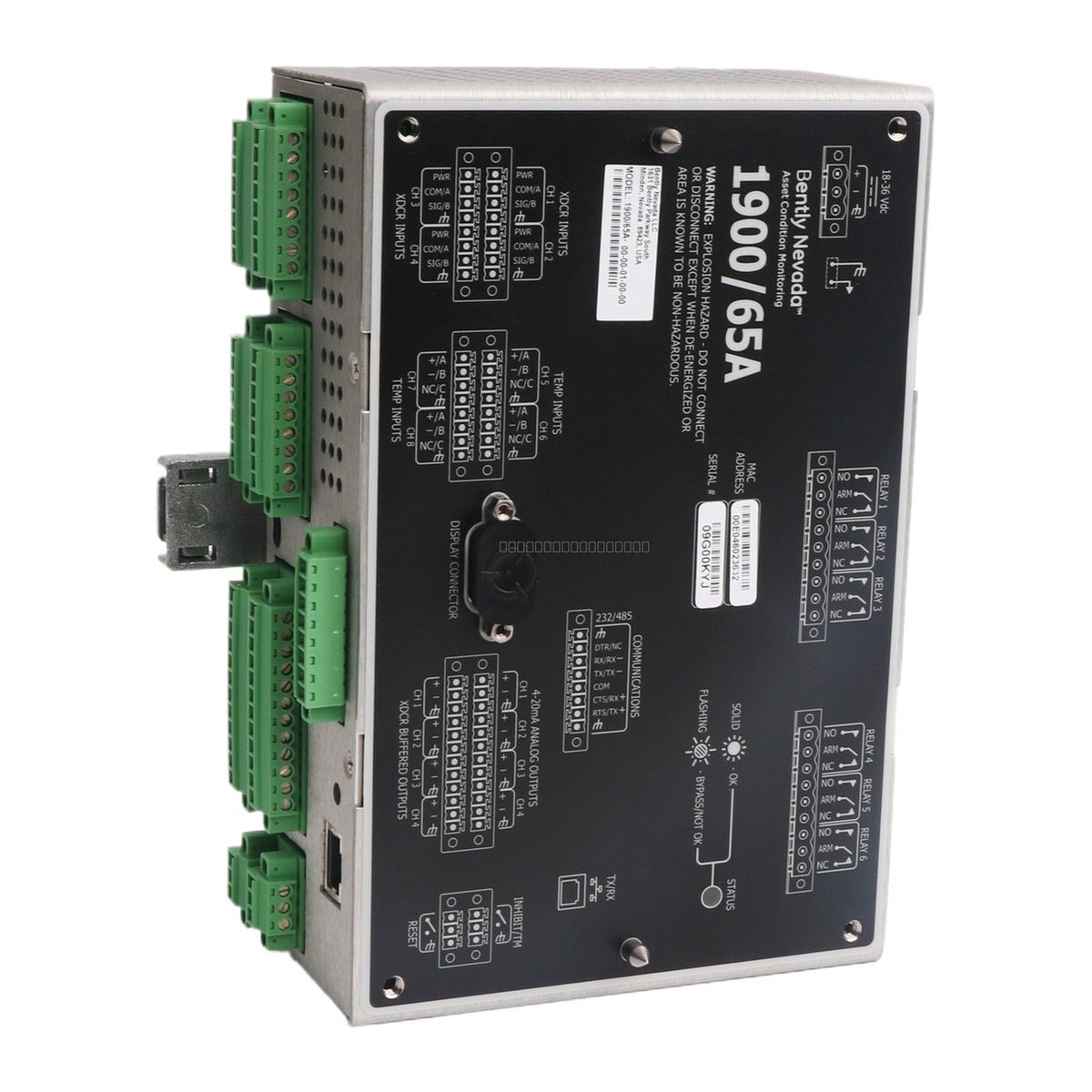

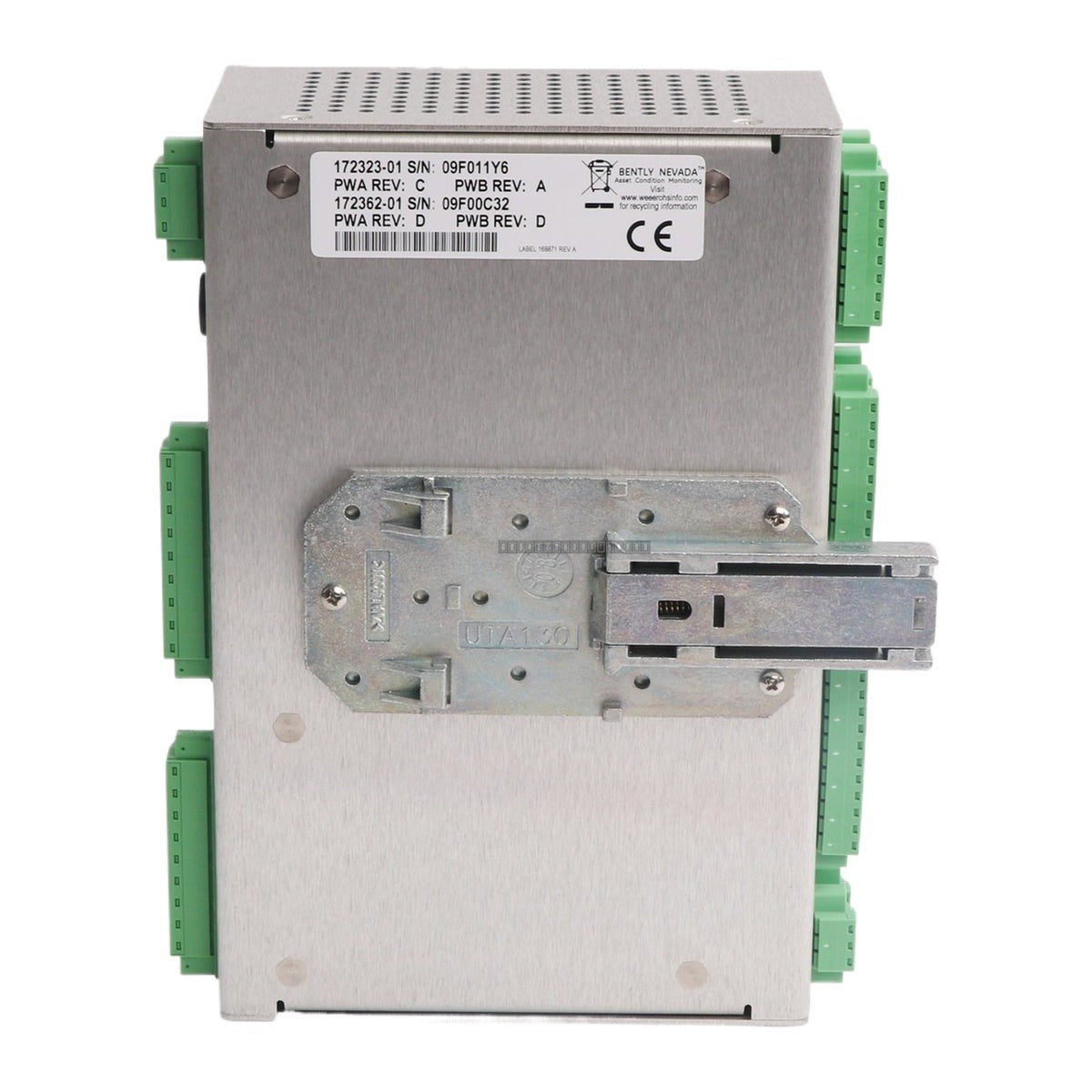

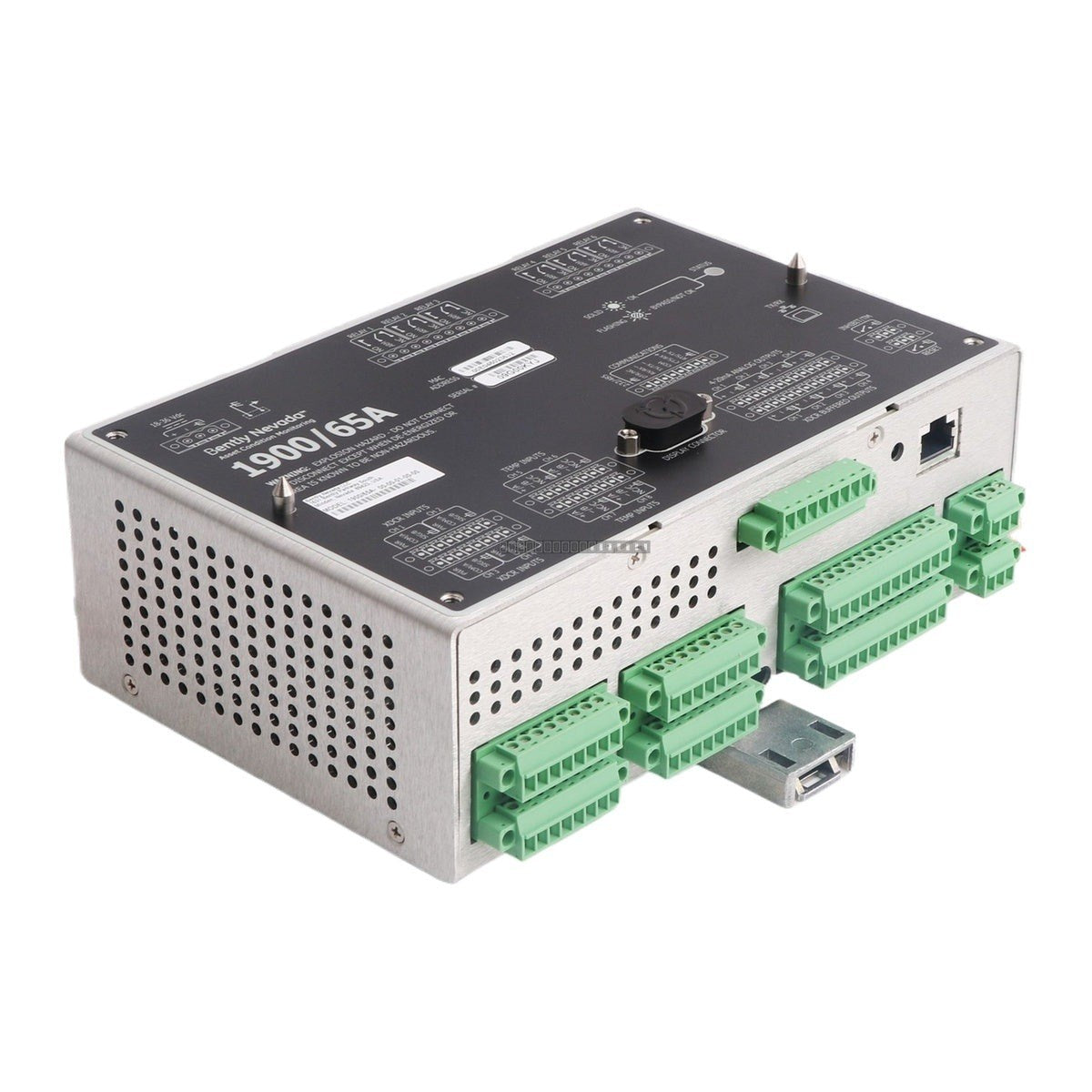

Bently Nevada 1900/65A 167699-02 General Purpose Equipment Monitor

Bently Nevada 1900/65A 167699-02 General Purpose Equipment Monitor

The Bently Nevada 1900/65A (167699-02) is a versatile, cost-effective, and configurable equipment monitor designed for the continuous protection and monitoring of balance-of-plant assets. This monitor provides a robust solution for...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 1900/65A 167699-02
Proveedora: Bently Nevada
tipo: Equipment Monitor
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 1900/65A (167699-02) is a versatile, cost-effective, and configurable equipment monitor designed for the continuous protection and monitoring of balance-of-plant assets. This monitor provides a robust solution for critical and auxiliary equipment, integrating seamlessly into existing control systems.

Features

  • Four transducer inputs supporting 2- and 3-wire accelerometers, velocity sensors, or proximity sensors.
  • Four temperature inputs supporting Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs.
  • Six configurable relay outputs for alarm and status management.
  • Four 4-20 mA recorder outputs for external data logging.
  • Dedicated buffered outputs for each transducer input for portable diagnostic analysis.
  • Supports acceleration enveloping algorithms for enhanced vibration analysis.
  • Optional remote display/keypad capability for stand-alone operation up to 75 meters away.
  • Modbus communication support via Ethernet and serial (RS232/485) ports.

Applications

  • Rotating Machinery Protection: Monitors pumps, motors, fans, blowers, and centrifuges.
  • Process Industry Monitoring: Suitable for oil and gas, power generation, mining, and cement plant auxiliary equipment.
  • OEM & Skid-Mounted Units: Ideal for integration into packaged or skid-mounted OEM machinery.
  • Predictive Maintenance: Enables early detection of wear, misalignment, and imbalance.

Technical Specifications

Product Model 1900/65A 167699-02
Spare Model 172323-01
Weight 0.98 kg
3-wire Voltage Mode 10 kOhm
Bias Voltage -24 V
Vibration Variables +/- 1% of full scale range
Bias Filter 0.09 Hz 1-pole low-pass
OK Filter 2.4 kHz 1-pole low-pass

Installation Guidelines

  • Electrostatic Discharge (ESD): Always use a grounded wrist strap when handling the module to prevent damage to internal circuitry.
  • Power Down: Ensure the system power is disconnected before installing or removing the module from the rack.
  • Wiring: Use shielded cables for transducer inputs to minimize EMI interference. Ensure proper grounding of cable shields at the monitor end.
  • Environment: Install in a clean, dry environment within the specified temperature range. Ensure adequate ventilation around the module for cooling.
  • Configuration: Use the Bently Nevada 1900 Configuration software to set up transducer types, alarm setpoints, and relay logic prior to full operation.

FAQ

What is the 1900/65A?

The Bently Nevada 1900/65A General Purpose Equipment Monitor is a configurable, cost-effective, stand-alone system for continuous monitoring and protection of balance-of-plant assets, featuring eight input channels, six relays, and Modbus communication.

What equipment can the 1900/65A monitor?

It is designed for balance-of-plant equipment, such as cooling tower fans, pumps, blowers, motors, centrifuges, and small hydro turbines.

Does the 1900/65A support Modbus?

Yes, it supports Modbus communications via Ethernet and an RS232/485 serial port to interface with DCS, PLC, or SCADA systems.
