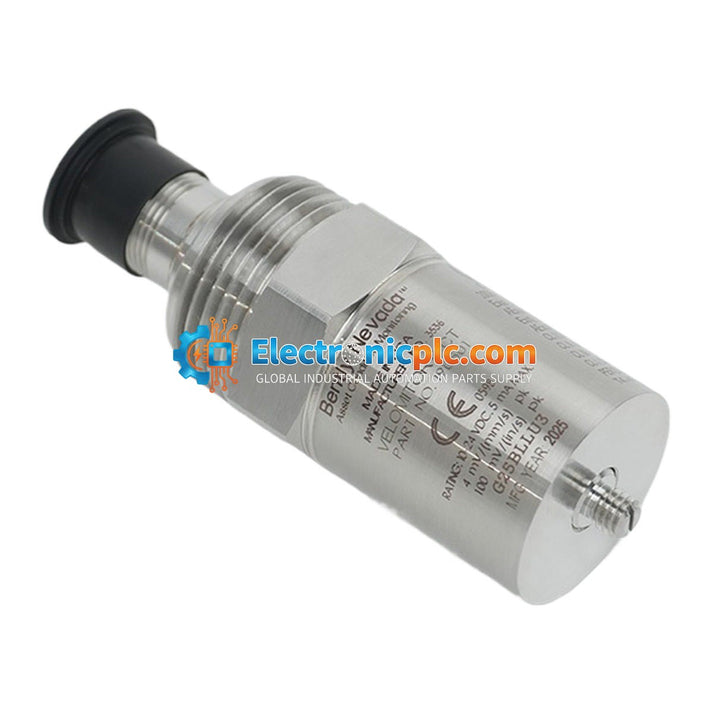

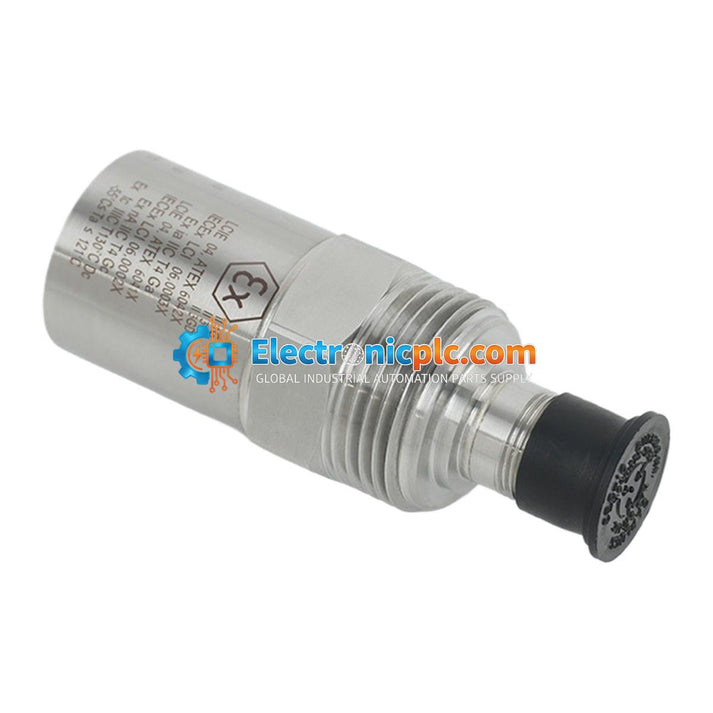

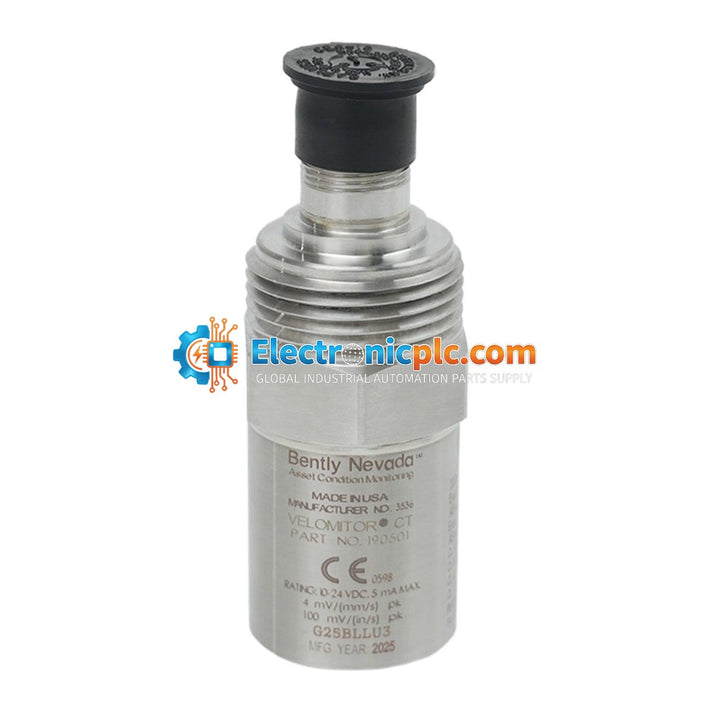

Bently Nevada 190501-04-00-04 Velomitor CT Velocity Transducer

Bently Nevada 190501-04-00-04 Velomitor CT Velocity Transducer

Description

The Bently Nevada 190501-04-00-04 is a specialized Velomitor CT (Cooling Tower) Velocity Transducer. This device is an integrating piezoelectric accelerometer with internal electronics, engineered specifically for low-frequency vibration monitoring. It...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 190501-04-00-04
Proveedora: Bently Nevada
tipo: Vibration Transducer
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Bently Nevada 190501-04-00-04 is a specialized Velomitor CT (Cooling Tower) Velocity Transducer. This device is an integrating piezoelectric accelerometer with internal electronics, engineered specifically for low-frequency vibration monitoring. It is optimized for measuring casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 RPM. Its robust design allows it to capture vibration amplitudes from the fan motor and speed reducer effectively.

Features

  • Low-frequency vibration monitoring capability.
  • Designed for casing vibration velocity measurement.
  • Optimized for cooling tower and air-cooled heat-exchanger fan assemblies.
  • Constructed from durable 316L stainless steel.
  • Integrated electronics for direct velocity output.
  • CSA/NRTL/C hazardous area approval rating.

Applications

  • Power Generation: Monitoring of cooling tower fans in fossil and hydro plants.
  • Petrochemical & Refining: Critical monitoring for fin-fan assemblies.
  • Chemical Manufacturing: Vibration analysis for agitators, mixers, and slow-speed reactor cooling systems.
  • Mining & Mineral Processing: Ventilation fan monitoring.
  • Pulp & Paper: Slow-speed fans and wastewater aerators.

Technical Specifications

Model 190501-04-00-04
Sensitivity 3.94 mV/mm/s (100 mV/in/s) +/- 5%
Mounting Hardware Stud M6x1 with 3/8-in 24 adapter
Connection Interface MIL-C-5015
Agency Approval CSA/NRTL/C
Operating Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Housing Material 316L Stainless Steel

Installation Guidelines

  • Mounting Surface: Ensure the mounting surface is flat, clean, and at least 33 mm (1.3 inches) in diameter to ensure proper coupling.
  • Torque Requirement: Tighten the sensor to 4.5 N-m +/- 0.6 N-m (40 in-lbf +/- 5 in-lbf).
  • Orientation: The transducer can be mounted in any orientation, though it is recommended to align it with the primary direction of the vibration being monitored (radial or axial).
  • Handling: As a precision instrument, handle with care to avoid damage to the piezoelectric element. Ensure the electrical connector is properly seated and protected from environmental ingress.

FAQ

What is the Bently Nevada 190501-04-00-04?

It is a Velomitor CT (Cooling Tower) Velocity Transducer, a type of integrating piezoelectric accelerometer designed for measuring casing vibration on cooling towers and air-cooled heat exchanger fan assemblies.

What is the minimum operating speed for this transducer?

The sensor is designed for fans operating at or above 90 RPM.

What is the operating temperature range?

The operating temperature range is -40 degC to +85 degC (-40 degF to +185 degF).
