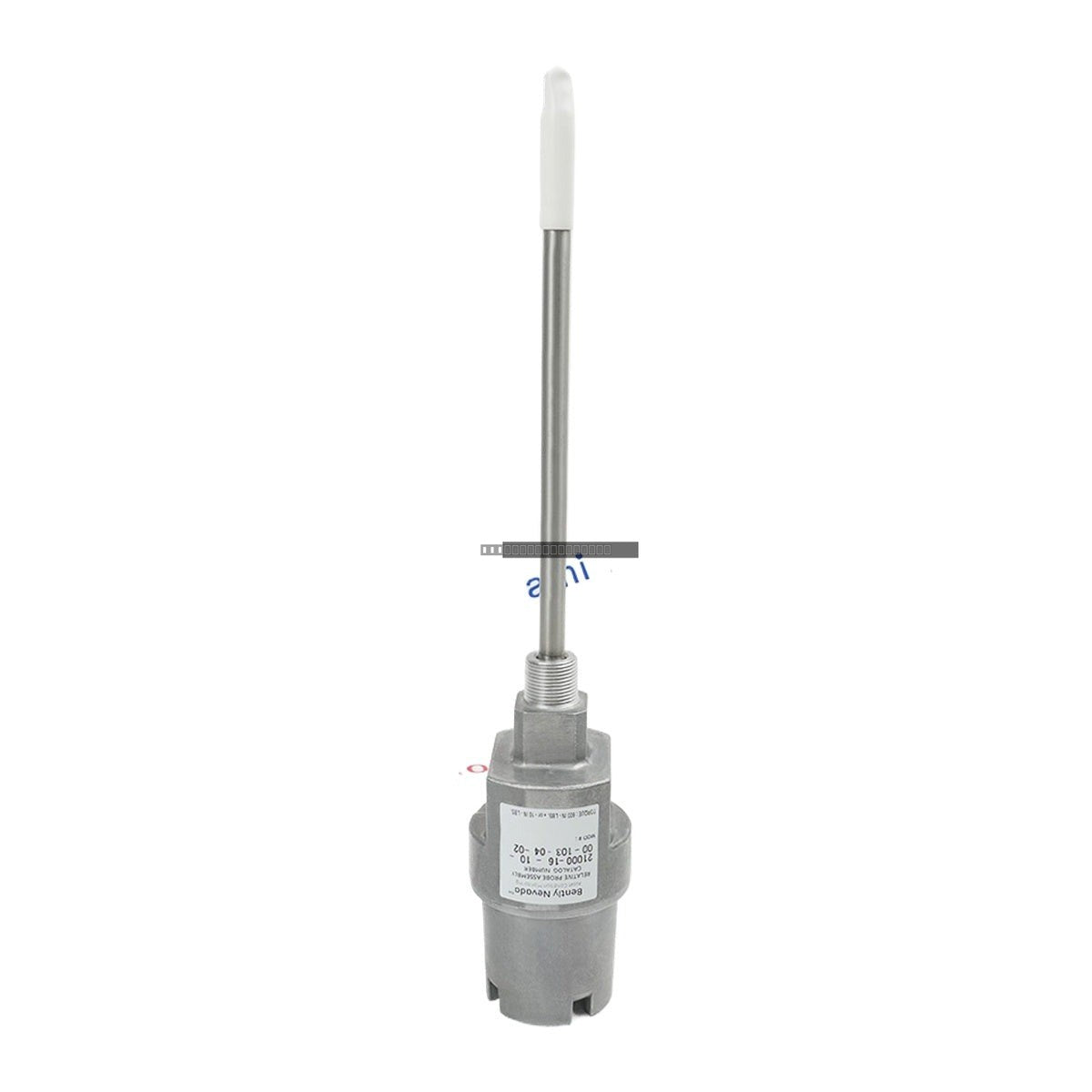

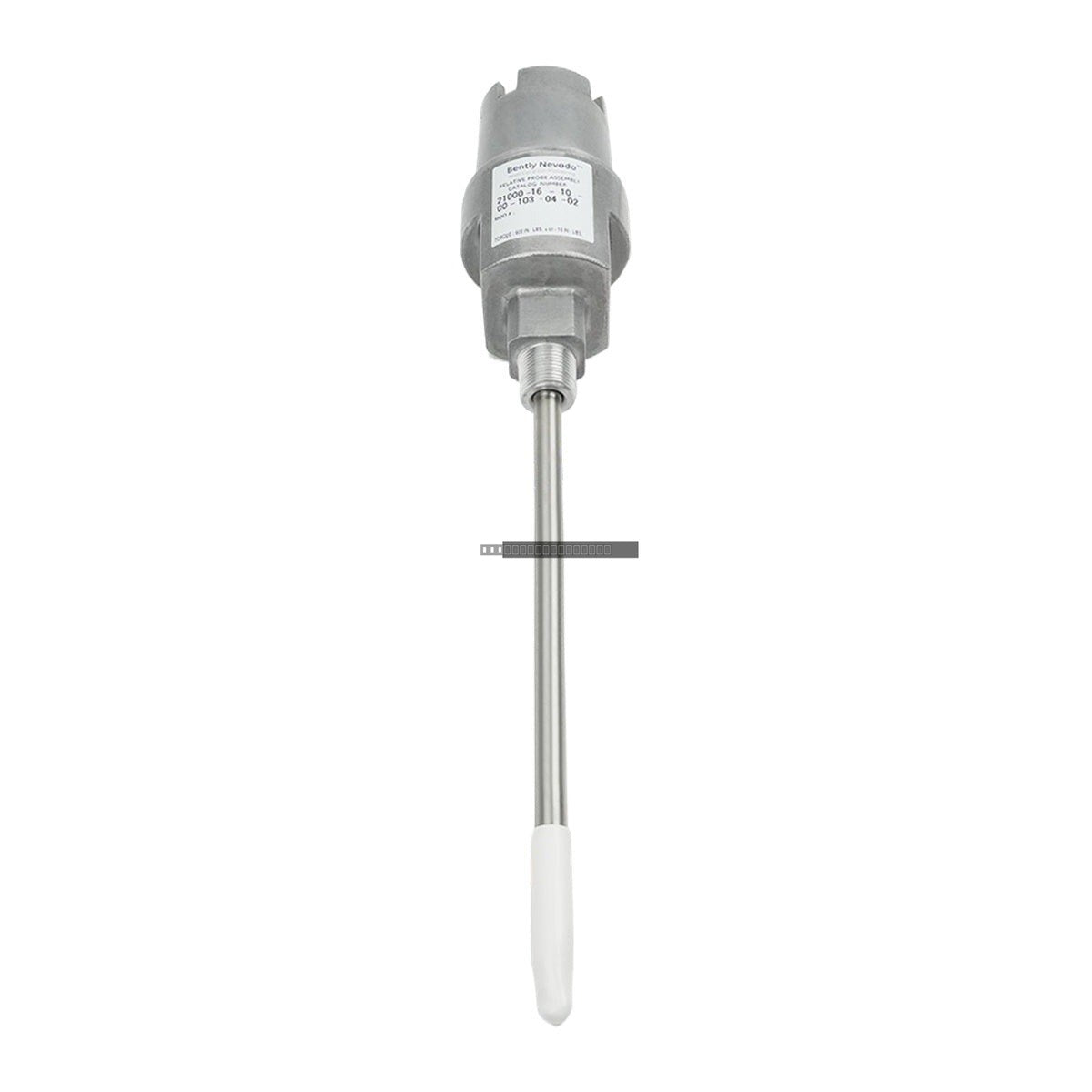

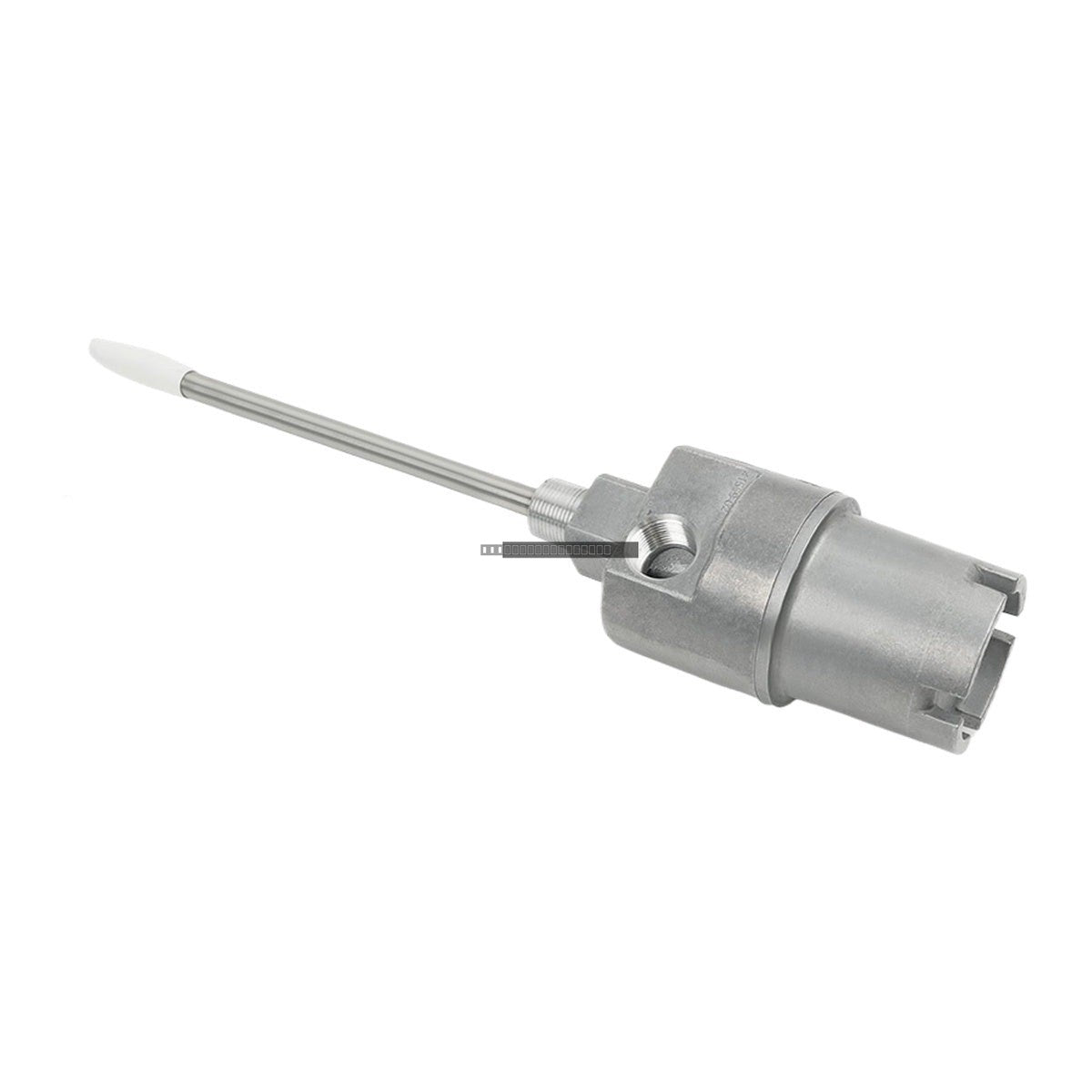

Bently Nevada 21000-16-10-00-103-04-02 Proximity Probe Housing Assembly

Bently Nevada 21000-16-10-00-103-04-02 Proximity Probe Housing Assembly

The Bently Nevada 21000-16-10-00-103-04-02 is a specialized proximity probe housing assembly designed to provide robust mechanical and environmental protection for 3300 XL 8mm proximity probes. This assembly ensures the integrity...

24 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 21000-16-10-00-103-04-02
Proveedora: Bently Nevada
tipo: Proximity Probe Housing Assembly
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 21000-16-10-00-103-04-02 is a specialized proximity probe housing assembly designed to provide robust mechanical and environmental protection for 3300 XL 8mm proximity probes. This assembly ensures the integrity of safety-critical vibration and position measurements in demanding industrial environments by shielding the sensor from process fluids, moisture, and mechanical damage.

Features

  • Designed for 3300 XL 8mm proximity probes.
  • Constructed with a 3/4-14 NPT mounting thread for secure installation.
  • Includes a 1.0 m (39 in) probe cable configuration.
  • Features a 10.3 in (261.62 mm) probe penetration depth.
  • Equipped with one 3/4-14 NPT plug for conduit port sealing.
  • CSA Type 4 enclosure rating for environmental protection.
  • Explosion-proof design suitable for hazardous area applications (Class I, Div 1 & 2, Groups C and D).
  • Compliant with API 670 standards for machinery protection systems.

Applications

  • Oil and Gas: Monitoring of centrifugal and reciprocating compressors in refineries and liquefaction facilities.
  • Electric Power: Protection of steam turbines and critical feedwater pumps in thermal and nuclear power plants.
  • Petrochemicals: Integration with ethylene cracking and ammonia compressor systems.
  • Industrial Manufacturing: Vibration monitoring for large blowers and pump sets in steel mills and water treatment facilities.

Technical Specifications

Model Number 21000-16-10-00-103-04-02
Probe Compatibility 3300 XL 8mm
Probe Cable Length 1.0 m (39 in)
Probe Penetration 10.3 in (261.62 mm)
Mounting Thread 3/4-14 NPT
Fittings One 3/4-14 NPT plug
Standoff Adapter None
Enclosure Rating CSA Type 4

Installation Guidelines

  • Ensure the probe lead is longer than the sleeve length during installation.
  • For sleeve lengths exceeding 304 mm (12 inches), additional mechanical support is required to mitigate vibration-induced fatigue.
  • Verify that all O-rings and thread seals are properly seated to maintain the environmental seal against moisture and contaminants.
  • Always power down the associated monitoring system before installing or removing probe assemblies to prevent electrical faults.
  • Ensure the conduit connection is properly sealed to maintain the explosion-proof integrity of the housing.

FAQ

What is the primary function of the 21000 series housing?

The 21000 housing provides essential mechanical and environmental protection for proximity probes, ensuring accurate data collection for radial vibration and axial position monitoring in rotating machinery.

Is this housing suitable for hazardous locations?

Yes, the 21000 aluminum housing is certified as explosion-proof for hazardous areas (Class I, Div 1 & 2, Groups C and D) and meets CSA Type 4 enclosure requirements.

What is required for probe penetrations less than 1.0 inch?

For applications requiring a probe penetration of less than 25 mm (1.0 in), a separate 21003-020 individual standoff adapter is typically required.
