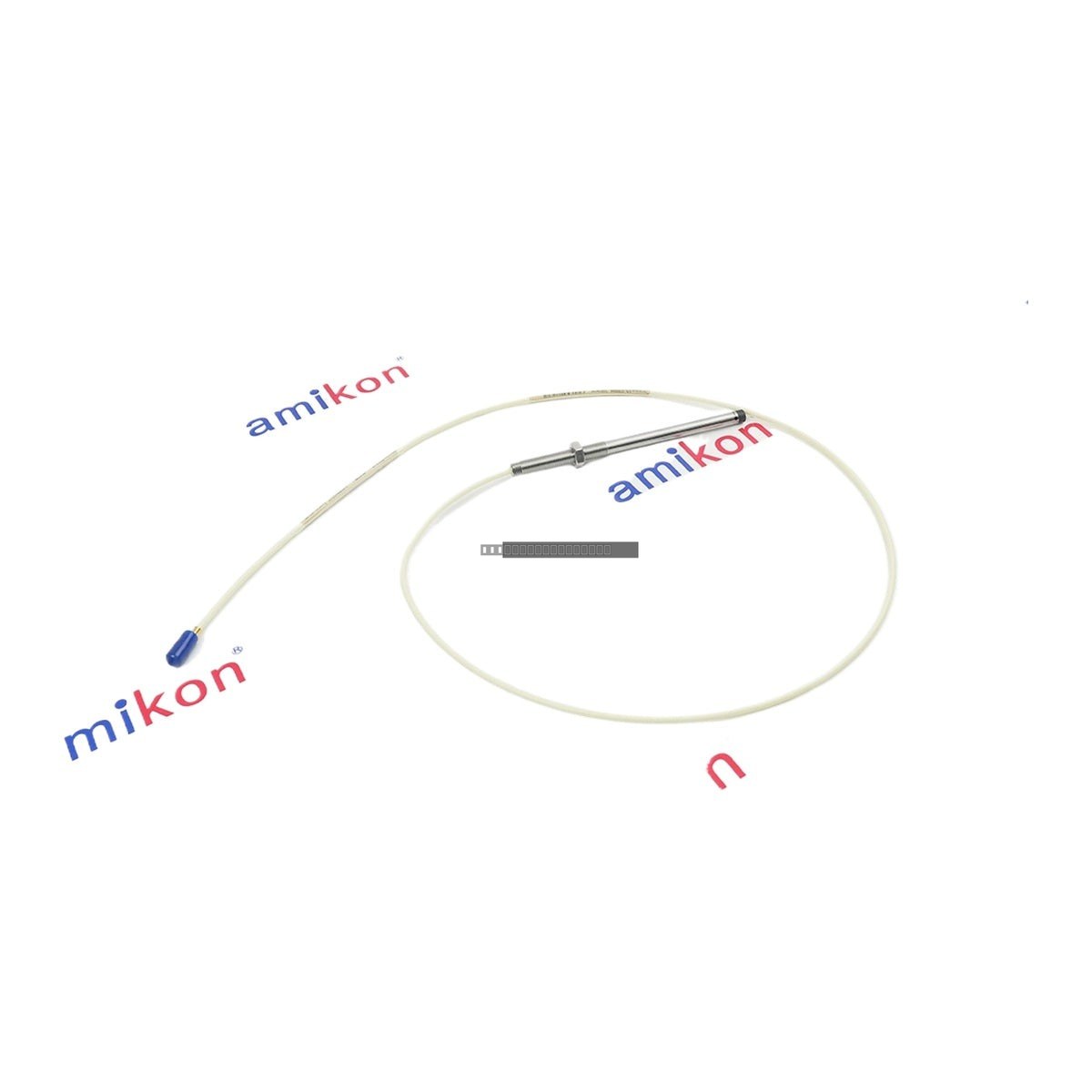

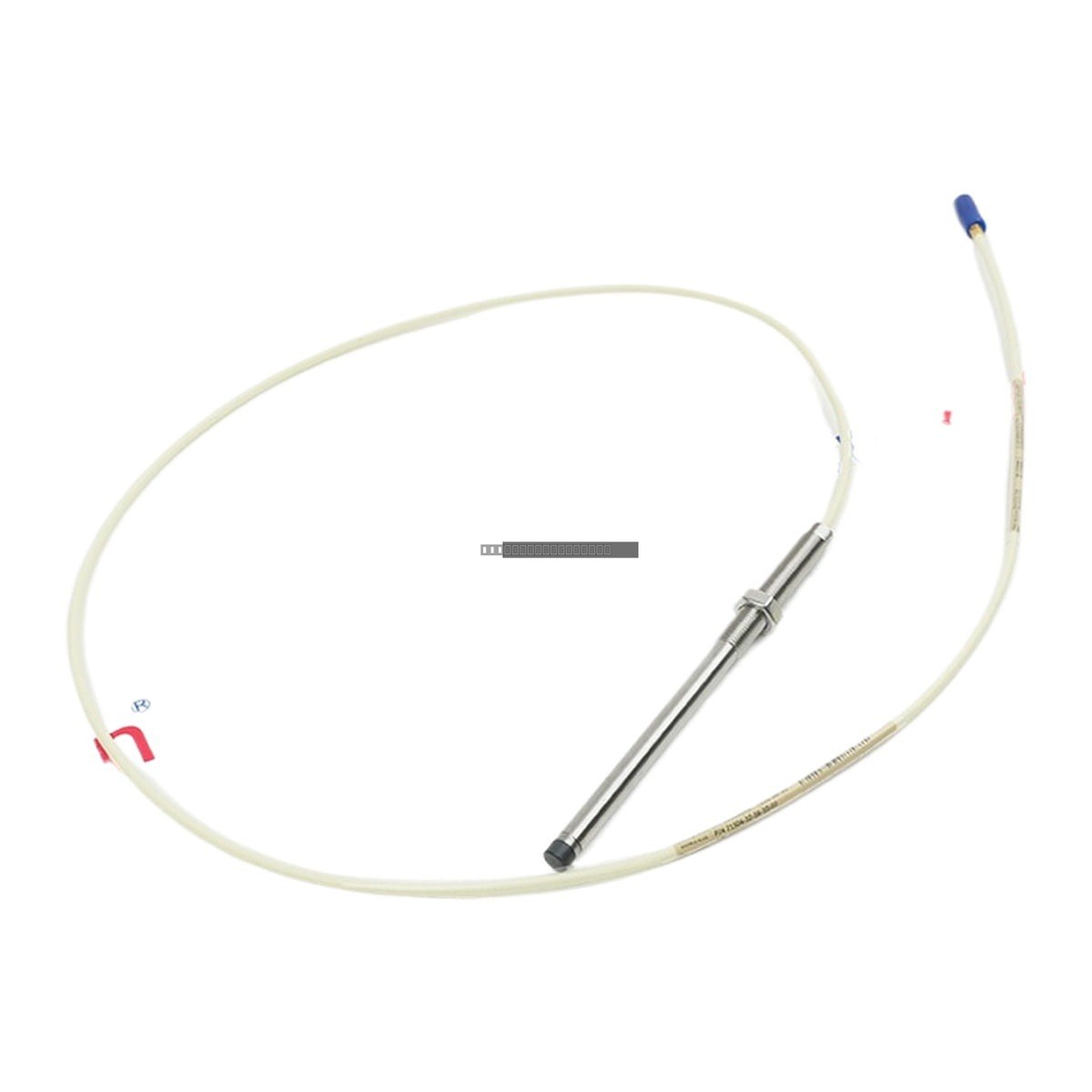

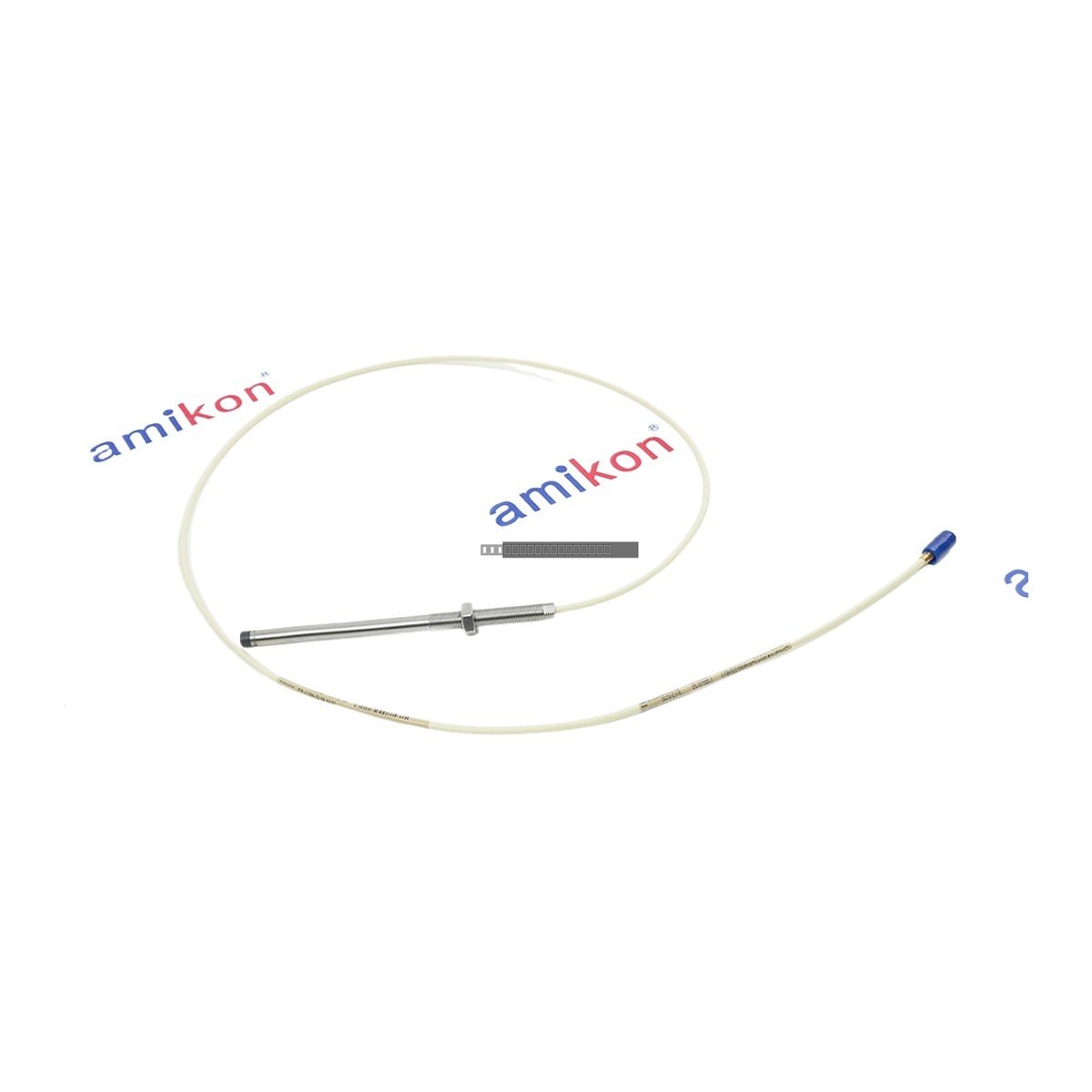

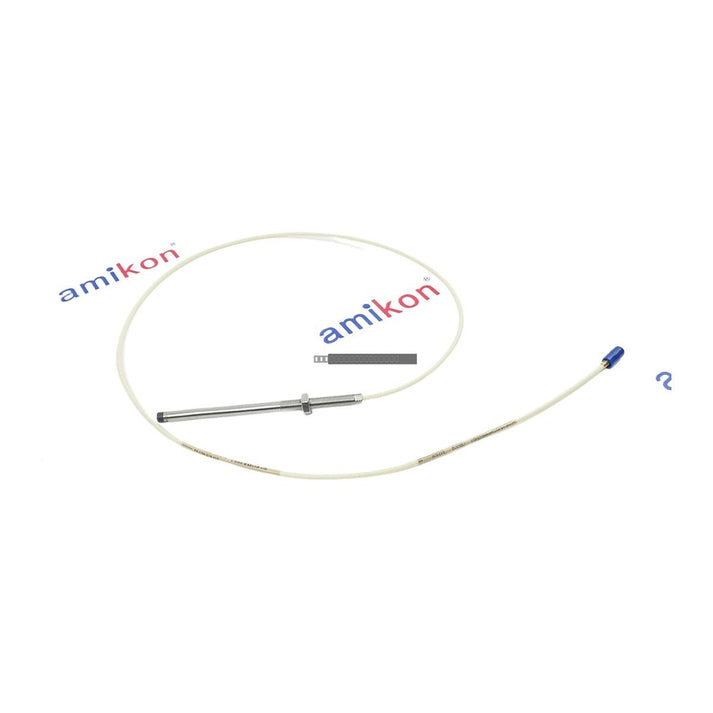

Bently Nevada 21504-32-56-10-02 5mm and 8mm Standard Mount Proximity Probe

Bently Nevada 21504-32-56-10-02 5mm and 8mm Standard Mount Proximity Probe

The Bently Nevada 21504-32-56-10-02 is a precision-engineered 5mm and 8mm standard mount proximity probe designed for non-contact vibration and position monitoring in industrial rotating machinery. As part of the 7200...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 21504-32-56-10-02
Proveedora: Bently Nevada
tipo: Proximity Probe
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Bently Nevada 21504-32-56-10-02 is a precision-engineered 5mm and 8mm standard mount proximity probe designed for non-contact vibration and position monitoring in industrial rotating machinery. As part of the 7200 series transducer system, this probe provides reliable gap-to-voltage measurements, capturing both static and dynamic displacement between the probe tip and the target surface.

Features

  • Non-contacting measurement technology for reduced mechanical wear.
  • Frequency response range from 0 Hz (DC) to 10 kHz.
  • Compatible with standard 7200 series Proximitor systems.
  • Designed for high-accuracy shaft position and vibration analysis.
  • Includes a 1.0-meter integral coaxial cable with a miniature male connector.

Applications

  • Turbines: Monitoring shaft vibration and thrust position in steam and gas turbines.
  • Compressors: Tracking axial and radial shaft movement in centrifugal and process gas compressors.
  • Pumps & Centrifuges: Detecting displacement to prevent bearing and mechanical seal failure.
  • Motors & Generators: Monitoring rotor position and shaft imbalance.

Technical Specifications

Model Number 21504-32-56-10-02
Probe Type 5mm / 8mm Standard Mount
Unthreaded Length 3.2 inches
Case Length 5.6 inches
Cable Length 1.0 metre (39 inches)
Connector Type Miniature male coaxial
Frequency Response 0 Hz to 10 kHz

Installation Guidelines

  • System Compatibility: Ensure the probe, extension cable, and Proximitor are all from the same series (7200 Series) to maintain system calibration.
  • Electrical Length: The total length of the probe cable plus the extension cable must match the calibrated length of the Proximitor (typically 5 or 9 meters).
  • Target Material: Standard probes are factory-calibrated for AISI 4140 steel. Using different target materials will alter the scale factor (nominal 200 mV/mil).
  • Mounting: Ensure the probe is securely mounted to prevent mechanical resonance. Avoid over-tightening the locknuts to prevent damage to the probe threads.
  • Handling: Proximity probes are sensitive electronic components. Handle with care to avoid damaging the probe tip or kinking the coaxial cable.

FAQ

What is the 21504-32-56-10-02 used for?

It is a proximity probe used in 7200 series transducer systems to measure radial vibration, axial position, and speed on rotating machinery by converting gap distance into a proportional voltage signal.

Is this probe compatible with newer systems?

The 7200 series is a legacy system. While it remains in use, many facilities are transitioning to 3300 XL or 3500 series monitoring systems. Always verify your existing system architecture before installation.

Does this probe come with calibration data?

No, this item is supplied as a hardware component. Calibration data, manuals, and additional accessories are not included unless explicitly stated.
